◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51145 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#52726) — 47 parça

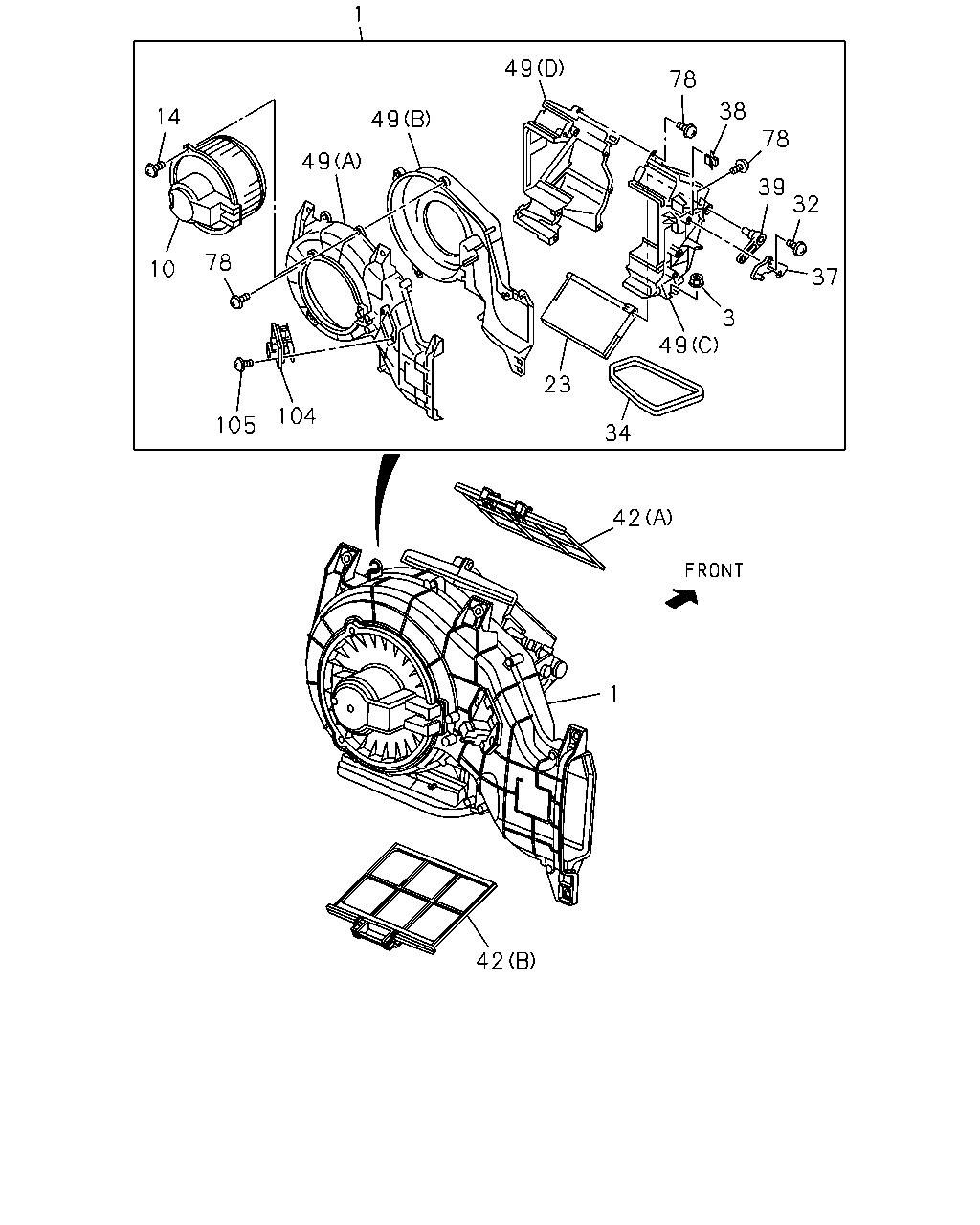

çizim 153717
1 49 78 38 14 49 78 49 39 32 78 10 37 3 49 23 104 105 34 42 1 42
BalonParca AdiParca NoAdetTipApplied Date
1 08.855 BLOWER ASM
AIR CONDITIONER MANUAL CONT(C60) 		8-98031-090-3 01 1 0712-0910
1 08.855 BLOWER ASM
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98031-090-3 01 1 0911-1012
1 08.855 BLOWER ASM
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-592-0 01 1 1101-
3 08.855 NUT; CASE
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-766-0 02 1 0712-0803
3 08.855 NUT; CASE
AIR CONDITIONER MANUAL CONT(C60) 09.190 M8 		1-83539-319-0 02 1 0804-0910
3 08.855 NUT; CASE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 09.190 M8 		1-83539-319-0 02 1 0911-
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-767-0 01 1 0712-0910
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-767-0 01 1 0911-1012
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-924-0 01 1 1101-
14 08.857 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-768-0 03 1 0712-0803
14 08.857 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98047-448-0 03 1 0804-0910
14 08.857 SCREW; COVER TO CASE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98047-448-0 03 1 0911-
23 08.857 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-761-0 01 1 0712-0910
23 08.857 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-761-0 01 1 0911-
32 08.856 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 01 1 0712-0910
32 08.856 SCREW; LEVER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 01 1 0911-
34 08.856 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-764-0 01 1 0712-0910
34 08.856 LINING; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-764-0 01 1 0911-
37 09.786 LEVER; MODE LEVER
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-765-0 01 1 0712-0910
37 09.786 LEVER; MODE LEVER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-765-0 01 1 0911-
38 09.787 CLIP; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-432-0 01 1 0712-0803
38 09.787 CLIP; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.854 		8-98047-417-0 01 1 0804-0910
38 09.787 CLIP; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.854 		8-98047-417-0 01 1 0911-
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-763-0 01 1 0712-0803
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-454-0 01 1 0804-0910
39 09.786 LEVER; SHUTTER,BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-454-0 01 1 0911-
42 08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97387-096-1 01 1 0712-0910
42 08.857 FILTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97387-096-1 01 1 0911-1002
42 08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97387-096-1 01 1 1003-
42 08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98025-006-1 01 1 0712-0910
42 08.857 FILTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98025-006-1 01 1 0911-
49 08.857 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98047-757-0 01 1 0712-0910
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98047-757-0 01 1 0911-
49 08.857 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-758-0 01 1 0712-0910
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-758-0 01 1 0911-
49 08.857 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-759-0 01 1 0712-0910
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-759-0 01 1 0911-
49 08.857 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-760-0 01 1 0712-0910
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-760-0 01 1 0911-
78 08.857 SCREW; CASE TO CASE
AIR CONDITIONER MANUAL CONT(C60) 08.845 M4X16 		8-98047-418-0 19 1 0712-0803
78 08.857 SCREW; CASE TO CASE
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 19 1 0804-0910
78 08.857 SCREW; CASE TO CASE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 19 1 0911-
104 08.855 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-113-0 01 1 0712-0910
104 08.855 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-113-0 01 1 0911-
105 08.855 SCREW; RESISTOR
AIR CONDITIONER MANUAL CONT(C60) 08.845 M4X16 		8-98047-418-0 02 1 0712-0803
105 08.855 SCREW; RESISTOR
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 02 1 0804-0910
105 08.855 SCREW; RESISTOR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 02 1 0911-
