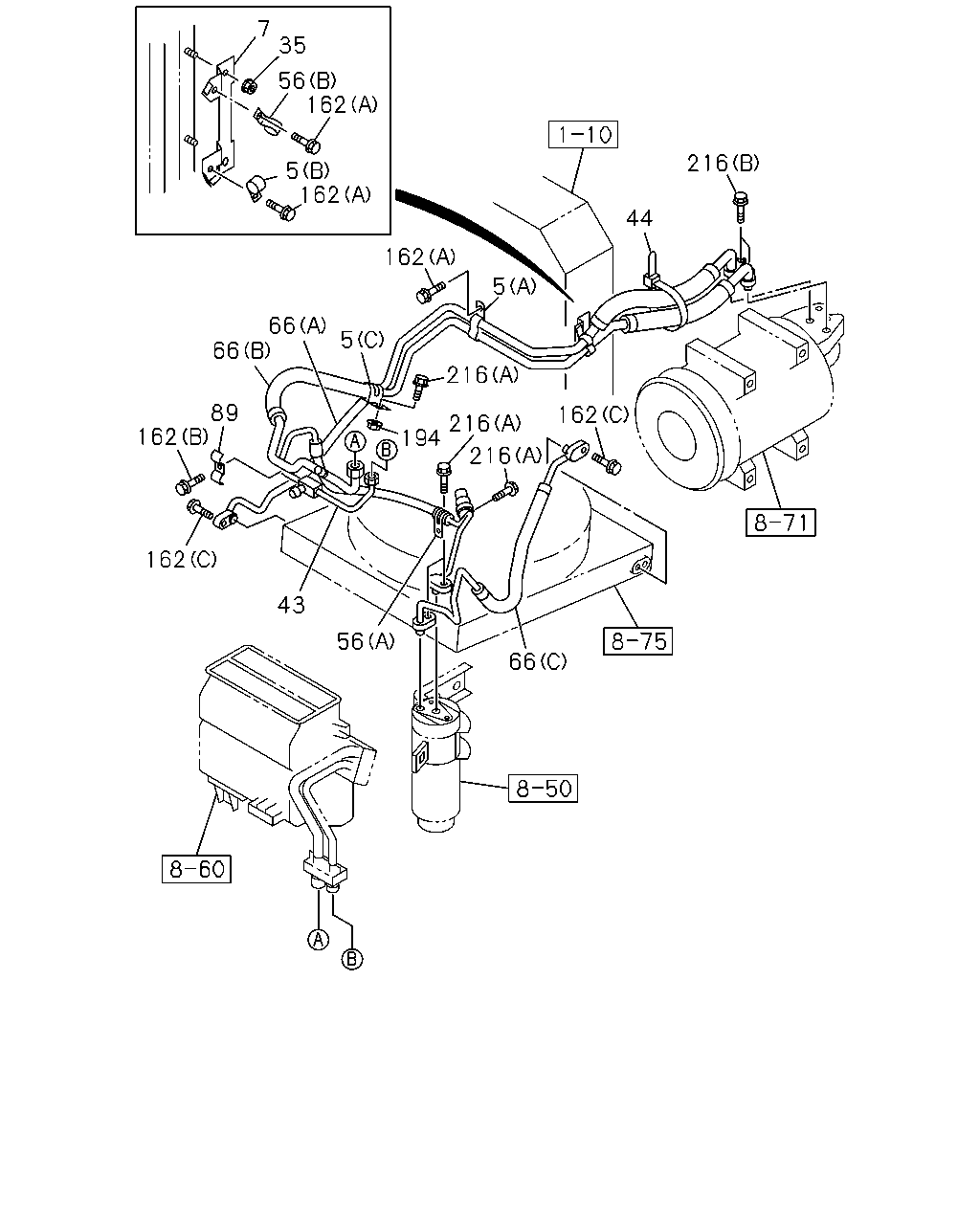

8-52 — PIPING; AIR CONDITIONING (#52722) — 40 parça

50 202 43 148 147 50 66 67 67 147 148 67 66 67 67 66 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98088-339-1	01	1	0712-
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	0712-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-205-2	01	1	0712-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98001-206-1	01	1	0712-1009
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-596-1	01	1	1010-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) FRT INDEPENDENT SUSPENSION(FF0) (C) HIGH PRESSURE	8-98001-204-1	01	1	0712-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) HIGH PRESSURE	8-98038-579-3	01	1	0712-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	0712-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	0712-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	0712-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) FRT INDEPENDENT SUSPENSION(FF0) 09.225 (D) ID=7.4	8-97095-906-0	02	1	0712-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.222 (D) ID=7.5	1-83539-316-0	02	1	0712-
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	0712-
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	0712-
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	0712-
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	0712-
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	0712-

7 35 56 162 216 5 162 44 162 5 66 66 5 216 89 162 162 216 194 216 162 43 56 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	0712-
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98038-798-0	01	1	0712-
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98052-857-0	01	1	0712-
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	0712-
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98088-339-1	01	1	0712-
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	02	1	0712-
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	0712-
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98032-641-0	01	1	0712-
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	0712-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-205-2	01	1	0712-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98001-206-1	01	1	0712-1009
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-596-1	01	1	1010-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) FRT INDEPENDENT SUSPENSION(FF0) (C) HIGH PRESSURE	8-98001-204-1	01	1	0712-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) HIGH PRESSURE	8-98038-579-3	01	1	0712-
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98029-613-0	01	1	0712-1009
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	01	1	1010-
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0712-
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0712-
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	0712-
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	04	1	0712-
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-
