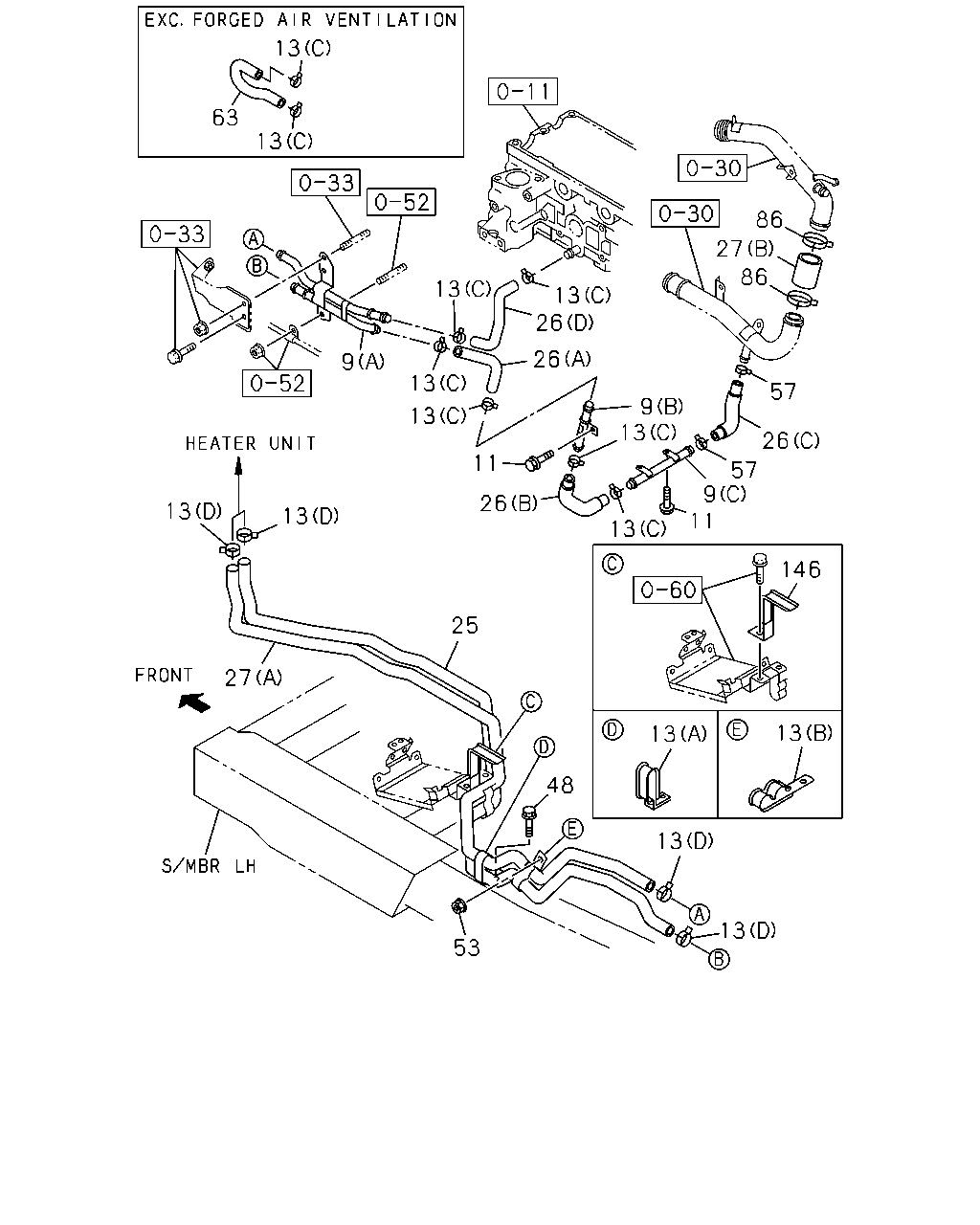

8-45 — HEATER PIPING (#52720) — 31 parça

13 63 13 86 27 86 13 13 26 26 9 13 57 9 13 13 26 11 57 9 11 26 13 13 13 146 25 27 13 13 48 13 13 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	08.846 PIPE; HTR (B)	8-97381-481-3	01	1	0712-
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	0712-
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	0712-
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0712-
13	08.846 CLIP; HTR HOSE EXC. AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0911-
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	0712-
13	08.846 CLIP; HTR HOSE 03.278 (D) ID=22	8-97359-141-0	04	1	0712-1001
13	08.846 CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1002-
13	08.846 CLIP; HTR HOSE (A)	8-98029-678-0	01	1	0712-1001
13	08.846 CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98029-678-0	01	1	1002-
13	08.846 CLIP; HTR HOSE (B)	8-98040-023-0	01	1	0712-1001
13	08.846 CLIP; HTR HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1002-
25	08.846 HOSE; WATER,ENG TO HTR UNIT	8-97383-988-1	01	1	0712-1001
25	08.846 HOSE; WATER,ENG TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97383-988-1	01	1	1002-
26	08.846 HOSE; HTR (A)	0-03516-240-0	01	1	0712-0910
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	0911-
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	0712-
26	08.846 HOSE; HTR (B)	8-98000-099-1	01	1	0712-
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	0712-
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (A)	8-97383-989-1	01	1	0712-1001
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI AIR CONDITIONER MANUAL CONT(C60) (A)	8-97383-989-1	01	1	1002-
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98009-701-0	01	1	0712-
48	09.262 BOLT; CLIP FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0712-1001
48	09.262 BOLT; CLIP FIX AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1002-
53	08.845 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-1001
53	08.845 NUT; HOSE CLIP AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1002-
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	0712-
63	08.846 HOSE; WATER EXC. AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	0911-
86	08.846 CLIP; HTR HOSE 01.166 ID=40.5	8-97313-472-0	02	1	0712-
146	08.846 BRACKET; HTR HOSE	8-98060-001-0	01	1	0712-1001
146	08.846 BRACKET; HTR HOSE AIR CONDITIONER MANUAL CONT(C60)	8-98060-001-0	01	1	1002-
