◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#5272) — 38 parça

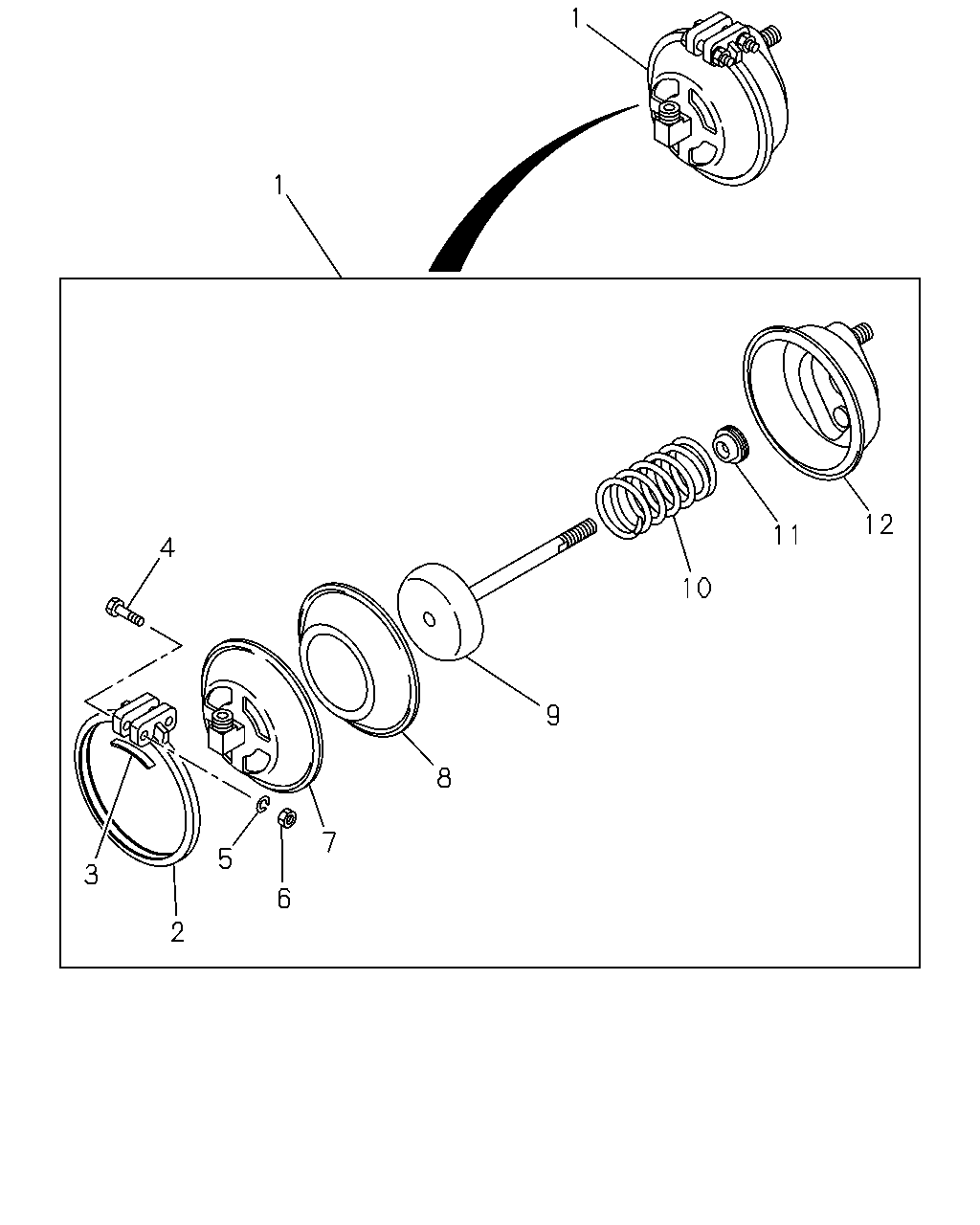

çizim 40035
1 1 12 11 4 10 9 8 7 5 3 6 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48250-338-0 02 1 9603-9910 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48250-338-0 02 1 9911- ● ●
1 CHAMBER ASM; POWER,FRT BRK
INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48250-338-0 01 1 9603-9910 ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48250-338-0 01 1 9911- ● ●
1 CHAMBER ASM; POWER,FRT BRK
INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48250-524-0 01 1 9603-9910 ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48250-524-0 01 1 9911- ● ●
2 RING; CLAMP,SPR CHAMBER 1-48259-001-0 02 1 9603-9910 ● ●
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-001-0 02 1 9911- ● ●
3 RETAINER; DIAPH
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		9-48259-016-0 04 1 9603-9910 ● ●
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		9-48259-016-0 04 1 9911- ● ●
3 RETAINER; DIAPH
INTERNATIONAL STANDARD ISO 10STUD<B3V> 		9-48259-016-0 03 1 9603-9910 ●
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> 		9-48259-016-0 03 1 9911- ● ●
4 BOLT; CLAMP RING 1-48259-002-0 04 1 9603-9910 ● ●
4 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-002-0 04 1 9911- ● ●
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 9603-9910 ● ●
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2 		9-09150-510-0 04 1 9911- ● ●
6 NUT; CLAMP RING
M10 		9-09110-010-0 04 1 9603-9910 ● ●
6 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 		9-09110-010-0 04 1 9911- ● ●
7 COVER ASM; UPR,SPR CHAMBER
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48251-039-0 02 1 9603-9910 ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48251-039-0 02 1 9911- ● ●
7 COVER ASM; UPR,SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48251-039-0 01 1 9603-9910 ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48251-039-0 01 1 9911- ● ●
7 COVER ASM; UPR,SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48251-007-0 01 1 9603-9910 ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48251-007-0 01 1 9911- ● ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-006-0 02 1 9603-9910 ● ●
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-006-0 02 1 9911- ● ●
9 PISTON; SPR CHAMBER 1-48253-001-0 02 1 9603-9910 ● ●
9 PISTON; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48253-001-0 02 1 9911- ● ●
10 SPRING; PISTON,SPR CHAMBER 1-48255-001-0 02 1 9603-9910 ● ●
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-001-0 02 1 9911- ● ●
11 SEAL; PISTON,SPR CHAMBER 1-48252-025-0 02 1 9603-9910 ● ●
11 SEAL; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-025-0 02 1 9911- ● ●
12 COVER ASM; LWR,SPR CHAMBER
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48251-019-0 02 1 9603-9910 ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48251-019-0 02 1 9911- ● ●
12 COVER ASM; LWR,SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48251-019-0 01 1 9603-9910 ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48251-019-0 01 1 9911- ● ●
12 COVER ASM; LWR,SPR CHAMBER
INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48251-018-0 01 1 9603-9910 ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-48251-018-0 01 1 9911- ● ●
