◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51145 - NHR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#52717) — 14 parça

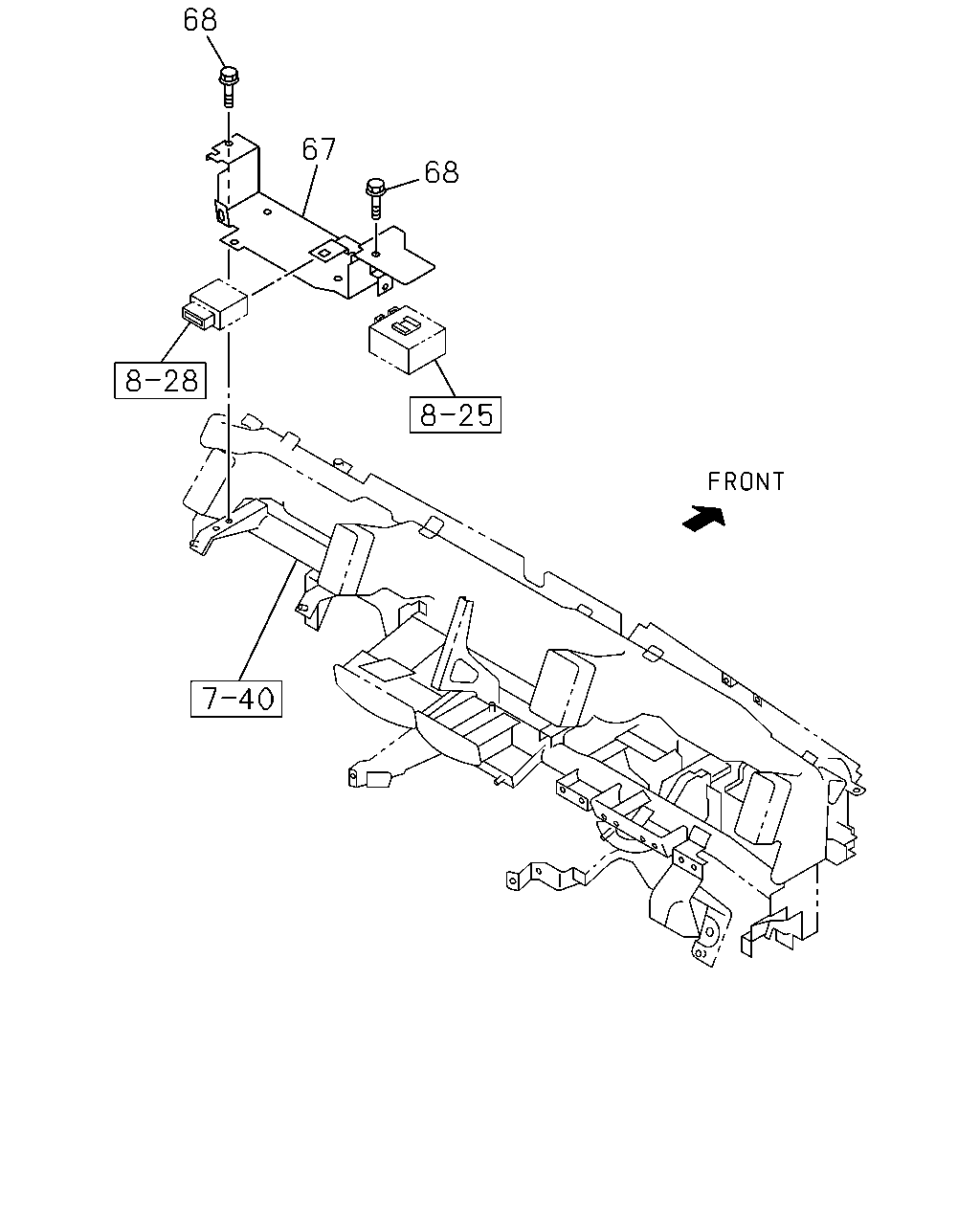

çizim 153686
68 67 68
BalonParca AdiParca NoAdetTipApplied Date
67 03.887 BRACKET; CONT UNIT 8-98074-793-1 01 1 0712-1212
67 03.887 BRACKET; CONT UNIT 8-98237-553-0 01 1 1301-1404
67 03.887 BRACKET; CONT UNIT 8-98074-793-1 01 1 1405-
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 02 1 0712-

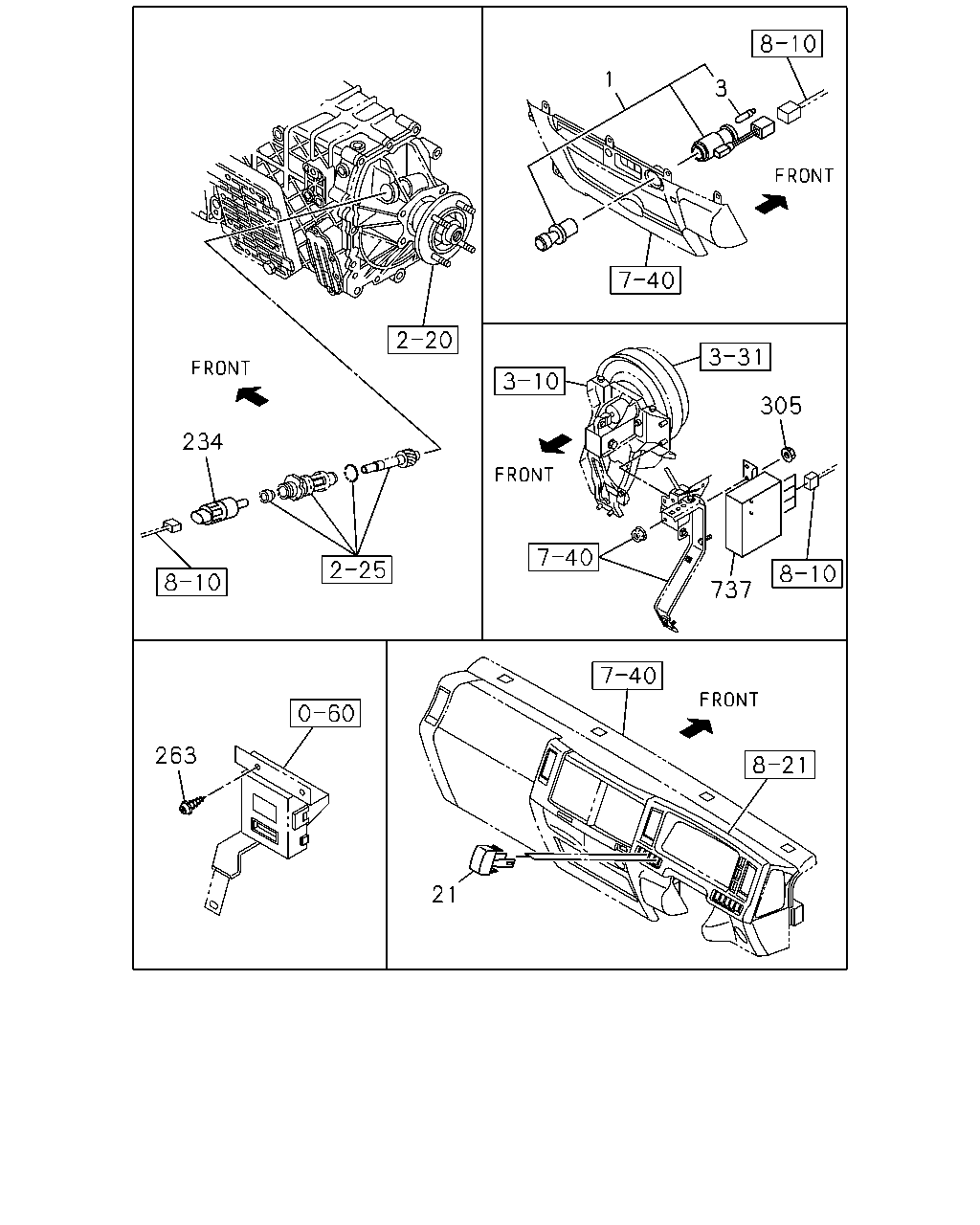

çizim 153706
1 3 305 234 737 263 21
BalonParca AdiParca NoAdetTipApplied Date
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0712-0906
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 0907-
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0712-0906
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 0712-
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0712-
263 04.115 BOLT; CONT UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712-1101
263 04.115 BOLT; CONT UNIT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212
263 04.115 BOLT; CONT UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0712-
737 04.115 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98067-710-6 01 1 0712-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
