Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶
8-21 — METER ASM
(#52715) — 18 parça
◀

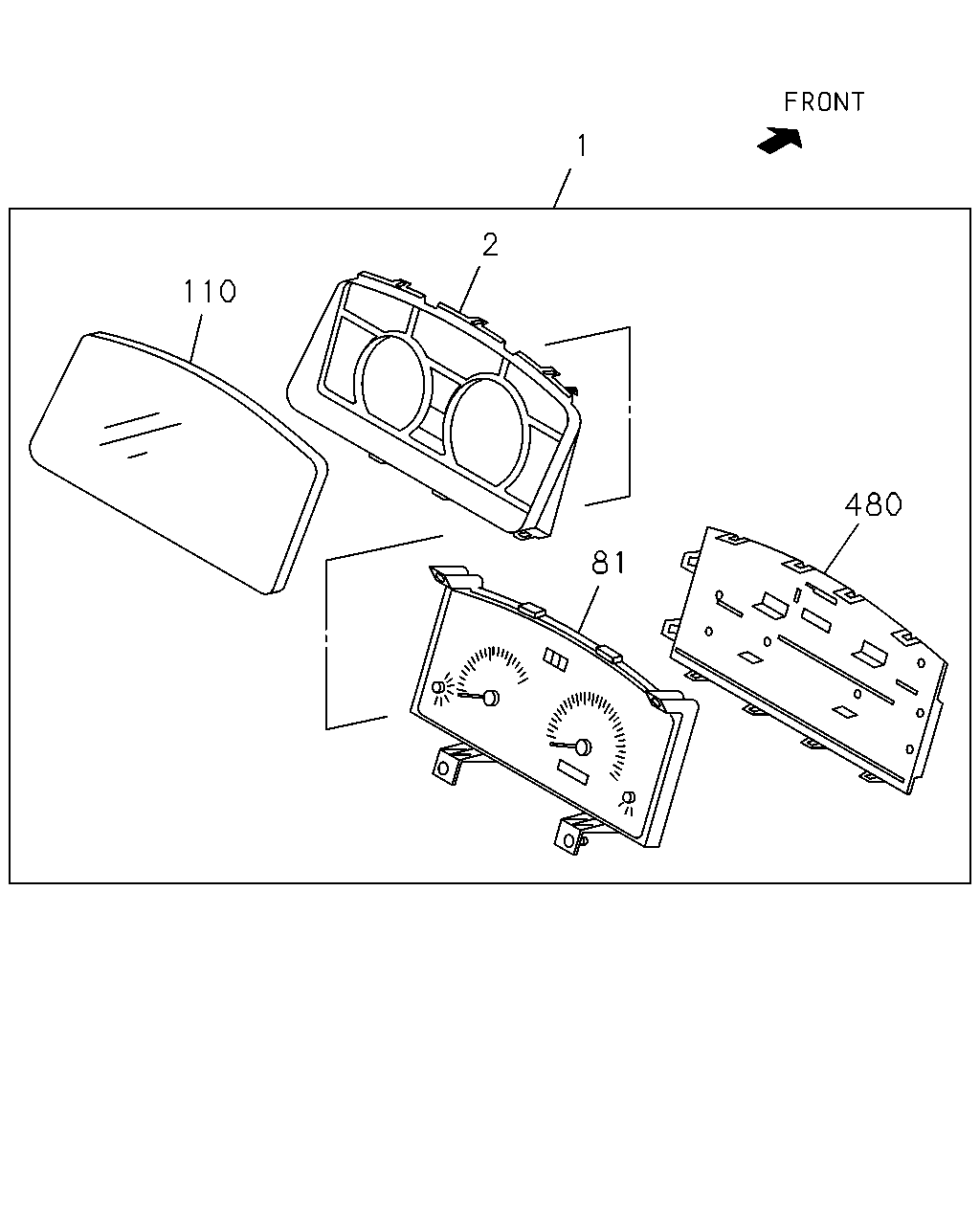

[821A] NO.2 (7 parça)

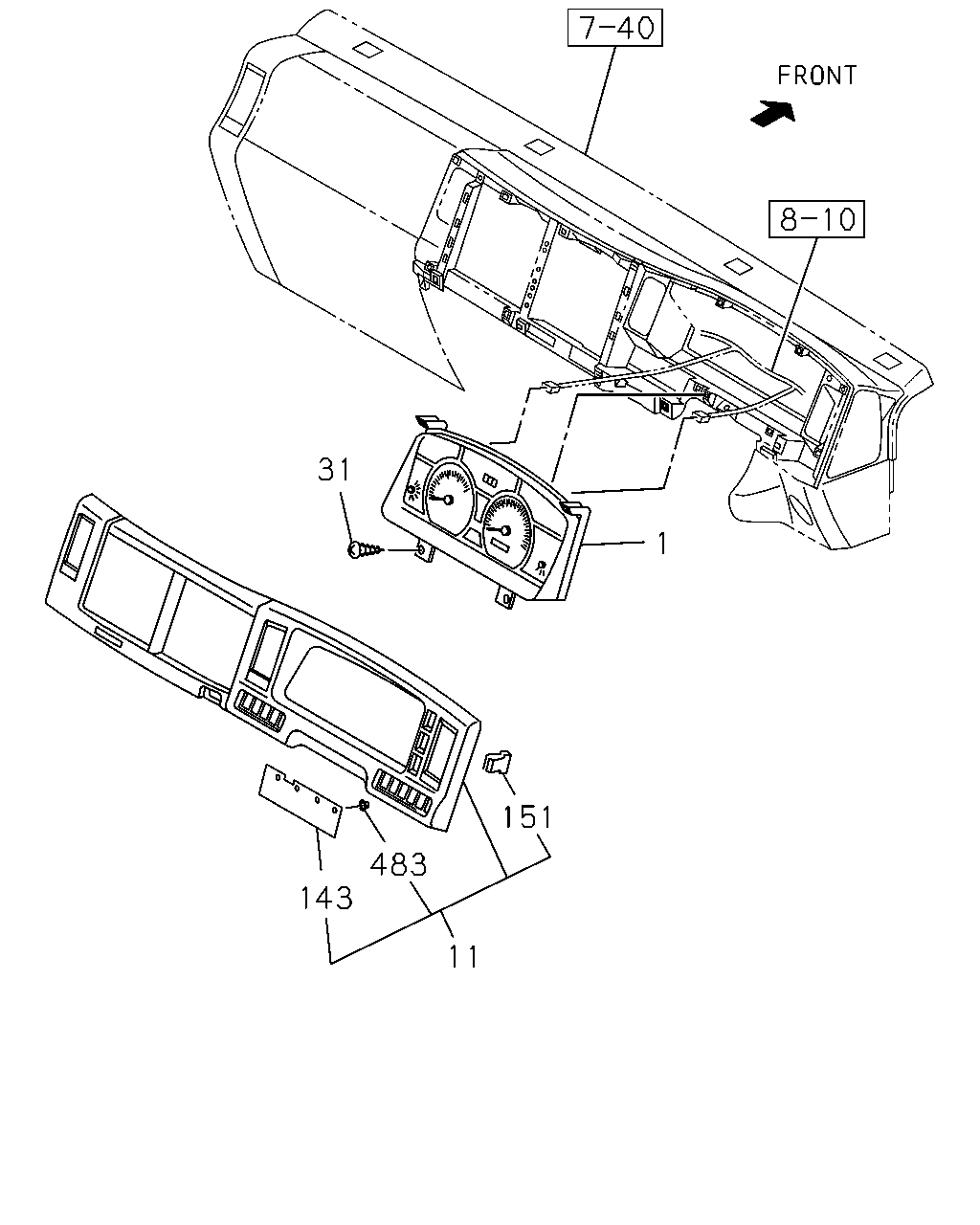

[821A] NO.1 (11 parça)
▶
1
2
110
480
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98021-249-4
01
1
0712-
1
09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98021-251-4
01
1
0712-
2
09.735 PANEL; CLUSTER
8-98054-432-0
01
1
0712-
81
09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98073-677-0
01
1
0712-
81
09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98073-680-0
01
1
0712-
110
09.748 GLASS; CLUSTER METER
8-98054-431-0
01
1
0712-
480
09.748 COVER; METER
BLACK
8-98054-433-0
01
1
0712-
31
1
151
483
143
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98021-249-4
01
1
0712-
1
09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98021-251-4
01
1
0712-
11
09.743 CLUSTER ASM; METER
DARK GRAY
8-97406-368-4
01
1
0712-1002
11
09.743 CLUSTER ASM; METER
DARK GRAY
8-97421-767-0
01
1
1003-
31
09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
0712-1101
31
09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
04
1
1102-1212
31
09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1301-
143
09.715 COVER; CLUSTER METER
8-98061-548-0
01
1
0712-0805
143
09.715 COVER; CLUSTER METER
8-98116-841-0
01
1
0806-
151
09.747 CLIP; METER CLUSTER
16.085
8-98021-271-0
12
1
0712-
483
09.761 FASTENER; CLUSTER
8-98063-409-0
03
1
0712-
