8-15 — FIXING PARTS; WIRING HARNESS (#52714) — 138 parça

16 16 16 22 22 48 504 507 513

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	02	1	0804-1009
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=155	8-97173-307-0	09	1	1010-1405
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	02	1	1406-
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0712-
16	02.559 CLIP; HARNESS 03.483 (A) ID=6 & 10	8-94154-844-0	01	1	0712-
16	02.559 CLIP; HARNESS 02.694 (C) ID=6 & 10-13	8-97069-515-0	01	1	0712-1202
16	02.559 CLIP; HARNESS FOG LAMP<T96> 02.694 (C) ID=6 & 10-13	8-97069-515-0	01	1	0712-1202
16	02.559 CLIP; HARNESS 02.694 (C) ID=6 & 10-13	8-97069-515-0	01	1	1203-
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	02	1	0712-0803
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	02	1	0712-0803
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	03	1	0804-1009
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=155	8-97173-307-0	11	1	1010-1405
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	03	1	1406-
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=155	8-97173-307-0	09	1	0712-1009
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=155	8-97173-307-0	09	1	0712-1009
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	02	1	1010-1405
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	02	1	1010-1405
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=155	8-97173-307-0	09	1	1406-
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=155	8-97173-307-0	09	1	1406-
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=36.5	8-97019-892-0	01	1	0712-
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=36.5	8-97019-892-0	01	1	0712-
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 04.866 (H) ID=18 & 18	8-94323-068-0	01	1	0801-0801
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0712-
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0712-
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0712-
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0712-
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0712-
22	02.559 CLIP; ENG HARNESS 04.104 (C) ID=12 & 6.8	8-97125-842-0	01	1	0712-
22	02.559 CLIP; ENG HARNESS (G) ID=34	8-98069-482-0	01	1	0712-
48	02.559 CLIP; FRAME HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	07	1	0712-
48	02.559 CLIP; FRAME HARNESS (D) ID=20	8-94241-972-0	01	1	0712-
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 9	8-97371-947-0	01	1	0712-
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	01	1	0712-
504	02.559 PROTECTOR; HARNESS	8-98208-886-0	01	1	1201-
507	02.559 FINISHER 03.885 L=50	8-94270-377-1	01	1	0712-
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309

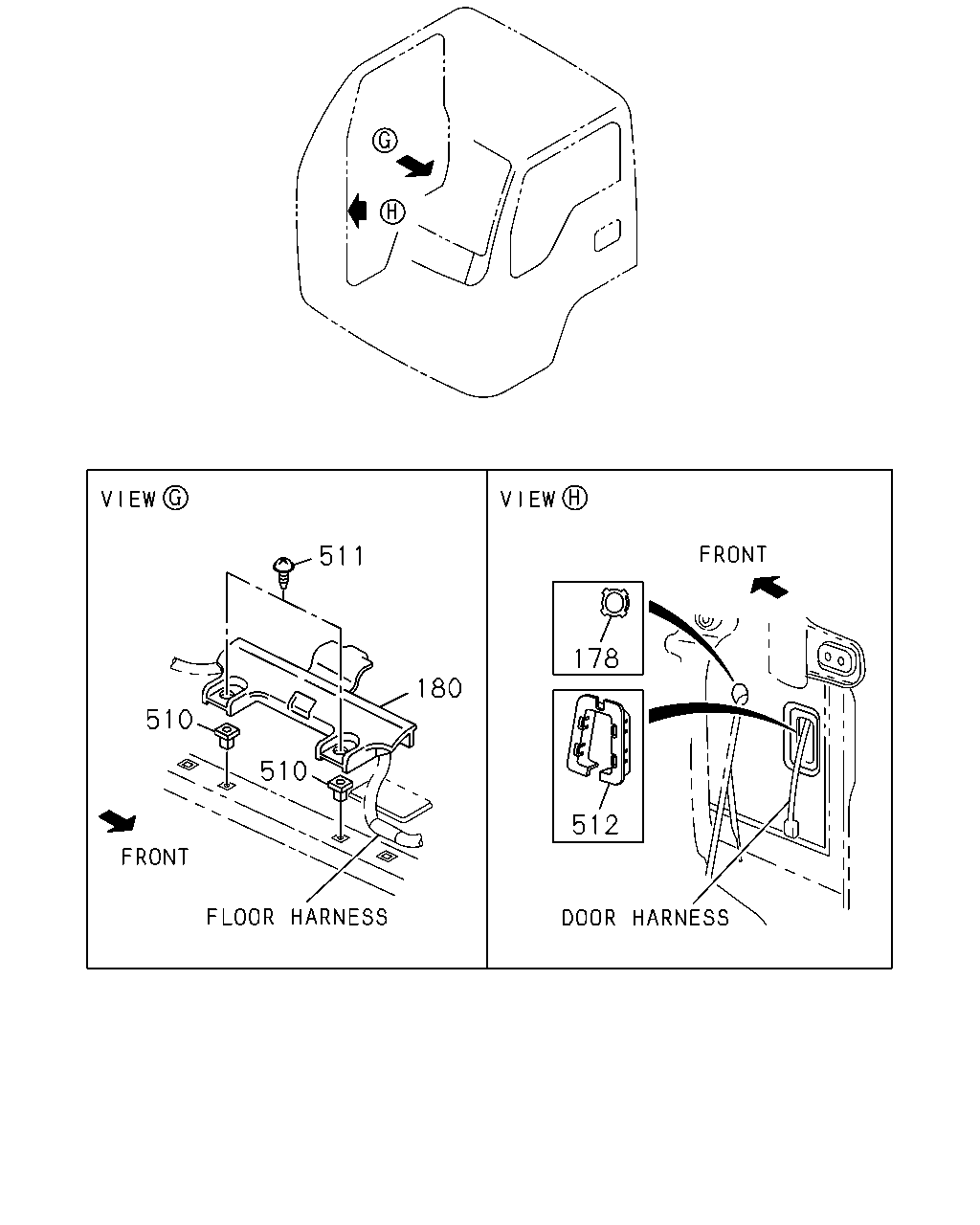

511 178 180 510 510 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0712-
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0712-
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0712-
511	02.559 SCREW; HARNESS COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0712-
512	02.559 PROTECTOR; HARNESS	8-97072-950-0	02	1	0712-

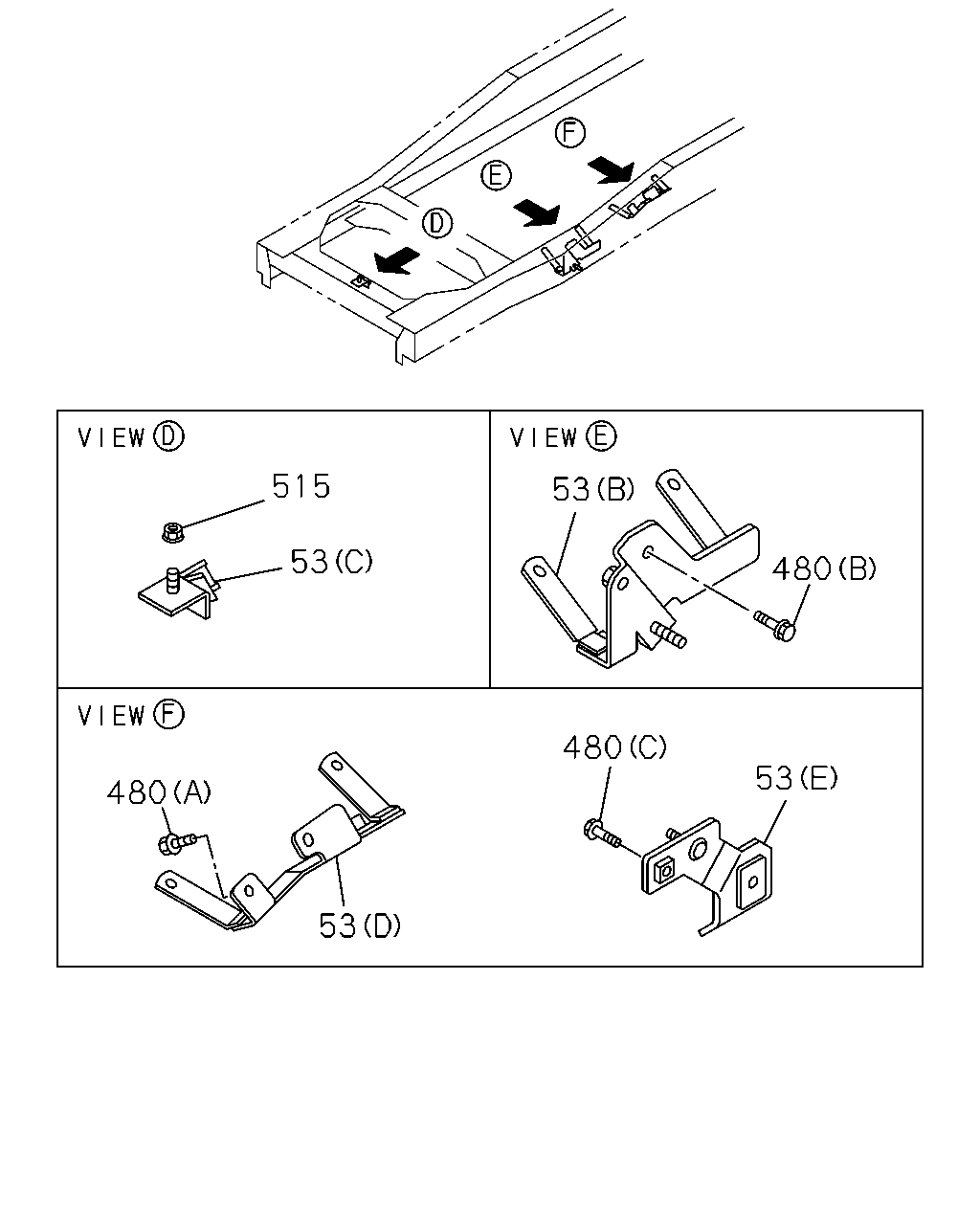

515 53 53 480 480 53 480 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0712-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0712-
53	02.483 BRACKET; HARNESS (E)	8-98072-739-1	01	1	0712-0712
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	0712-
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98052-900-1	01	1	0712-
480	02.483 BOLT; BRKT 00.029 (C) M10X25 FLANGE	0-28651-025-0	01	1	0712-0712
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0712-
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-
515	02.559 NUT; BRKT M8 FLANGE	8-98040-024-0	01	1	0712-

365 516 313 480 38 139 516 480 242 529 480 377 386 377 386 386 386 24 577 219 294 515 552 552 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-1409
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
38	02.559 BOLT; CLIP,HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0712-
139	02.559 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0712-
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0712-
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0712-
365	02.559 BOLT; CLAMP,HARNESS CONNECTOR 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0712-
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0712-1004
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0712-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0712-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
480	02.483 BOLT; BRKT 00.029 (C) M10X25 FLANGE	0-28651-025-0	01	1	0712-0712
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0712-
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-
511	02.559 SCREW; HARNESS COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0712-
515	02.559 NUT; BRKT M8 FLANGE	8-98040-024-0	01	1	0712-
516	02.559 BOLT; HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0712-
516	02.559 BOLT; HARNESS 09.650 (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0712-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0712-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0712-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0712-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0712-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0712-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0712-

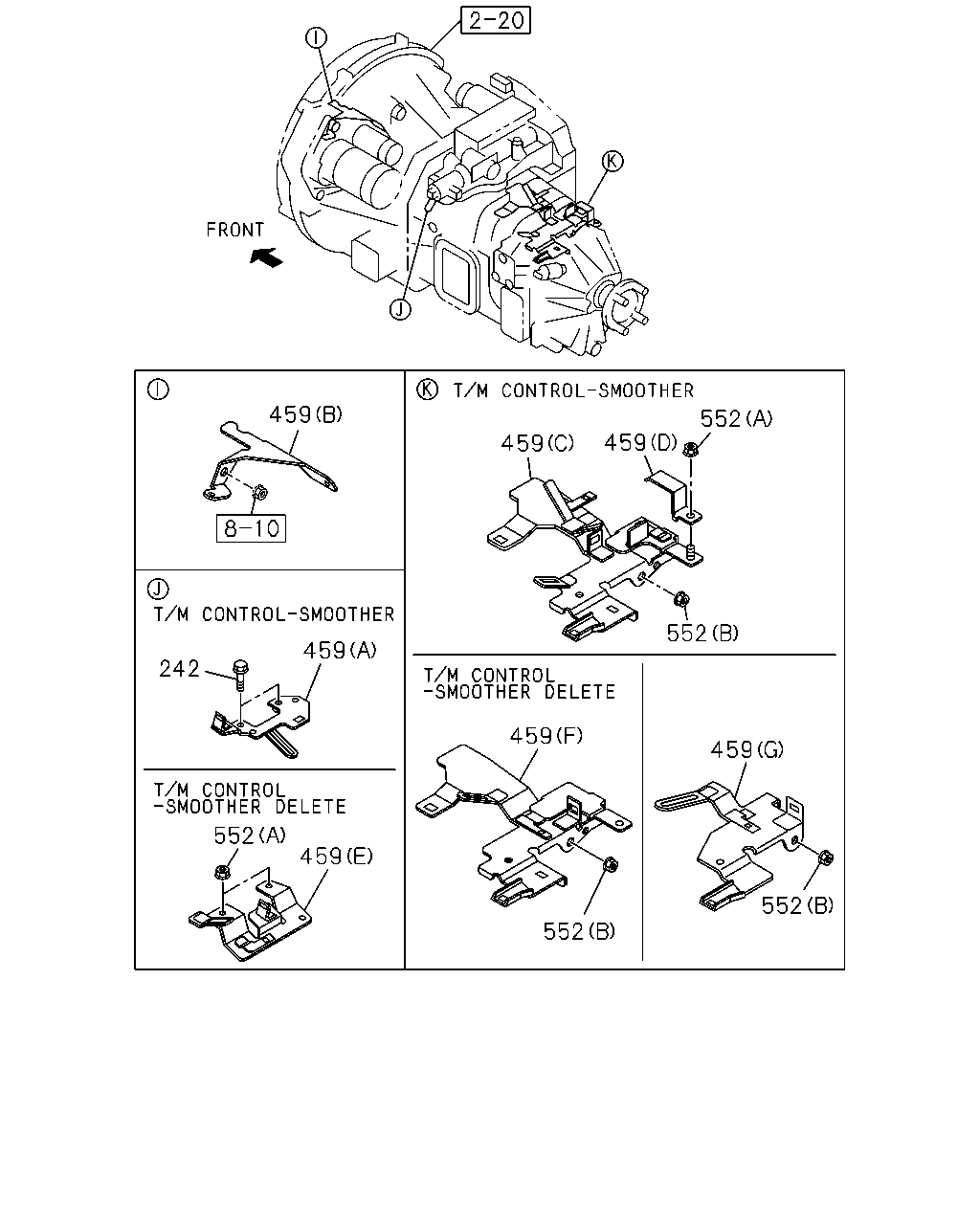

459 552 459 459 552 459 242 459 459 552 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0712-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	0712-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	0712-1109
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98196-974-0	01	1	1110-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	0712-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	0712-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	0712-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0712-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0712-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0712-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0712-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0712-

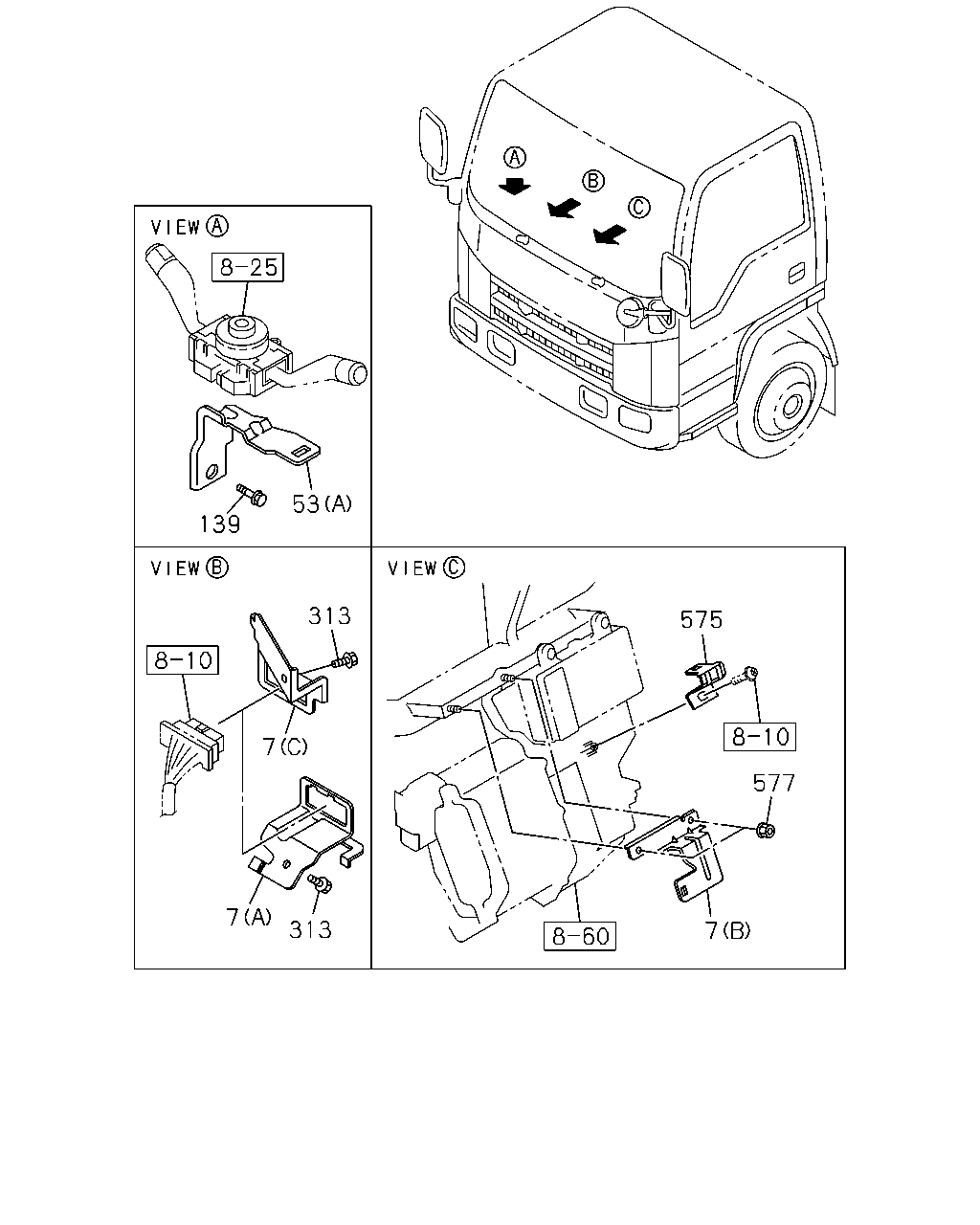

53 139 313 575 7 577 7 313 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR (B)	8-98029-762-4	01	1	0712-
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98043-072-1	01	1	0712-
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-071-1	01	1	0712-0803
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98114-514-0	01	1	0804-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0712-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0712-
53	02.483 BRACKET; HARNESS (E)	8-98072-739-1	01	1	0712-0712
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	0712-
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98052-900-1	01	1	0712-
139	02.559 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0712-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0712-
575	02.559 BRACKET; FUSE BOX	8-98052-866-2	01	1	0712-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0712-

22 22 617 488 16 22 22 22 48 16 22 16 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	02	1	0804-1009
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=155	8-97173-307-0	09	1	1010-1405
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	02	1	1406-
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0712-
16	02.559 CLIP; HARNESS 03.483 (A) ID=6 & 10	8-94154-844-0	01	1	0712-
16	02.559 CLIP; HARNESS 02.694 (C) ID=6 & 10-13	8-97069-515-0	01	1	0712-1202
16	02.559 CLIP; HARNESS FOG LAMP<T96> 02.694 (C) ID=6 & 10-13	8-97069-515-0	01	1	0712-1202
16	02.559 CLIP; HARNESS 02.694 (C) ID=6 & 10-13	8-97069-515-0	01	1	1203-
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	02	1	0712-0803
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	02	1	0712-0803
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	03	1	0804-1009
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=155	8-97173-307-0	11	1	1010-1405
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	03	1	1406-
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=155	8-97173-307-0	09	1	0712-1009
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=155	8-97173-307-0	09	1	0712-1009
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	02	1	1010-1405
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=15	8-94315-436-1	02	1	1010-1405
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=155	8-97173-307-0	09	1	1406-
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=155	8-97173-307-0	09	1	1406-
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=36.5	8-97019-892-0	01	1	0712-
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=36.5	8-97019-892-0	01	1	0712-
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 04.866 (H) ID=18 & 18	8-94323-068-0	01	1	0801-0801
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	0712-
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0712-
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	0712-
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0712-
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0712-
22	02.559 CLIP; ENG HARNESS 04.104 (C) ID=12 & 6.8	8-97125-842-0	01	1	0712-
22	02.559 CLIP; ENG HARNESS (G) ID=34	8-98069-482-0	01	1	0712-
48	02.559 CLIP; FRAME HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	07	1	0712-
48	02.559 CLIP; FRAME HARNESS (D) ID=20	8-94241-972-0	01	1	0712-
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 9	8-97371-947-0	01	1	0712-
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	01	1	0712-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0712-
617	02.559 STRAP; BAND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1012-1106
