Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#52713) — 80 parça
◀
[810A] CAB HARNESS (19 parça)
[810A] '12/3- RELAY;CAB HARNESS (2 parça)
[810A] -'12/2 RELAY;CAB HARNESS (2 parça)
[810A] OTHER HARNESS(NO.1) (11 parça)
[810A] FRAME HARNESS;FRONT (19 parça)
[810A] ENG HARNESS (6 parça)
[810A] OTHER HARNESS(NO.2) (10 parça)
[810A] OTHER PARTS (11 parça)
▶

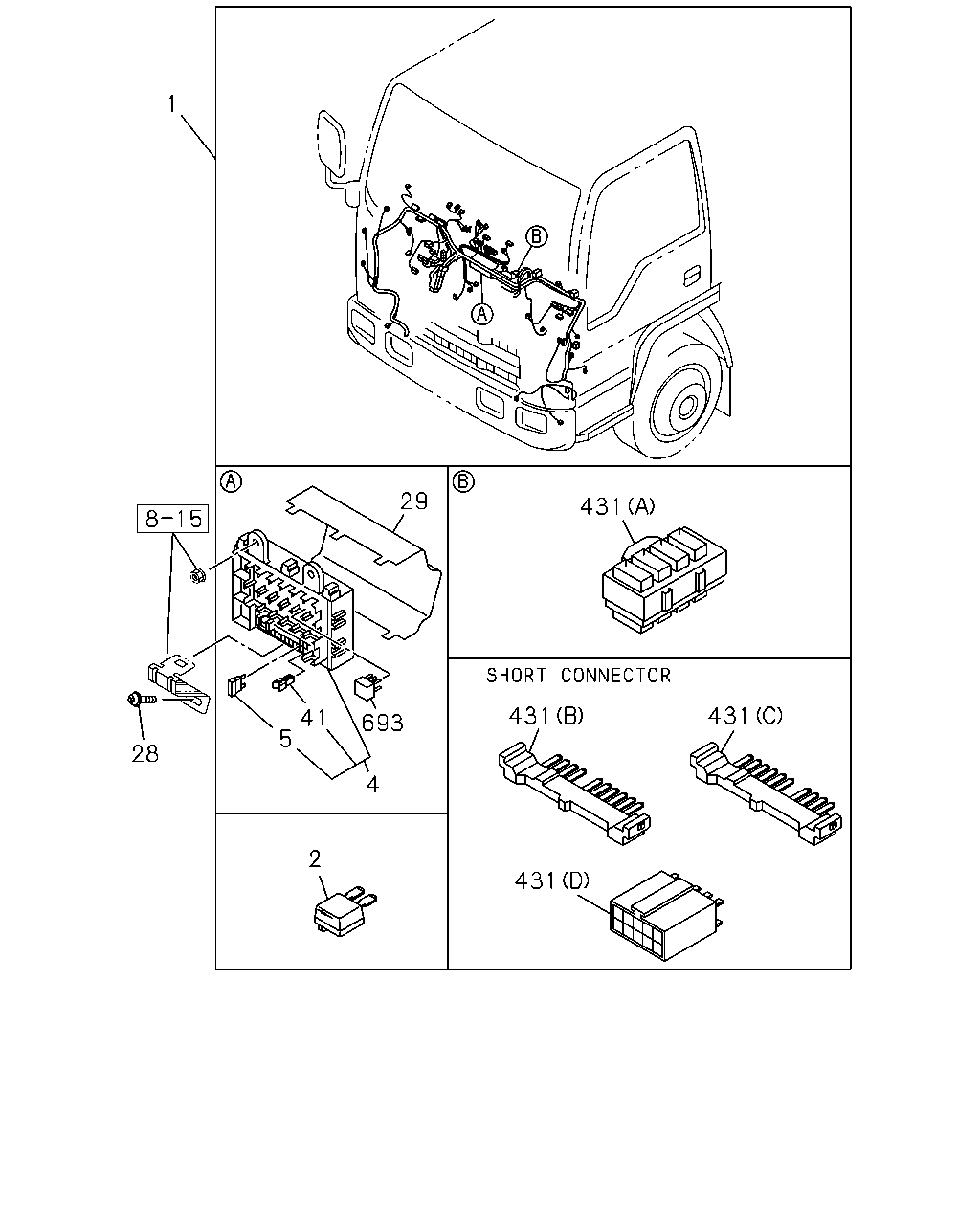

1
29
431
431
431
41
5
693
28
4
2
431
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98075-307-4
01
1
0712-1202
1
02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98200-749-0
01
1
1203-
1
02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98075-308-4
01
1
0712-1202
1
02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98200-750-0
01
1
1203-
2
02.483 DIODE; CABLE HARNESS
BLACK 2P-1.5A
8-94422-639-1
AR
1
0712-
4
02.483 BOX ASM; FUSE,HARNESS
8-98067-619-1
01
1
0712-
5
02.485 FUSE; FACIA HARNESS
10A RED
8-98054-257-0
AR
1
0712-
5
02.485 FUSE; FACIA HARNESS
15A BLUE
8-98054-258-0
AR
1
0712-
5
02.485 FUSE; FACIA HARNESS
20A YELLOW
8-98054-259-0
AR
1
0712-
28
02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
0712-1101
28
02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
01
1
1102-1212
28
02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1301-
29
02.483 COVER; FUSE BOX
8-98041-308-0
01
1
0712-
41
08.821 PULLER; FUSE
8-98054-260-0
01
1
0712-
431
02.530 CONNECTOR; JOINT
(B) 10P BLUE
1-82699-598-0
01
1
0712-1202
431
02.530 CONNECTOR; JOINT
(C) 10P GREEN
1-82699-599-0
01
1
0712-1202
431
02.530 CONNECTOR; JOINT
(D) 10P
8-97077-943-0
02
1
0712-1202
431
02.530 CONNECTOR; JOINT
(A)
8-98046-206-0
01
1
0712-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
0712-

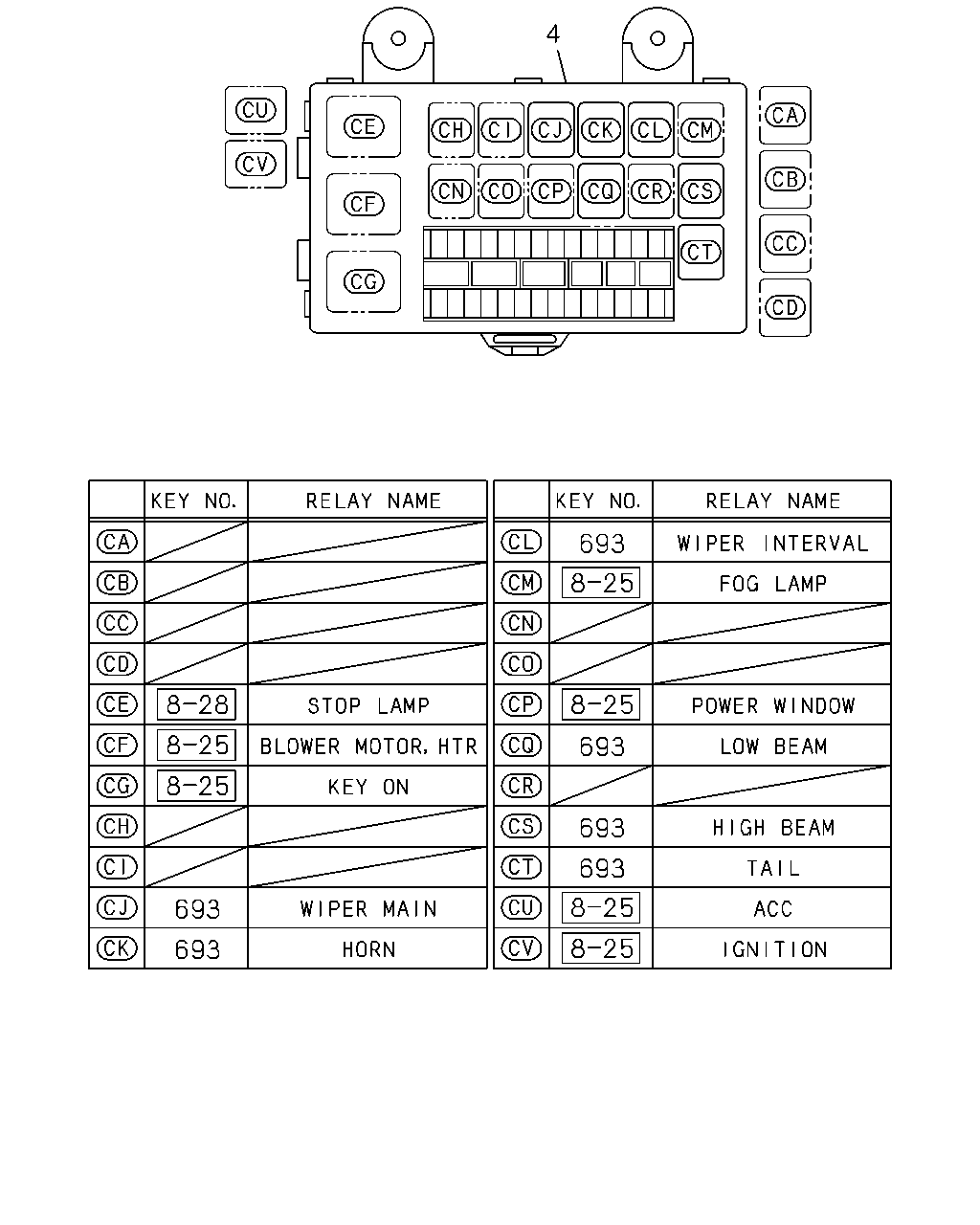

4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
02.483 BOX ASM; FUSE,HARNESS
8-98067-619-1
01
1
0712-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
0712-

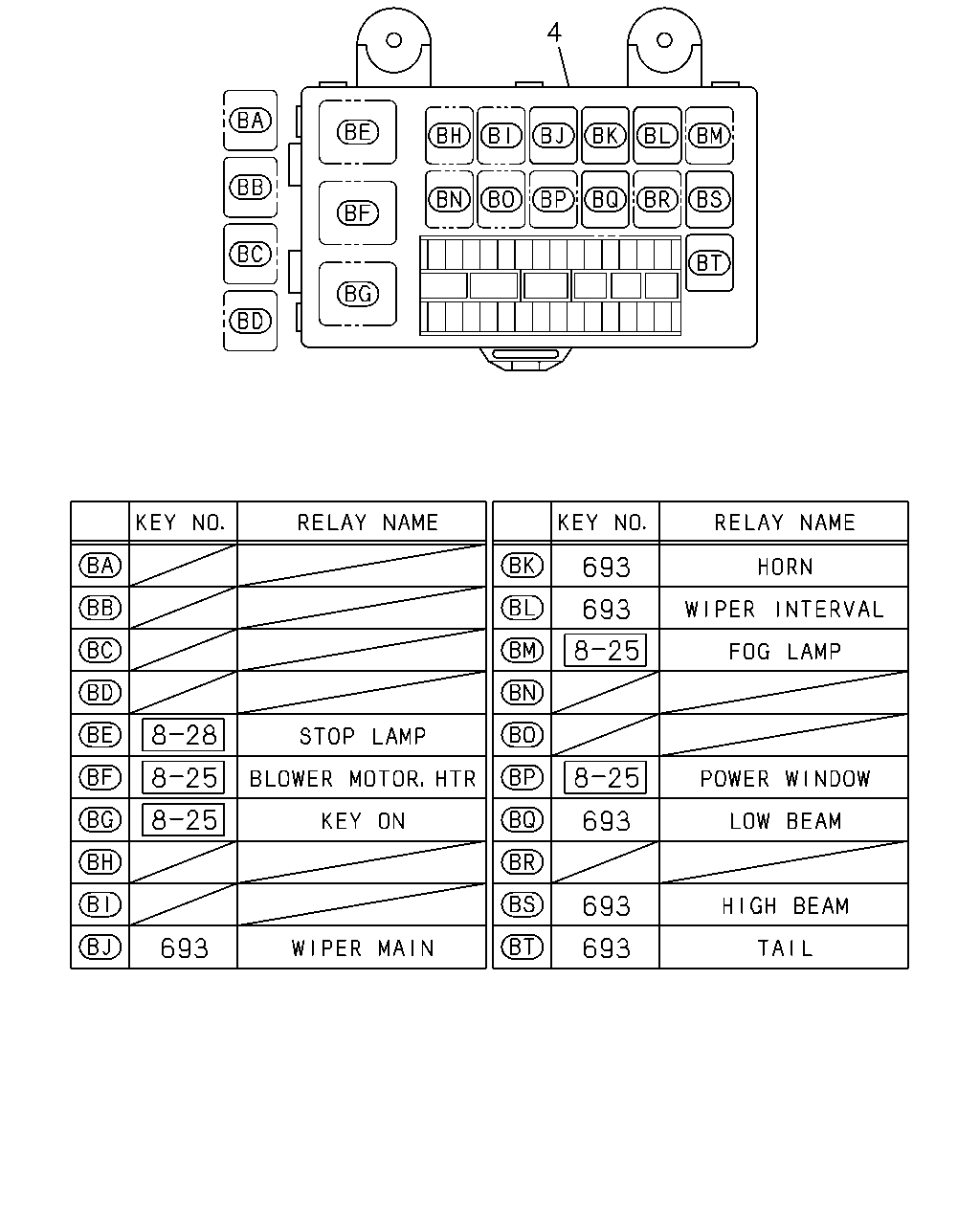

4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
02.483 BOX ASM; FUSE,HARNESS
8-98067-619-1
01
1
0712-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
0712-

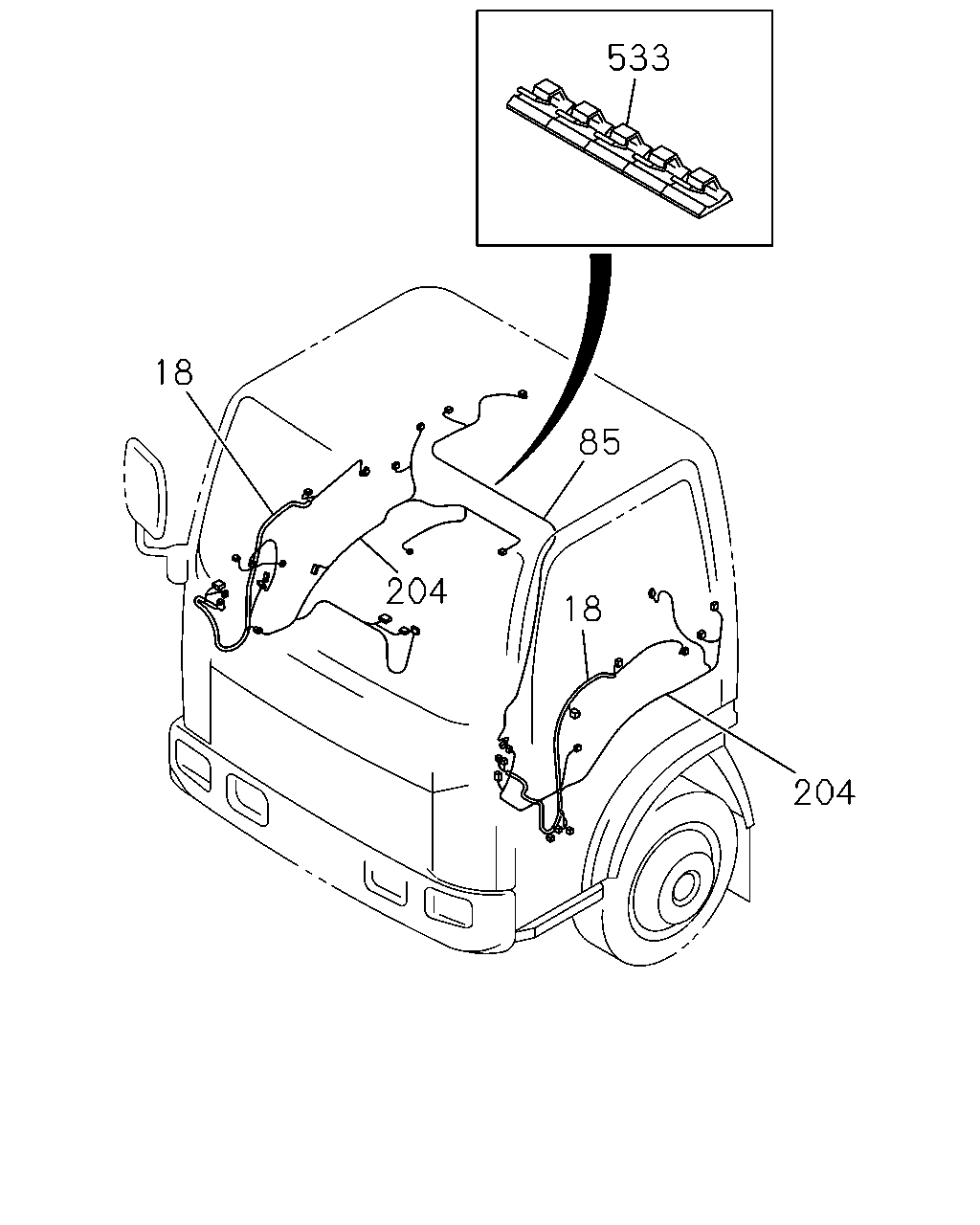

533
18
85
204
18
204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>
8-98033-814-2
01
1
0712-1009
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>
8-98166-817-0
01
1
1010-1405
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>
8-98033-814-2
01
1
1406-
18
02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>
8-98033-817-2
01
1
0712-
18
02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>
8-98033-813-2
01
1
0712-
18
02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>
8-98033-815-1
01
1
0712-
85
06.495 HARNESS; ROOM LAMP
8-98055-202-2
01
1
0712-
204
02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98075-310-2
01
1
0712-
204
02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98075-613-1
01
1
0712-
204
02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98075-311-2
01
1
0712-
533
02.559 CLIP
16.065 1 SET=5 PIECE
1-09987-214-0
01
1
1101-

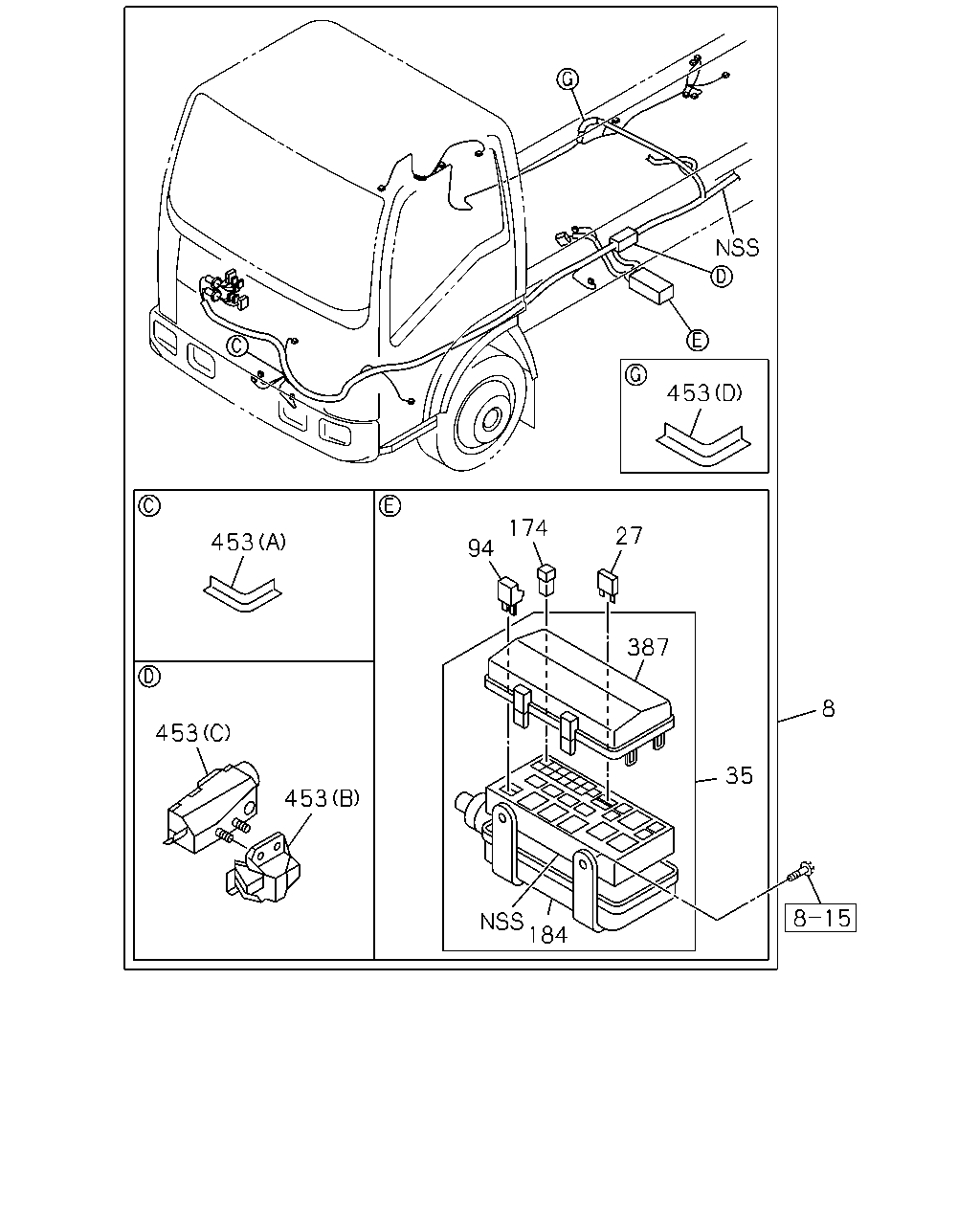

453
453
453
184
35
8
387
27
174
94
453
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98073-936-2
01
1
0712-0804
8
02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98117-802-1
01
1
0805-1409
8
02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98295-203-0
01
1
1410-
8
02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98073-937-2
01
1
0712-0804
8
02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98117-803-1
01
1
0805-1409
8
02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98295-204-0
01
1
1410-
27
08.965 FUSE UNIT
02.485 10A RED
8-98054-257-0
AR
1
0712-
35
02.530 BOX; RELAY & FUSE
FRT INDEPENDENT SUSPENSION(FF0)
8-98030-763-0
01
1
0712-
94
02.483 DIODE; FRAME HARNESS
FRT INDEPENDENT SUSPENSION(FF0) BLACK 2P-1.5A
8-94422-639-1
01
1
0712-
174
08.965 FUSE; SLOW BLOW
30A PINK
8-98079-191-0
AR
1
0712-
174
08.965 FUSE; SLOW BLOW
40A GREEN
8-98079-192-0
AR
1
0712-
174
08.965 FUSE; SLOW BLOW
50A RED
8-98079-193-0
AR
1
0712-
174
08.965 FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
AR
1
0712-
184
02.559 COVER; RELAY & FUSE BOX
FRT INDEPENDENT SUSPENSION(FF0)
8-98030-766-0
01
1
0712-
387
02.483 COVER; RELAY BOX
8-98081-367-0
01
1
0712-
453
02.483 PROTECTOR; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (D)
8-94452-553-0
01
1
1410-
453
02.483 PROTECTOR; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (A)
8-94417-716-0
01
1
0712-
453
02.483 PROTECTOR; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (B)
8-98031-850-1
01
1
0712-
453
02.483 PROTECTOR; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (C)
8-98031-851-2
01
1
0712-

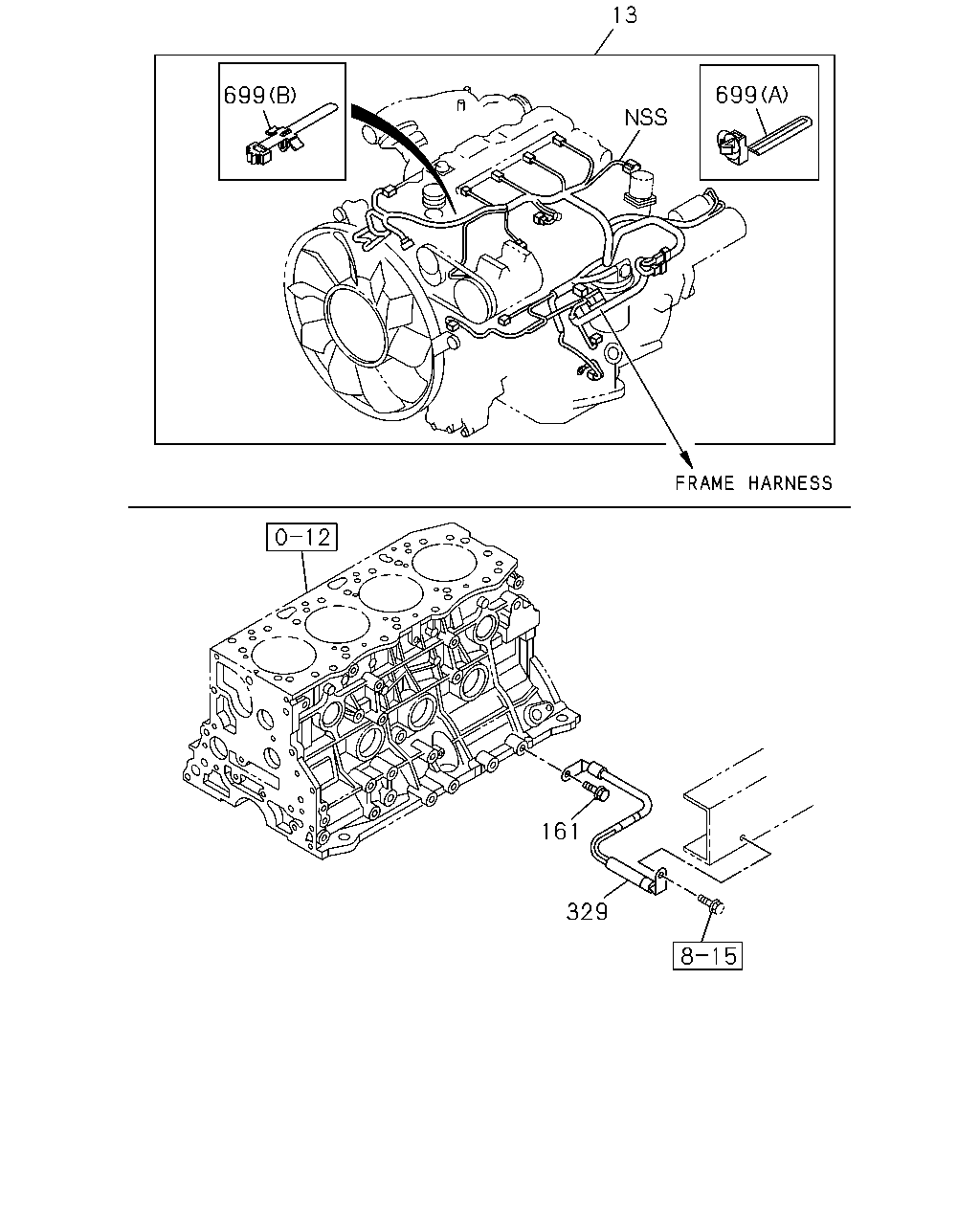

13
161
329
699
699
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
02.525 HARNESS; ENG
8-98082-045-5
01
1
0712-1006
13
02.525 HARNESS; ENG
8-98147-729-0
01
1
1007-
161
02.559 BOLT; GROUND,HARNESS
02.483 M10X16 FLANGE
0-28051-016-0
01
1
0712-
329
02.480 CABLE; ENG TO FRAME
8-98039-854-1
01
1
0712-
699
02.559 CLIP; ENG HARNESS
04.105 (A) L=140
8-97122-360-0
03
1
0712-
699
02.559 CLIP; ENG HARNESS
(B)
8-98088-438-0
01
1
0712-

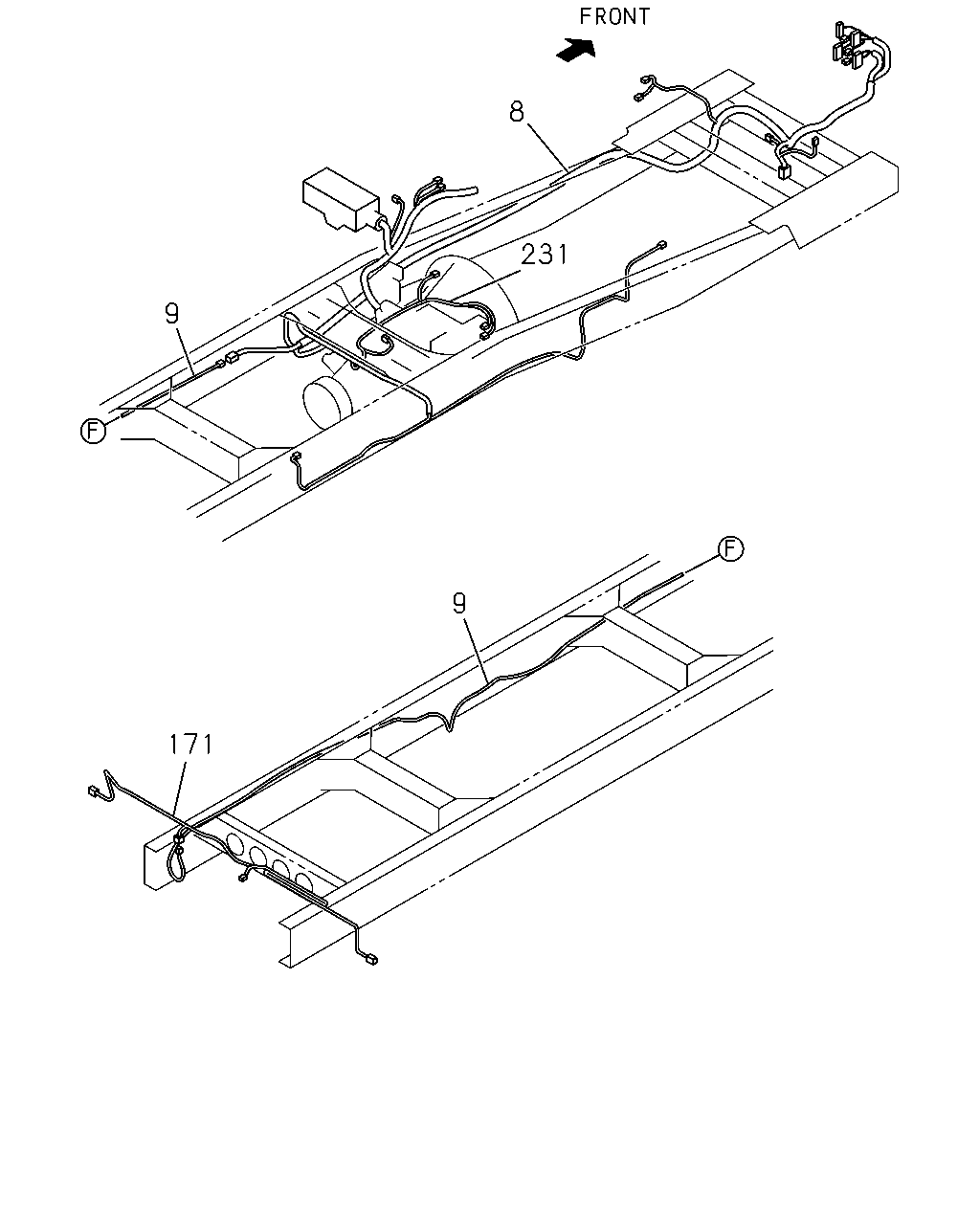

8
231
9
9
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98073-936-2
01
1
0712-0804
8
02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98117-802-1
01
1
0805-1409
8
02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98295-203-0
01
1
1410-
8
02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98073-937-2
01
1
0712-0804
8
02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98117-803-1
01
1
0805-1409
8
02.480 HARNESS; FRAME,FRT
FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98295-204-0
01
1
1410-
9
02.480 HARNESS; FRAME,RR
8-98048-412-2
01
1
0712-
171
02.596 HARNESS; CABLE,TAIL LAMP
8-98008-095-2
01
1
0712-0911
171
02.596 HARNESS; CABLE,TAIL LAMP
8-98156-028-0
01
1
0912-
231
02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98029-598-1
01
1
0712-

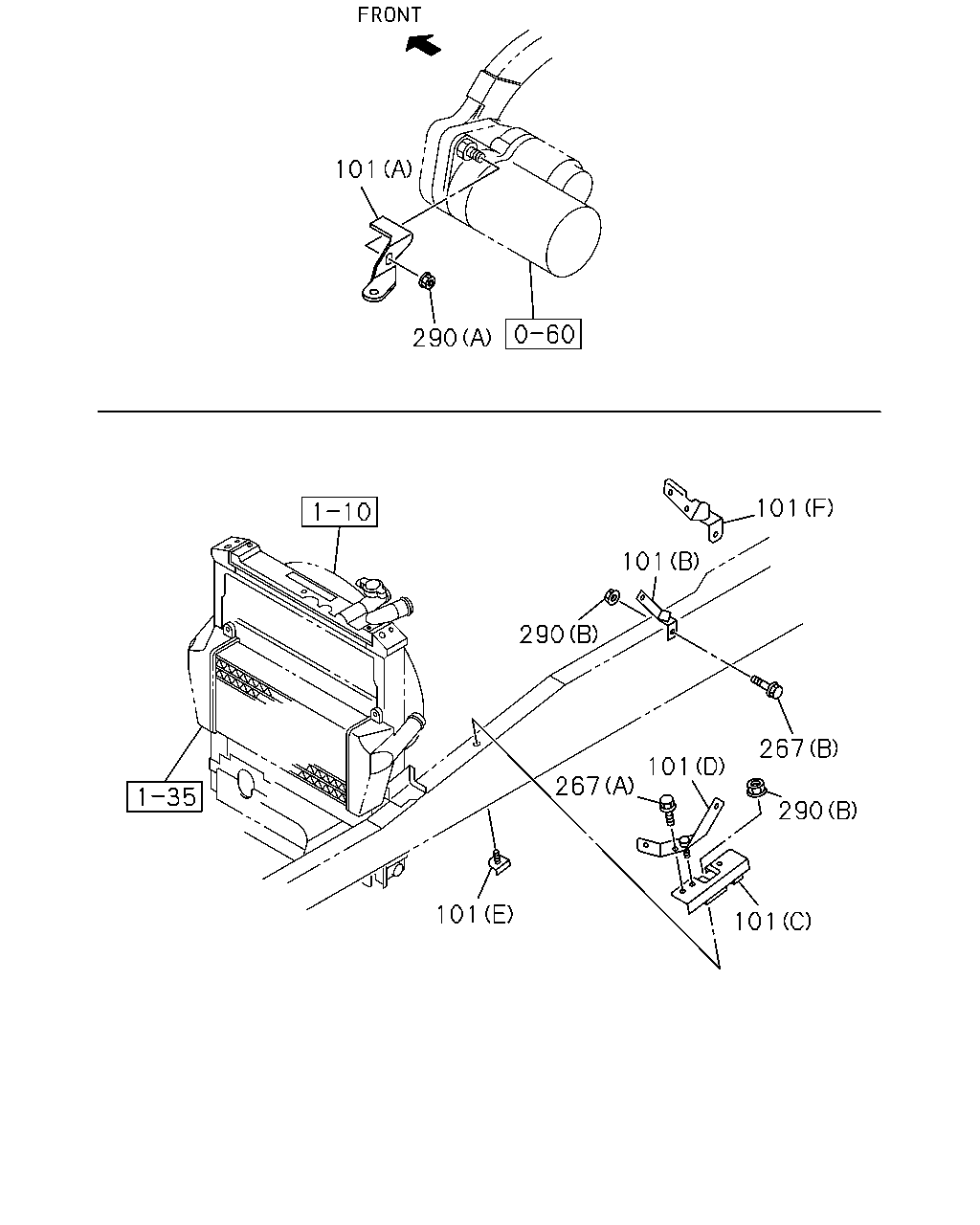

101
290
101
101
290
101
101
267
267
290
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
02.483 BRACKET; HARNESS CONNECTOR
(E)
8-98093-465-1
01
1
0803-
101
02.483 BRACKET; HARNESS CONNECTOR
(C)
8-98078-070-1
01
1
0712-
101
02.483 BRACKET; HARNESS CONNECTOR
(D)
8-98078-071-1
01
1
0712-
101
02.483 BRACKET; HARNESS CONNECTOR
(B)
8-98079-011-1
01
1
0712-1205
101
02.483 BRACKET; HARNESS CONNECTOR
(F)
8-98217-757-0
01
1
1206-
101
02.483 BRACKET; HARNESS CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)
8-98030-725-1
01
1
0712-
267
02.483 BOLT; BRKT
03.162 (A) M6X20 FLANGE
0-28650-620-0
01
1
0712-0802
267
02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE
0-28650-625-0
01
1
0803-
267
02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE
0-28650-825-0
01
1
0712-
290
02.483 NUT; BRKT
01.062 (B) M8 FLANGE
0-91180-108-0
01
1
0712-
290
02.483 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE
0-91180-110-0
01
1
0712-
