Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

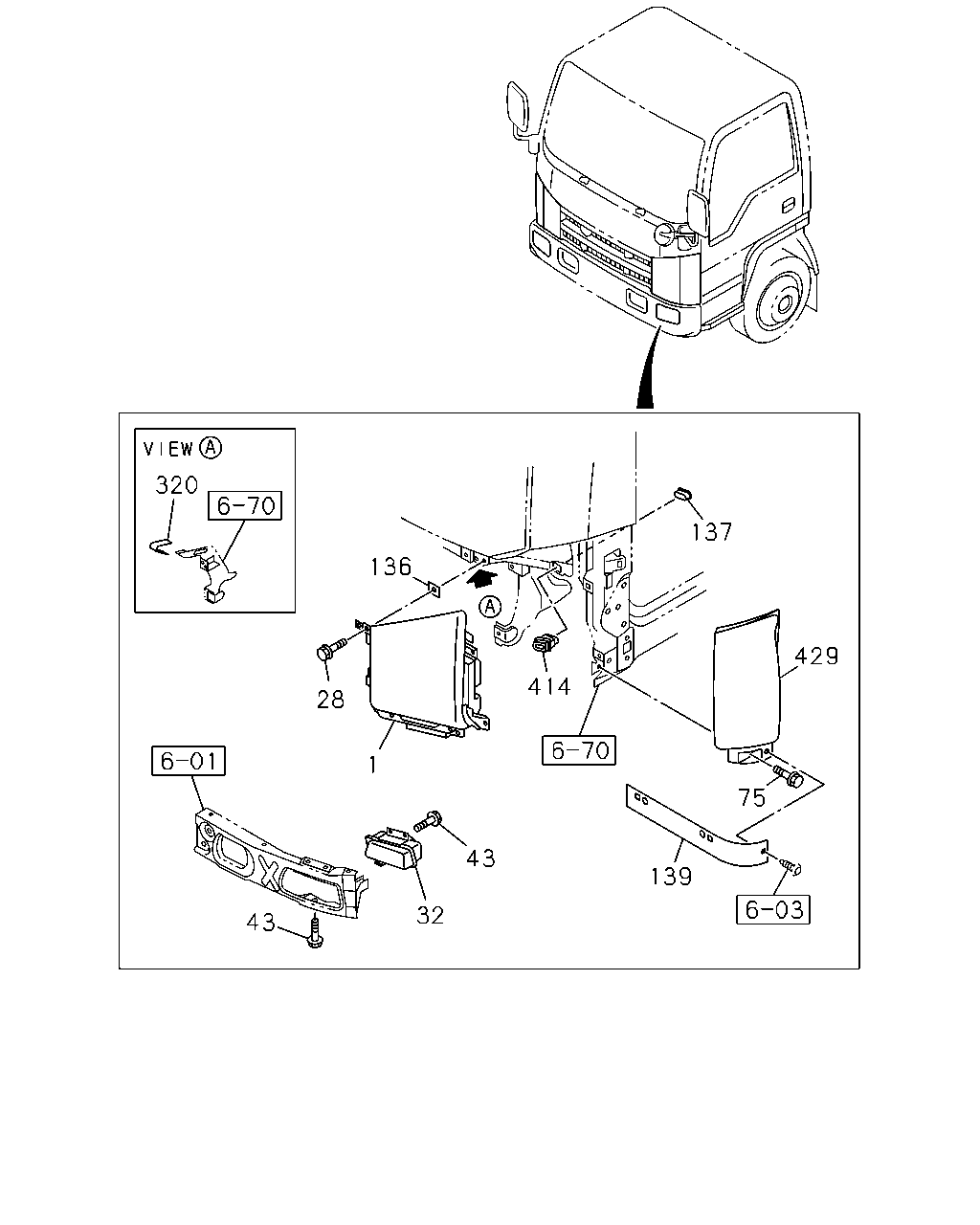

8-01 — LAMP; FRONT AND FRONT SIDE
(#52711) — 61 parça
◀
[801A] FIXING;FRONT LAMP (22 parça)
[801A] COMPONENT;HEAD LAMP (12 parça)
[801A] COMPONENT;SIDE COMB AND HEAD LAMP (27 parça)
▶
320
137
136
429
414
28
1
75
43
139
32
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.725 LAMP ASM; HEAD
8-98100-811-1
01
1
0712-1303
1
02.725 LAMP ASM; HEAD
8-98240-645-1
01
1
1304-
1
02.725 LAMP ASM; HEAD
8-98100-810-1
01
1
0712-1303
1
02.725 LAMP ASM; HEAD
8-98240-644-1
01
1
1304-
28
02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER
8-98031-842-0
08
1
0712-1005
28
02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER
8-98164-723-0
08
1
1006-
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98040-729-0
01
1
0712-0909
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98149-148-1
01
1
0910-1301
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98232-063-1
01
1
1302-
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98040-728-0
01
1
0712-0909
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98149-147-1
01
1
0910-1301
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98232-062-1
01
1
1302-
43
02.736 BOLT; FOG LAMP
FOG LAMP<T96> 01.531 M6X20 W/LK&PL WASHER
0-50640-620-0
06
1
0712-
75
02.587 SCREW; FRT COMB LAMP
02.500 M6X16
0-52000-616-0
02
1
0712-0804
75
02.587 SCREW; FRT COMB LAMP
M6X19.5 W/LK&PL WASHER
8-97360-226-0
02
1
0805-
136
02.726 SEAL; HEADLAMP
03.602 25X25
8-94272-533-0
02
1
0712-
137
02.726 GROMMET; HEADLAMP
8-97581-666-0
02
1
0712-
139
02.726 COVER; HEADLAMP
8-98038-234-1
02
1
0712-
320
02.726 SEALER; HEADLAMP BRKT
8-97850-499-1
01
1
0712-
414
02.736 PIN; HEADLAMP,RIM
8-97581-667-0
02
1
0712-
429
02.585 LAMP ASM; SIDE COMB
8-98020-071-4
01
1
0712-
429
02.585 LAMP ASM; SIDE COMB
8-98020-070-4
01
1
0712-
4
23
307
1
408
420
5
4
23
307
1
408
420
5
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.725 LAMP ASM; HEAD
8-98100-811-1
01
1
0712-1303
1
02.725 LAMP ASM; HEAD
8-98240-645-1
01
1
1304-
1
02.725 LAMP ASM; HEAD
8-98100-810-1
01
1
0712-1303
1
02.725 LAMP ASM; HEAD
8-98240-644-1
01
1
1304-
4
02.727 HEADLAMP UNIT
8-98051-409-0
01
1
0712-
4
02.727 HEADLAMP UNIT
8-98051-408-0
01
1
0712-
5
02.727 BULB; HEADLAMP
24V 75/70W
1-82194-063-0
02
1
0712-
13
02.736 CLIP; HEADLAMP
8-98184-139-0
02
1
1304-
23
02.727 COVER; BULB,HEADLAMP
8-97232-491-0
02
1
0712-
307
02.727 SCREW; TAPPING,HEAD LAMP
8-98096-953-0
06
1
0712-
408
02.727 CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
0712-
420
02.737 SPRING; BULB,HEADLAMP
8-97378-875-0
02
1
0712-
429
97
94
433
95
303
94
94
32
49
44
47
36
15
421
448
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W
1-82194-106-0
02
1
0712-
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98040-729-0
01
1
0712-0909
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98149-148-1
01
1
0910-1301
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98232-063-1
01
1
1302-
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98040-728-0
01
1
0712-0909
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98149-147-1
01
1
0910-1301
32
02.725 LAMP ASM; FOG
FOG LAMP<T96>
8-98232-062-1
01
1
1302-
36
02.727 CORD; FOG LAMP
FOG LAMP<T96>
1-82118-016-0
01
1
0712-
36
02.727 CORD; FOG LAMP
FOG LAMP<T96>
1-82118-015-0
01
1
0712-
44
02.737 NUT; FOG LAMP
FOG LAMP<T96> M6
8-98217-430-0
02
1
0910-
47
02.737 WASHER; PL,FOG LAMP
FOG LAMP<T96>
8-98217-429-0
02
1
0910-
49
02.726 BRACKET; LAMP
FOG LAMP<T96>
8-98051-433-0
01
1
0712-
49
02.726 BRACKET; LAMP
FOG LAMP<T96>
8-98051-434-0
01
1
0712-
94
08.991 BULB; SIDE COMB LAMP
02.727 (A) 24V 5W
1-82194-042-0
02
1
0712-
94
08.991 BULB; SIDE COMB LAMP
(B) 24V 21W
1-82194-099-0
02
1
0712-
94
08.991 BULB; SIDE COMB LAMP
(C) 24V 21W AMBER
8-97323-806-0
02
1
0712-
95
02.895 SCREW; SIDE COMB LAMP
8-98051-427-0
02
1
0712-
97
02.895 LAMP UNIT; COMB
8-98051-416-0
01
1
0712-
97
02.895 LAMP UNIT; COMB
8-98051-415-0
01
1
0712-
303
02.799 CLIP; COMB LAMP
8-98051-430-0
01
1
0712-
303
02.799 CLIP; COMB LAMP
8-98051-429-0
01
1
0712-
421
02.593 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 02.596
8-97025-128-0
02
1
0712-0909
429
02.585 LAMP ASM; SIDE COMB
8-98020-071-4
01
1
0712-
429
02.585 LAMP ASM; SIDE COMB
8-98020-070-4
01
1
0712-
433
02.727 CORD ASM; LAMP
8-98069-970-0
01
1
0712-
433
02.727 CORD ASM; LAMP
8-98069-969-0
01
1
0712-
448
02.727 CAP ASM; LAMP
FOG LAMP<T96>
8-97378-874-0
02
1
0910-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
