◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51145 - NHR ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#52709) — 59 parça

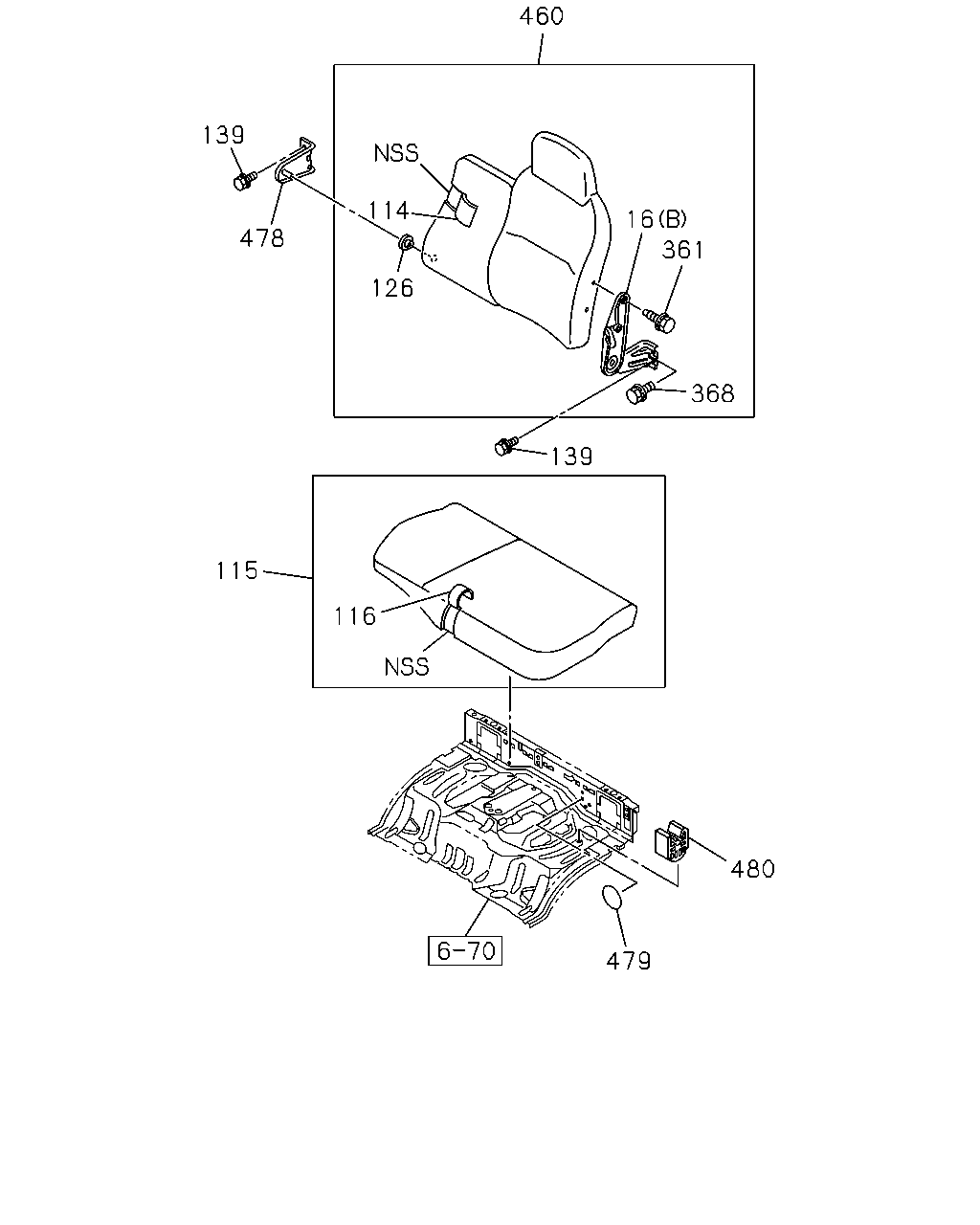

çizim 153659
460 139 114 16 478 361 126 368 139 115 116 480 479
BalonParca AdiParca NoAdetTipApplied Date
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-273-3 01 1 0712-
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0712-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97412-907-0 01 1 0712-0912
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97418-717-0 01 1 1001-1009
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-286-1 01 1 1010-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97412-906-0 01 1 0712-0912
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97418-716-0 01 1 1001-
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97406-347-3 01 1 0712-0902
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-267-1 01 1 0903-0912
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97418-702-0 01 1 1001-1009
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-312-2 01 1 1010-
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97406-346-4 01 1 0712-0912
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97418-701-2 01 1 1001-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97409-296-2 01 1 0712-0902
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97416-282-0 01 1 0903-0912
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97418-731-0 01 1 1001-1009
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97421-332-1 01 1 1010-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-295-2 01 1 0712-0912
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97418-730-1 01 1 1001-
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 0712-
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 03 1 0712-
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0712-
368 16.682 BOLT; SEAT
16.679 M8X20 W/PL WASHER 		8-98031-841-0 01 1 0712-0804
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0805-
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97408-840-4 01 1 0712-0912
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97418-688-0 01 1 1001-1009
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-273-2 01 1 1010-
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97408-839-4 01 1 0712-0912
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97418-687-1 01 1 1001-
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-186-0 01 1 0712-
479 16.716 PLUG; HINGE
16.165 OD=25 BLACK 		1-76798-019-0 02 1 0712-
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0712-
çizim 153660
1 17 18 228 2 24 19 16 12 99 13 69 63 631 67 63
BalonParca AdiParca NoAdetTipApplied Date
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97409-316-5 01 1 0712-1009
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-233-1 01 1 1010-
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-315-6 01 1 0712-
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97412-905-1 01 1 0712-1009
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-252-0 01 1 1010-
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97412-904-2 01 1 0712-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97409-326-3 01 1 0712-0902
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-250-1 01 1 0903-1009
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-239-1 01 1 1010-
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-325-3 01 1 0712-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97413-194-2 01 1 0712-0902
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97416-258-0 01 1 0903-1009
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-258-1 01 1 1010-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97413-193-2 01 1 0712-
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK 		8-97859-273-3 01 1 0712-
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0712-
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 0712-
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 0712-
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 0712-
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 0712-
63 16.682 ADJUSTER; SEAT SLIDE
(A) 		8-97382-802-1 01 1 0712-
63 16.682 ADJUSTER; SEAT SLIDE
(B) 		8-97382-803-2 01 1 0712-
67 16.682 BOLT; FRT SEAT TO BODY
16.679 M8X20 W/PL WASHER 		8-98031-841-0 02 1 0712-
69 16.682 NUT; FRT SEAT
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0712-
99 16.716 BUSHING; SEAT BACK 8-98063-218-0 01 1 0712-
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 0712-
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 04 1 0712-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
