◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51145 - NHR ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#52706) — 157 parça

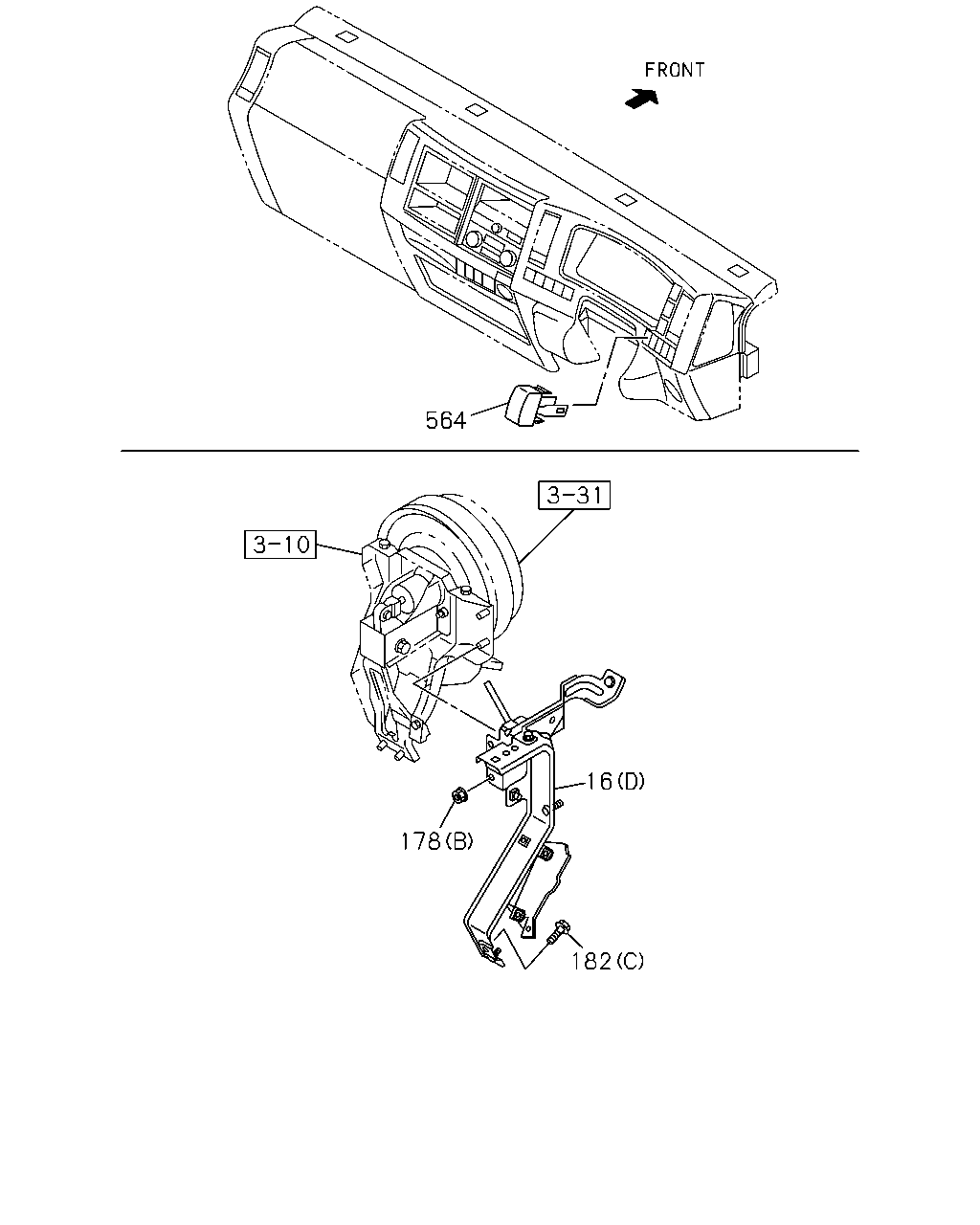

çizim 153676
564 16 178 182
BalonParca AdiParca NoAdetTipApplied Date
16 16.085 BRACKET; INST PNL
(A) 		8-97410-806-2 01 1 0712-
16 16.085 BRACKET; INST PNL
(B) 		8-97410-807-0 01 1 0712-
16 16.085 BRACKET; INST PNL
(C) 		8-97585-611-0 01 1 0712-
16 16.085 BRACKET; INST PNL
(E) 		8-98033-528-1 01 1 0712-
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98030-421-5 01 1 0712-
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0712-
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0712-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0712-1101
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0712-1101
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 (C) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0712-0903
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (C) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0904-
564 16.081 COVER; SW 8-98025-954-1 01 1 0712-

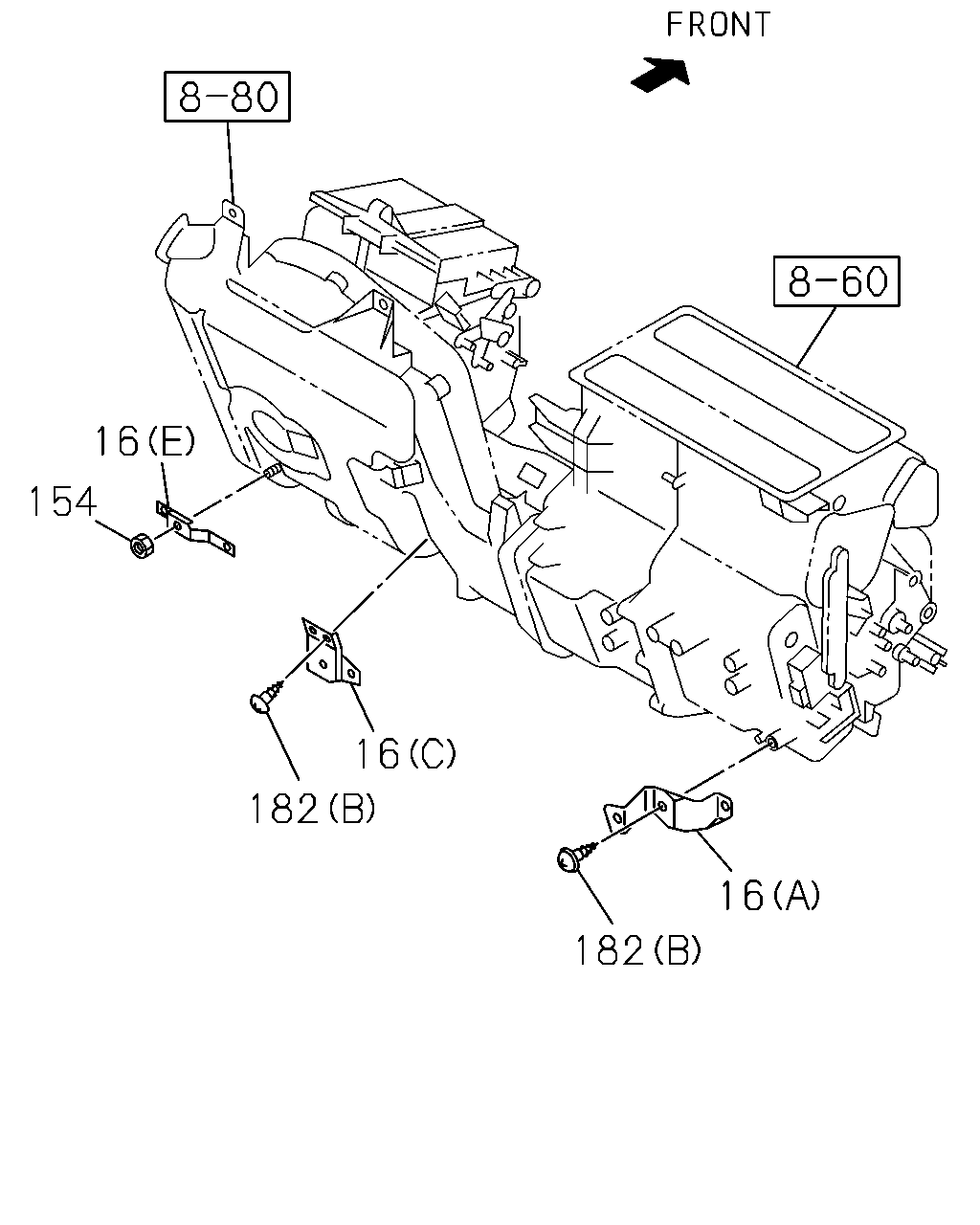

çizim 153679
16 154 16 182 16 182
BalonParca AdiParca NoAdetTipApplied Date
16 16.085 BRACKET; INST PNL
(A) 		8-97410-806-2 01 1 0712-
16 16.085 BRACKET; INST PNL
(B) 		8-97410-807-0 01 1 0712-
16 16.085 BRACKET; INST PNL
(C) 		8-97585-611-0 01 1 0712-
16 16.085 BRACKET; INST PNL
(E) 		8-98033-528-1 01 1 0712-
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98030-421-5 01 1 0712-
154 16.085 NUT
02.343 M5 		0-91110-505-0 02 1 0712-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0712-1101
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0712-1101
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 (C) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0712-0903
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (C) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0904-

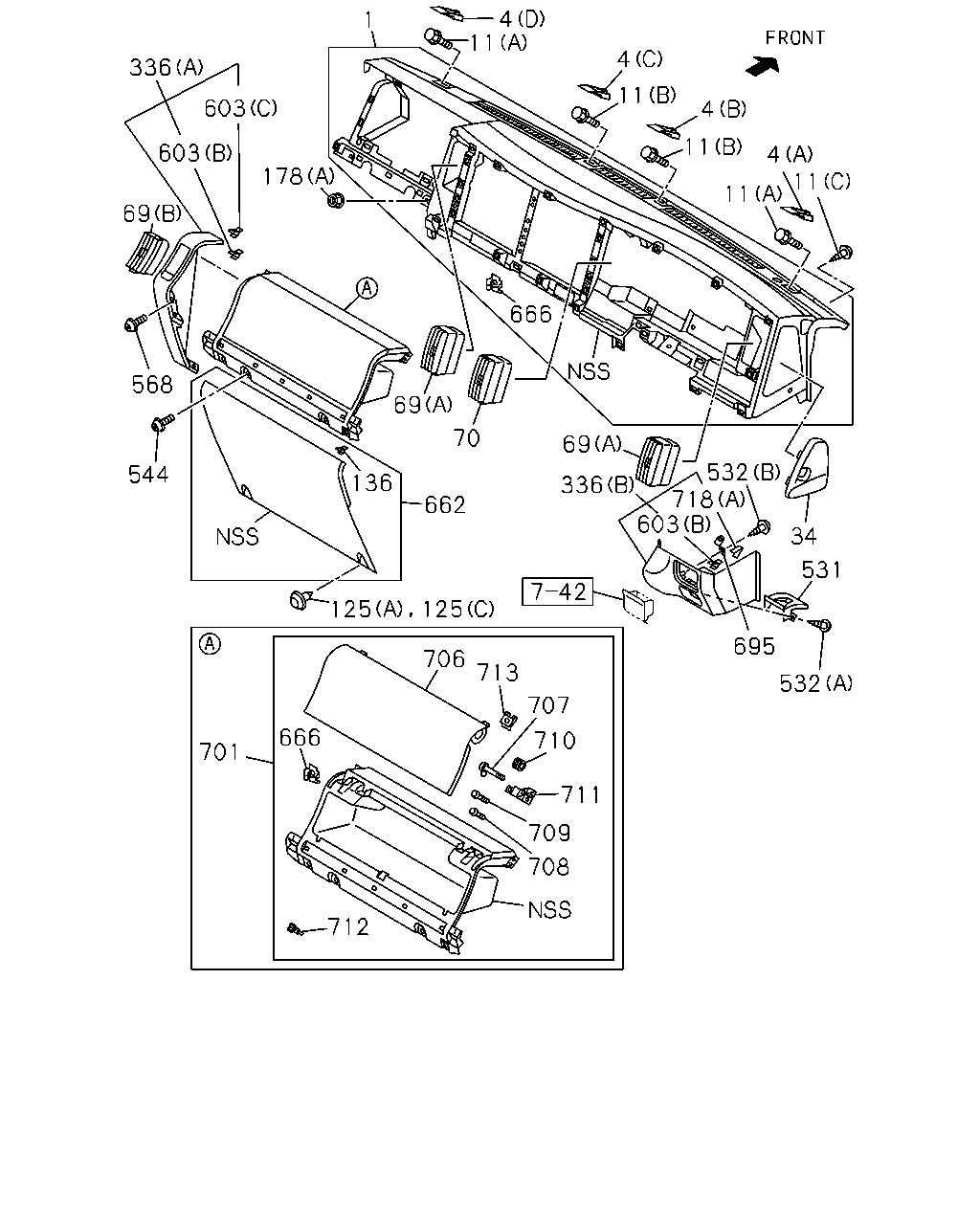

çizim 153681
4 11 1 4 336 11 603 4 11 603 4 11 178 11 69 666 568 69 70 69 532 718 603 544 136 336 662 34 531 125 125 695 706 713 532 707 666 710 701 711 709 708 712
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
GRAY 		8-97406-270-4 01 1 0712-0905
1 16.080 PANEL; INST
GRAY 		8-97418-085-0 01 1 0906-
4 16.080 COVER; INST PNL
(B) GRAY 		8-97407-087-0 01 1 0712-
4 16.080 COVER; INST PNL
(A) GRAY 		8-97407-088-0 01 1 0712-
4 16.080 COVER; INST PNL
(C) GRAY 		8-97407-089-0 01 1 0712-
4 16.080 COVER; INST PNL
(D) GRAY 		8-97407-090-0 01 1 0712-
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> (E) GRAY 		8-97407-898-1 01 1 0712-
11 16.090 BOLT; INST PNL
03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 0712-
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 02 1 0712-
11 16.090 BOLT; INST PNL
(C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0712-0712
34 16.085 LID; OIL TANK
GRAY 		8-97406-263-1 01 1 0712-
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0712-
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0712-
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0712-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0712-0909
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0912-1001
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1002-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 0712-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1002-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97418-529-0 02 1 0910-0911
136 16.085 CLIP; INST COVER 8-98021-271-0 07 1 0712-
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0712-
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0712-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-262-3 01 1 0712-1001
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97419-994-0 01 1 1002-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97406-258-5 01 1 0712-1003
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97418-987-0 01 1 1004-
531 16.100 CASE; ASH TRAY 8-97853-130-0 01 1 0712-
532 16.100 SCREW; ASH TRAY
16.090 (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0712-1101
532 16.100 SCREW; ASH TRAY
16.090 (B) M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
532 16.100 SCREW; ASH TRAY
16.090 (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
532 16.100 SCREW; ASH TRAY
(A) M5X8 		8-98058-631-0 02 1 0712-
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0712-
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0712-1101
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0712-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 06 1 0712-
603 16.090 CLIP; COVER
(C) 		8-98034-329-0 02 1 0712-
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97406-259-1 01 1 0712-
666 16.085 INSERT; INST PANEL 8-98037-629-0 21 1 0712-0803
666 16.085 INSERT; INST PANEL 8-98037-629-0 20 1 0804-
695 16.085 BRACKET; ASH TRAY 8-98009-037-0 02 1 0712-
701 16.100 TRAY; INST
GRAY 		8-97406-267-4 01 1 0712-1001
701 16.100 TRAY; INST
GRAY 		8-97421-003-0 01 1 1002-
706 16.081 LID; TRAY INST
GRAY 		8-97406-856-1 01 1 0712-
707 09.744 SHAFT; TRAY INST LID 8-98034-369-1 02 1 0712-
708 16.100 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0712-
709 16.085 SCREW; TRAY INST
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 0712-
710 09.744 SPRING; TRAY INST LID 8-98034-370-1 01 1 0712-
710 09.744 SPRING; TRAY INST LID 8-98034-365-1 01 1 0712-
711 16.100 HOLDER ASM; LID 8-98034-368-1 01 1 0712-
711 16.100 HOLDER ASM; LID 8-98034-367-1 01 1 0712-
712 16.110 LOCK; TRAY INST LID 8-98031-846-0 01 1 0712-
713 16.069 NUT; TRAY INST LID
16.085 		8-98038-450-0 04 1 0712-
718 16.100 SEAL; COVER
(A) 		8-98071-934-0 01 1 0712-
718 16.100 SEAL; COVER
(B) 		8-98085-197-0 01 1 0712-

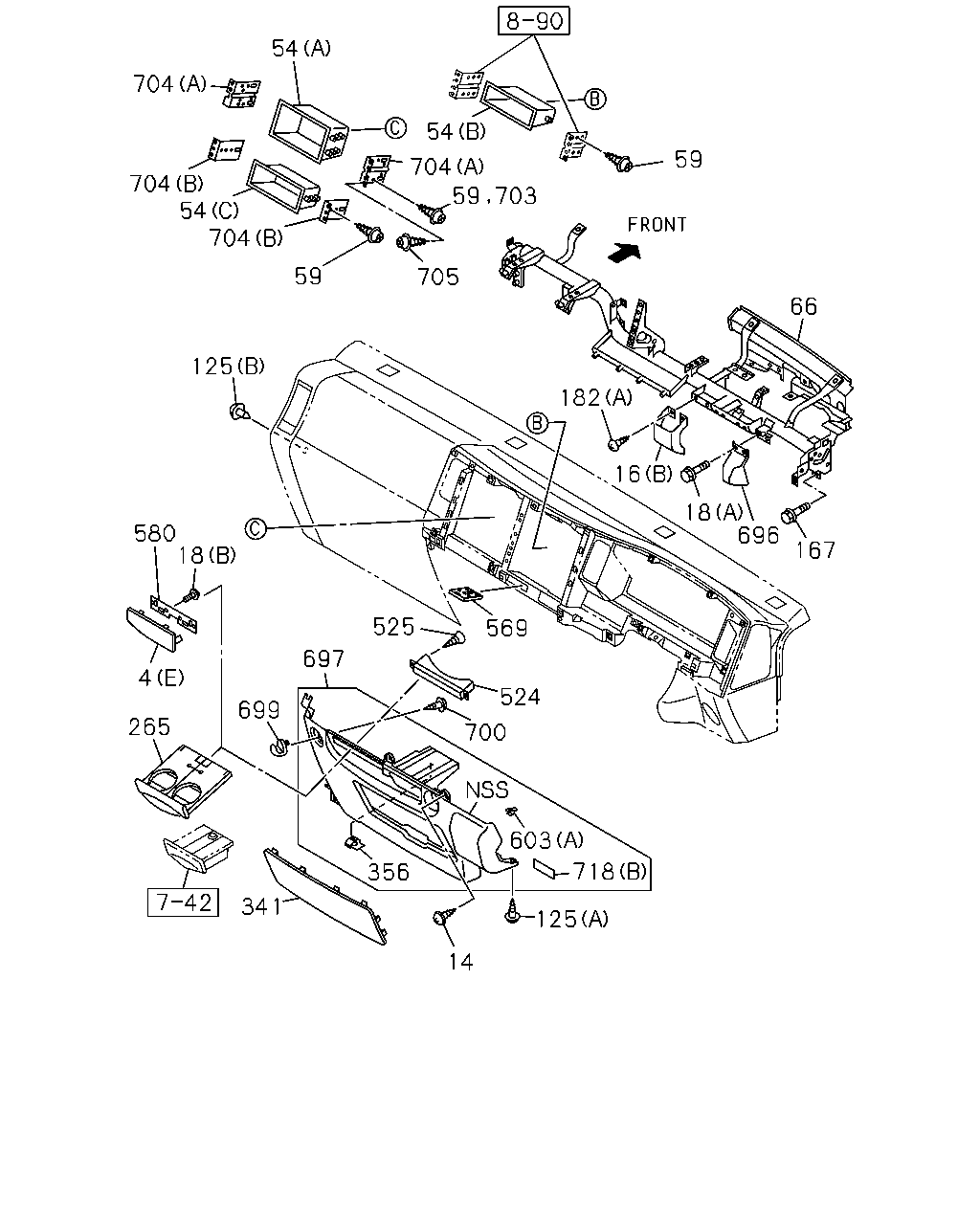

çizim 153684
54 704 54 59 704 704 54 704 59 705 66 125 182 16 18 696 580 18 167 525 569 697 4 524 699 265 700 603 718 356 341 125 14 59 703
BalonParca AdiParca NoAdetTipApplied Date
4 16.080 COVER; INST PNL
(B) GRAY 		8-97407-087-0 01 1 0712-
4 16.080 COVER; INST PNL
(A) GRAY 		8-97407-088-0 01 1 0712-
4 16.080 COVER; INST PNL
(C) GRAY 		8-97407-089-0 01 1 0712-
4 16.080 COVER; INST PNL
(D) GRAY 		8-97407-090-0 01 1 0712-
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> (E) GRAY 		8-97407-898-1 01 1 0712-
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0712-1101
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
16 16.085 BRACKET; INST PNL
(A) 		8-97410-806-2 01 1 0712-
16 16.085 BRACKET; INST PNL
(B) 		8-97410-807-0 01 1 0712-
16 16.085 BRACKET; INST PNL
(C) 		8-97585-611-0 01 1 0712-
16 16.085 BRACKET; INST PNL
(E) 		8-98033-528-1 01 1 0712-
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98030-421-5 01 1 0712-
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0712-1101
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (B) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0712-
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0712-
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0712-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0712-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0712-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0712-
66 16.085 REINFORCEMENT; INST PANEL 8-97585-561-3 01 1 0712-1109
66 16.085 REINFORCEMENT; INST PANEL 8-98115-232-1 01 1 1110-1410
66 16.085 REINFORCEMENT; INST PANEL 8-98261-307-0 01 1 1411-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0712-0909
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 04 1 0912-1001
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1002-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 0712-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1002-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97418-529-0 02 1 0910-0911
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0712-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0712-1101
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0712-1101
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 (C) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0712-0903
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (C) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0904-
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0712-0909
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0910-
341 16.110 LID; FUSE BOX
GRAY 		8-97406-266-4 01 1 0712-
356 16.085 NUT; COVER 8-98038-562-0 01 1 0712-
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0712-
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712-1101
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 0712-
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0712-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0712-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 06 1 0712-
603 16.090 CLIP; COVER
(C) 		8-98034-329-0 02 1 0712-
696 16.085 BRACKET; KNEE 8-98049-424-0 01 1 0712-1007
696 16.085 BRACKET; KNEE 8-98115-226-0 01 1 1008-
697 16.080 PANEL; INST CENTER
GRAY 		8-97406-257-5 01 1 0712-
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0712-
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712-1101
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0712-
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0712-
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0712-
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0712-1101
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 08 1 1102-1212
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1301-
718 16.100 SEAL; COVER
(A) 		8-98071-934-0 01 1 0712-
718 16.100 SEAL; COVER
(B) 		8-98085-197-0 01 1 0712-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
