Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

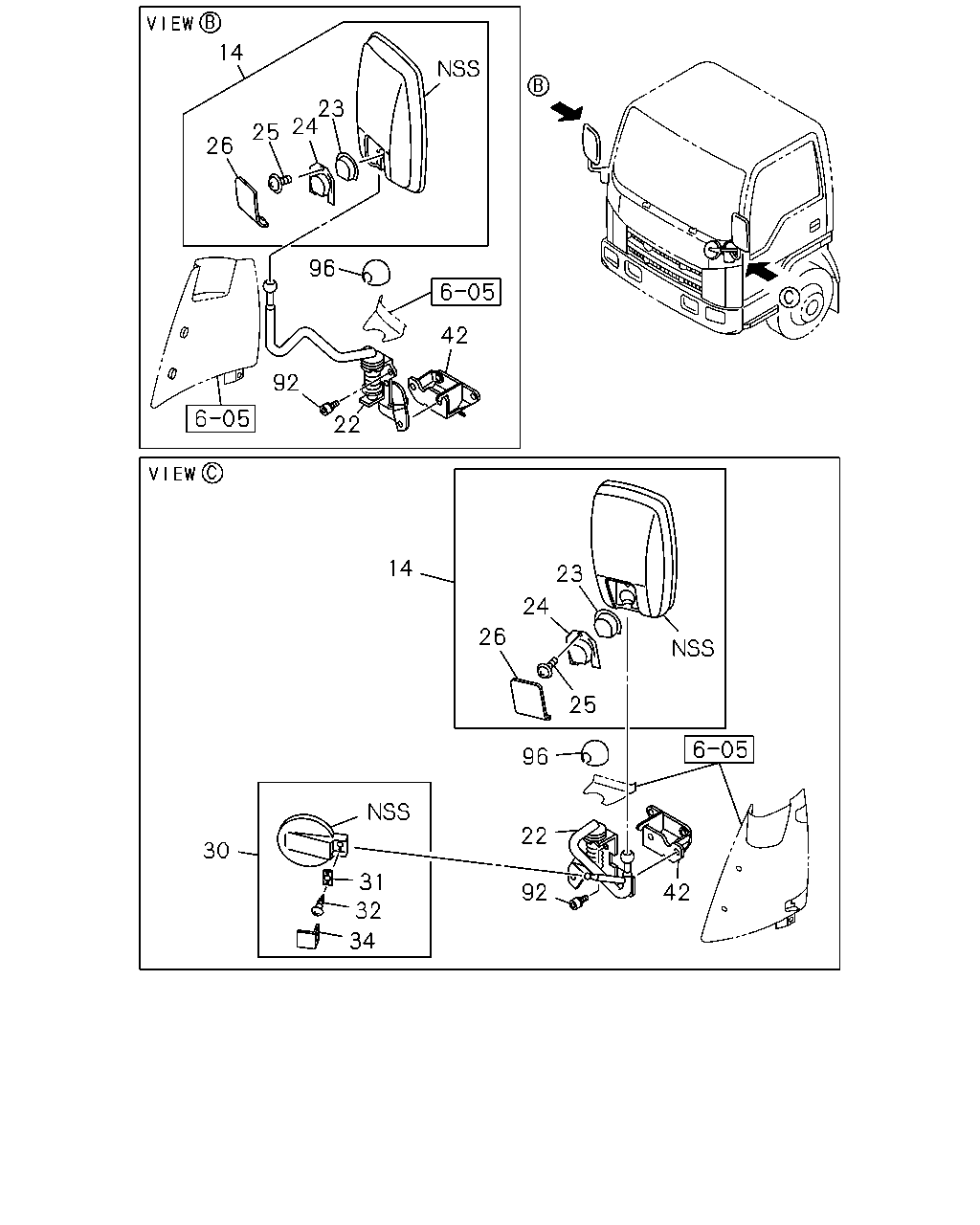

7-20 — MIRROR AND MIRROR STAY
(#52704) — 27 parça
◀
[720A] OUTSIDE MIRROR (21 parça)
[720A] ROOM MIRROR (6 parça)
▶
14
23
24
25
26
96
42
92
22
14
23
24
26
25
96
22
30
31
92
42
32
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
16.068 MIRROR ASM; OUTSIDE
8-94262-542-3
01
1
0712-
14
16.068 MIRROR ASM; OUTSIDE
8-94262-542-3
01
1
0712-
22
16.069 STAY; OUTSIDE MIRROR
8-98033-223-1
01
1
0712-
22
16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
8-98033-229-3
01
1
0712-
22
16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9>
8-98033-239-1
01
1
0712-
23
16.069 WASHER; OUTSIDE MIRROR
T=2.0
8-94262-545-0
01
1
0712-
23
16.069 WASHER; OUTSIDE MIRROR
T=2.0
8-94262-545-0
01
1
0712-
24
16.069 HOLDER; OUTSIDE MIRROR
T=1.6
8-94262-546-1
01
1
0712-
24
16.069 HOLDER; OUTSIDE MIRROR
T=1.6
8-94262-546-1
01
1
0712-
25
16.069 SCREW; OUTSIDE MIRROR
M6X30
8-94279-365-0
01
1
0712-
25
16.069 SCREW; OUTSIDE MIRROR
M6X30
8-94279-365-0
01
1
0712-
26
16.069 COVER; OUTSIDE MIRROR
T=2.3
8-94262-547-2
01
1
0712-
26
16.069 COVER; OUTSIDE MIRROR
T=2.3
8-94262-547-2
01
1
0712-
30
16.068 MIRROR; UNDER
UNDER MIRROR<RR9>
8-94262-625-2
01
1
0712-
31
16.069 PLATE; MIRROR
UNDER MIRROR<RR9>
8-94262-631-0
01
1
0712-
32
16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18
8-94279-372-0
02
1
0712-
34
16.069 CAP; MIRROR
UNDER MIRROR<RR9>
8-94262-629-0
01
1
0712-
42
16.069 ATTACHMENT; OUTSIDE MIRROR
8-97581-755-2
01
1
0712-
42
16.069 ATTACHMENT; OUTSIDE MIRROR
8-97581-625-2
01
1
0712-
92
16.069 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER
8-98020-347-0
10
1
0712-
96
16.069 CAP; MIRROR STAY
8-98027-552-2
02
1
0712-
162
2
159
3
1
158
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.068 MIRROR; ROOM
DARK GRAY
8-97406-215-1
01
1
0712-
2
16.069 SCREW; MIRROR TO BODY
16.263 M5X16
8-94279-341-0
02
1
0712-
3
16.069 STOPPER; RR VIEW MIRROR
L=22
8-97857-352-1
01
1
0712-
158
16.495 LENS; ROOM LAMP
16.068
5-73117-108-1
01
1
0712-
159
08.991 BULB; ROOM LAMP
24V 10W
5-82194-030-0
01
1
0712-
162
16.069 SEAL; ROOM LAMP
8-97856-532-0
01
1
0712-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
