◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51145 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#52698) — 11 parça

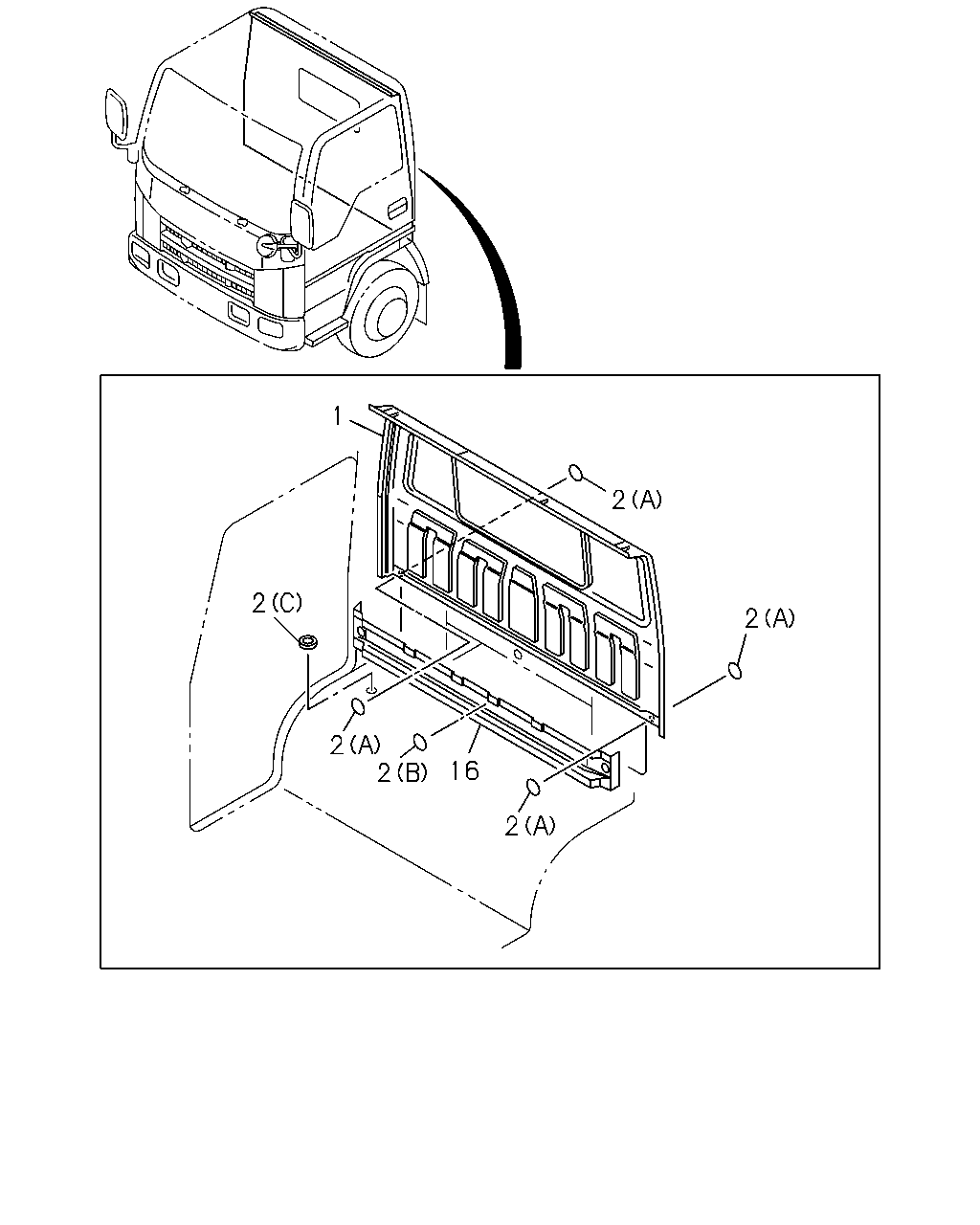

çizim 153650
1 2 2 2 2 2 16 2
BalonParca AdiParca NoAdetTipApplied Date
1 16.587 PANEL; BACK OUTER 8-97851-544-2 01 1 0712-1105
1 16.587 PANEL; BACK OUTER 8-98182-755-0 01 1 1106-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0712-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=15.0 		8-94279-040-0 02 1 0712-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 0712-0903
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
BODY COLOR TRANS BLUE(999) 16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 0712-0903
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 0904-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDIN AL RED(736),BODY COLOR WOODLAND GREEN(807) ,BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLU E(890),BODY COLOR HIGHWAY ORANGE(944), BODYCOLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 0904-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
BODY COLOR ARC WHITE(729) 16.592 (B) OD=36 WHITE 		1-76778-007-0 02 1 0712-0903
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) 16.592 (B) OD=36 WHITE 		1-76778-007-0 02 1 0904-
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97585-401-0 01 1 0712-
