6-76 — FLOOR EQUIPMENT AND SEALING (#52696) — 18 parça

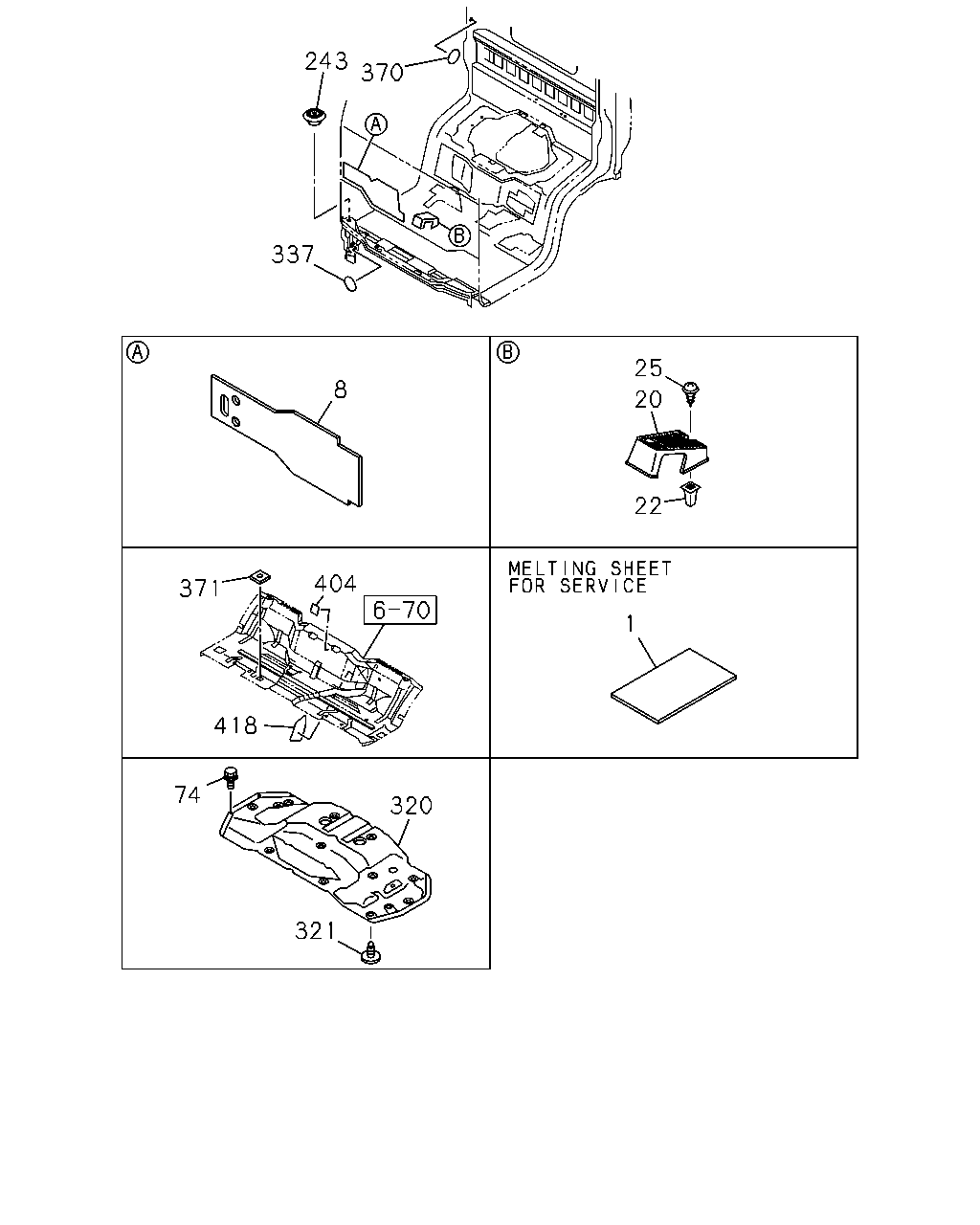

çizim 153661
243 370 337 8 371 404 418 74 321 320 25 20 1 22
BalonParca AdiParca NoAdetTipApplied Date
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0712-
8 16.802 MAT; SILENCER,FRT PANEL 8-98019-713-2 02 1 0712-
20 16.547 REST; FOOT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-767-2 01 1 0712-
22 16.547 GROMMET; SCREW,FOOT REST
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.931 H=15 		8-94463-268-1 02 1 0712-
25 16.549 SCREW; FOOT REST
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0712-
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0712-
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0712-
320 16.549 INSULATOR; FLOOR,FRT 8-97585-715-2 01 1 0712-
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 06 1 0712-
337 16.545 SEAL; CLIP HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0712-
370 16.549 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0712-0903
370 16.549 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0904-
370 16.549 SEAL; LOCATION HOLE
BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0712-0903
370 16.549 SEAL; LOCATION HOLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDIN AL RED(736),BODY COLOR WOODLAND GREEN(807) ,BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLU E(890),BODY COLOR HIGHWAY ORANGE(944), BODYCOLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0904-
371 16.549 GROMMET; LOCATION HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0712-
404 16.549 SEAL; FLOOR,HOLE 8-98040-837-0 01 1 0712-
418 16.549 SEAL; PROTECTOR 8-98090-192-1 01 1 0712-
418 16.549 SEAL; PROTECTOR 8-98090-191-1 01 1 0712-
