◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51145 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#52693) — 11 parça

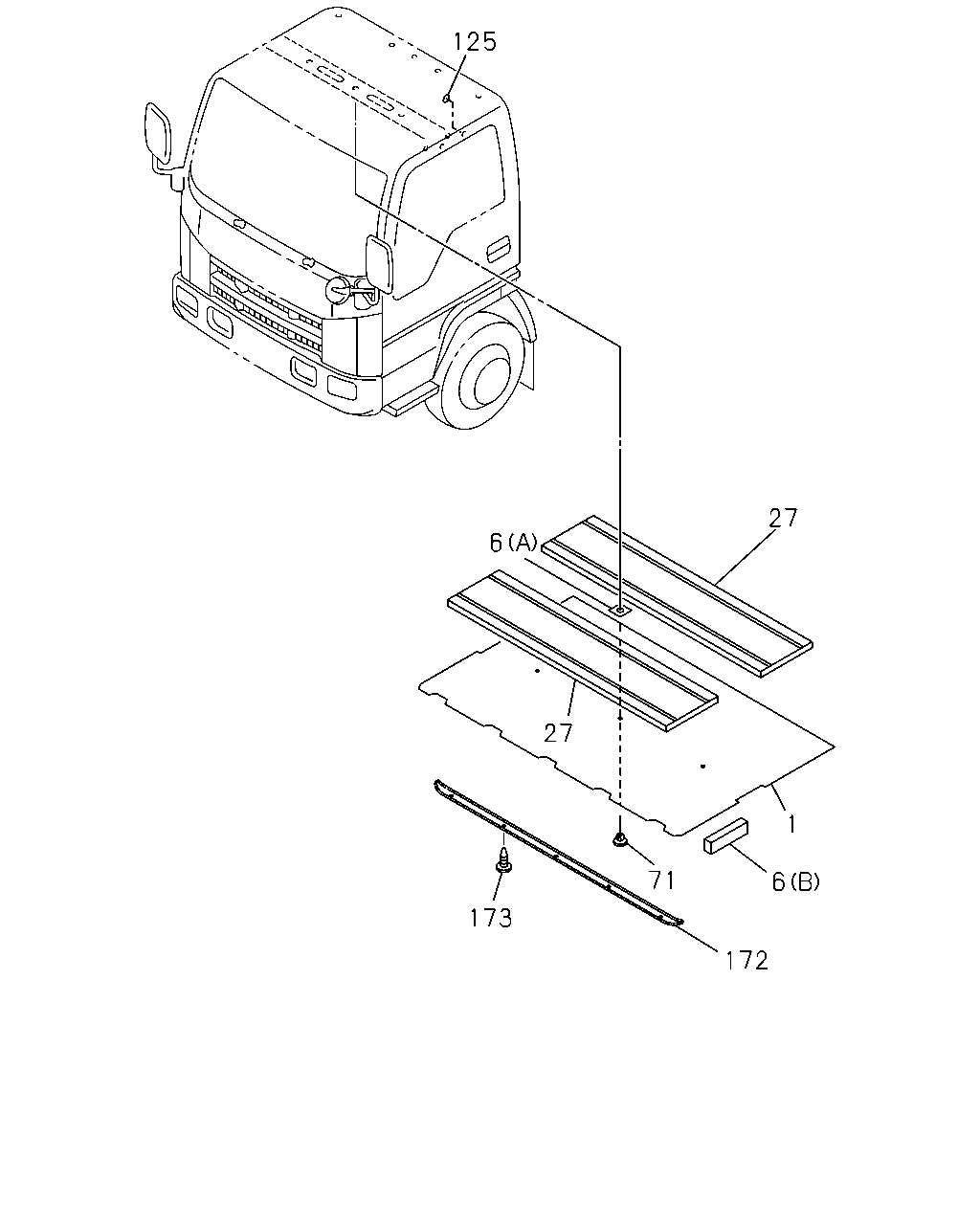

çizim 153643
125 27 6 27 71 6 173 172 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.742 LINING; HD
DARK GRAY 		8-97408-918-1 01 1 0712-
6 16.742 SPACER; HD LINING
(A) 		8-94353-014-0 03 1 0712-
6 16.742 SPACER; HD LINING
16.588 (B) H=10 L=55 		8-97410-832-0 02 1 0712-
27 16.165 INSULATION; ROOF
16.742 		8-97856-485-5 02 1 0712-
71 16.742 FASTENER; HD LINING
DARK GRAY 		8-97405-301-2 03 1 0712-
125 16.570 SEAL; HOLE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0712-0903
125 16.570 SEAL; HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARCWHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0904-
125 16.570 SEAL; HOLE
BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0712-0903
125 16.570 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDIN AL RED(736),BODY COLOR WOODLAND GREEN(807) ,BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLU E(890),BODY COLOR HIGHWAY ORANGE(944), BODYCOLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0904-
172 16.742 RETAINER; HEAD LINING
DARK GRAY 		8-97406-297-6 01 1 0712-
173 16.742 CLIP; RETAINER,HEAD LINING
DARK GRAY 		8-97406-299-0 05 1 0712-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
