Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#52691) — 53 parça
◀

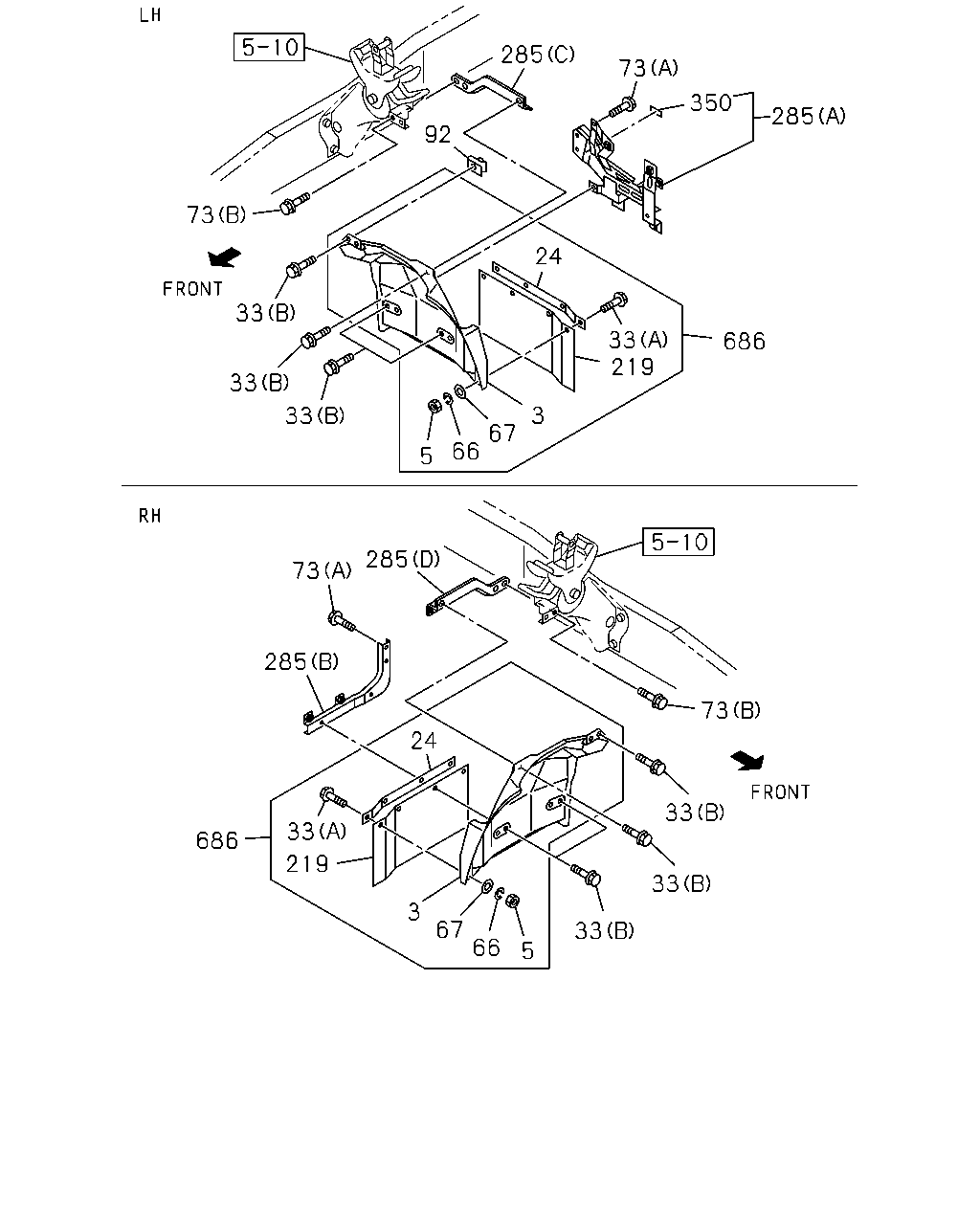

[647A] MUD GUARD (23 parça)

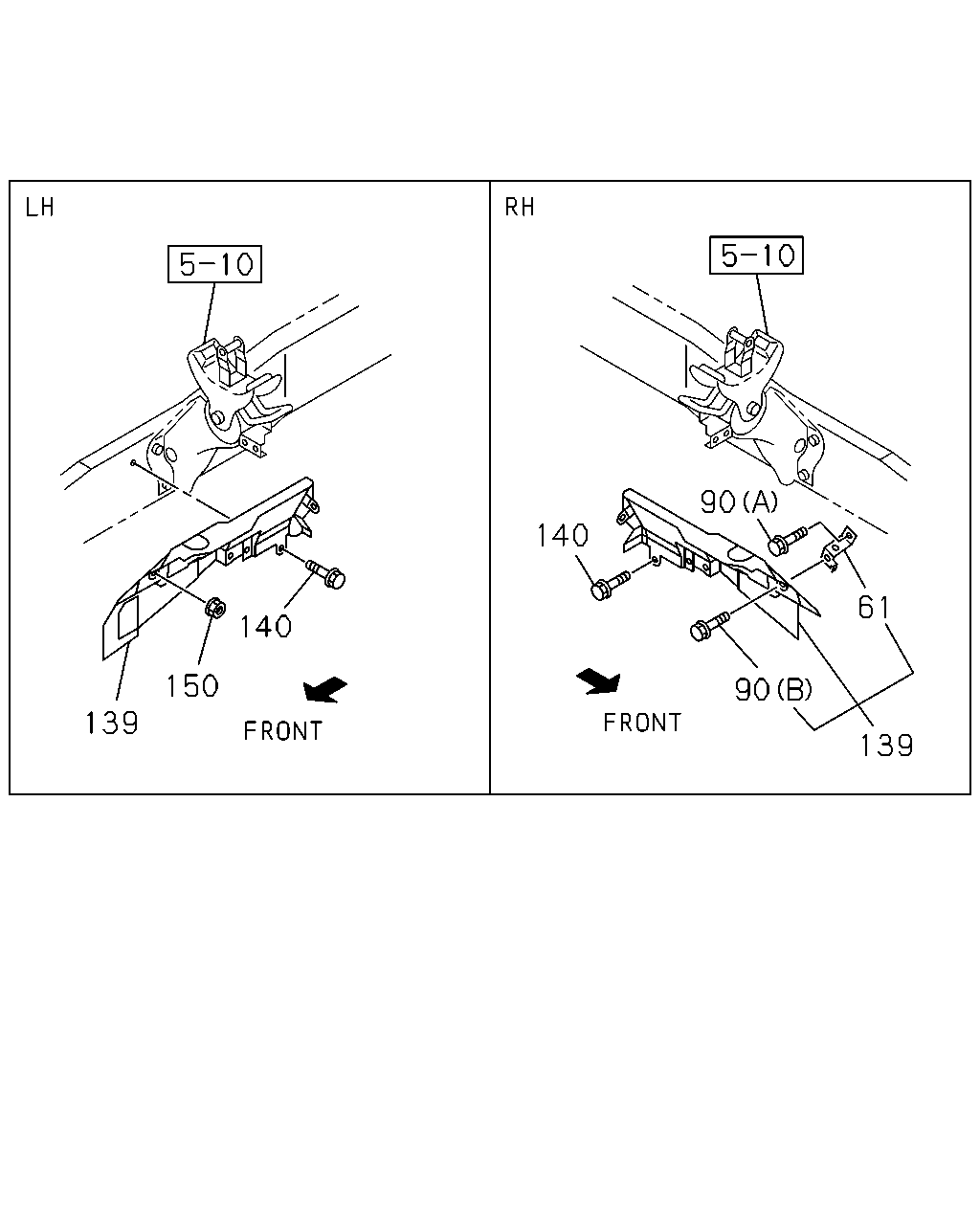

[647A] SIDE COVER (7 parça)

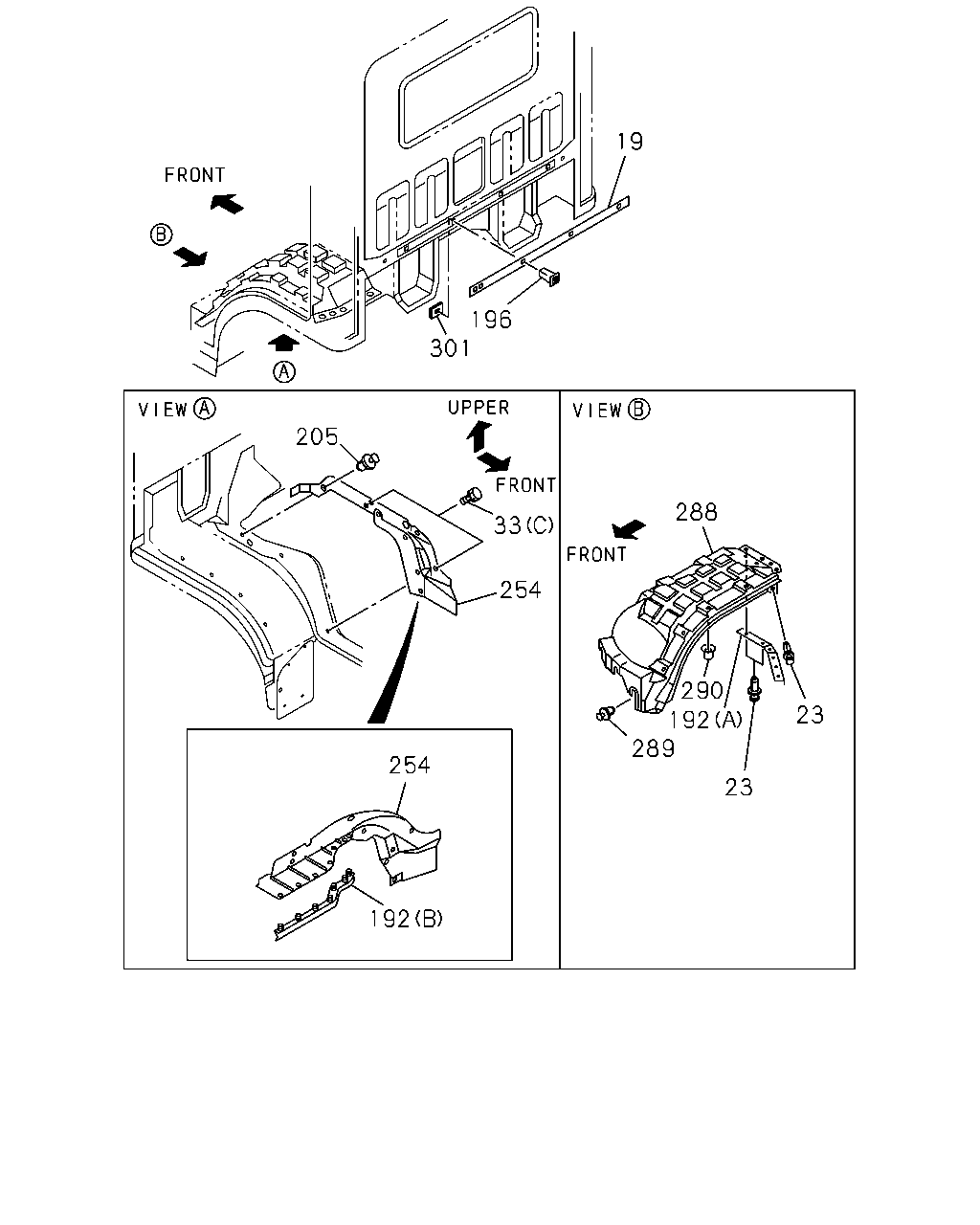

[647A] PROTECTOR AND OTHER PARTS (23 parça)
▶
285
73
350
285
92
73
24
33
33
219
686
33
3
33
67
66
5
285
73
285
73
24
33
33
686
219
33
3
67
66
33
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
08.153 GUARD; MUD,RR
8-98004-030-4
01
1
0712-
3
08.153 GUARD; MUD,RR
8-98004-029-5
01
1
0712-
5
08.155 NUT; FLAP RUBBER
03.330 M6
0-91110-506-0
08
1
0712-1209
5
08.155 NUT; FLAP RUBBER
M6
8-98227-380-0
08
1
1210-
24
08.155 PLATE; MUD COVER
8-98004-031-1
02
1
0712-
33
08.155 BOLT; MUD COVER
00.386 (A) M6X20 FLANGE
0-28050-620-0
08
1
0712-1209
33
08.155 BOLT; MUD COVER
(A) M6X16 FLANGE
8-98227-381-0
08
1
1210-
33
08.155 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
0712-
33
08.155 BOLT; MUD COVER
07.832 (C) M6X16 FLANGE
8-98016-982-0
04
1
0712-0804
33
08.155 BOLT; MUD COVER
(C) M6X16 FLANGE
8-98061-108-0
04
1
0805-
66
08.155 WASHER; LK
ID=6.1
0-91510-606-0
08
1
0712-1209
67
08.155 WASHER; PL
00.413 ID=6.4
0-91610-606-0
08
1
0712-1209
73
08.155 BOLT; MUD COVER BRKT
06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
0712-
73
08.155 BOLT; MUD COVER BRKT
00.029 (A) M10X25 FLANGE
0-28651-025-0
04
1
0712-
92
08.155 NUT; MUD COVER
M8 SPIRE NUT
8-98039-860-2
02
1
0712-
219
08.155 FLAP; MUD GUARD
8-98010-741-1
02
1
0712-
285
08.155 BRACKET; MUD COVER
(C)
8-98001-319-2
01
1
0712-
285
08.155 BRACKET; MUD COVER
(A)
8-98082-272-0
01
1
0712-
285
08.155 BRACKET; MUD COVER
(B)
8-98001-314-2
01
1
0712-
285
08.155 BRACKET; MUD COVER
(D)
8-98001-315-2
01
1
0712-
350
08.155 PROTECTOR; EDGE,MUD COVER
03.008 L=80
5-22439-006-0
01
1
0712-
686
08.155 FLAP ASM; MUD
8-98001-296-6
01
1
0712-
686
08.155 FLAP ASM; MUD
8-98001-302-6
01
1
0712-
140
90
61
90
139
140
150
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
08.155 BRACKET; COVER
8-98033-140-0
01
1
0712-
90
08.153 BOLT; COVER
08.155 (B) M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
0712-
90
08.153 BOLT; COVER
02.343 (A) M8X16 FLANGE
0-28050-816-0
01
1
0712-
139
08.153 PANEL; SIDE
8-97385-590-3
01
1
0712-
139
08.153 PANEL; SIDE
8-98053-670-1
01
1
0712-
140
08.155 BOLT; SIDE PANEL
M8X35 W/LK&PL WASHER
1-09030-094-0
02
1
0712-
150
08.155 NUT; SIDE PANEL
01.840 M8 W/DISHED WASHER
8-97329-625-0
01
1
0712-
19
196
301
205
288
33
254
290
192
289
23
254
23
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
03.602 SHEET; HEAT PROTECTOR,CAB BACK
8-97856-016-0
01
1
0712-1105
19
03.602 SHEET; HEAT PROTECTOR,CAB BACK
8-98191-582-0
01
1
1106-
23
08.154 FASTENER; MUD COVER
16.320 OD=8.3
8-97997-832-0
10
1
0712-
33
08.155 BOLT; MUD COVER
00.386 (A) M6X20 FLANGE
0-28050-620-0
08
1
0712-1209
33
08.155 BOLT; MUD COVER
(A) M6X16 FLANGE
8-98227-381-0
08
1
1210-
33
08.155 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
0712-
33
08.155 BOLT; MUD COVER
07.832 (C) M6X16 FLANGE
8-98016-982-0
04
1
0712-0804
33
08.155 BOLT; MUD COVER
(C) M6X16 FLANGE
8-98061-108-0
04
1
0805-
192
08.153 SEAL; MUD COVER
(A)
8-97896-994-1
02
1
0712-1106
192
08.153 SEAL; MUD COVER
(A)
8-98192-033-0
02
1
1107-
192
08.153 SEAL; MUD COVER
(B)
8-98005-527-2
01
1
0712-
192
08.153 SEAL; MUD COVER
(B)
8-98005-526-2
01
1
0712-
196
03.602 CLIP; HEAT PROTECTOR
08.155
8-97994-312-0
04
1
0712-
205
08.155 FASTENER; MUD COVER
12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
02
1
0712-
254
08.153 COVER; MUD,VALANCE
8-98005-496-3
01
1
0712-0804
254
08.153 COVER; MUD,VALANCE
8-98116-149-0
01
1
0805-
254
08.153 COVER; MUD,VALANCE
8-98005-495-3
01
1
0712-0804
254
08.153 COVER; MUD,VALANCE
8-98116-148-0
01
1
0805-
288
08.155 LINER; TIRE HOUSE
8-97581-241-0
01
1
0712-
288
08.155 LINER; TIRE HOUSE
8-97581-240-0
01
1
0712-
289
08.155 FASTENER; LINER
16.320 OD=8.3
8-94279-989-0
18
1
0712-
290
08.155 NUT; LINER
CAP NUT BLACK
8-94279-526-0
08
1
0712-
301
08.155 HOLDER; HEAT PROTECTOR
8-97994-313-0
04
1
0712-
