Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#5269) — 346 parça

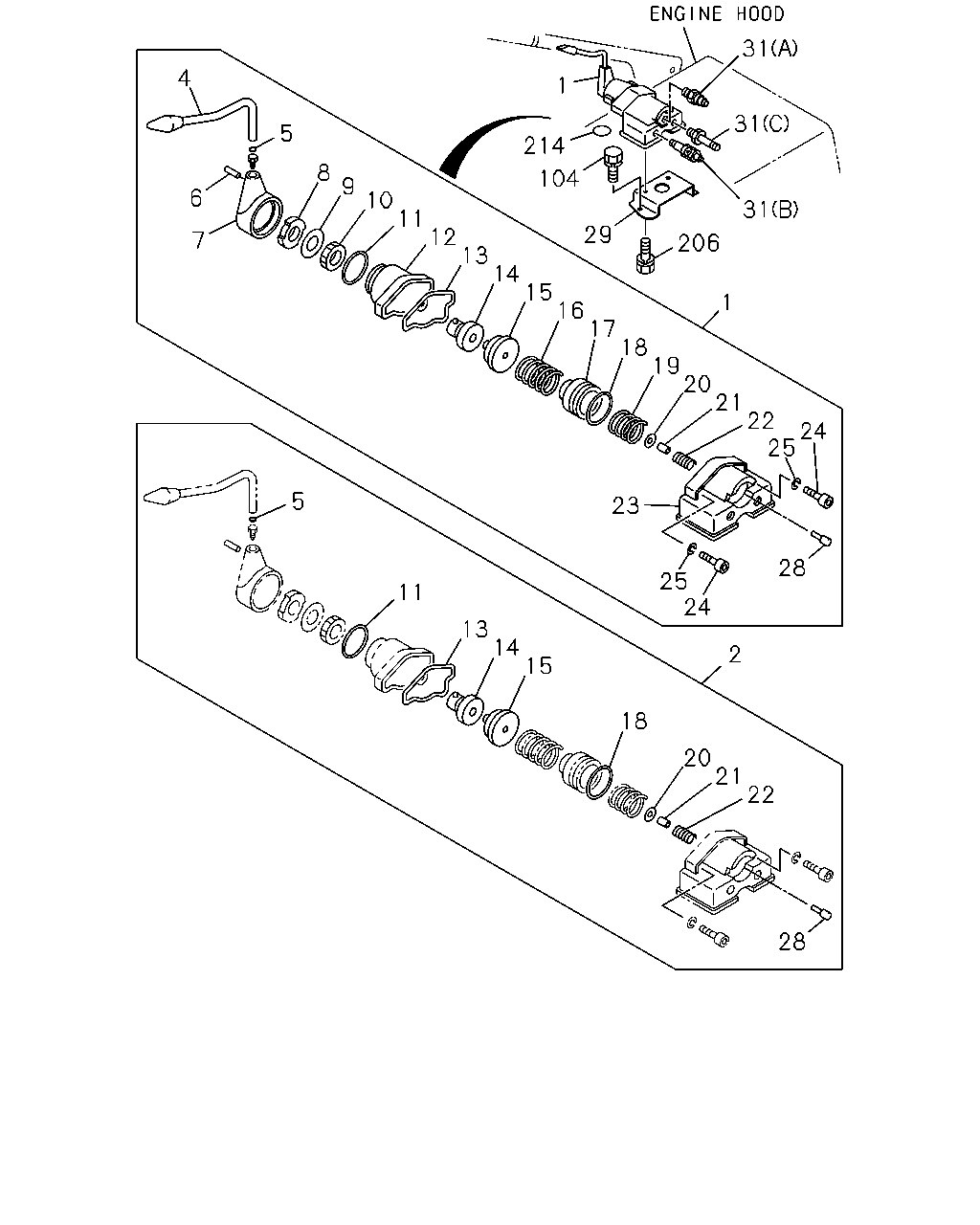

31 4 1 31 5 214 8 104 9 6 10 11 31 29 12 13 14 15 16 17 18 19 20 21 22 24 25 7 206 1 5 23 28 25 24 11 13 14 15 2 18 20 21 22 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK NEW ZEALAND EQUIPMENT(PK5)	1-48100-762-1	01	1	9603-	●
2	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-85576-187-0	01	1	9603-	●
4	HANDLE ASM; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-360-0	01	1	9603-	●
5	GASKET; HANDLE NEW ZEALAND EQUIPMENT(PK5)	1-48119-128-0	01	1	9603-	●
6	PIN; SPR NEW ZEALAND EQUIPMENT(PK5)	1-48119-143-0	01	1	9603-	●
7	HEAD; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-131-0	01	1	9603-	●
8	STOPPER; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48119-327-0	01	1	9603-	●
9	WASHER; LK,ADJ NEW ZEALAND EQUIPMENT(PK5)	1-48119-123-0	01	1	9603-	●
10	RING; ADJ NEW ZEALAND EQUIPMENT(PK5)	1-48119-122-0	01	1	9603-	●
11	GASKET; HD TO COVER NEW ZEALAND EQUIPMENT(PK5)	1-48119-328-0	01	1	9603-	●
12	COVER; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-097-0	01	1	9603-	●
13	GASKET; BODY TO COVER NEW ZEALAND EQUIPMENT(PK5)	1-48119-120-0	01	1	9603-	●
14	FOLLOWER; CAM NEW ZEALAND EQUIPMENT(PK5)	1-48129-135-0	01	1	9603-	●
15	CAM; FOLLOWER NEW ZEALAND EQUIPMENT(PK5)	1-48129-134-0	01	1	9603-	●
16	SPRING; GRUDUATING NEW ZEALAND EQUIPMENT(PK5)	1-48129-101-0	01	1	9603-	●
17	PISTON; SPR NEW ZEALAND EQUIPMENT(PK5)	1-48129-095-0	01	1	9603-	●
18	GASKET; BODY NEW ZEALAND EQUIPMENT(PK5)	1-48129-096-0	01	1	9603-	●
19	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5)	1-48129-094-0	01	1	9603-	●
20	GUIDE; VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-090-0	01	1	9603-	●
21	VALVE; IN & EXH NEW ZEALAND EQUIPMENT(PK5)	1-48121-017-0	01	1	9603-	●
22	SPRING; VLV NEW ZEALAND EQUIPMENT(PK5)	1-48123-024-0	01	1	9603-	●
23	BODY; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48111-060-0	01	1	9603-	●
24	BOLT; EXH VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-092-0	02	1	9603-	●
25	WASHER; LK,EXH VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-093-0	02	1	9603-	●
28	STEM ASM; BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48129-089-0	01	1	9603-	●
29	BRACKET; HAND BRK FULL TRACTOR TRUCK<RD6>	1-79997-357-0	01	1	9908-	●
31	CONNECTOR; HAND BRK VLV (B) M14	1-09656-391-2	01	1	9603-9910	●	●
31	CONNECTOR; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14	1-09656-391-2	01	1	9911-	●	●
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	9603-9910	●	●
31	CONNECTOR; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=45	8-94338-874-0	01	1	9911-	●	●
31	CONNECTOR; HAND BRK VLV (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9603-9910	●	●
31	CONNECTOR; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9911-	●	●
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9603-9904	●	●
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9905-9910	●	●
104	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9911-	●	●
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	9603-9705	●	●
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	9706-9904	●	●
206	BOLT; HAND BRK VALVE BRAKE REGULATION ECE<TDV> M10X20 W/LK WASHER	0-50041-020-0	02	1	9706-9904	●
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	9905-9910	●	●
206	BOLT; HAND BRK VALVE PARKING BRAKE VALVE LEVER TYPE<W48> M10X20 W/LK WASHER	0-50041-020-0	02	1	9905-9910	●	●
206	BOLT; HAND BRK VALVE SPRING BRAKE(SU9) M10X20 W/LK WASHER	0-50041-020-0	02	1	9911-	●	●
206	BOLT; HAND BRK VALVE PARKING BRAKE VALVE LEVER TYPE<W48> M10X20 W/LK WASHER	0-50041-020-0	02	1	9911-	●	●
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	01	1	9603-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

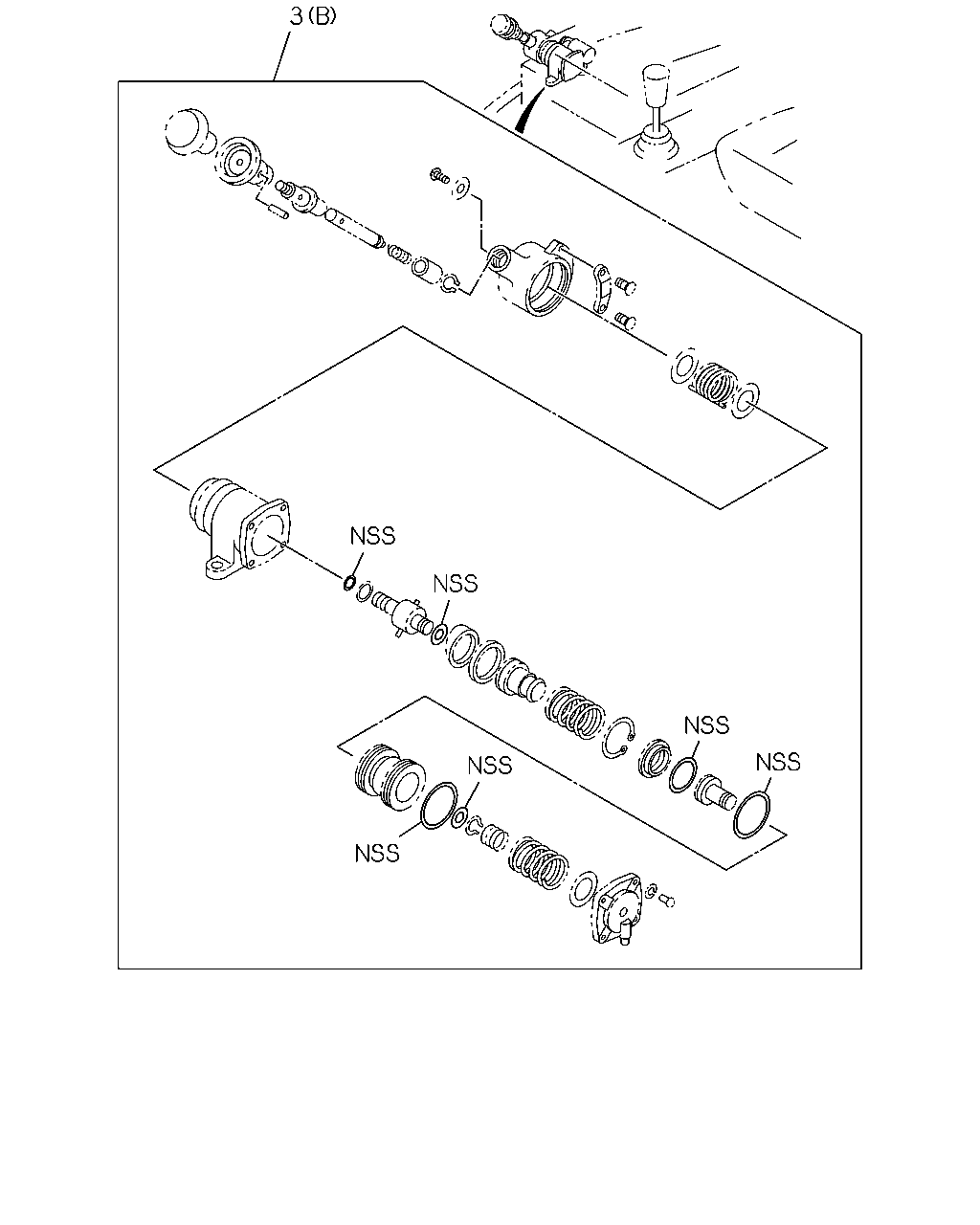

3	REPAIR KIT; HAND BRK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-48469-096-0	01	1	9603-9910	●	●
3	REPAIR KIT; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1) (B)	1-48469-096-0	01	1	9911-	●	●

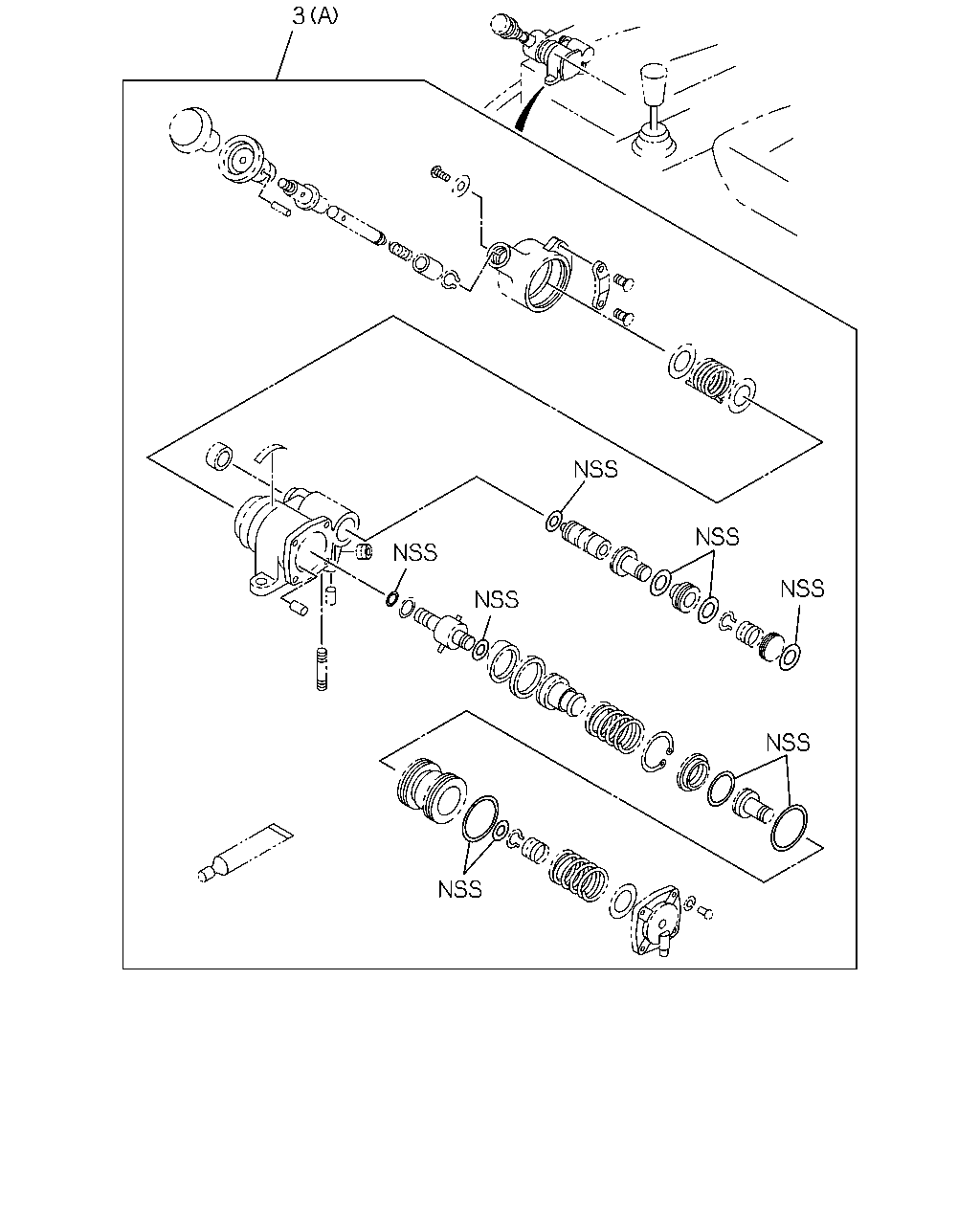

3	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-083-0	01	1	9605-9910	●
3	REPAIR KIT; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-083-0	01	1	9911-	●

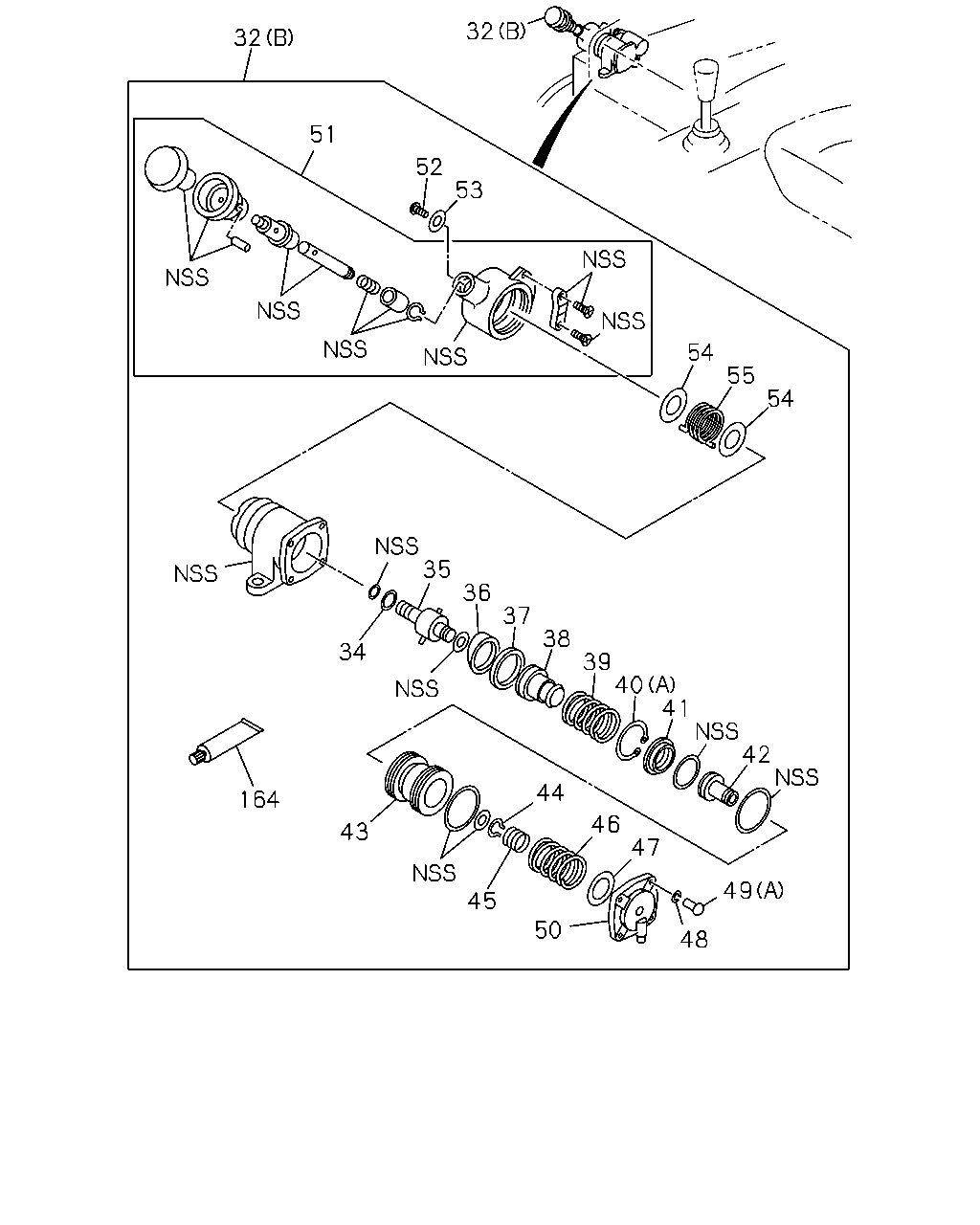

32 32 51 52 53 54 55 33 54 56 42 35 57 36 37 58 38 44 34 39 45 40 41 42 145 59 40 44 46 43 47 164 49 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-306-0	01	1	9603-9910	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1) (B)	1-48460-306-0	01	1	9911-	●	●
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9603-9910	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9911-	●	●

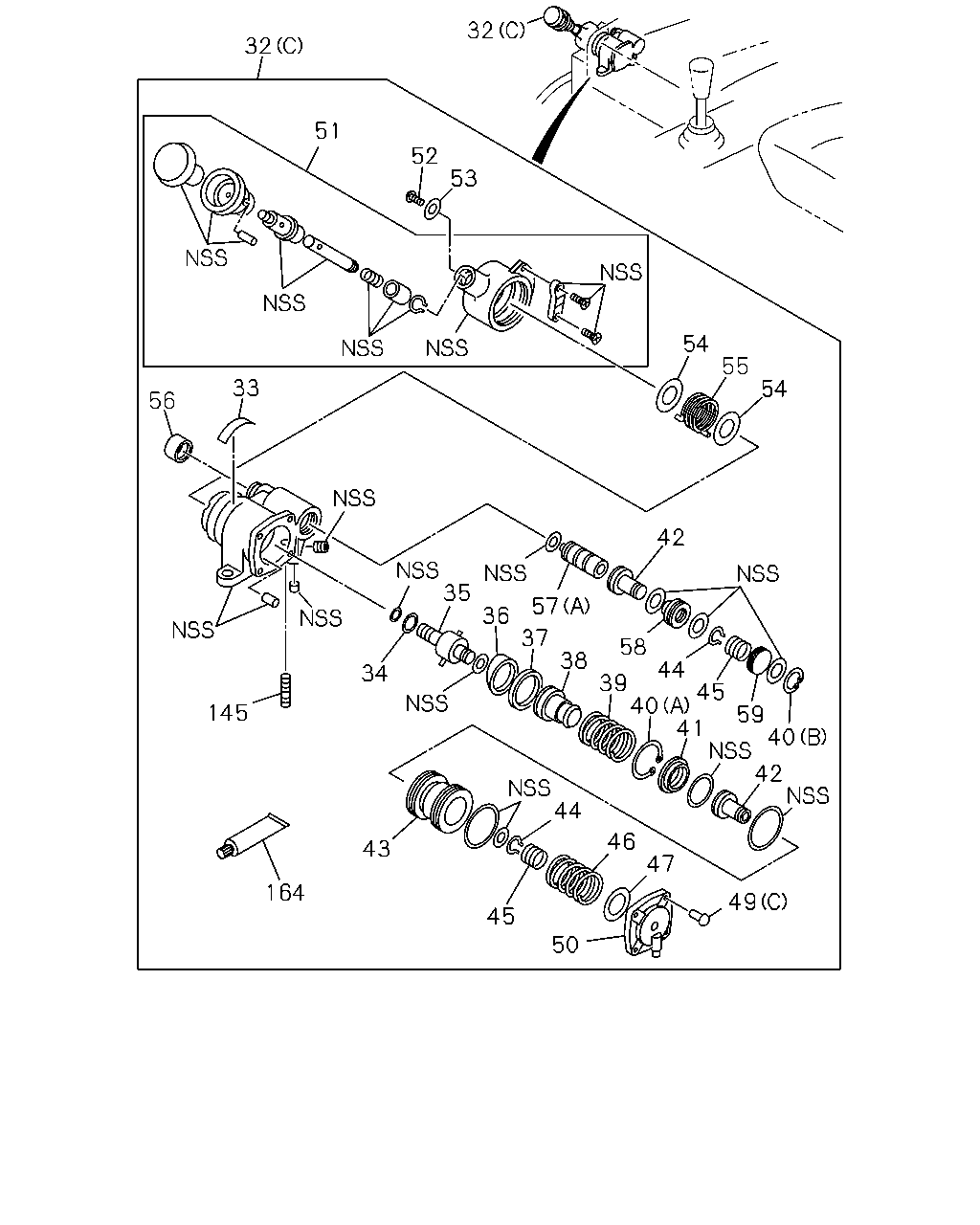

32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (C)	1-48460-316-0	01	1	9605-9910	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (C)	1-48460-316-0	01	1	9911-	●
33	PLATE; CAUTION NEW ZEALAND EQUIPMENT(PK5)	1-48469-121-0	01	1	9605-9910	●
33	PLATE; CAUTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-121-0	01	1	9911-	●
34	SHIM; CAM HOLDER HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	AR	1	9603-9604	●	●
34	SHIM; CAM HOLDER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	AR	1	9605-9910	●	●
34	SHIM; CAM HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	AR	1	9911-	●	●
35	HOLDER; CAM HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9603-9604	●	●
35	HOLDER; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9605-9910	●	●
35	HOLDER; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9911-	●	●
36	RING; CAM HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	9603-9604	●	●
36	RING; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	9605-9910	●	●
36	RING; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	9911-	●	●
37	GUIDE; CAM RING HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	9603-9604	●	●
37	GUIDE; CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	9605-9910	●	●
37	GUIDE; CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	9911-	●	●
38	SEAT; EXH VLV HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	9603-9604	●	●
38	SEAT; EXH VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	9605-9910	●	●
38	SEAT; EXH VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	9911-	●	●
39	SPRING; RETURN,CAM RING HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	9603-9604	●	●
39	SPRING; RETURN,CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	9605-9910	●	●
39	SPRING; RETURN,CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	9911-	●	●
40	RING; SNAP HONG KONG EQUIPMENT(PQ1) (A)	1-48469-067-0	01	1	9603-9604	●	●
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-067-0	01	1	9605-9910	●	●
40	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-067-0	01	1	9911-	●	●
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5) (B)	1-48469-079-0	01	1	9605-9910	●
40	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B)	1-48469-079-0	01	1	9911-	●
41	SEAT; FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	9603-9604	●	●
41	SEAT; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	9605-9910	●	●
41	SEAT; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	9911-	●	●
42	VALVE; FEED HONG KONG EQUIPMENT(PQ1)	1-48469-065-0	01	1	9603-9910	●	●
42	VALVE; FEED BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1)	1-48469-065-0	01	1	9911-	●	●
42	VALVE; FEED NEW ZEALAND EQUIPMENT(PK5)	1-48469-065-0	02	1	9605-9910	●
42	VALVE; FEED BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-065-0	02	1	9911-	●
43	PISTON; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	9603-9604	●	●
43	PISTON; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	9605-9910	●	●
43	PISTON; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	9911-	●	●
44	RING; SNAP,FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-068-0	02	1	9603-9604	●	●
44	RING; SNAP,FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-068-0	02	1	9605-9910	●	●
44	RING; SNAP,FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-068-0	02	1	9911-	●	●
45	SPRING; FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-070-0	01	1	9603-9910	●	●
45	SPRING; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1)	1-48469-070-0	01	1	9911-	●	●
45	SPRING; FEED VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-070-0	02	1	9605-9910	●
45	SPRING; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-070-0	02	1	9911-	●
46	SPRING; MAIN,PISTON HONG KONG EQUIPMENT(PQ1)	1-48469-089-0	01	1	9603-9910	●	●
46	SPRING; MAIN,PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1)	1-48469-089-0	01	1	9911-	●	●
46	SPRING; MAIN,PISTON NEW ZEALAND EQUIPMENT(PK5)	1-48469-119-0	01	1	9605-9910	●
46	SPRING; MAIN,PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-119-0	01	1	9911-	●
47	SHIM; MAIN SPRING HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	AR	1	9603-9604	●	●
47	SHIM; MAIN SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	AR	1	9605-9910	●	●
47	SHIM; MAIN SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	AR	1	9911-	●	●
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	02	1	9905-9910	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	02	1	9911-	●	●
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (A)	1-48469-092-0	04	1	9603-9910	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1) (A)	1-48469-092-0	04	1	9911-	●	●
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	01	1	9603-9904	●	●
49	SCREW; COVER NEW ZEALAND EQUIPMENT(PK5) (C)	1-48469-120-0	04	1	9605-9910	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (C)	1-48469-120-0	04	1	9911-	●
50	COVER; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-090-0	01	1	9603-9910	●	●
50	COVER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1)	1-48469-090-0	01	1	9911-	●	●
50	COVER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-073-0	01	1	9605-9910	●
50	COVER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-073-0	01	1	9911-	●
51	HANDLE ASM; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-122-0	01	1	9603-9910	●	●
51	HANDLE ASM; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1)	1-48469-122-0	01	1	9911-	●	●
51	HANDLE ASM; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-060-0	01	1	9605-9910	●
51	HANDLE ASM; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-060-0	01	1	9911-	●
52	SCREW; HANDLE HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	9603-9604	●	●
52	SCREW; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	9605-9910	●	●
52	SCREW; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	9911-	●	●
53	WASHER; HANDLE HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	9603-9604	●	●
53	WASHER; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	9605-9910	●	●
53	WASHER; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	9911-	●	●
54	SEAT; SPRING HONG KONG EQUIPMENT(PQ1)	1-48469-123-0	02	1	9603-9904	●	●
54	SEAT; SPRING NEW ZEALAND EQUIPMENT(PK5)	1-48469-082-0	02	1	9605-9904	●
54	SEAT; SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-082-0	02	1	9905-9910	●	●
54	SEAT; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-082-0	02	1	9911-	●	●
55	SPRING; RETURN,HANDLE HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	9603-9604	●	●
55	SPRING; RETURN,HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	9605-9910	●	●
55	SPRING; RETURN,HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	9911-	●	●
56	BOOT; PLUNGER NEW ZEALAND EQUIPMENT(PK5)	1-48469-080-0	01	1	9605-9910	●
56	BOOT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-080-0	01	1	9911-	●
57	PLUNGER; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9603-9910	●	●
57	PLUNGER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9911-	●	●
57	PLUNGER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-076-0	01	1	9605-9910	●
57	PLUNGER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-076-0	01	1	9911-	●
58	HOLDER; FEED VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-077-0	01	1	9605-9910	●
58	HOLDER; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-077-0	01	1	9911-	●
59	HOLDER; SPRING NEW ZEALAND EQUIPMENT(PK5)	1-48469-078-0	01	1	9605-9910	●
59	HOLDER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-078-0	01	1	9911-	●
145	STUD; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-069-0	01	1	9605-9910	●
145	STUD; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-069-0	01	1	9911-	●
164	GREASE; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9603-9604	●	●
164	GREASE; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9605-9910	●	●
164	GREASE; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9911-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-48469-096-0	01	1	9603-9910	●	●
3	REPAIR KIT; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1) (B)	1-48469-096-0	01	1	9911-	●	●
3	REPAIR KIT; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-083-0	01	1	9605-9910	●
3	REPAIR KIT; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-083-0	01	1	9911-	●

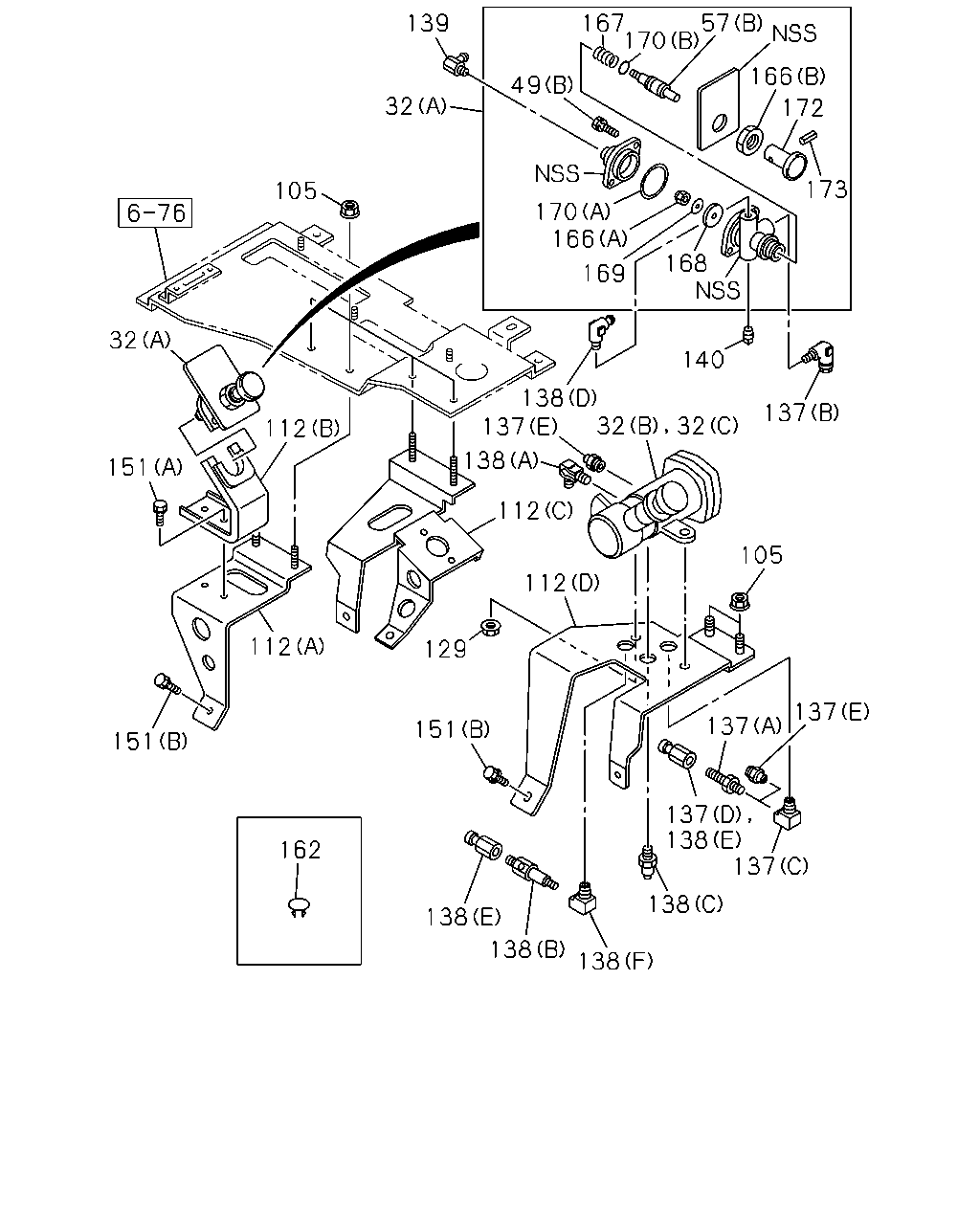

167 57 170 139 166 49 32 172 173 105 170 166 168 169 32 140 138 137 137 112 138 151 112 105 112 112 129 137 137 151 151 137 138 137 162 138 138 138 138 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-306-0	01	1	9603-9910	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1) (B)	1-48460-306-0	01	1	9911-	●	●
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9603-9910	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9911-	●	●
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (C)	1-48460-316-0	01	1	9605-9910	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (C)	1-48460-316-0	01	1	9911-	●
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	02	1	9905-9910	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	02	1	9911-	●	●
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (A)	1-48469-092-0	04	1	9603-9910	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1) (A)	1-48469-092-0	04	1	9911-	●	●
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	01	1	9603-9904	●	●
49	SCREW; COVER NEW ZEALAND EQUIPMENT(PK5) (C)	1-48469-120-0	04	1	9605-9910	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (C)	1-48469-120-0	04	1	9911-	●
57	PLUNGER; HAND BRK VLV EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9603-9910	●	●
57	PLUNGER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9911-	●	●
57	PLUNGER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-076-0	01	1	9605-9910	●
57	PLUNGER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (A)	1-48469-076-0	01	1	9911-	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9603-9907	●	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9603-9907	●	●
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9603-9907	●	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9908-9910	●	●
105	NUT; BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9908-9910	●	●
105	NUT; BRKT FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	9908-9910	●
105	NUT; BRKT SPRING BRAKE(SU9) M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
105	NUT; BRKT SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
105	NUT; BRKT FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	9911-	●
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (D)	1-79907-068-0	01	1	9603-	●	●
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47475-260-2	01	1	9603-9910	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47475-260-2	01	1	9911-	●	●
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C)	1-79997-355-0	01	1	9603-9910	●	●
112	BRACKET; CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C)	1-79997-355-0	01	1	9911-	●	●
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79997-358-1	01	1	9603-9910	●	●
112	BRACKET; CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79997-358-1	01	1	9911-	●	●
112	BRACKET; CONT VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D)	1-79996-336-1	01	1	9603-	●
129	NUT; VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	01	1	9603-	●	●
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (C) PT1/4 2WAY	1-09660-693-0	01	1	9603-9910	●	●
137	CONNECTOR; SUPPLY SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) PT1/4 2WAY	1-09660-693-0	01	1	9911-	●	●
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9603-9608	●	●
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (E) DIN12 R1/4 STRAIGHT	1-09660-754-1	01	1	9609-9910	●	●
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	9911-	●	●
137	CONNECTOR; SUPPLY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9603-9910	●	●
137	CONNECTOR; SUPPLY SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9911-	●	●
137	CONNECTOR; SUPPLY FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9603-9608	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) M14	1-09656-391-2	01	1	9603-	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9910	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (F) PT1/4 2WAY	1-09660-693-0	01	1	9905-	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-09650-240-1	01	1	9603-	●	●
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9603-9910	●	●
138	CONNECTOR; DELIVERY SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9911-	●	●
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (E) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9603-9910	●
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (E) DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	9911-0007	●
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (E) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0008-	●
139	CONNECTOR; EXH EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4 ELBOW	8-94232-303-2	01	1	9603-9708	●	●
139	CONNECTOR; EXH EXC. BRAKE REGULATION ECE<TDV>,PARKING BRAKE VALVELEVER TYPE<W48> L=45	8-94338-874-0	01	1	9709-9904	●	●
139	CONNECTOR; EXH EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=45	8-94338-874-0	01	1	9905-9910	●	●
139	CONNECTOR; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=45	8-94338-874-0	01	1	9911-	●	●
140	PLUG EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	9603-9910	●	●
140	PLUG SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	9911-	●	●
151	BOLT; VLV BRKT (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9603-9910	●	●
151	BOLT; VLV BRKT SPRING BRAKE(SU9) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9911-	●	●
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9603-9910	●	●
151	BOLT; VLV BRKT SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9911-	●	●
162	SWITCH; PARKING BRK VLV HONG KONG EQUIPMENT(PQ1)	1-72447-390-0	01	1	9603-9708	●	●
162	SWITCH; PARKING BRK VLV HONG KONG EQUIPMENT(PQ1),KENYA EQUIPMENT(PQ2)	1-72447-390-0	01	1	9709-9802	●	●
162	SWITCH; PARKING BRK VLV HONG KONG EQUIPMENT(PQ1)	1-72447-390-0	01	1	9803-9904	●	●
162	SWITCH; PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48>	1-72447-390-0	01	1	9905-	●	●
166	NUT; PLUNGER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48129-069-0	01	1	9603-9910	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48129-069-0	01	1	9911-	●	●
166	NUT; PLUNGER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-101-0	01	1	9603-9910	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-101-0	01	1	9911-	●	●
167	SPRING; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-098-0	01	1	9603-9910	●	●
167	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-098-0	01	1	9911-	●	●
168	VALVE; INL EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-099-0	01	1	9603-9910	●	●
168	VALVE; INL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-099-0	01	1	9911-	●	●
169	WASHER; PL,VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> ID=6.4	9-09164-506-0	01	1	9603-9910	●	●
169	WASHER; PL,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> ID=6.4	9-09164-506-0	01	1	9911-	●	●
170	GASKET; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48469-100-0	01	1	9603-9910	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48469-100-0	01	1	9911-	●	●
170	GASKET; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	9-19519-094-0	01	1	9603-9910	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	9-19519-094-0	01	1	9911-	●	●
172	KNOB; VALVE EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-102-0	01	1	9603-9910	●	●
172	KNOB; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-102-0	01	1	9911-	●	●
173	PIN; SPR,KNOB EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	8-94124-044-0	01	1	9603-9910	●	●
173	PIN; SPR,KNOB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48>	8-94124-044-0	01	1	9911-	●	●

32 32 51 52 53 54 55 54 35 36 37 38 34 39 40 41 42 44 164 46 43 47 49 45 50 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (B)	1-48460-306-0	01	1	9603-9910	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1) (B)	1-48460-306-0	01	1	9911-	●	●
32	VALVE; BRK,HAND CONT EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9603-9910	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9911-	●	●
32	VALVE; BRK,HAND CONT NEW ZEALAND EQUIPMENT(PK5) (C)	1-48460-316-0	01	1	9605-9910	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (C)	1-48460-316-0	01	1	9911-	●
34	SHIM; CAM HOLDER HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	AR	1	9603-9604	●	●
34	SHIM; CAM HOLDER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	AR	1	9605-9910	●	●
34	SHIM; CAM HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	AR	1	9911-	●	●
35	HOLDER; CAM HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9603-9604	●	●
35	HOLDER; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9605-9910	●	●
35	HOLDER; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9911-	●	●
36	RING; CAM HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	9603-9604	●	●
36	RING; CAM NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	9605-9910	●	●
36	RING; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	9911-	●	●
37	GUIDE; CAM RING HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	9603-9604	●	●
37	GUIDE; CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	9605-9910	●	●
37	GUIDE; CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	9911-	●	●
38	SEAT; EXH VLV HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	9603-9604	●	●
38	SEAT; EXH VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	9605-9910	●	●
38	SEAT; EXH VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	9911-	●	●
39	SPRING; RETURN,CAM RING HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	9603-9604	●	●
39	SPRING; RETURN,CAM RING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	9605-9910	●	●
39	SPRING; RETURN,CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	9911-	●	●
40	RING; SNAP HONG KONG EQUIPMENT(PQ1) (A)	1-48469-067-0	01	1	9603-9604	●	●
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-067-0	01	1	9605-9910	●	●
40	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48469-067-0	01	1	9911-	●	●
40	RING; SNAP NEW ZEALAND EQUIPMENT(PK5) (B)	1-48469-079-0	01	1	9605-9910	●
40	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B)	1-48469-079-0	01	1	9911-	●
41	SEAT; FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	9603-9604	●	●
41	SEAT; FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	9605-9910	●	●
41	SEAT; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	9911-	●	●
42	VALVE; FEED HONG KONG EQUIPMENT(PQ1)	1-48469-065-0	01	1	9603-9910	●	●
42	VALVE; FEED BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1)	1-48469-065-0	01	1	9911-	●	●
42	VALVE; FEED NEW ZEALAND EQUIPMENT(PK5)	1-48469-065-0	02	1	9605-9910	●
42	VALVE; FEED BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-065-0	02	1	9911-	●
43	PISTON; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	9603-9604	●	●
43	PISTON; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	9605-9910	●	●
43	PISTON; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	9911-	●	●
44	RING; SNAP,FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-068-0	02	1	9603-9604	●	●
44	RING; SNAP,FEED VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-068-0	02	1	9605-9910	●	●
44	RING; SNAP,FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-068-0	02	1	9911-	●	●
45	SPRING; FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-070-0	01	1	9603-9910	●	●
45	SPRING; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1)	1-48469-070-0	01	1	9911-	●	●
45	SPRING; FEED VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-070-0	02	1	9605-9910	●
45	SPRING; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-070-0	02	1	9911-	●
46	SPRING; MAIN,PISTON HONG KONG EQUIPMENT(PQ1)	1-48469-089-0	01	1	9603-9910	●	●
46	SPRING; MAIN,PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1)	1-48469-089-0	01	1	9911-	●	●
46	SPRING; MAIN,PISTON NEW ZEALAND EQUIPMENT(PK5)	1-48469-119-0	01	1	9605-9910	●
46	SPRING; MAIN,PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-119-0	01	1	9911-	●
47	SHIM; MAIN SPRING HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	AR	1	9603-9604	●	●
47	SHIM; MAIN SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	AR	1	9605-9910	●	●
47	SHIM; MAIN SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	AR	1	9911-	●	●
48	WASHER; COVER HONG KONG EQUIPMENT(PQ1)	1-48469-091-0	04	1	9603-9910	●	●
48	WASHER; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1)	1-48469-091-0	04	1	9911-	●	●
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	02	1	9905-9910	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	02	1	9911-	●	●
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (A)	1-48469-092-0	04	1	9603-9910	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1) (A)	1-48469-092-0	04	1	9911-	●	●
49	SCREW; COVER EXC. NEW ZEALAND EQUIPMENT(PK5),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	01	1	9603-9904	●	●
49	SCREW; COVER NEW ZEALAND EQUIPMENT(PK5) (C)	1-48469-120-0	04	1	9605-9910	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (C)	1-48469-120-0	04	1	9911-	●
50	COVER; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-090-0	01	1	9603-9910	●	●
50	COVER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1)	1-48469-090-0	01	1	9911-	●	●
50	COVER; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-073-0	01	1	9605-9910	●
50	COVER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-073-0	01	1	9911-	●
51	HANDLE ASM; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-122-0	01	1	9603-9910	●	●
51	HANDLE ASM; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HONG KONG EQUIPMENT(PQ1)	1-48469-122-0	01	1	9911-	●	●
51	HANDLE ASM; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5)	1-48469-060-0	01	1	9605-9910	●
51	HANDLE ASM; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5)	1-48469-060-0	01	1	9911-	●
52	SCREW; HANDLE HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	9603-9604	●	●
52	SCREW; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	9605-9910	●	●
52	SCREW; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	9911-	●	●
53	WASHER; HANDLE HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	9603-9604	●	●
53	WASHER; HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	9605-9910	●	●
53	WASHER; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	9911-	●	●
54	SEAT; SPRING HONG KONG EQUIPMENT(PQ1)	1-48469-123-0	02	1	9603-9904	●	●
54	SEAT; SPRING NEW ZEALAND EQUIPMENT(PK5)	1-48469-082-0	02	1	9605-9904	●
54	SEAT; SPRING NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-082-0	02	1	9905-9910	●	●
54	SEAT; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-082-0	02	1	9911-	●	●
55	SPRING; RETURN,HANDLE HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	9603-9604	●	●
55	SPRING; RETURN,HANDLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	9605-9910	●	●
55	SPRING; RETURN,HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	9911-	●	●
164	GREASE; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9603-9604	●	●
164	GREASE; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9605-9910	●	●
164	GREASE; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9911-	●	●

65 125 115 64 115 115 115 115 215 115 115 115 95 123 123 122 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
64	BRACKET; RELAY VLV NEW ZEALAND EQUIPMENT(PK5)	1-48495-193-0	01	1	9603-9904	●
64	BRACKET; RELAY VLV BRAKE REGULATION ECE<TDV>	1-48495-193-0	01	1	9905-0007	●
64	BRACKET; RELAY VLV BRAKE REGULATION ECE<TDV>	1-48495-226-0	01	1	0008-	●
65	NUT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	03	1	9603-9904	●
65	NUT; RELAY VLV BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	03	1	9905-	●
65	NUT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) M10	9-09110-510-0	02	1	9603-9606	●
65	NUT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) M10 FLANGE	0-91150-210-0	02	1	9607-9904	●
65	NUT; RELAY VLV BRAKE REGULATION ECE<TDV> M10 FLANGE	0-91150-210-0	02	1	9905-	●
95	BOLT; BRKT,DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28080-816-0	02	1	9603-9904	●
95	BOLT; BRKT,DOUBLE CHECK VLV BRAKE REGULATION ECE<TDV> M8X16 FLANGE	0-28080-816-0	02	1	9905-	●
115	CONNECTOR; DUAL RELAY VLV NEW ZEALAND EQUIPMENT(PK5) (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	03	1	9603-9904	●
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	9905-	●
115	CONNECTOR; DUAL RELAY VLV NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	03	1	9603-9904	●
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION ECE<TDV> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9905-	●
122	VALVE ASM; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-050-0	01	1	9603-9902	●
122	VALVE ASM; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-531-0	01	1	9903-9904	●
122	VALVE ASM; DOUBLE CHECK BRAKE REGULATION ECE<TDV>	1-48410-531-0	01	1	9905-	●
123	CONNECTOR; DBL CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9603-9904	●
123	CONNECTOR; DBL CHECK VLV BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9905-	●
123	CONNECTOR; DBL CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (B) DIN8X2 & R3/8 3WAY	1-09660-658-1	01	1	9603-9904	●
123	CONNECTOR; DBL CHECK VLV BRAKE REGULATION ECE<TDV> (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9905-	●
125	BOLT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) M10X35 W/LK WASHER	0-50041-035-0	02	1	9603-9606	●
125	BOLT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) M10X40 FLANGE	0-28681-040-0	02	1	9607-9904	●
125	BOLT; RELAY VLV BRAKE REGULATION ECE<TDV> M10X40 FLANGE	0-28681-040-0	02	1	9905-	●
215	VALVE; TRAILER CONT NEW ZEALAND EQUIPMENT(PK5)	1-48210-628-0	01	1	9603-9904	●
215	VALVE; TRAILER CONT BRAKE REGULATION ECE<TDV>	1-48210-628-0	01	1	9905-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
