Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-32 - FRONT DOOR LOCK AND HANDLE
▶
6-32 — FRONT DOOR LOCK AND HANDLE
(#52688) — 32 parça
◀

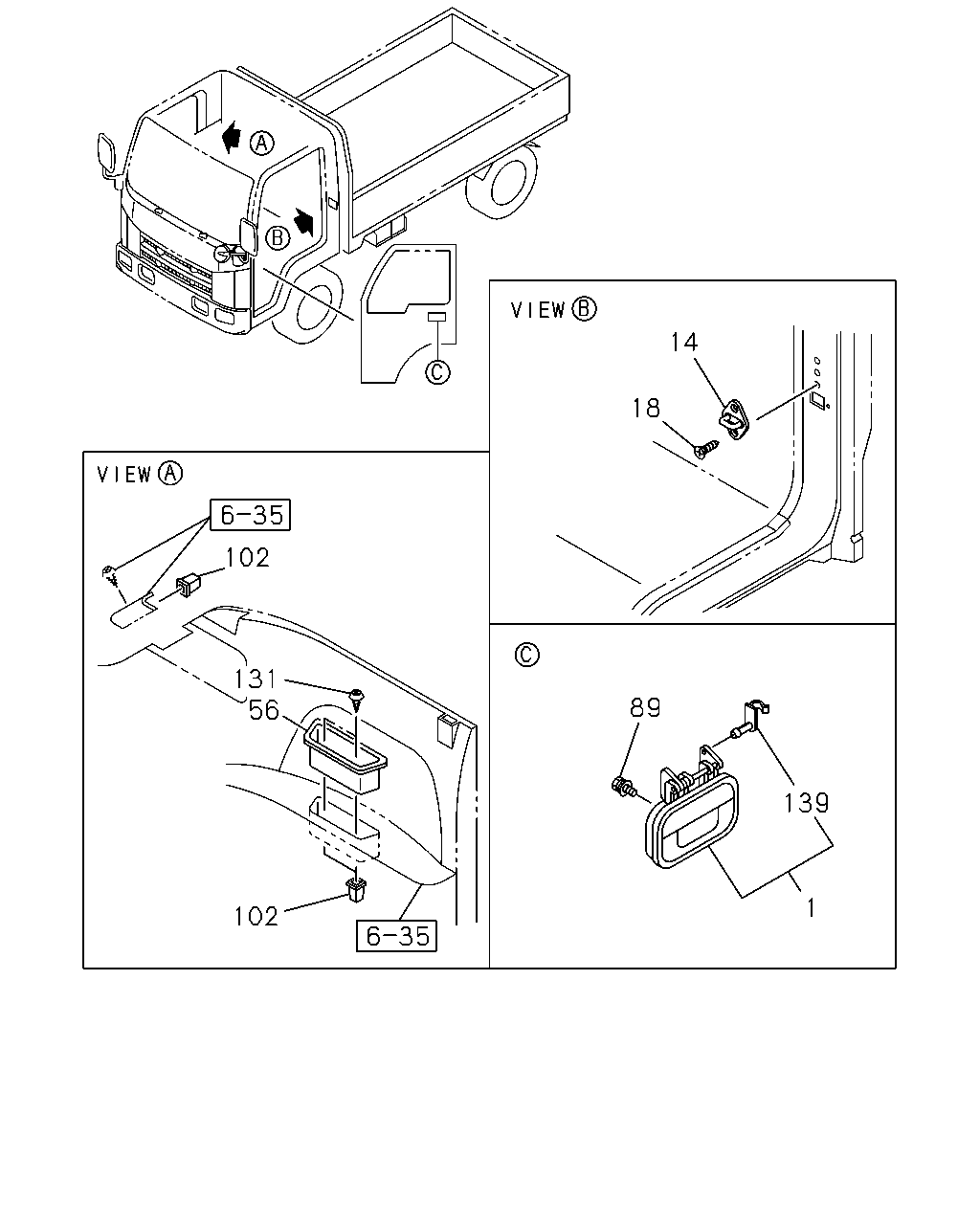

[632A] OTHER PARTS (10 parça)

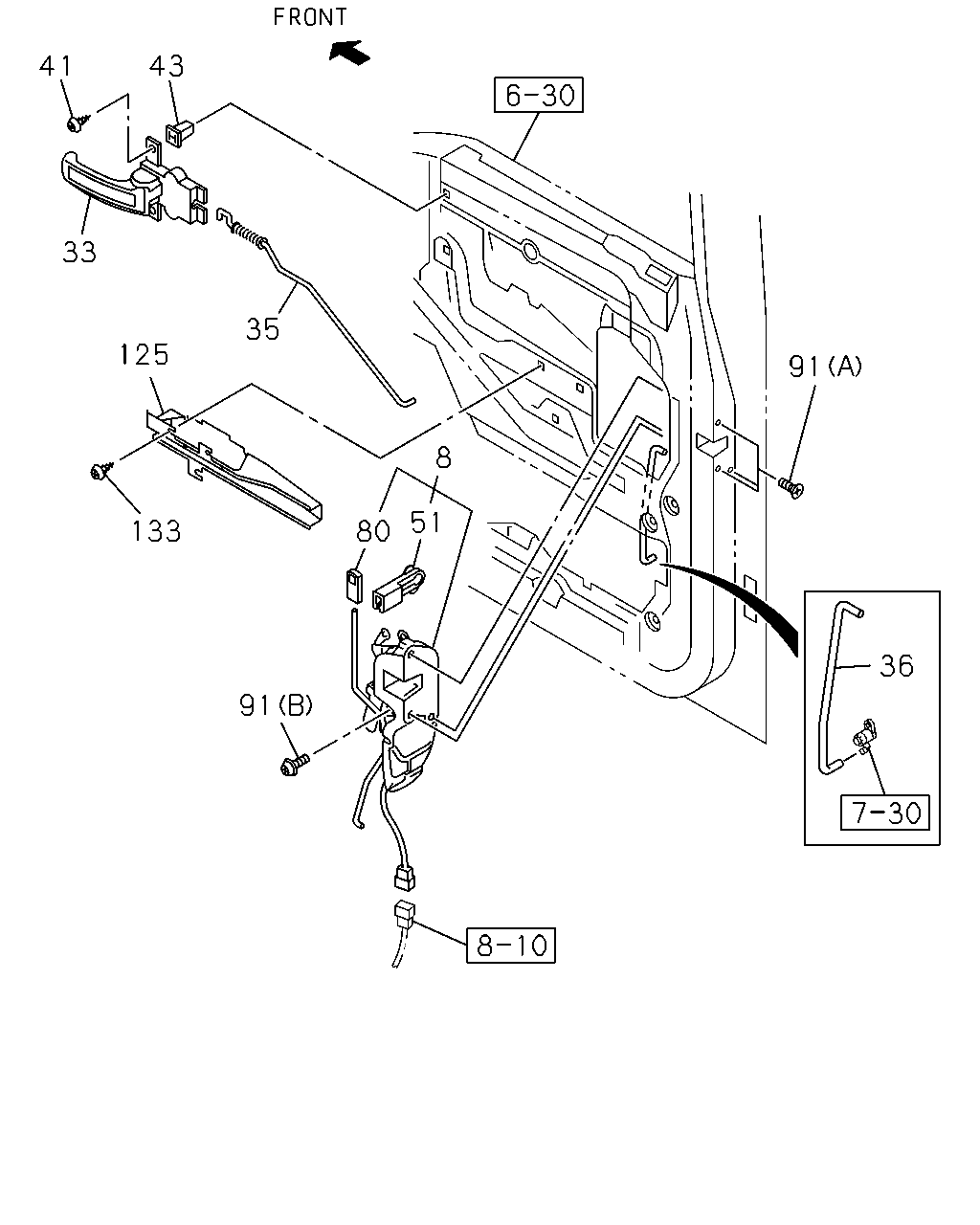

[632A] DOOR LOCK ASM (22 parça)
▶
14
18
102
131
56
89
139
1
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.350 HANDLE; OUTSIDE,FRT DOOR
8-97867-722-1
01
1
0712-
1
16.350 HANDLE; OUTSIDE,FRT DOOR
8-97867-721-1
01
1
0712-
14
16.335 STRIKER; FRT DOOR
8-97221-702-1
02
1
0712-
18
16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD
8-98004-343-2
04
1
0712-
56
16.157 ESCUTCHEON; LOCK KNOB
GRAY
8-97406-318-3
02
1
0712-
89
16.350 BOLT; DOOR OUTSIDE HANDLE
M6X8 W/TORQUES
8-98064-276-1
04
1
0712-
102
16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
01.269 D=8.6X7.7 L=7.5
8-94279-078-0
06
1
0712-
131
16.345 SCREW; ESCUTCHEON,DOOR PULL
M5X12 HEX SOCKET
0-72380-512-0
04
1
0712-
139
16.350 HOLDER; ROD,DOOR HANDLE
8-97852-652-1
01
1
0712-
139
16.350 HOLDER; ROD,DOOR HANDLE
8-97852-651-1
01
1
0712-
35
43
41
33
125
133
91
80
51
8
91
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> GRAY
8-97406-312-2
01
1
0712-1009
8
16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> GRAY
8-97421-007-0
01
1
1010-1405
8
16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> GRAY
8-97428-935-0
01
1
1406-
8
16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> GRAY
8-97406-311-2
01
1
0712-
8
16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> GRAY
8-97406-310-2
01
1
0712-
8
16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> GRAY
8-97406-309-2
01
1
0712-
33
16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY
8-97406-315-1
01
1
0712-
33
16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY
8-97406-314-1
01
1
0712-
35
16.341 LINK; DOOR LOCK,INSIDE
8-97890-887-3
01
1
0712-
35
16.341 LINK; DOOR LOCK,INSIDE
8-97890-886-3
01
1
0712-
36
16.332 LINK; DOOR LOCK,OUTSIDE
8-97890-885-0
01
1
0712-
36
16.332 LINK; DOOR LOCK,OUTSIDE
8-97890-884-0
01
1
0712-
41
16.345 SCREW; INSIDE HANDLE
16.570 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
0712-
43
16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5
8-94279-078-0
04
1
0712-
51
16.335 SNAP; FRT DOOR LOCK CONT ROD
8-97859-069-0
01
1
0712-
51
16.335 SNAP; FRT DOOR LOCK CONT ROD
16.345
8-97852-643-0
01
1
0712-
80
16.157 KNOB; DOOR LOCK
GRAY
8-97406-876-0
02
1
0712-
91
16.330 BOLT; DOOR LOCK
AUTO DOOR LOCK<AU4> 16.650 (B) T25 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
01
1
1406-
91
16.330 BOLT; DOOR LOCK
(A) M6X14.5
8-98004-342-0
06
1
0712-
125
16.341 BRACKET; DOOR PULL
8-97869-460-1
01
1
0712-
125
16.341 BRACKET; DOOR PULL
8-97869-459-1
01
1
0712-
133
16.345 SCREW; DOOR PULL STAY
16.570 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
06
1
0712-
