Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

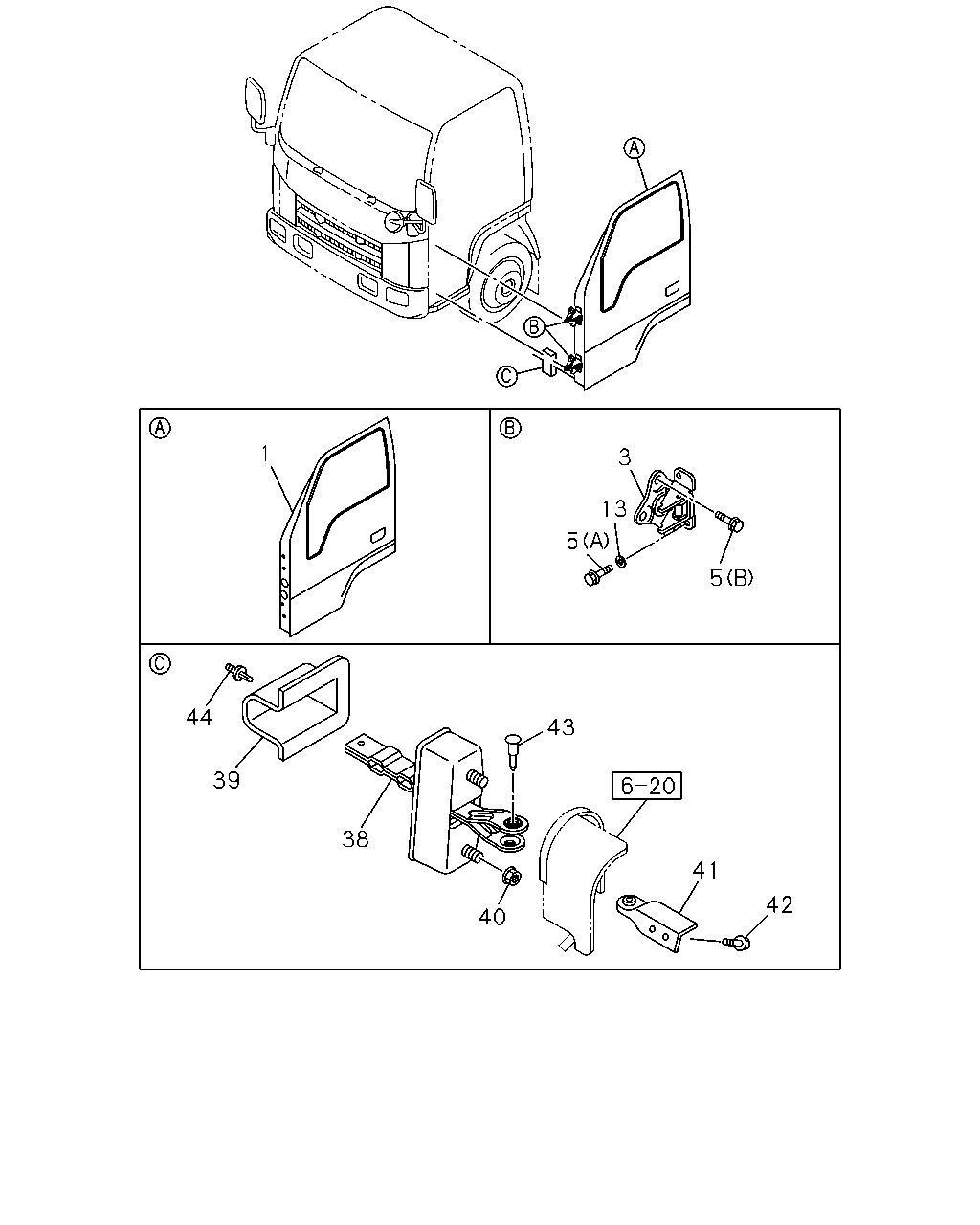

6-30 — FRONT DOOR AND HINGE
(#52686) — 16 parça
1
3
13
5
5
44
43
39
38
41
42
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97581-442-2
01
1
0712-
1
16.150 DOOR ASM; FRT,WO/TRIM
8-97581-441-1
01
1
0712-
3
16.320 HINGE; DOOR FRT
8-97852-007-5
04
1
0712-
5
16.320 BOLT; HINGE
(A) M8X22 FLANGE
8-94279-098-1
08
1
0712-
5
16.320 BOLT; HINGE
(B) M8X18 W/LK&PL WASHER
8-94279-232-0
12
1
0712-
13
16.320 WASHER; HINGE
ID=8.1 W/SEAL
8-97890-584-1
04
1
0712-
38
16.320 CHECKER ASM; DOOR
8-97581-681-4
02
1
0712-
39
16.320 COVER; CHECKER
8-97852-365-5
02
1
0712-
40
16.320 NUT; CHECKER
01.062 M8 FLANGE
0-91180-108-0
04
1
0712-
41
16.320 BRACKET; CHECKER
8-97852-403-1
01
1
0712-
41
16.320 BRACKET; CHECKER
8-97852-402-1
01
1
0712-
42
16.320 BOLT; BRKT
04.634 M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0712-0808
42
16.320 BOLT; BRKT
06.514 M8X24.5 W/LK&PL WASHER
8-98051-939-0
04
1
0809-1201
42
16.320 BOLT; BRKT
01.531 M8X20 FLANGE
0-28650-820-0
04
1
1202-
43
16.320 PIN
8-97852-057-1
02
1
0712-
44
16.320 FASTENER; COVER
OD=8.3
8-97997-832-0
02
1
0712-
