◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51145 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#52685) — 49 parça

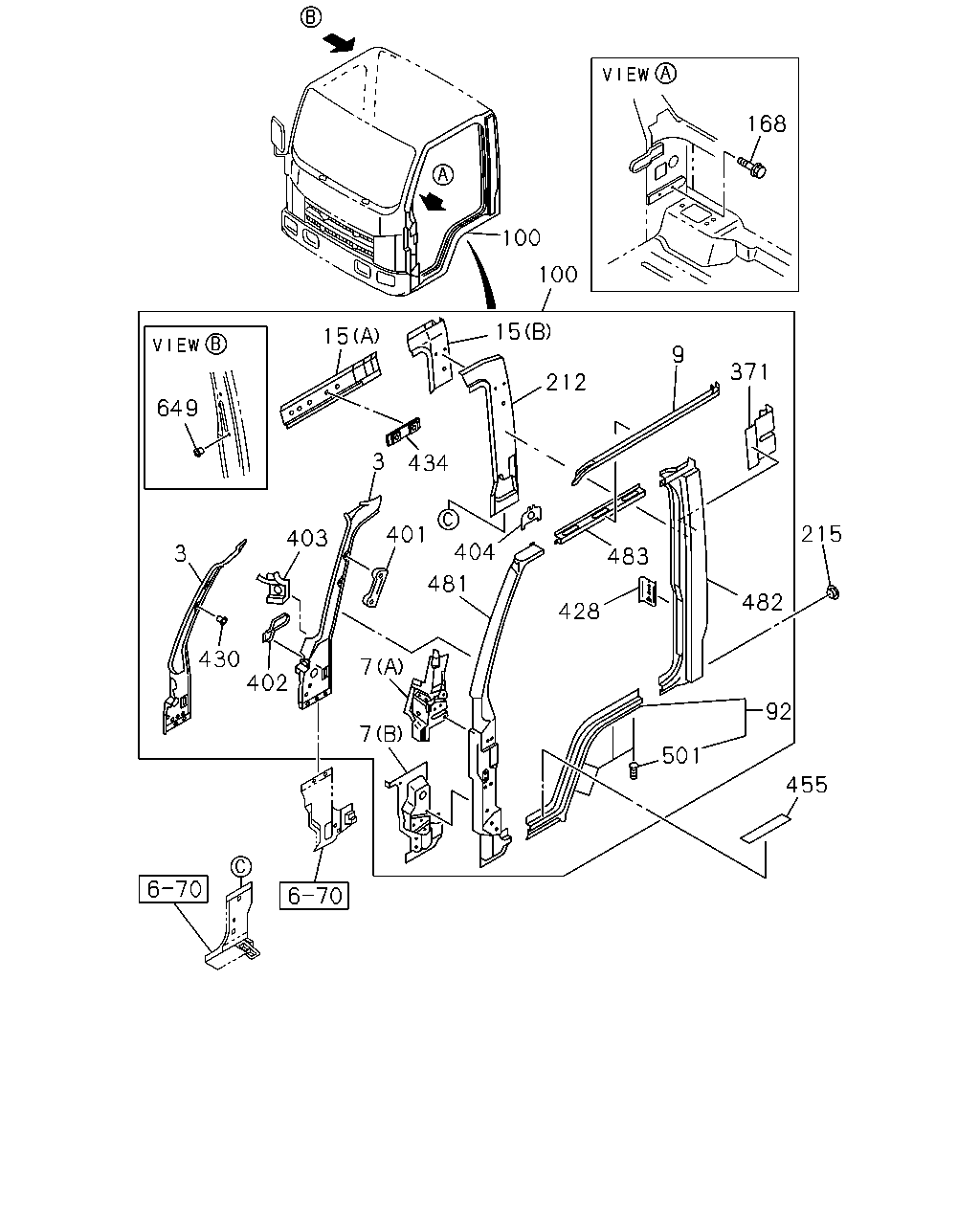

çizim 153633
168 100 100 15 15 9 371 212 649 3 434 215 401 403 404 3 483 481 482 428 430 402 7 92 7 501 455
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97410-758-1 01 1 0712-
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-021-7 01 1 0712-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-4 01 1 0712-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0712-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0712-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-2 01 1 0712-
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-018-8 01 1 0712-
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-017-8 01 1 0712-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-325-4 01 1 0712-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-327-4 01 1 0712-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-324-4 01 1 0712-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-326-5 01 1 0712-
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-1 01 1 0712-
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-1 01 1 0712-
100 16.570 PANEL ASM; BODY SIDE 8-97585-367-0 01 1 0712-
100 16.570 PANEL ASM; BODY SIDE 8-98021-276-0 01 1 0712-
168 16.570 BOLT; BODY SIDE PANEL
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0712-
212 16.588 CLOSING; PILLAR 8-97585-394-1 01 1 0712-
212 16.588 CLOSING; PILLAR 8-97585-393-0 01 1 0712-
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0712-
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0712-
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0712-
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 02 1 0712-
402 16.085 BRACKET; SUPPORT 8-97585-381-0 01 1 0712-
402 16.085 BRACKET; SUPPORT 8-97585-382-2 01 1 0712-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0712-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0712-
404 16.570 BRACKET 8-97585-387-0 02 1 0712-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 0712-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 0712-
430 16.570 NUT; PANEL
09.647 M5 POP NUT 		8-97249-574-0 02 1 0712-
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0712-
455 08.228 PROTECTOR; STEP 8-98027-816-0 02 1 0712-
481 16.570 PANEL; SIDE FRT PILLAR 8-98030-540-1 01 1 0712-
481 16.570 PANEL; SIDE FRT PILLAR 8-98033-522-1 01 1 0712-
482 16.570 PANEL; SIDE RR PILLAR 8-97851-514-5 01 1 0712-
482 16.570 PANEL; SIDE RR PILLAR 8-97851-513-5 01 1 0712-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-516-3 01 1 0712-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-515-3 01 1 0712-
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 08 1 0712-
649 16.570 NUT; POP
M8 POP NUT 		8-94279-538-0 02 1 0712-0805
649 16.570 NUT; POP
16.549 M8 POP NUT 		8-98021-404-0 02 1 0806-

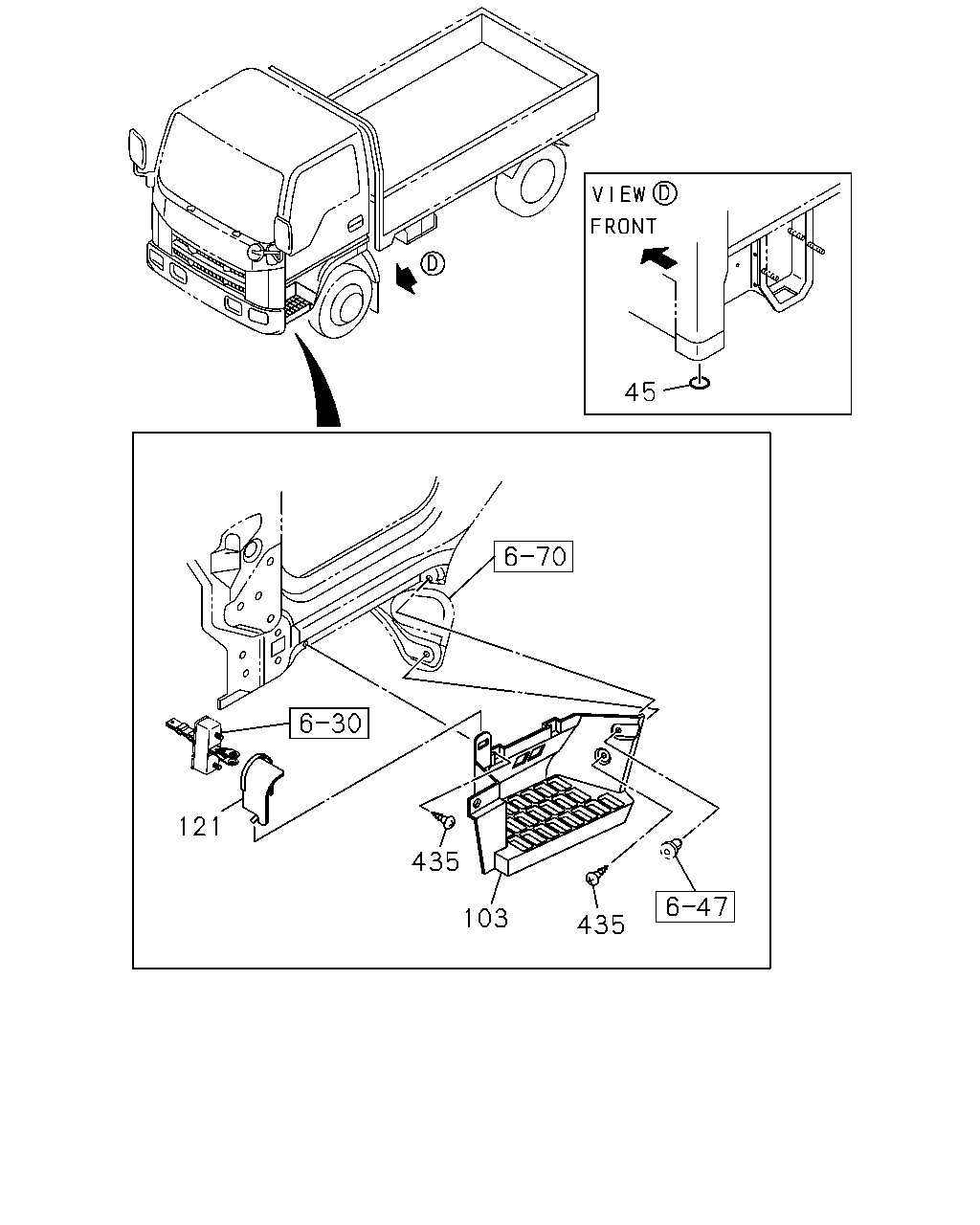

çizim 153636
45 121 435 103 435
BalonParca AdiParca NoAdetTipApplied Date
45 16.570 SEAL; B-C POST
16.165 OD=25 BLACK 		1-76798-019-0 02 1 0712-
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0712-1505
103 08.228 PLATE; STEP 8-98242-608-0 01 1 1506-
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0712-
121 08.228 COVER; STEP PLATE 8-97997-856-0 01 1 0712-
121 08.228 COVER; STEP PLATE 8-97997-855-0 01 1 0712-
435 08.225 BOLT; RR STEP
M8X18 		8-98004-345-0 10 1 0712-
