Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#52677) — 58 parça

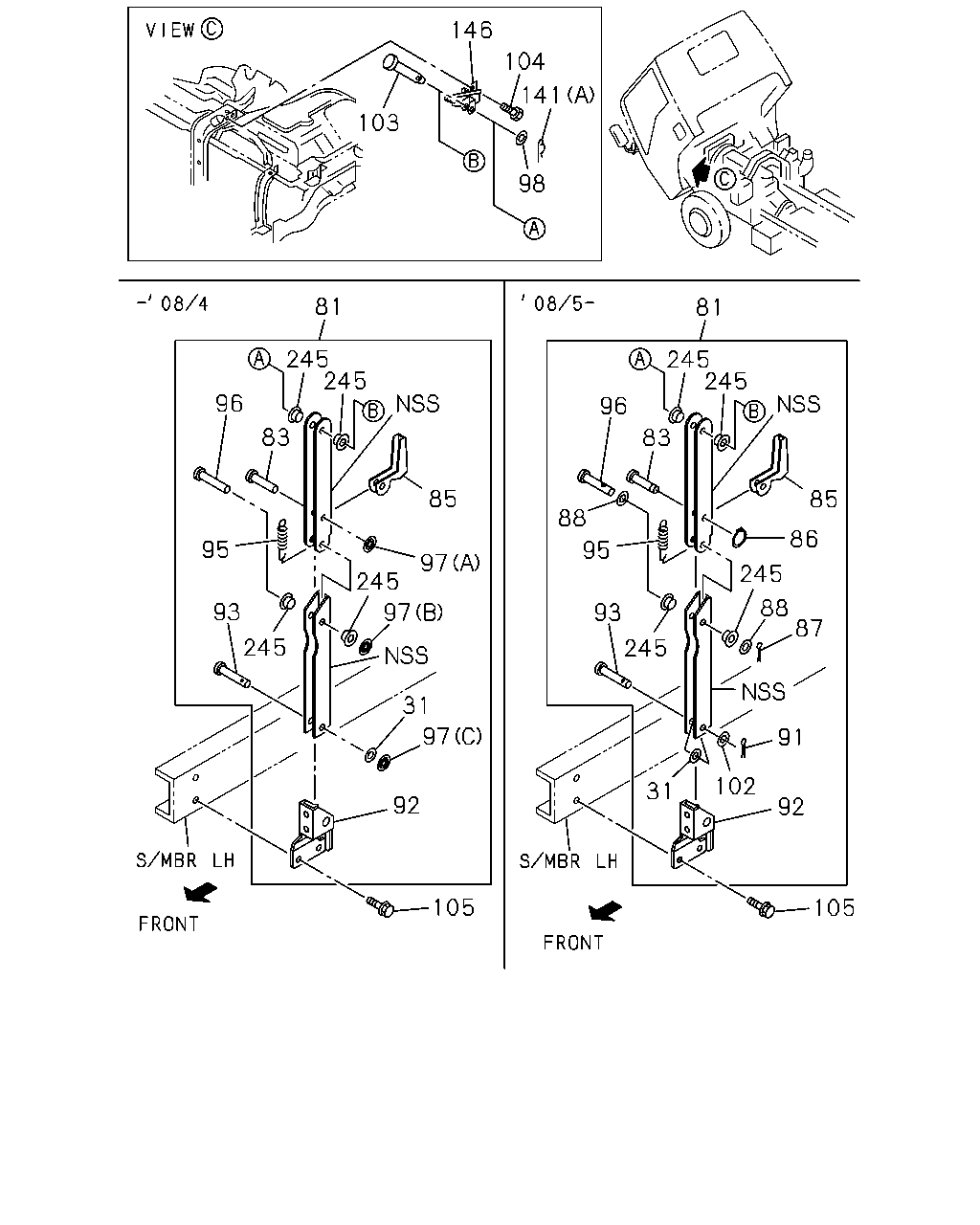

146 104 141 103 98 81 81 245 245 245 245 96 96 83 83 85 85 88 86 95 95 97 245 245 88 87 93 97 93 245 245 31 97 91 31 102 92 92 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	09.003 WASHER; WAVE 09.005 ID=13 OD=22	8-98060-839-0	01	1	0805-
31	09.003 WASHER; WAVE 09.005 ID=13 OD=22	8-98060-839-0	01	1	0712-0804
81	09.003 STAY ASM; CAB TILT	8-97383-789-6	01	1	0712-0804
81	09.003 STAY ASM; CAB TILT	8-98123-309-0	01	1	0805-
83	09.003 PIN; JOINT,CAB STAY OD=8 L=32	8-97039-548-0	01	1	0712-0804
83	09.003 PIN; JOINT,CAB STAY	8-98122-493-0	01	1	0805-
85	09.003 LEVER; LOCK,CAB STAY	8-94331-481-0	01	1	0805-
85	09.003 LEVER; LOCK,CAB STAY	8-94331-481-0	01	1	0712-0804
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY 16.585 ID=6	0-91805-506-0	01	1	0805-
87	09.003 PIN; SPLIT,CAB STAY PIN 06.897 OD=2.8 L=20	0-81123-020-0	01	1	0805-
88	09.003 WASHER; PL,CAB STAY PIN 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	0805-
91	09.003 PIN; SPLIT,CAB STAY 06.255 OD=3.7 L=20	0-81124-020-0	01	1	0805-
92	09.003 BRACKET; CAB STAY TO FRAME	8-97385-586-1	01	1	0805-
92	09.003 BRACKET; CAB STAY TO FRAME	8-97385-586-1	01	1	0712-0804
93	09.003 PIN; CAB STAY OD=12 L=53	8-97218-926-0	01	1	0712-0804
93	09.003 PIN; CAB STAY	8-98122-498-0	01	1	0805-
95	09.003 SPRING; RETURN,CAB STAY	8-94160-167-2	01	1	0805-
95	09.003 SPRING; RETURN,CAB STAY	8-94160-167-2	01	1	0712-0804
96	09.003 PIN; JOINT OD=10 L=36	8-97096-661-0	01	1	0712-0804
96	09.003 PIN; JOINT	8-98123-513-0	01	1	0805-
97	09.011 NUT; CAB STAY PIN (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	0712-0804
97	09.011 NUT; CAB STAY PIN (B) ID=9.9 PUSH NUT	8-97022-566-0	01	1	0712-0804
97	09.011 NUT; CAB STAY PIN (C) ID=11.9 PUSH NUT	8-97022-567-0	01	1	0712-0804
98	09.003 WASHER; CAB STAY 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	0712-
102	09.003 WASHER; PL,CAB STAY 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	0805-
103	09.003 PIN; JOINT,CAB STAY OD=10 L=48	1-09744-107-0	01	1	0712-
104	09.003 BOLT; CAB STAY BRKT 02.277 M8X20 FLANGE	0-28660-820-0	03	1	0712-
105	09.003 BOLT; CAB STAY 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0712-0807
105	09.003 BOLT; CAB STAY 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0808-
141	09.005 PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	0712-
141	09.005 PIN; SNAP,CAB LOCK ROD (B) L=34	8-98039-426-1	03	1	0712-
146	09.003 BRACKET ASM; CAB STAY UPR	8-98055-486-0	01	1	0712-
245	09.003 BUSHING; CAB STAY	1-62500-587-0	04	1	0805-
245	09.003 BUSHING; CAB STAY	1-62500-587-0	04	1	0712-0804

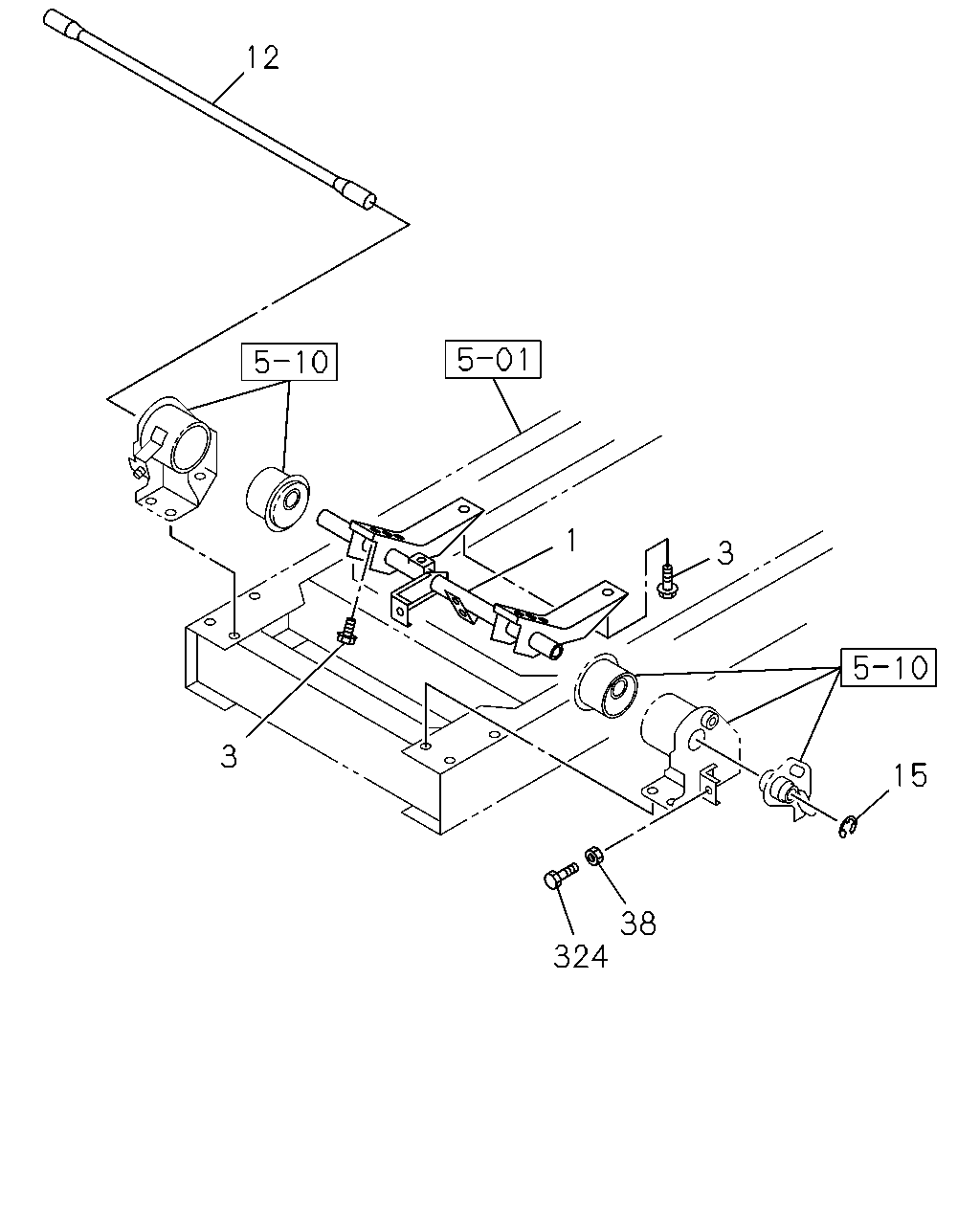

12 1 3 3 15 38 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.003 LEVER; TORSION BAR	8-98007-073-1	01	1	0712-
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0712-
12	09.003 BAR; TORSION,UPR	8-98001-520-0	01	1	0712-
15	09.003 RING; SNAP,TORSION BAR	8-97359-034-0	01	1	0712-
38	09.005 NUT; LK M14	8-98039-988-0	01	1	0712-
324	09.003 BOLT; ADJUST M14X55	8-98004-319-1	01	1	0712-

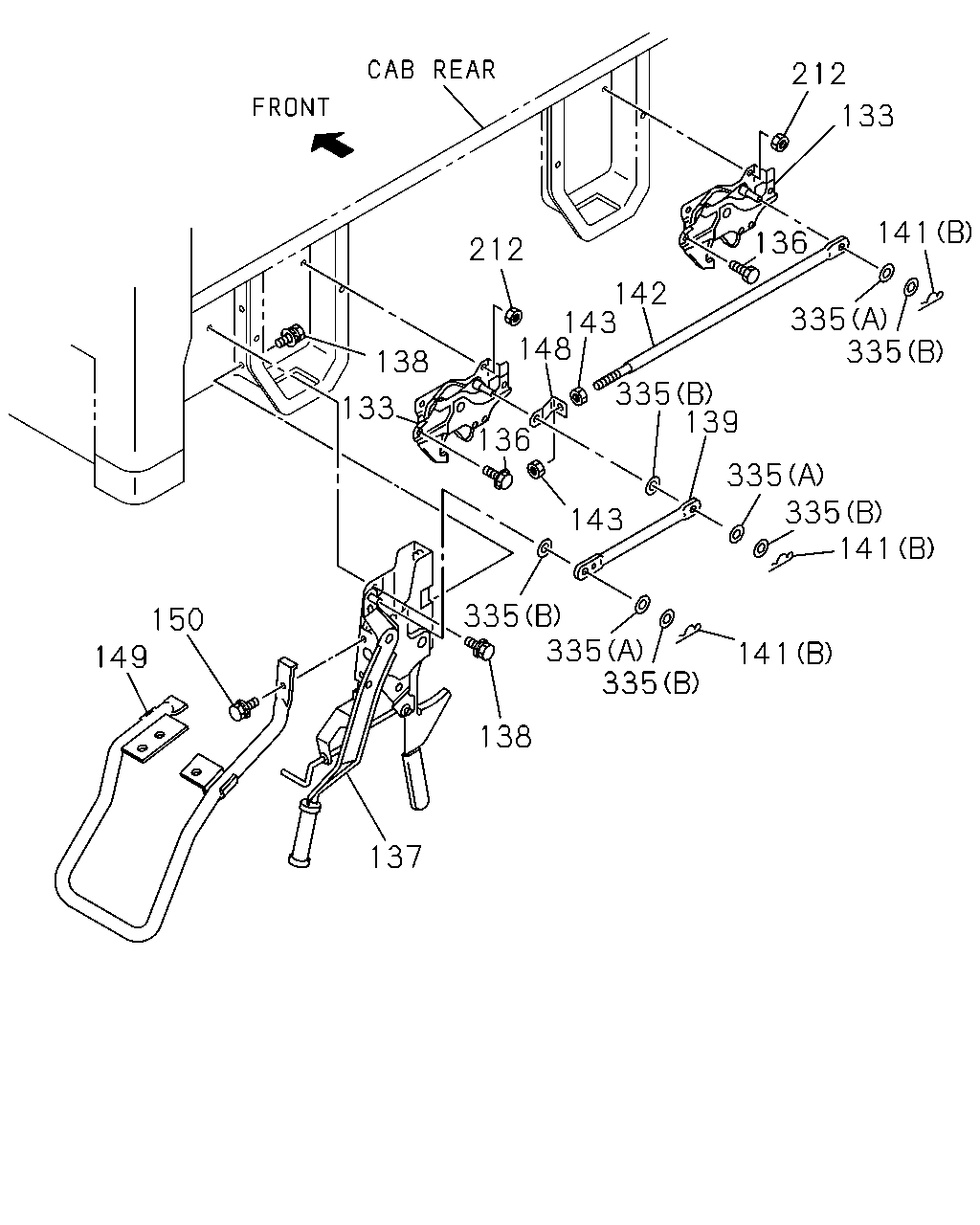

212 133 136 141 212 142 143 148 335 335 138 335 139 136 133 335 335 141 143 335 335 335 150 149 141 138 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
133	09.005 LOCK ASM; CAB	8-97853-056-8	01	1	0712-
133	09.005 LOCK ASM; CAB	8-97853-055-9	01	1	0712-
136	09.005 BOLT; CAB LK 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0712-
137	09.005 CONTROL UNIT; CAB LOCK	8-97853-051-9	01	1	0712-
138	09.005 BOLT; CAB LOCK CONT UNIT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0712-
139	09.005 ROD; CAB LOCK,LEVER TO HOOK	8-97997-597-0	01	1	0712-
141	09.005 PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	0712-
141	09.005 PIN; SNAP,CAB LOCK ROD (B) L=34	8-98039-426-1	03	1	0712-
142	09.005 ROD; HOOK TO HOOK	8-97856-099-1	01	1	0712-
143	09.005 NUT; JAW JOINT,HOOK TO HOOK 09.008 M10	1-09984-142-0	02	1	0712-0909
143	09.005 NUT; JAW JOINT,HOOK TO HOOK 00.833 M10	0-91110-510-0	02	1	0910-
148	09.005 JOINT; JAW,HOOK TO HOOK	8-97856-106-0	01	1	0712-
149	16.450 HANDLE; TILT	8-97853-054-4	01	1	0712-
150	16.450 BOLT; TILT HANDLE 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0712-1103
150	16.450 BOLT; TILT HANDLE 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1104-
212	09.005 NUT; BRKT,CAB LOCK 01.062 M8 FLANGE	0-91180-108-0	04	1	0712-
335	09.005 WASHER; CAB LOCK ROD 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	0712-
335	09.005 WASHER; CAB LOCK ROD (A) ID=13 OD=22	8-98060-839-0	03	1	0712-
