Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶

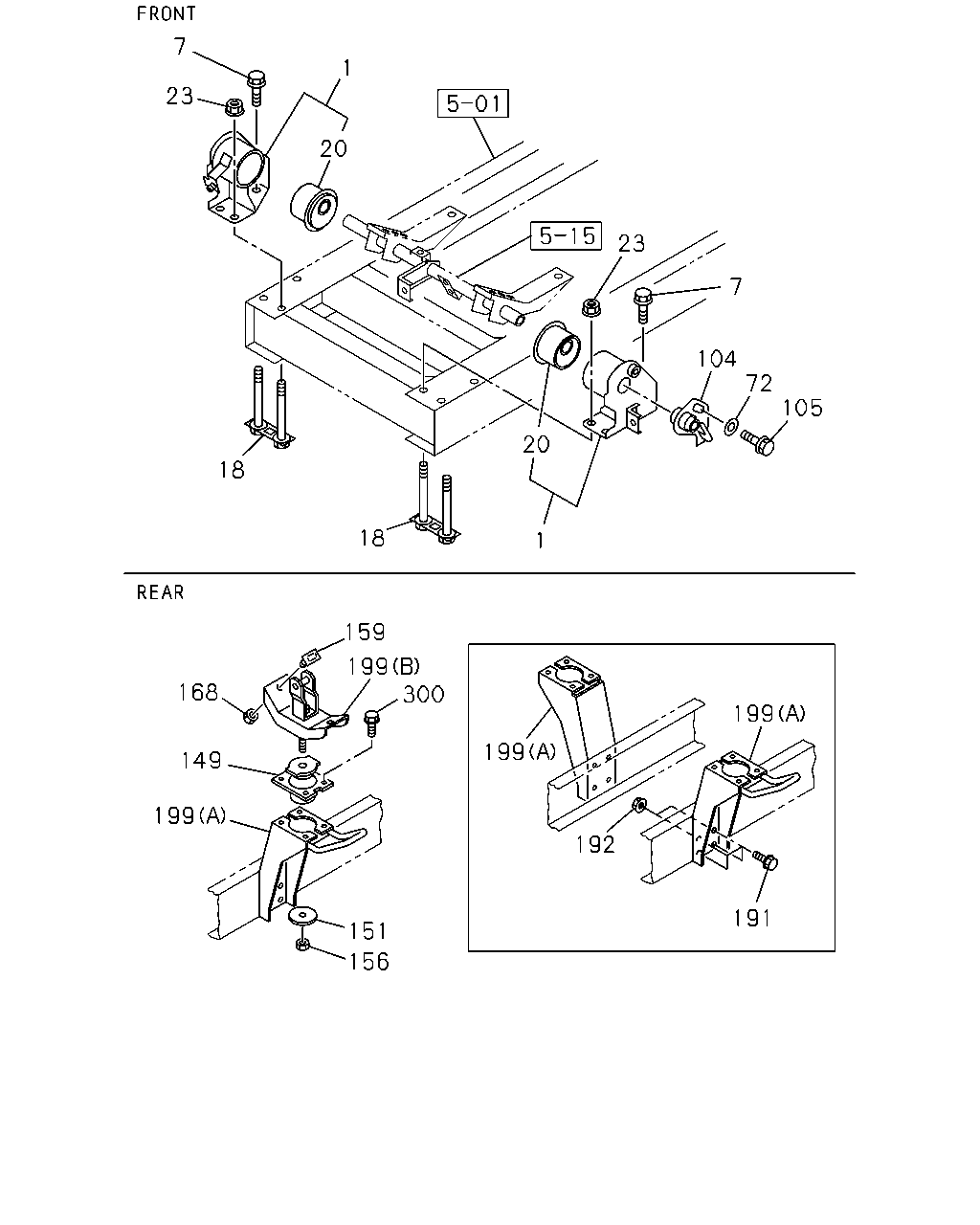

5-10 — CAB MOUNTING; FRAME SIDE
(#52676) — 21 parça
7
1
23
20
23
7
104
72
105
20
18
18
1
159
199
300
168
199
199
149
199
192
191
151
156
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.003 BRACKET; CAB MTG
16.545
8-98021-410-3
01
1
0712-
1
09.003 BRACKET; CAB MTG
16.545
8-98021-407-4
01
1
0712-
7
09.003 BOLT; BRKT,CAB TILT
M14X40 FLANGE
0-28661-440-0
02
1
0712-
18
09.003 PLATE; MTG BRKT FIX
8-98029-285-1
02
1
0712-
20
09.003 RUBBER; MTG,CAB BRKT
8-98007-037-1
01
1
0712-
20
09.003 RUBBER; MTG,CAB BRKT
8-98007-037-1
01
1
0712-
23
09.003 NUT; MTG BRKT
M14
8-98039-989-0
04
1
0712-
72
09.003 WASHER; PL,BRKT TO FRAME
ID=15 OD=36
0-91614-714-0
01
1
0712-
104
09.003 BRACKET; CAB FRAME,CAB FRT MTG
8-97383-788-1
01
1
0712-
105
09.023 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
0-28661-435-0
01
1
0712-
149
09.023 RUBBER; MTG,CAB,UPR RR
8-98021-561-1
02
1
0712-
151
09.011 WASHER; CAB MTG,RR UPR
ID=17 OD=62
8-97359-042-1
02
1
0712-
156
07.529 NUT; CAB MTG RR
00.785 M16
0-91111-516-0
02
1
0712-
159
09.023 RUBBER; CUSHION,CAB MTG
8-97113-340-0
04
1
0712-
168
09.011 NUT; CUSHION RUBBER,BODY MTG
01.062 M8 FLANGE
0-91180-108-0
04
1
0712-
191
09.003 BOLT; BRKT FIX
M12X35 FLANGE
0-28651-235-0
08
1
0712-
192
09.003 NUT; BRKT FIX
02.042 M12 FLANGE
0-91180-112-0
04
1
0712-
199
09.003 BRACKET; CAB RR MTG
(B)
8-98036-883-0
02
1
0712-
199
09.003 BRACKET; CAB RR MTG
(A)
8-98021-567-0
01
1
0712-
199
09.003 BRACKET; CAB RR MTG
(A)
8-97383-792-0
01
1
0712-
300
09.003 BOLT; MTG RUBBER
02.343 M10X20 FLANGE
0-28651-020-0
08
1
0712-
