4-80 — ROAD WHEEL (#52674) — 14 parça

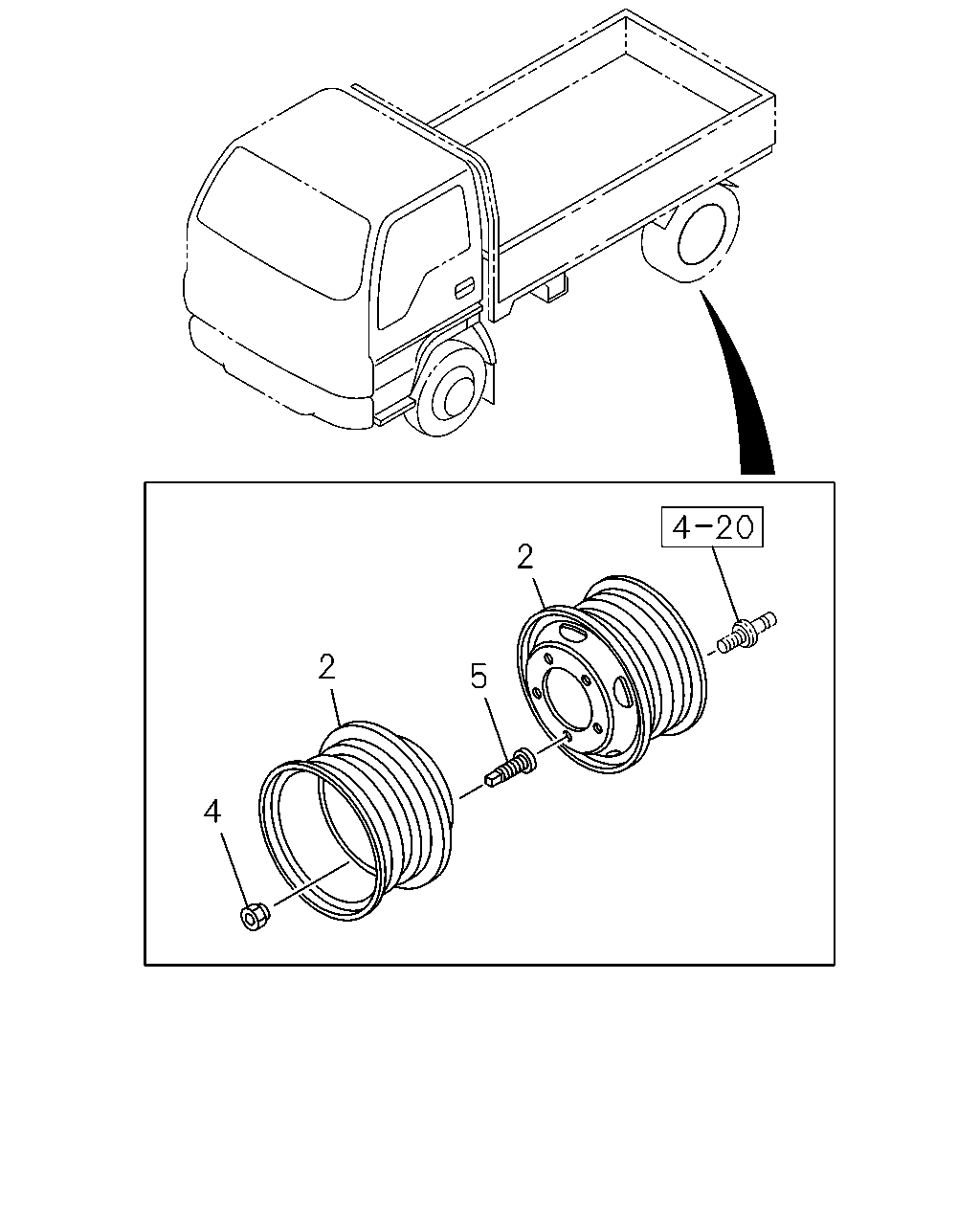

çizim 153617

2 2 5 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	2	05.803 WHEEL; DISC SPARE 4.5JX14 OFFSET=100 PLATINUM SILVER	8-97145-128-0	01	1	0712-
	2	05.803 WHEEL; DISC REAR 4.5JX14 OFFSET=100 PLATINUM SILVER	8-97145-128-0	04	1	0712-
	2	05.803 WHEEL; DISC SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0712-
	2	05.803 WHEEL; DISC FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	02	1	0712-
	4	05.813 NUT; WHEEL,RR AXLE M25 LH THREAD	8-98007-831-0	06	1	0712-
	4	05.813 NUT; WHEEL,RR AXLE M25 RH THREAD	8-98007-830-0	06	1	0712-
	5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 LH THREAD	8-98007-829-0	06	1	0712-
	5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 RH THREAD	8-98007-828-0	06	1	0712-

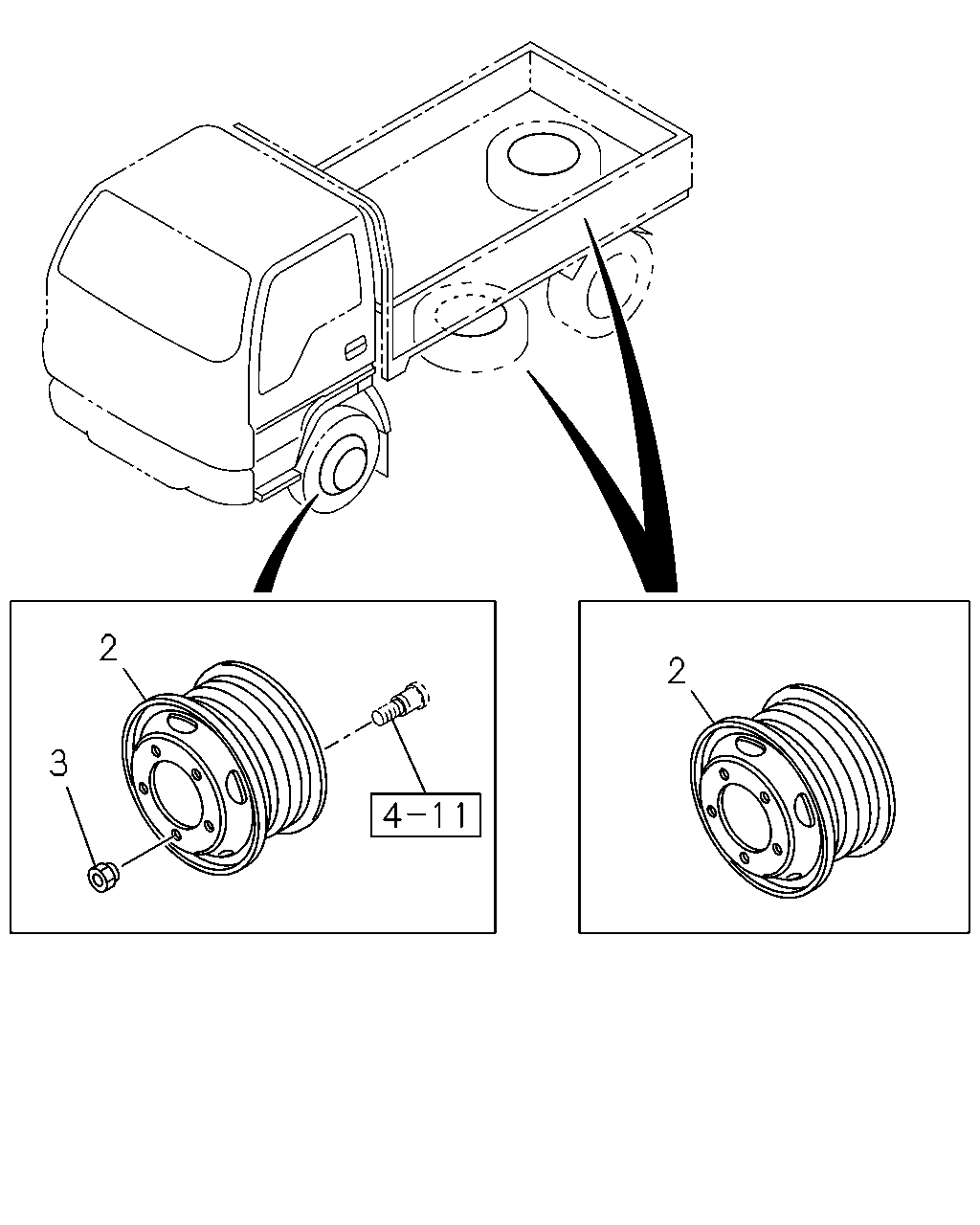

çizim 153624

2 2 3

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	2	05.803 WHEEL; DISC SPARE 4.5JX14 OFFSET=100 PLATINUM SILVER	8-97145-128-0	01	1	0712-
	2	05.803 WHEEL; DISC REAR 4.5JX14 OFFSET=100 PLATINUM SILVER	8-97145-128-0	04	1	0712-
	2	05.803 WHEEL; DISC SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0712-
	2	05.803 WHEEL; DISC FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	02	1	0712-
	3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0712-
	3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0712-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
