3-22 — AIR CONTROL PARTS (#5267) — 2075 parça

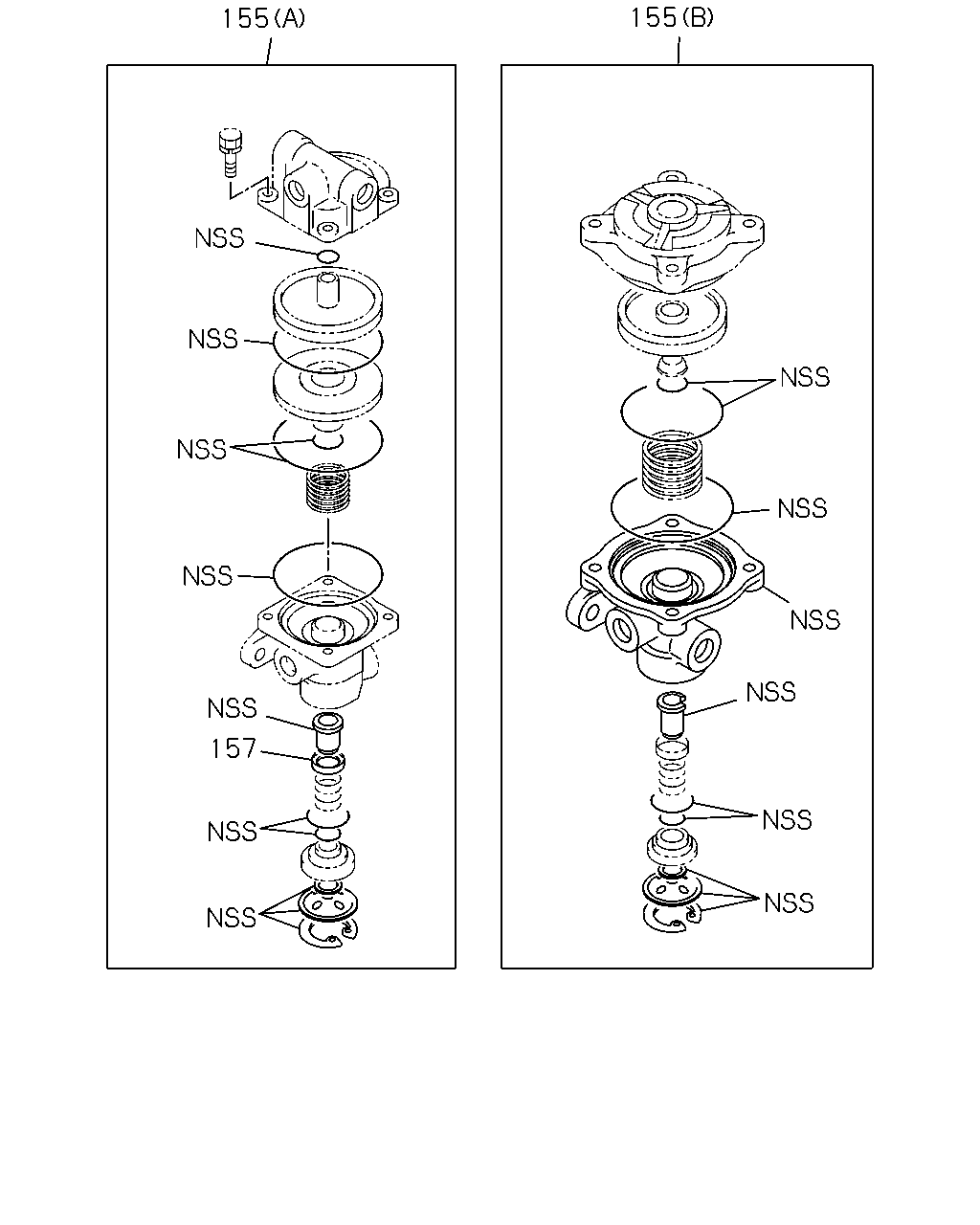

çizim 5429
155 155 157
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 9603-9603 ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 9603-9603 ●
155 REPAIR KIT; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-85576-033-0 01 1 9603-9603 ●
155 REPAIR KIT; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-85576-033-0 01 1 9603-9603 ●
155 REPAIR KIT; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-85576-033-0 01 1 9603-9603 ●
155 REPAIR KIT; RELAY VALVE
(B) -'96/4/8 		1-85576-033-0 01 1 9604-9604 ● ●
155 REPAIR KIT; RELAY VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (B) -'96/4/8 		1-85576-033-0 01 1 9604-9604 ●
155 REPAIR KIT; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) -'96/4/8 		1-85576-033-0 01 1 9604-9604 ●
155 REPAIR KIT; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) -'96/4/8 		1-85576-033-0 01 1 9604-9604 ●
155 REPAIR KIT; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) -'96/4/8 		1-85576-033-0 01 1 9604-9604 ●
155 REPAIR KIT; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-85576-033-0 01 1 9604-9604 ● ●
155 REPAIR KIT; RELAY VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) 		1-85576-033-0 01 1 9604-9604 ● ●
155 REPAIR KIT; RELAY VALVE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) 		1-85576-033-0 01 1 9604-9604 ● ●
155 REPAIR KIT; RELAY VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (B) 		1-85576-033-0 01 1 9604-9604 ●
155 REPAIR KIT; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-85576-033-0 01 1 9604-9604 ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 9605-9904 ● ●
155 REPAIR KIT; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-85576-033-0 01 1 9605-9904 ● ●
155 REPAIR KIT; RELAY VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (B) 		1-85576-033-0 01 1 9605-9904 ●
155 REPAIR KIT; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-85576-033-0 01 1 9605-9904 ●
155 REPAIR KIT; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-85576-033-0 01 1 9605-9904 ●
155 REPAIR KIT; RELAY VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9905-9910 ● ●
155 REPAIR KIT; RELAY VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-85576-033-0 01 1 9905-9910 ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-033-0 01 1 9905-9910 ● ●
155 REPAIR KIT; RELAY VALVE
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-85576-033-0 01 1 9905-9910 ●
155 REPAIR KIT; RELAY VALVE
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9905-9910 ●
155 REPAIR KIT; RELAY VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9905-9910 ●
155 REPAIR KIT; RELAY VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-85576-033-0 01 1 9905-9910 ●
155 REPAIR KIT; RELAY VALVE
BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9905-9910 ●
155 REPAIR KIT; RELAY VALVE
BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9905-9910 ●
155 REPAIR KIT; RELAY VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9905-9910 ●
155 REPAIR KIT; RELAY VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9905-9910 ●
155 REPAIR KIT; RELAY VALVE
BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9911- ● ●
155 REPAIR KIT; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9911- ● ●
155 REPAIR KIT; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-85576-033-0 01 1 9911- ● ●
155 REPAIR KIT; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9911- ● ●
155 REPAIR KIT; RELAY VALVE
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-85576-033-0 01 1 9911- ●
155 REPAIR KIT; RELAY VALVE
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9911- ●
155 REPAIR KIT; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9911- ●
155 REPAIR KIT; RELAY VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-85576-033-0 01 1 9911- ●
155 REPAIR KIT; RELAY VALVE
BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9911- ●
155 REPAIR KIT; RELAY VALVE
BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9911- ●
155 REPAIR KIT; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9911- ●
155 REPAIR KIT; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) 		1-85576-033-0 01 1 9911- ●
155 REPAIR KIT; RELAY VALVE
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-85576-033-0 02 1 9603-9904 ●
155 REPAIR KIT; RELAY VALVE
BRAKE REGULATION HONG KONG<TCZ> (B) 		1-85576-033-0 02 1 9905- ● ●
155 REPAIR KIT; RELAY VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-85576-033-0 02 1 9905- ● ●
155 REPAIR KIT; RELAY VALVE
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-85576-035-0 01 1 9603-9904 ●
155 REPAIR KIT; RELAY VALVE
BRAKE REGULATION ECE<TDV> (A) 		1-85576-035-0 01 1 9905- ●
157 RETAINER; VALVE 1-48213-002-0 01 1 9603-9603 ●
157 RETAINER; VALVE 1-48213-002-0 01 1 9603-9603 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9603-9603 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9603-9603 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9603-9603 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9603-9603 ●
157 RETAINER; VALVE
-'96/4/8 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) -'96/4/8 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9604-9604 ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-48213-002-0 01 1 9605-9606 ● ●
157 RETAINER; VALVE
HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9605-9606 ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) 		1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-48213-002-0 01 1 9607-9904 ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 9607-9904 ● ●
157 RETAINER; VALVE
HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9607-9904 ● ●
157 RETAINER; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9607-9904 ●
157 RETAINER; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) 		1-48213-002-0 01 1 9607-9904 ●
157 RETAINER; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9607-9904 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9607-9904 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9607-9904 ●
157 RETAINER; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9905-9910 ● ●
157 RETAINER; VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48213-002-0 01 1 9905-9910 ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 9905-9910 ● ●
157 RETAINER; VALVE
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ● ●
157 RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ● ●
157 RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48213-002-0 01 1 9911- ● ●
157 RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ● ●
157 RETAINER; VALVE
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 02 1 9603-9606 ●
157 RETAINER; VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 02 1 9603-9606 ●
157 RETAINER; VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 03 1 9607-9904 ●
157 RETAINER; VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48213-002-0 02 1 9905- ● ●
157 RETAINER; VALVE
BRAKE REGULATION HONG KONG<TCZ> 		1-48213-002-0 02 1 9905- ●
157 RETAINER; VALVE
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 02 1 9905- ●

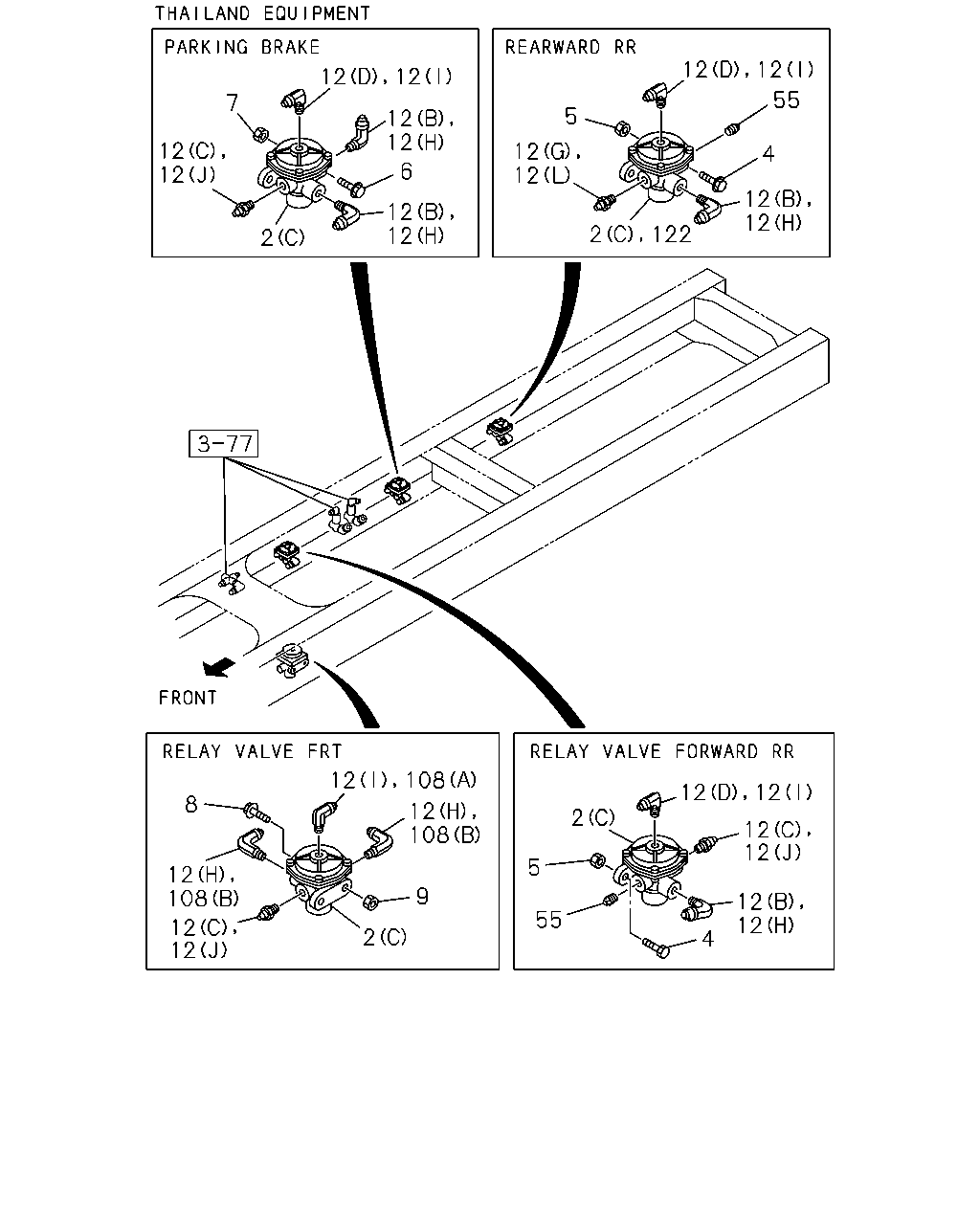

çizim 6659
12 12 12 12 55 7 5 12 12 12 12 12 12 4 6 12 12 12 12 2 122 2 12 108 12 12 8 12 108 2 12 12 5 12 108 9 12 12 55 12 12 2 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
THAILAND EQUIPMENT(PM9) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ● ●

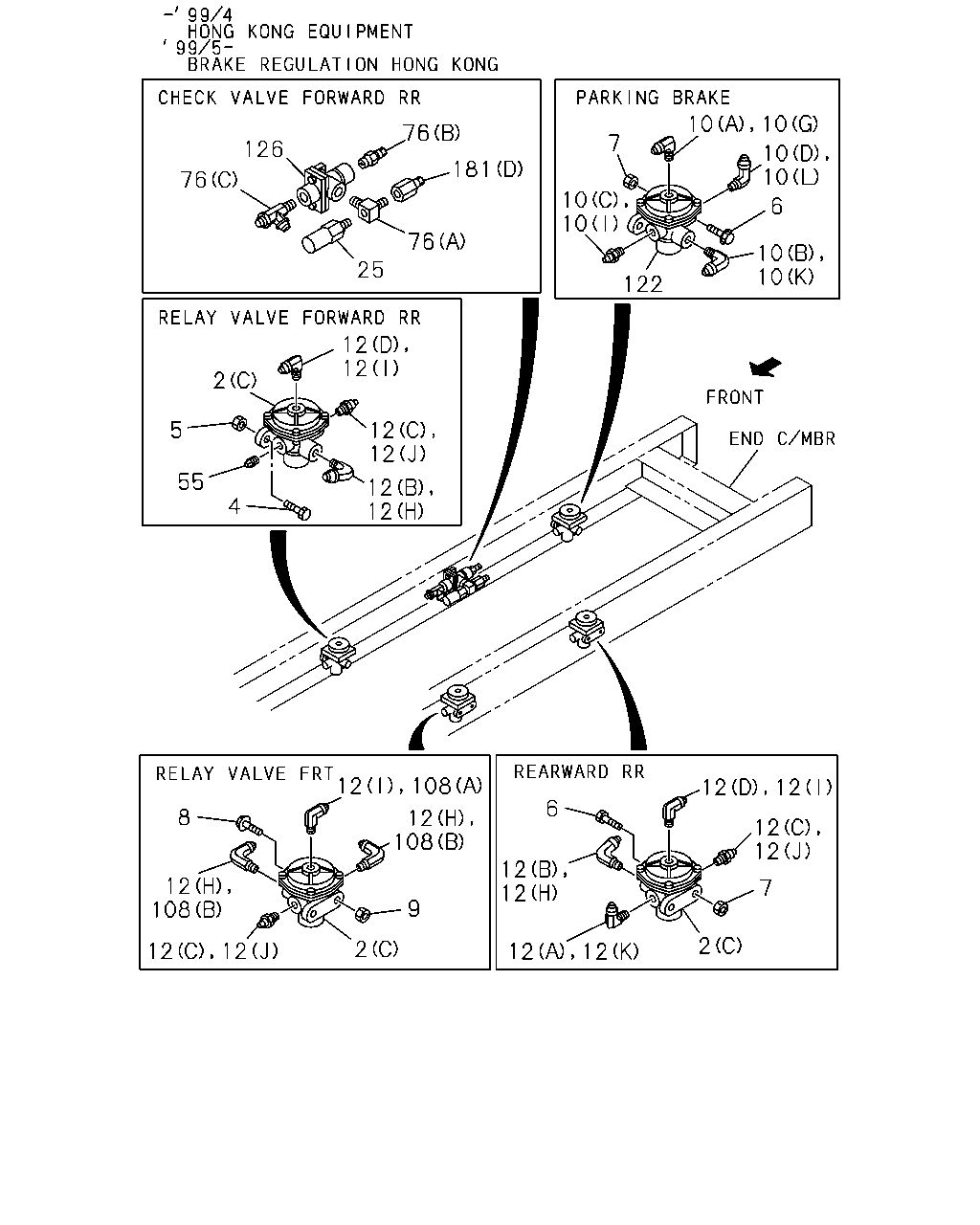

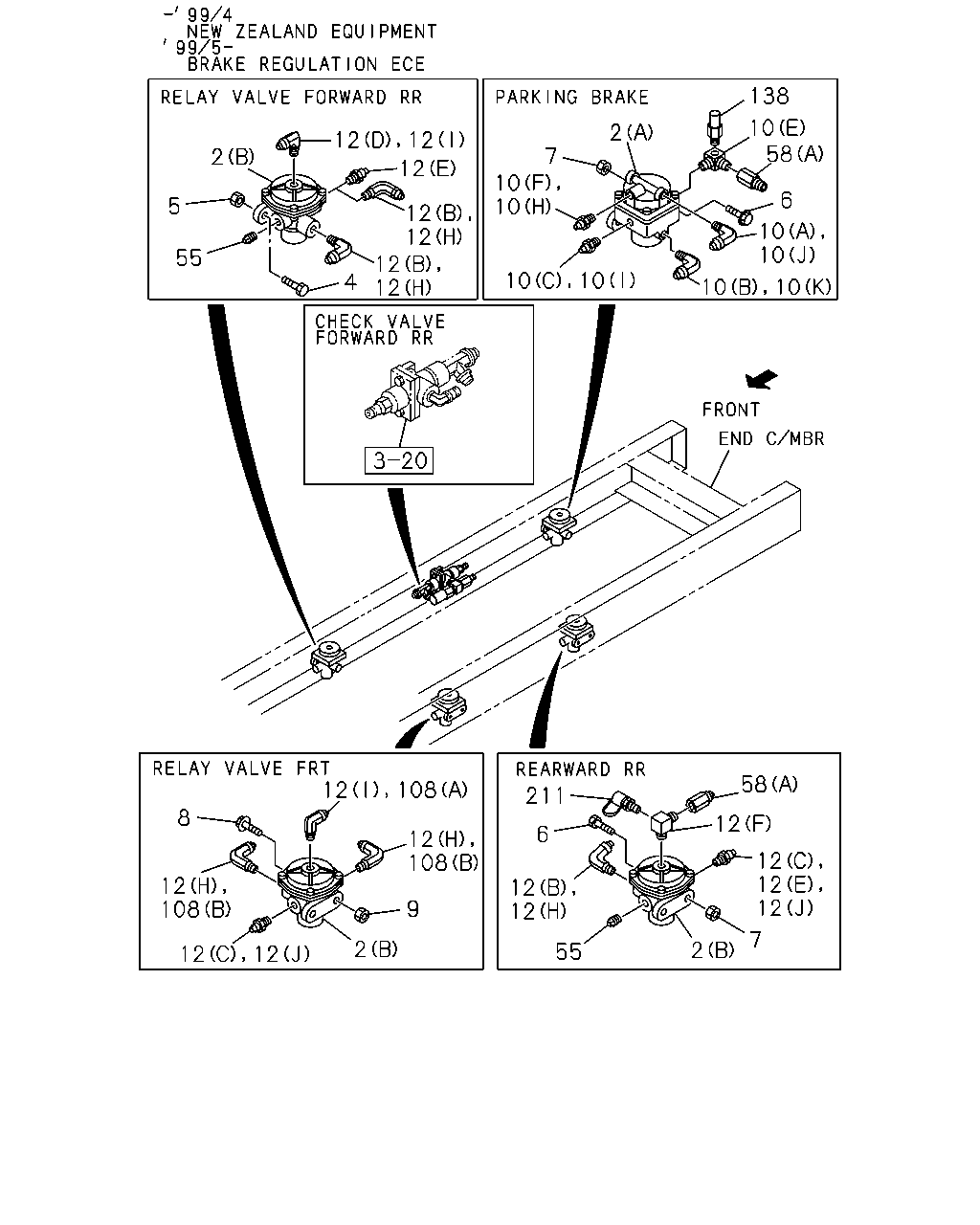

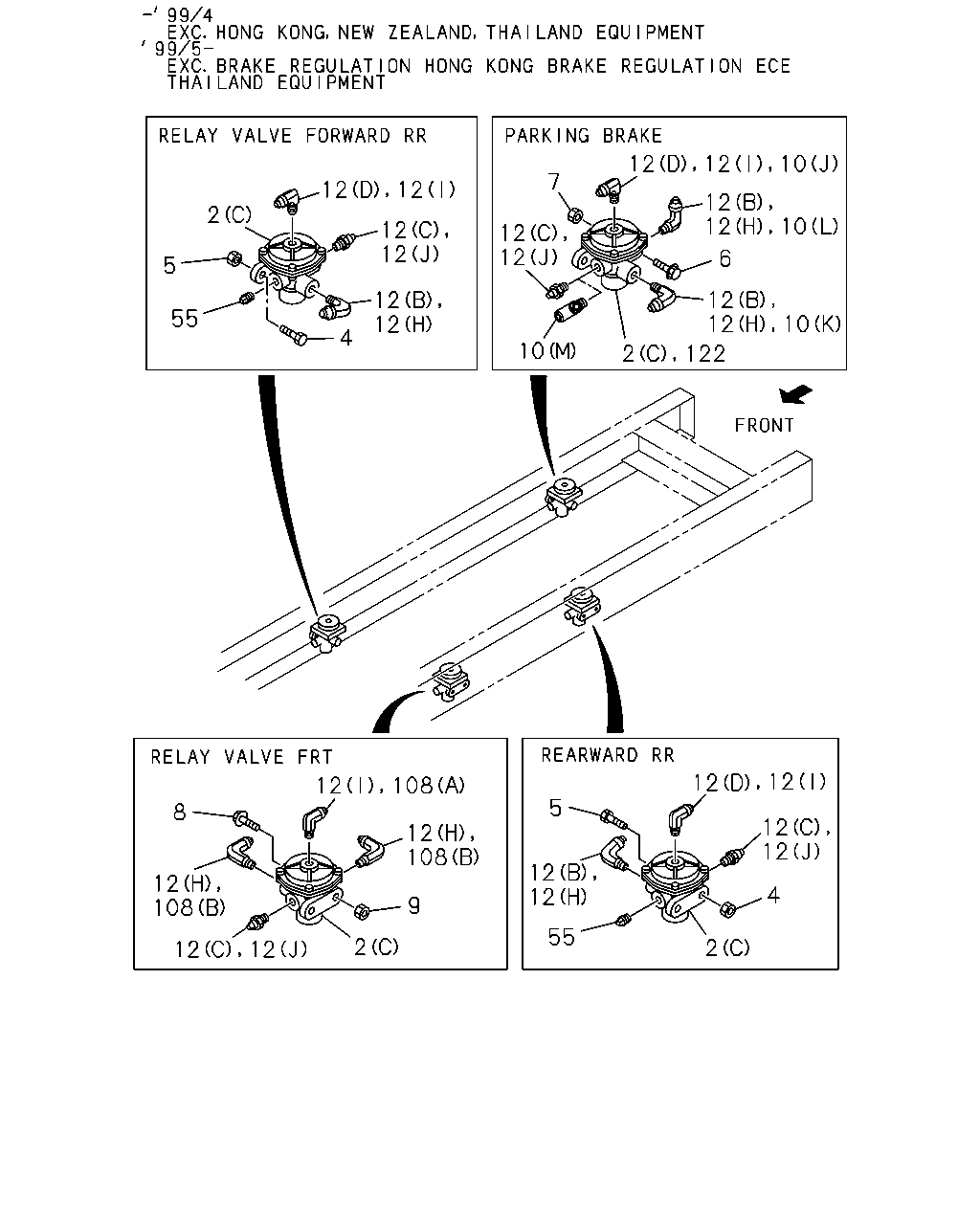

2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9605-9606 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9607-9611 ● ●
2 VALVE; RELAY
(C) 		1-48210-278-0 01 1 9607-9611 ● ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9612-9904 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 02 1 9905- ● ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48210-143-0 01 1 9603-9904 ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (A) 		1-48210-143-0 01 1 9905- ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 02 1 9603-9606 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9603-9606 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9607-9611 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9607-9611 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9612-9904 ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ● ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 02 1 9612-9904 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
BRAKE REGULATION HONG KONG<TCZ> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
EXC. BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
BRAKE REGULATION HONG KONG<TCZ> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28081-040-0 04 1 9603-9606 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 04 1 9607-9804 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ● ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9911- ●
5 NUT
M10 		9-09110-510-0 02 1 9603-9606 ● ●
5 NUT
M10 		9-09110-510-0 02 1 9603-9606 ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 04 1 9905-9910 ● ●
5 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 04 1 9911- ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28081-040-0 02 1 9603-9606 ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9804 ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28080-835-0 02 1 9603-9605 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28080-835-0 02 1 9606-9606 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9607-9904 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9905-9910 ● ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9911- ● ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28080-830-0 02 1 9603-9605 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X30 FLANGE 		0-28080-830-0 02 1 9606-9606 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9607-9904 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9905-9910 ● ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9911- ● ●
6 BOLT; VLV
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9805-9910 ●
6 BOLT; VLV
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9911- ●
7 NUT; RELAY VLV
M10 		9-09110-510-0 02 1 9603-9606 ● ●
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ● ●
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 9905-9910 ● ●
7 NUT; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 02 1 9911- ● ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28081-040-0 02 1 9603-9606 ● ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9904 ● ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9905-9910 ● ●
8 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ● ●
9 NUT
M10 		9-09110-510-0 02 1 9603-9606 ● ●
9 NUT
M10 FLANGE 		0-91150-210-0 02 1 9607-9910 ● ●
9 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 02 1 9911- ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9604-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9603 ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9605-9904 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9605-9904 ● ●
12 CONNECTOR; RELAY VLV
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 02 1 9905- ● ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9) ,HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ● ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 9905- ● ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R1/2 ELBOW 		1-09660-768-1 01 1 9603-9904 ● ●
12 CONNECTOR; RELAY VLV
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 ELBOW 		1-09660-960-0 03 1 9905- ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
(C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
EXC. HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (G) M20 & PT1/2 STRAIGHT 		1-09650-249-1 01 1 9605-9904 ● ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
(J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (F) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9603-9904 ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (F) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9905- ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (E) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 02 1 9603-9606 ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 03 1 9607-9904 ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (K) 		1-09661-125-0 01 1 9905- ● ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (L) M20 & PT1/2 STRAIGHT 		1-09650-249-1 01 1 9905- ●
55 PLUG; SUPPLY
PT1/2 		9-09204-521-0 01 1 9603-9603 ● ●
55 PLUG; SUPPLY
EXC. HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9603-9603 ● ●
55 PLUG; SUPPLY
EXC. HONG KONG EQUIPMENT(PQ1) -'96/4/8 PT1/2 		9-09204-521-0 01 1 9604-9604 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) -'96/4/8 PT1/2 		9-09204-521-0 01 1 9604-9604 ●
55 PLUG; SUPPLY
-'96/4/8 PT1/2 		9-09204-521-0 01 1 9604-9604 ●
55 PLUG; SUPPLY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9604-9604 ● ●
55 PLUG; SUPPLY
NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9) PT1/2 		9-09204-521-0 01 1 9604-9604 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) PT1/2 		9-09204-521-0 01 1 9604-9604 ●
55 PLUG; SUPPLY
EXC. HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9605-9606 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) PT1/2 		9-09204-521-0 01 1 9605-9606 ●
55 PLUG; SUPPLY
NEW ZEALAND EQUIPMENT(PK5) PT1/2 		9-09204-521-0 01 1 9605-9606 ●
55 PLUG; SUPPLY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9607-9904 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) PT1/2 		9-09204-521-0 01 1 9607-9904 ●
55 PLUG; SUPPLY
EXC. NEW ZEALAND EQUIPMENT(PK5) PT1/2 		9-09204-521-0 01 1 9607-9904 ●
55 PLUG; SUPPLY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9905-9910 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
TAIL PIPE SINGLE HORIZONTAL<NC2> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9911- ● ●
55 PLUG; SUPPLY
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
TAIL PIPE SINGLE HORIZONTAL<NC2> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
NEW ZEALAND EQUIPMENT(PK5) PT1/2 		9-09204-521-0 02 1 9607-9904 ●

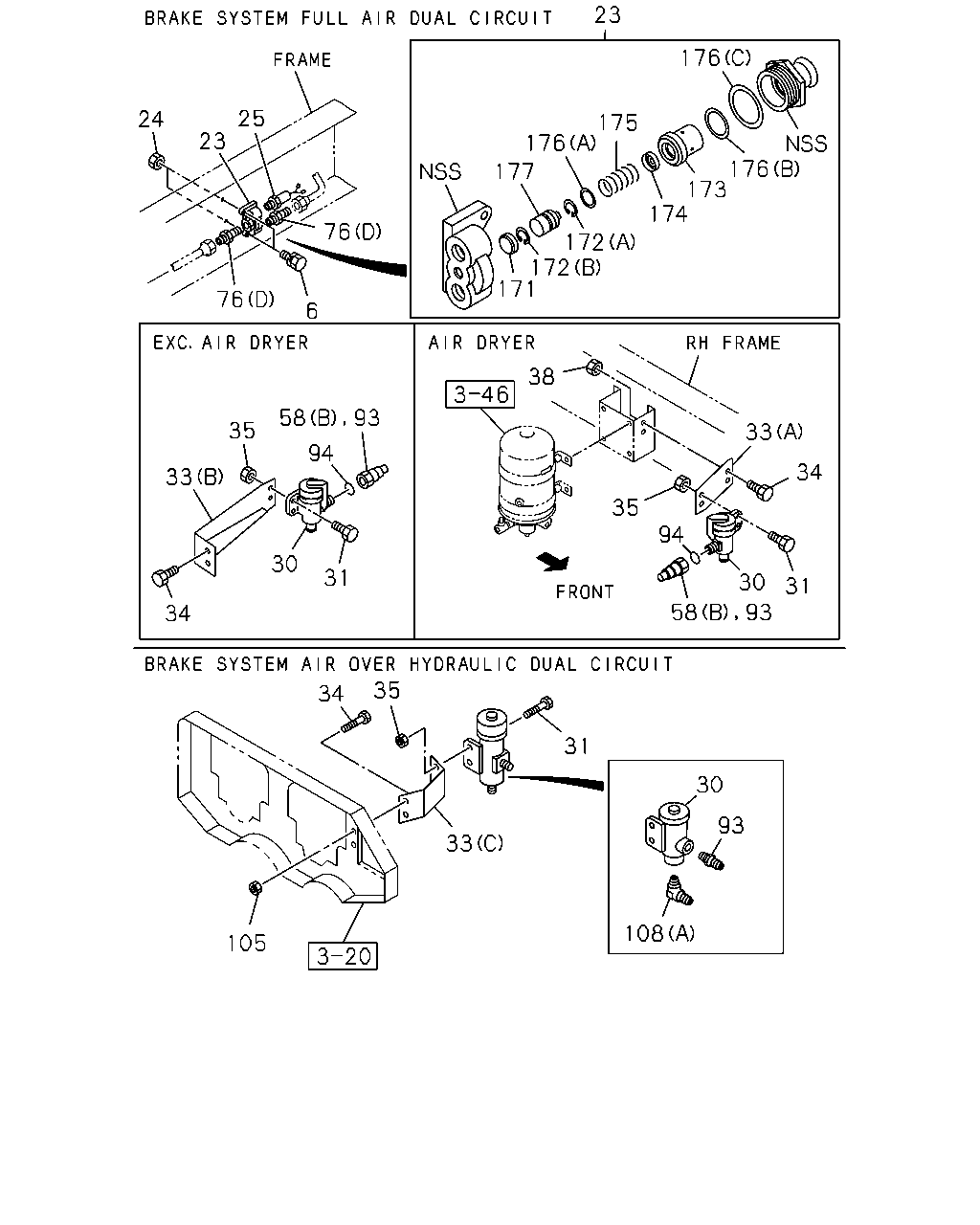

108 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
EXC. HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ● ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
EXC. HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
122 VALVE ASM; CONT,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) 		1-48210-278-0 01 1 9603-9904 ● ●
122 VALVE ASM; CONT,WHEEL PARKING
BRAKE REGULATION HONG KONG<TCZ> 		1-48210-278-0 01 1 9905-9910 ● ●
122 VALVE ASM; CONT,WHEEL PARKING
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48210-278-0 01 1 9905-9910 ● ●
122 VALVE ASM; CONT,WHEEL PARKING
BRAKE REGULATION HONG KONG<TCZ> 		1-48210-278-0 01 1 9911- ● ●
122 VALVE ASM; CONT,WHEEL PARKING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48210-278-0 01 1 9911- ● ●
çizim 6661
138 10 58 2 12 12 7 10 10 2 12 6 5 12 12 12 12 10 10 55 10 10 4 10 10 12 211 58 108 8 12 6 12 108 12 12 12 12 108 12 12 9 7 2 2 55 12 12
BalonParca AdiParca NoAdetTipApplied Date A B

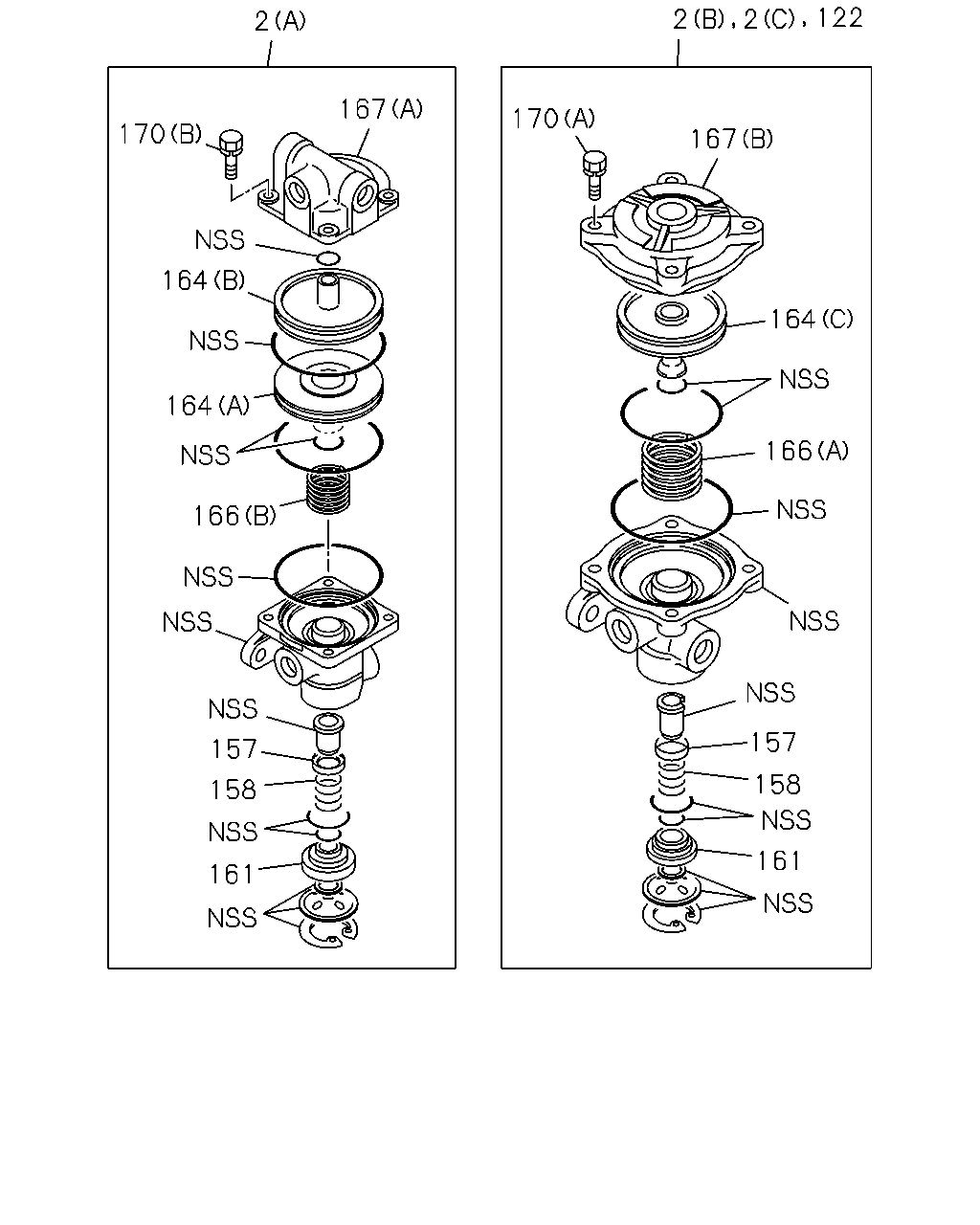

2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
THAILAND EQUIPMENT(PM9) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9605-9606 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9607-9611 ● ●
2 VALVE; RELAY
(C) 		1-48210-278-0 01 1 9607-9611 ● ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9612-9904 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 02 1 9905- ● ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48210-143-0 01 1 9603-9904 ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (A) 		1-48210-143-0 01 1 9905- ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 02 1 9603-9606 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9603-9606 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9607-9611 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9607-9611 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9612-9904 ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ● ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 02 1 9612-9904 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
BRAKE REGULATION HONG KONG<TCZ> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
EXC. BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
BRAKE REGULATION HONG KONG<TCZ> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28081-040-0 04 1 9603-9606 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 04 1 9607-9804 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ● ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9911- ●
5 NUT
M10 		9-09110-510-0 02 1 9603-9606 ● ●
5 NUT
M10 		9-09110-510-0 02 1 9603-9606 ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 04 1 9905-9910 ● ●
5 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 04 1 9911- ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28081-040-0 02 1 9603-9606 ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9804 ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28080-835-0 02 1 9603-9605 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28080-835-0 02 1 9606-9606 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9607-9904 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9905-9910 ● ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9911- ● ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28080-830-0 02 1 9603-9605 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X30 FLANGE 		0-28080-830-0 02 1 9606-9606 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9607-9904 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9905-9910 ● ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9911- ● ●
6 BOLT; VLV
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9805-9910 ●
6 BOLT; VLV
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9911- ●
7 NUT; RELAY VLV
M10 		9-09110-510-0 02 1 9603-9606 ● ●
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ● ●
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 9905-9910 ● ●
7 NUT; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 02 1 9911- ● ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28081-040-0 02 1 9603-9606 ● ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9904 ● ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9905-9910 ● ●
8 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ● ●
9 NUT
M10 		9-09110-510-0 02 1 9603-9606 ● ●
9 NUT
M10 FLANGE 		0-91150-210-0 02 1 9607-9910 ● ●
9 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 02 1 9911- ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (G) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 9905- ● ●
10 CONNECTOR
HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 02 1 9603-9904 ● ●
10 CONNECTOR
BRAKE REGULATION ECE<TDV> (H) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9905- ●
10 CONNECTOR
HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R1/2 ELBOW 		1-09660-768-1 01 1 9603-9904 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (I) 		1-09661-126-0 01 1 9905- ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) 		1-09661-126-0 01 1 9905- ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9904 ● ●
10 CONNECTOR
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9603-9904 ● ●
10 CONNECTOR
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN8 & R1/2 STRAIGHT 		1-09660-668-1 01 1 9603-9904 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (L) 		1-09661-125-0 01 1 9905-9910 ● ●
10 CONNECTOR
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (L) 		1-09661-125-0 01 1 9905-9910 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (L) 		1-09661-125-0 01 1 9911- ● ●
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (L) 		1-09661-125-0 01 1 9911- ● ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) (E) 		1-09656-673-0 01 1 9603-9904 ●
10 CONNECTOR
BRAKE REGULATION ECE<TDV> (E) 		1-09656-673-0 01 1 9905- ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) (F) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9603-9904 ●
10 CONNECTOR
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (M) 		1-09661-075-0 01 1 9905-9910 ● ●
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (M) 		1-09661-075-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9604-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9603 ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9605-9904 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9605-9904 ● ●
12 CONNECTOR; RELAY VLV
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 02 1 9905- ● ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9) ,HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ● ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 9905- ● ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R1/2 ELBOW 		1-09660-768-1 01 1 9603-9904 ● ●
12 CONNECTOR; RELAY VLV
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 ELBOW 		1-09660-960-0 03 1 9905- ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
(C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
EXC. HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (G) M20 & PT1/2 STRAIGHT 		1-09650-249-1 01 1 9605-9904 ● ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
(J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (F) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9603-9904 ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (F) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9905- ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (E) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 02 1 9603-9606 ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 03 1 9607-9904 ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (K) 		1-09661-125-0 01 1 9905- ● ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (L) M20 & PT1/2 STRAIGHT 		1-09650-249-1 01 1 9905- ●
55 PLUG; SUPPLY
PT1/2 		9-09204-521-0 01 1 9603-9603 ● ●
55 PLUG; SUPPLY
EXC. HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9603-9603 ● ●
55 PLUG; SUPPLY
EXC. HONG KONG EQUIPMENT(PQ1) -'96/4/8 PT1/2 		9-09204-521-0 01 1 9604-9604 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) -'96/4/8 PT1/2 		9-09204-521-0 01 1 9604-9604 ●
55 PLUG; SUPPLY
-'96/4/8 PT1/2 		9-09204-521-0 01 1 9604-9604 ●
55 PLUG; SUPPLY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9604-9604 ● ●
55 PLUG; SUPPLY
NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9) PT1/2 		9-09204-521-0 01 1 9604-9604 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) PT1/2 		9-09204-521-0 01 1 9604-9604 ●
55 PLUG; SUPPLY
EXC. HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9605-9606 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) PT1/2 		9-09204-521-0 01 1 9605-9606 ●
55 PLUG; SUPPLY
NEW ZEALAND EQUIPMENT(PK5) PT1/2 		9-09204-521-0 01 1 9605-9606 ●
55 PLUG; SUPPLY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9607-9904 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) PT1/2 		9-09204-521-0 01 1 9607-9904 ●
55 PLUG; SUPPLY
EXC. NEW ZEALAND EQUIPMENT(PK5) PT1/2 		9-09204-521-0 01 1 9607-9904 ●
55 PLUG; SUPPLY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9905-9910 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
TAIL PIPE SINGLE HORIZONTAL<NC2> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9911- ● ●
55 PLUG; SUPPLY
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
TAIL PIPE SINGLE HORIZONTAL<NC2> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
NEW ZEALAND EQUIPMENT(PK5) PT1/2 		9-09204-521-0 02 1 9607-9904 ●
58 ADAPTER
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 02 1 9603-9904 ● ●
58 ADAPTER
BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9905-0007 ●
58 ADAPTER
BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9905-0007 ●
58 ADAPTER
BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ●
58 ADAPTER
BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ●
58 ADAPTER
NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 02 1 9603-9904 ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
EXC. HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ● ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
EXC. HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
138 SWITCH; RELAY VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-48340-057-0 01 1 9603-9904 ●
138 SWITCH; RELAY VALVE
BRAKE REGULATION ECE<TDV> 		1-48340-057-1 01 1 9905- ●
211 CONNECTOR; TEST
NEW ZEALAND EQUIPMENT(PK5) 		1-47459-013-0 01 1 9603-9904 ●
211 CONNECTOR; TEST
BRAKE REGULATION ECE<TDV> 		1-47459-013-0 01 1 9905- ●
çizim 6667
12 12 10 7 12 12 12 12 10 2 12 12 12 12 6 5 12 12 12 12 55 10 4 10 2 122 12 12 12 108 5 8 12 12 12 108 12 12 12 108 4 9 55 2 2 12 12
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
THAILAND EQUIPMENT(PM9) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9605-9606 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9607-9611 ● ●
2 VALVE; RELAY
(C) 		1-48210-278-0 01 1 9607-9611 ● ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9612-9904 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 02 1 9905- ● ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48210-143-0 01 1 9603-9904 ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (A) 		1-48210-143-0 01 1 9905- ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 02 1 9603-9606 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9603-9606 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9607-9611 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9607-9611 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9612-9904 ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ● ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 02 1 9612-9904 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
BRAKE REGULATION HONG KONG<TCZ> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
EXC. BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
BRAKE REGULATION HONG KONG<TCZ> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28081-040-0 04 1 9603-9606 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 04 1 9607-9804 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ● ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9911- ●
5 NUT
M10 		9-09110-510-0 02 1 9603-9606 ● ●
5 NUT
M10 		9-09110-510-0 02 1 9603-9606 ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 04 1 9905-9910 ● ●
5 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 04 1 9911- ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28081-040-0 02 1 9603-9606 ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9804 ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28080-835-0 02 1 9603-9605 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28080-835-0 02 1 9606-9606 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9607-9904 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9905-9910 ● ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9911- ● ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28080-830-0 02 1 9603-9605 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X30 FLANGE 		0-28080-830-0 02 1 9606-9606 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9607-9904 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9905-9910 ● ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9911- ● ●
6 BOLT; VLV
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9805-9910 ●
6 BOLT; VLV
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9911- ●
7 NUT; RELAY VLV
M10 		9-09110-510-0 02 1 9603-9606 ● ●
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ● ●
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 9905-9910 ● ●
7 NUT; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 02 1 9911- ● ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28081-040-0 02 1 9603-9606 ● ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9904 ● ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9905-9910 ● ●
8 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ● ●
9 NUT
M10 		9-09110-510-0 02 1 9603-9606 ● ●
9 NUT
M10 FLANGE 		0-91150-210-0 02 1 9607-9910 ● ●
9 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 02 1 9911- ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (G) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 9905- ● ●
10 CONNECTOR
HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 02 1 9603-9904 ● ●
10 CONNECTOR
BRAKE REGULATION ECE<TDV> (H) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9905- ●
10 CONNECTOR
HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R1/2 ELBOW 		1-09660-768-1 01 1 9603-9904 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (I) 		1-09661-126-0 01 1 9905- ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) 		1-09661-126-0 01 1 9905- ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9904 ● ●
10 CONNECTOR
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9603-9904 ● ●
10 CONNECTOR
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN8 & R1/2 STRAIGHT 		1-09660-668-1 01 1 9603-9904 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (L) 		1-09661-125-0 01 1 9905-9910 ● ●
10 CONNECTOR
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (L) 		1-09661-125-0 01 1 9905-9910 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (L) 		1-09661-125-0 01 1 9911- ● ●
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (L) 		1-09661-125-0 01 1 9911- ● ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) (E) 		1-09656-673-0 01 1 9603-9904 ●
10 CONNECTOR
BRAKE REGULATION ECE<TDV> (E) 		1-09656-673-0 01 1 9905- ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) (F) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9603-9904 ●
10 CONNECTOR
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (M) 		1-09661-075-0 01 1 9905-9910 ● ●
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (M) 		1-09661-075-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9604-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9603 ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9605-9904 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9605-9904 ● ●
12 CONNECTOR; RELAY VLV
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 02 1 9905- ● ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9) ,HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ● ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 9905- ● ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R1/2 ELBOW 		1-09660-768-1 01 1 9603-9904 ● ●
12 CONNECTOR; RELAY VLV
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 ELBOW 		1-09660-960-0 03 1 9905- ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
(C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
EXC. HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (G) M20 & PT1/2 STRAIGHT 		1-09650-249-1 01 1 9605-9904 ● ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
(J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (F) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9603-9904 ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (F) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9905- ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (E) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 02 1 9603-9606 ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 03 1 9607-9904 ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (K) 		1-09661-125-0 01 1 9905- ● ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (L) M20 & PT1/2 STRAIGHT 		1-09650-249-1 01 1 9905- ●
55 PLUG; SUPPLY
PT1/2 		9-09204-521-0 01 1 9603-9603 ● ●
55 PLUG; SUPPLY
EXC. HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9603-9603 ● ●
55 PLUG; SUPPLY
EXC. HONG KONG EQUIPMENT(PQ1) -'96/4/8 PT1/2 		9-09204-521-0 01 1 9604-9604 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) -'96/4/8 PT1/2 		9-09204-521-0 01 1 9604-9604 ●
55 PLUG; SUPPLY
-'96/4/8 PT1/2 		9-09204-521-0 01 1 9604-9604 ●
55 PLUG; SUPPLY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9604-9604 ● ●
55 PLUG; SUPPLY
NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9) PT1/2 		9-09204-521-0 01 1 9604-9604 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) PT1/2 		9-09204-521-0 01 1 9604-9604 ●
55 PLUG; SUPPLY
EXC. HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9605-9606 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) PT1/2 		9-09204-521-0 01 1 9605-9606 ●
55 PLUG; SUPPLY
NEW ZEALAND EQUIPMENT(PK5) PT1/2 		9-09204-521-0 01 1 9605-9606 ●
55 PLUG; SUPPLY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9607-9904 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) PT1/2 		9-09204-521-0 01 1 9607-9904 ●
55 PLUG; SUPPLY
EXC. NEW ZEALAND EQUIPMENT(PK5) PT1/2 		9-09204-521-0 01 1 9607-9904 ●
55 PLUG; SUPPLY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9905-9910 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
TAIL PIPE SINGLE HORIZONTAL<NC2> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9911- ● ●
55 PLUG; SUPPLY
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
TAIL PIPE SINGLE HORIZONTAL<NC2> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
NEW ZEALAND EQUIPMENT(PK5) PT1/2 		9-09204-521-0 02 1 9607-9904 ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
EXC. HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ● ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
EXC. HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
122 VALVE ASM; CONT,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) 		1-48210-278-0 01 1 9603-9904 ● ●
122 VALVE ASM; CONT,WHEEL PARKING
BRAKE REGULATION HONG KONG<TCZ> 		1-48210-278-0 01 1 9905-9910 ● ●
122 VALVE ASM; CONT,WHEEL PARKING
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48210-278-0 01 1 9905-9910 ● ●
122 VALVE ASM; CONT,WHEEL PARKING
BRAKE REGULATION HONG KONG<TCZ> 		1-48210-278-0 01 1 9911- ● ●
122 VALVE ASM; CONT,WHEEL PARKING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48210-278-0 01 1 9911- ● ●
çizim 8627
23 176 25 24 175 23 176 176 173 174 177 76 172 172 171 76 6 38 35 33 94 34 33 35 94 30 31 30 31 34 35 34 31 30 93 33 108 105 93 58 58 93
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
M10X40 FLANGE 		0-28081-040-0 02 1 9603-9606 ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9804 ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28080-835-0 02 1 9603-9605 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28080-835-0 02 1 9606-9606 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9607-9904 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9905-9910 ● ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9911- ● ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28080-830-0 02 1 9603-9605 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X30 FLANGE 		0-28080-830-0 02 1 9606-9606 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9607-9904 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9905-9910 ● ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9911- ● ●
6 BOLT; VLV
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9805-9910 ●
6 BOLT; VLV
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9911- ●
23 VALVE; PRESSURE CONT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48460-067-1 01 1 9603-9910 ● ●
23 VALVE; PRESSURE CONT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48460-067-1 01 1 9911- ● ●
24 NUT
M8 		9-09110-408-0 02 1 9603-9605 ● ●
24 NUT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 		9-09110-408-0 02 1 9606-9606 ● ●
24 NUT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE 		0-91150-108-0 02 1 9607-9910 ● ●
24 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE 		0-91150-108-0 02 1 9911- ● ●
25 SWITCH; PRESSURE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48340-057-0 01 1 9603-9904 ● ●
25 SWITCH; PRESSURE
HONG KONG EQUIPMENT(PQ1) 		1-48340-057-0 01 1 9603-9904 ● ●
25 SWITCH; PRESSURE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48340-057-1 01 1 9905-9910 ● ●
25 SWITCH; PRESSURE
BRAKE REGULATION HONG KONG<TCZ> 		1-48340-057-1 01 1 9905-9910 ● ●
25 SWITCH; PRESSURE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48340-057-1 01 1 9911- ● ●
25 SWITCH; PRESSURE
BRAKE REGULATION HONG KONG<TCZ> 		1-48340-057-1 01 1 9911- ● ●
30 GOVERNOR; AIR CONT 1-48350-058-0 01 1 9603-9904 ● ●
30 GOVERNOR; AIR CONT 1-48350-063-0 01 1 9905- ● ●
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606 ● ●
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 9607- ● ●
33 BRACKET; GOV,AIR CONT
AIR DRYER<PS7> (A) 		1-48359-083-1 01 1 9603-9904 ● ●
33 BRACKET; GOV,AIR CONT
AIR DRYER<PS7> (A) 		1-48359-086-0 01 1 9905-9910 ● ●
33 BRACKET; GOV,AIR CONT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48359-086-0 01 1 9911- ● ●
33 BRACKET; GOV,AIR CONT
EXC. AIR DRYER<PS7> (B) 		1-48359-082-2 01 1 9603-9904 ● ●
33 BRACKET; GOV,AIR CONT
EXC. AIR DRYER<PS7> (B) 		1-48359-085-0 01 1 9905-9910 ● ●
33 BRACKET; GOV,AIR CONT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) 		1-48359-085-0 01 1 9911- ● ●
33 BRACKET; GOV,AIR CONT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) 		1-48359-087-0 01 1 9911- ● ●
34 BOLT; BRKT,GOV
AIR DRYER<PS7> M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
34 BOLT; BRKT,GOV
AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9910 ● ●
34 BOLT; BRKT,GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 02 1 9911- ● ●
34 BOLT; BRKT,GOV
EXC. AIR DRYER<PS7> M10X35 FLANGE 		0-28081-035-0 02 1 9603-9606 ● ●
34 BOLT; BRKT,GOV
EXC. AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 02 1 9607-9910 ● ●
34 BOLT; BRKT,GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 02 1 9911- ● ●
34 BOLT; BRKT,GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE 		0-28680-835-0 02 1 9911- ● ●
35 NUT; GOV TO FRAME
M8 		9-09110-508-0 02 1 9603-9606 ● ●
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
38 NUT; BRKT,GOV
AIR DRYER<PS7> M8 		9-09110-508-0 02 1 9603-9606 ● ●
38 NUT; BRKT,GOV
AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
58 ADAPTER
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 02 1 9603-9904 ● ●
58 ADAPTER
BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9905-0007 ●
58 ADAPTER
BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9905-0007 ●
58 ADAPTER
BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ●
58 ADAPTER
BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ●
58 ADAPTER
NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 02 1 9603-9904 ●
76 CONNECTOR; CONT VLV
HONG KONG EQUIPMENT(PQ1) (A) 		1-09656-242-2 01 1 9603-9904 ● ●
76 CONNECTOR; CONT VLV
BRAKE REGULATION HONG KONG<TCZ> (A) 		1-09656-242-2 01 1 9905- ● ●
76 CONNECTOR; CONT VLV
HONG KONG EQUIPMENT(PQ1) (B) DIN8,R3/8 STRAIGHT 		1-09660-651-1 02 1 9603-9904 ● ●
76 CONNECTOR; CONT VLV
BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 02 1 9905- ● ●
76 CONNECTOR; CONT VLV
HONG KONG EQUIPMENT(PQ1) (C) DIN12X2 & R3/8 3WAY 		1-09660-657-1 01 1 9603-9904 ● ●
76 CONNECTOR; CONT VLV
BRAKE REGULATION HONG KONG<TCZ> (C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 9905- ● ●
76 CONNECTOR; CONT VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 02 1 9603-9904 ● ●
76 CONNECTOR; CONT VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 9905-9910 ● ●
76 CONNECTOR; CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 9911- ● ●
93 CONNECTOR; GOV
DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 9905-9910 ● ●
93 CONNECTOR; GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 9911- ● ●
93 CONNECTOR; GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9911- ● ●
94 GASKET; GOV
ID=11 OD=18 		9-09572-510-0 02 1 9603-9904 ● ●
105 NUT; BRKT,VALVE
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE 		0-91150-110-0 02 1 0002- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
EXC. HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ● ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
EXC. HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
171 FILTER; PRESS CONT VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		9-88510-330-0 01 1 9603-9910 ● ●
171 FILTER; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		9-88510-330-0 01 1 9911- ● ●
172 RING; RETAINING
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-31829-081-0 01 1 9603-9910 ● ●
172 RING; RETAINING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-31829-081-0 01 1 9911- ● ●
172 RING; RETAINING
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		9-88510-331-0 01 1 9603-9910 ● ●
172 RING; RETAINING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		9-88510-331-0 01 1 9911- ● ●
173 PISTON; PRESS CONT VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48469-103-0 01 1 9603-9910 ● ●
173 PISTON; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48469-103-0 01 1 9911- ● ●
174 VALVE; PRESS CONT VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48469-104-1 01 1 9603-9910 ● ●
174 VALVE; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48469-104-1 01 1 9911- ● ●
175 SPRING; PRESS CONT VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48469-105-0 01 1 9603-9910 ● ●
175 SPRING; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48469-105-0 01 1 9911- ● ●
176 GASKET; PRESS CONT VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-47849-010-0 01 1 9603-9910 ● ●
176 GASKET; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-47849-010-0 01 1 9911- ● ●
176 GASKET; PRESS CONT VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-48212-004-0 01 1 9603-9910 ● ●
176 GASKET; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-48212-004-0 01 1 9911- ● ●
176 GASKET; PRESS CONT VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) 		1-48469-107-0 01 1 9603-9910 ● ●
176 GASKET; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) 		1-48469-107-0 01 1 9911- ● ●
177 RETAINER; PRESS CONT VLVE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48469-106-0 01 1 9603-9910 ● ●
177 RETAINER; PRESS CONT VLVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48469-106-0 01 1 9911- ● ●
çizim 8628
10 10 76 7 126 10 10 181 76 10 10 6 76 10 10 25 122 12 12 2 5 12 12 55 12 12 4 12 108 12 12 6 8 12 108 12 12 12 12 12 108 7 9 2 2 12 12 12 12
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
THAILAND EQUIPMENT(PM9) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9605-9606 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9607-9611 ● ●
2 VALVE; RELAY
(C) 		1-48210-278-0 01 1 9607-9611 ● ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9612-9904 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 02 1 9905- ● ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48210-143-0 01 1 9603-9904 ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (A) 		1-48210-143-0 01 1 9905- ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 02 1 9603-9606 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9603-9606 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9607-9611 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9607-9611 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9612-9904 ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ● ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 02 1 9612-9904 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
BRAKE REGULATION HONG KONG<TCZ> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
EXC. BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
BRAKE REGULATION HONG KONG<TCZ> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28081-040-0 04 1 9603-9606 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 04 1 9607-9804 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ● ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9805-9910 ●
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9911- ●
5 NUT
M10 		9-09110-510-0 02 1 9603-9606 ● ●
5 NUT
M10 		9-09110-510-0 02 1 9603-9606 ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ● ●
5 NUT
M10 FLANGE 		0-91150-210-0 04 1 9905-9910 ● ●
5 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 04 1 9911- ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28081-040-0 02 1 9603-9606 ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9804 ● ●
6 BOLT; VLV
M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9805-9910 ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
WHEEL BASE 5300MM(53W) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 02 1 9911- ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE 		0-28080-835-0 02 1 9603-9605 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28080-835-0 02 1 9606-9606 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9607-9904 ● ●
6 BOLT; VLV
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9905-9910 ● ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X40 FLANGE 		0-28680-840-0 02 1 9911- ● ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28080-830-0 02 1 9603-9605 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X30 FLANGE 		0-28080-830-0 02 1 9606-9606 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9607-9904 ●
6 BOLT; VLV
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9905-9910 ● ●
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,PARKING BRAKEVALVE LEVER TYPE<W48> M8X35 FLANGE 		0-28680-835-0 02 1 9911- ● ●
6 BOLT; VLV
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9805-9910 ●
6 BOLT; VLV
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FRAME EQUIPMENT HEAVY DUTY<F03> M10X45 FLANGE 		0-28081-045-0 02 1 9911- ●
7 NUT; RELAY VLV
M10 		9-09110-510-0 02 1 9603-9606 ● ●
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ● ●
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 9905-9910 ● ●
7 NUT; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 02 1 9911- ● ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28081-040-0 02 1 9603-9606 ● ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9607-9904 ● ●
8 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 9905-9910 ● ●
8 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9911- ● ●
9 NUT
M10 		9-09110-510-0 02 1 9603-9606 ● ●
9 NUT
M10 FLANGE 		0-91150-210-0 02 1 9607-9910 ● ●
9 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 02 1 9911- ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (G) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 9905- ● ●
10 CONNECTOR
HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 02 1 9603-9904 ● ●
10 CONNECTOR
BRAKE REGULATION ECE<TDV> (H) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9905- ●
10 CONNECTOR
HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R1/2 ELBOW 		1-09660-768-1 01 1 9603-9904 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (I) 		1-09661-126-0 01 1 9905- ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) 		1-09661-126-0 01 1 9905- ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9904 ● ●
10 CONNECTOR
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9603-9904 ● ●
10 CONNECTOR
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (K) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN8 & R1/2 STRAIGHT 		1-09660-668-1 01 1 9603-9904 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (L) 		1-09661-125-0 01 1 9905-9910 ● ●
10 CONNECTOR
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (L) 		1-09661-125-0 01 1 9905-9910 ● ●
10 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (L) 		1-09661-125-0 01 1 9911- ● ●
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (L) 		1-09661-125-0 01 1 9911- ● ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) (E) 		1-09656-673-0 01 1 9603-9904 ●
10 CONNECTOR
BRAKE REGULATION ECE<TDV> (E) 		1-09656-673-0 01 1 9905- ●
10 CONNECTOR
NEW ZEALAND EQUIPMENT(PK5) (F) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9603-9904 ●
10 CONNECTOR
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (M) 		1-09661-075-0 01 1 9905-9910 ● ●
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (M) 		1-09661-075-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9604-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (H) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9603 ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9605-9904 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9605-9904 ● ●
12 CONNECTOR; RELAY VLV
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 02 1 9905- ● ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9) ,HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ● ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 9905- ● ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R1/2 ELBOW 		1-09660-768-1 01 1 9603-9904 ● ●
12 CONNECTOR; RELAY VLV
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 ELBOW 		1-09660-960-0 03 1 9905- ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9603-9603 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
(C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (C) -'96/4/8 DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9604 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
EXC. HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9605-9606 ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) THAILAND EQUIPMENT(PM9) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9607-9708 ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ● ●
12 CONNECTOR; RELAY VLV
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) TAIL PIPE SINGLE HORIZONTAL<NC2> (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9709-9904 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (G) M20 & PT1/2 STRAIGHT 		1-09650-249-1 01 1 9605-9904 ● ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
(J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-9910 ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ● ●
12 CONNECTOR; RELAY VLV
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (J) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9911- ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (F) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9603-9904 ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (F) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9905- ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (E) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 02 1 9603-9606 ●
12 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 03 1 9607-9904 ●
12 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (K) 		1-09661-125-0 01 1 9905- ● ●
12 CONNECTOR; RELAY VLV
TAIL PIPE SINGLE HORIZONTAL<NC2> (L) M20 & PT1/2 STRAIGHT 		1-09650-249-1 01 1 9905- ●
25 SWITCH; PRESSURE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48340-057-0 01 1 9603-9904 ● ●
25 SWITCH; PRESSURE
HONG KONG EQUIPMENT(PQ1) 		1-48340-057-0 01 1 9603-9904 ● ●
25 SWITCH; PRESSURE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48340-057-1 01 1 9905-9910 ● ●
25 SWITCH; PRESSURE
BRAKE REGULATION HONG KONG<TCZ> 		1-48340-057-1 01 1 9905-9910 ● ●
25 SWITCH; PRESSURE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48340-057-1 01 1 9911- ● ●
25 SWITCH; PRESSURE
BRAKE REGULATION HONG KONG<TCZ> 		1-48340-057-1 01 1 9911- ● ●
55 PLUG; SUPPLY
PT1/2 		9-09204-521-0 01 1 9603-9603 ● ●
55 PLUG; SUPPLY
EXC. HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9603-9603 ● ●
55 PLUG; SUPPLY
EXC. HONG KONG EQUIPMENT(PQ1) -'96/4/8 PT1/2 		9-09204-521-0 01 1 9604-9604 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) -'96/4/8 PT1/2 		9-09204-521-0 01 1 9604-9604 ●
55 PLUG; SUPPLY
-'96/4/8 PT1/2 		9-09204-521-0 01 1 9604-9604 ●
55 PLUG; SUPPLY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9604-9604 ● ●
55 PLUG; SUPPLY
NEW ZEALAND EQUIPMENT(PK5),THAILAND EQUIPMENT(PM9) PT1/2 		9-09204-521-0 01 1 9604-9604 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) PT1/2 		9-09204-521-0 01 1 9604-9604 ●
55 PLUG; SUPPLY
EXC. HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9605-9606 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) PT1/2 		9-09204-521-0 01 1 9605-9606 ●
55 PLUG; SUPPLY
NEW ZEALAND EQUIPMENT(PK5) PT1/2 		9-09204-521-0 01 1 9605-9606 ●
55 PLUG; SUPPLY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) PT1/2 		9-09204-521-0 01 1 9607-9904 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) PT1/2 		9-09204-521-0 01 1 9607-9904 ●
55 PLUG; SUPPLY
EXC. NEW ZEALAND EQUIPMENT(PK5) PT1/2 		9-09204-521-0 01 1 9607-9904 ●
55 PLUG; SUPPLY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9905-9910 ● ●
55 PLUG; SUPPLY
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
TAIL PIPE SINGLE HORIZONTAL<NC2> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9905-9910 ●
55 PLUG; SUPPLY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9911- ● ●
55 PLUG; SUPPLY
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
TAIL PIPE SINGLE HORIZONTAL<NC2> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT1/2 		9-09204-521-0 01 1 9911- ●
55 PLUG; SUPPLY
NEW ZEALAND EQUIPMENT(PK5) PT1/2 		9-09204-521-0 02 1 9607-9904 ●
76 CONNECTOR; CONT VLV
HONG KONG EQUIPMENT(PQ1) (A) 		1-09656-242-2 01 1 9603-9904 ● ●
76 CONNECTOR; CONT VLV
BRAKE REGULATION HONG KONG<TCZ> (A) 		1-09656-242-2 01 1 9905- ● ●
76 CONNECTOR; CONT VLV
HONG KONG EQUIPMENT(PQ1) (B) DIN8,R3/8 STRAIGHT 		1-09660-651-1 02 1 9603-9904 ● ●
76 CONNECTOR; CONT VLV
BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 02 1 9905- ● ●
76 CONNECTOR; CONT VLV
HONG KONG EQUIPMENT(PQ1) (C) DIN12X2 & R3/8 3WAY 		1-09660-657-1 01 1 9603-9904 ● ●
76 CONNECTOR; CONT VLV
BRAKE REGULATION HONG KONG<TCZ> (C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 9905- ● ●
76 CONNECTOR; CONT VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 02 1 9603-9904 ● ●
76 CONNECTOR; CONT VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 9905-9910 ● ●
76 CONNECTOR; CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
EXC. HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ● ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9705 ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
108 CONNECTOR; ELBOW
EXC. HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9603-9705 ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9706-9904 ● ●
108 CONNECTOR; ELBOW
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-9910 ● ●
108 CONNECTOR; ELBOW
BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9911- ● ●
122 VALVE ASM; CONT,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) 		1-48210-278-0 01 1 9603-9904 ● ●
122 VALVE ASM; CONT,WHEEL PARKING
BRAKE REGULATION HONG KONG<TCZ> 		1-48210-278-0 01 1 9905-9910 ● ●
122 VALVE ASM; CONT,WHEEL PARKING
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48210-278-0 01 1 9905-9910 ● ●
122 VALVE ASM; CONT,WHEEL PARKING
BRAKE REGULATION HONG KONG<TCZ> 		1-48210-278-0 01 1 9911- ● ●
122 VALVE ASM; CONT,WHEEL PARKING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48210-278-0 01 1 9911- ● ●
126 VALVE; CONT
HONG KONG EQUIPMENT(PQ1) 		1-48410-050-0 02 1 9603-9902 ● ●
126 VALVE; CONT
HONG KONG EQUIPMENT(PQ1) 		1-48410-531-0 02 1 9903-9904 ● ●
126 VALVE; CONT
BRAKE REGULATION HONG KONG<TCZ> 		1-48410-531-0 02 1 9905- ● ●
181 ADAPTER; PRESSURE SW
FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9603-9910 ● ●
181 ADAPTER; PRESSURE SW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9911- ● ●
181 ADAPTER; PRESSURE SW
FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9603-9904 ● ●
181 ADAPTER; PRESSURE SW
FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9905-9910 ● ●
181 ADAPTER; PRESSURE SW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9911-0007 ● ●
181 ADAPTER; PRESSURE SW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008- ● ●
181 ADAPTER; PRESSURE SW
HONG KONG EQUIPMENT(PQ1) (D) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9603-9904 ● ●
181 ADAPTER; PRESSURE SW
BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 9905-0007 ● ●
181 ADAPTER; PRESSURE SW
BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0008- ● ●
181 ADAPTER; PRESSURE SW
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16) (B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 9603-9910 ● ●
181 ADAPTER; PRESSURE SW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16) (B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 9911- ● ●
çizim 8892
240
BalonParca AdiParca NoAdetTipApplied Date A B
240 REPAIR KIT; AIR CONT GOV 1-85576-303-0 01 1 9905- ● ●
çizim 40071
105 104 15 206 99 99 103 102 206 244 102 244 181 181 181
BalonParca AdiParca NoAdetTipApplied Date A B
15 PLUG; VALVE
HONG KONG EQUIPMENT(PQ1) PT3/8 		9-09204-517-0 01 1 9603-9904 ● ●
15 PLUG; VALVE
BRAKE REGULATION HONG KONG<TCZ> PT3/8 		9-09204-517-0 01 1 9905-0001 ● ●
15 PLUG; VALVE
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT3/8 		9-09204-517-0 01 1 0002- ● ●
15 PLUG; VALVE
BRAKE REGULATION HONG KONG<TCZ> PT3/8 		9-09204-517-0 01 1 0002- ● ●
99 VALVE; PROTECTION
NEW ZEALAND EQUIPMENT(PK5) 		1-48110-079-0 01 1 9603-9910 ●
99 VALVE; PROTECTION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) 		1-48110-079-0 01 1 9911-0001 ●
99 VALVE; PROTECTION
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-48110-079-0 01 1 0002- ● ●
99 VALVE; PROTECTION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) 		1-48110-079-0 01 1 0002- ●
102 BOLT; PROTECTION VALVE
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28680-825-0 02 1 0002- ● ●
102 BOLT; PROTECTION VALVE
NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE 		0-28080-830-0 02 1 9603-9910 ●
102 BOLT; PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE 		0-28080-830-0 02 1 9911- ●
103 BRACKET; PROTECTION VALVE
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47478-861-0 01 1 0002-0005 ● ●
103 BRACKET; PROTECTION VALVE
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47479-006-0 01 1 0006- ● ●
104 BOLT; BRKT,VALVE
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE 		0-28681-030-0 02 1 0002- ● ●
105 NUT; BRKT,VALVE
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE 		0-91150-110-0 02 1 0002- ● ●
181 ADAPTER; PRESSURE SW
FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9603-9910 ● ●
181 ADAPTER; PRESSURE SW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 9911- ● ●
181 ADAPTER; PRESSURE SW
FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9603-9904 ● ●
181 ADAPTER; PRESSURE SW
FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9905-9910 ● ●
181 ADAPTER; PRESSURE SW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9911-0007 ● ●
181 ADAPTER; PRESSURE SW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULL FLOATING CAB(W16) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008- ● ●
181 ADAPTER; PRESSURE SW
HONG KONG EQUIPMENT(PQ1) (D) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9603-9904 ● ●
181 ADAPTER; PRESSURE SW
BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 9905-0007 ● ●
181 ADAPTER; PRESSURE SW
BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0008- ● ●
181 ADAPTER; PRESSURE SW
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16) (B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 9603-9910 ● ●
181 ADAPTER; PRESSURE SW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16) (B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 9911- ● ●
206 ADAPTER; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) PT3/8 		1-48319-058-0 02 1 9603-9910 ●
206 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) PT3/8 		1-48319-058-0 02 1 9911- ●
244 UNION; STRAIGHT
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0002- ● ●
çizim 42616
21 20 21 14 16 21 14 18 19 22 17 13 13 21 14 14 18 15 16 17 13 14
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-48410-320-0 01 1 9603-9904 ● ●
13 VALVE ASM; QUICK RELEASE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-48410-320-0 01 1 9603-9904 ● ●
13 VALVE ASM; QUICK RELEASE
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48410-320-0 01 1 9905- ● ●
13 VALVE ASM; QUICK RELEASE
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48410-320-0 01 1 9905- ● ●
14 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9904 ● ●
14 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905- ● ●
14 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9603-9904 ● ●
14 CONNECTOR; RELAY VLV
BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9905- ● ●
14 CONNECTOR; RELAY VLV
NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW 		1-09660-652-1 03 1 9603-9904 ●
14 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 9905- ● ●
15 PLUG; VALVE
HONG KONG EQUIPMENT(PQ1) PT3/8 		9-09204-517-0 01 1 9603-9904 ● ●
15 PLUG; VALVE
BRAKE REGULATION HONG KONG<TCZ> PT3/8 		9-09204-517-0 01 1 9905-0001 ● ●
15 PLUG; VALVE
V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT3/8 		9-09204-517-0 01 1 0002- ● ●
15 PLUG; VALVE
BRAKE REGULATION HONG KONG<TCZ> PT3/8 		9-09204-517-0 01 1 0002- ● ●
16 BRACKET; VLV,PARKING BRK
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-47475-540-1 01 1 9603-9904 ● ●
16 BRACKET; VLV,PARKING BRK
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-47475-540-1 01 1 9905- ● ●
17 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9603-9606 ● ●
17 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904 ● ●
17 BOLT; BRKT
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ●
17 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X35 W/LK WASHER 		0-50040-835-0 02 1 9603-9606 ● ●
17 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X40 FLANGE 		0-28680-840-0 02 1 9607-9904 ● ●
17 BOLT; BRKT
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X40 FLANGE 		0-28680-840-0 02 1 9905- ● ●
18 NUT; BRKT
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8 		9-09110-408-0 02 1 9603-9904 ● ●
18 NUT; BRKT
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8 		9-09110-408-0 02 1 9905- ● ●
19 BRACKET; QUICK RELEASE VLV
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-47475-199-1 01 1 9603-9904 ● ●
19 BRACKET; QUICK RELEASE VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-47475-199-1 01 1 9905- ● ●
20 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE 		0-28680-820-0 02 1 9603-9606 ● ●
20 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904 ● ●
20 BOLT; BRKT
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ●
21 CONNECTOR; QUICK RELEASE VLV
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9603-9604 ● ●
21 CONNECTOR; QUICK RELEASE VLV
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8,R3/8 STRAIGHT 		1-09660-651-1 02 1 9605-9904 ● ●
21 CONNECTOR; QUICK RELEASE VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8,R3/8 STRAIGHT 		1-09660-651-1 02 1 9905-9905 ● ●
21 CONNECTOR; QUICK RELEASE VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 02 1 9905- ● ●
21 CONNECTOR; QUICK RELEASE VLV
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 02 1 9603-9604 ● ●
21 CONNECTOR; QUICK RELEASE VLV
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9605-9904 ● ●
21 CONNECTOR; QUICK RELEASE VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9905-9905 ● ●
21 CONNECTOR; QUICK RELEASE VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905- ● ●
22 NUT; BRKT
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8 		9-09110-408-0 02 1 9603-9904 ● ●
22 NUT; BRKT
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8 		9-09110-408-0 02 1 9905- ● ●
çizim 43395
122 2 167 170 170 167 164 164 164 166 166 157 157 158 158 161 161 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9603-9603 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9603-9603 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
THAILAND EQUIPMENT(PM9) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9604-9604 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9605-9606 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9605-9606 ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9607-9611 ● ●
2 VALVE; RELAY
(C) 		1-48210-278-0 01 1 9607-9611 ● ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9607-9611 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48210-278-0 01 1 9612-9904 ● ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ● ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48210-278-0 01 1 9612-9904 ●
2 VALVE; RELAY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 02 1 9905- ● ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48210-143-0 01 1 9603-9904 ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (A) 		1-48210-143-0 01 1 9905- ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 02 1 9603-9606 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9603-9606 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9607-9611 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9607-9611 ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 01 1 9612-9904 ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ● ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ●
2 VALVE; RELAY
BRAKE REGULATION ECE<TDV> (B) 		1-48210-500-0 01 1 9905- ●
2 VALVE; RELAY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48210-500-0 02 1 9612-9904 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
BRAKE REGULATION HONG KONG<TCZ> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
EXC. BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ● ●
2 VALVE; RELAY
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9905-9910 ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
BRAKE REGULATION HONG KONG<TCZ> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ● ●
2 VALVE; RELAY
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48210-278-0 01 1 9911- ●
122 VALVE ASM; CONT,WHEEL PARKING
HONG KONG EQUIPMENT(PQ1) 		1-48210-278-0 01 1 9603-9904 ● ●
122 VALVE ASM; CONT,WHEEL PARKING
BRAKE REGULATION HONG KONG<TCZ> 		1-48210-278-0 01 1 9905-9910 ● ●
122 VALVE ASM; CONT,WHEEL PARKING
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48210-278-0 01 1 9905-9910 ● ●
122 VALVE ASM; CONT,WHEEL PARKING
BRAKE REGULATION HONG KONG<TCZ> 		1-48210-278-0 01 1 9911- ● ●
122 VALVE ASM; CONT,WHEEL PARKING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48210-278-0 01 1 9911- ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 9603-9603 ●
157 RETAINER; VALVE 1-48213-002-0 01 1 9603-9603 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9603-9603 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9603-9603 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9603-9603 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9603-9603 ●
157 RETAINER; VALVE
-'96/4/8 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) -'96/4/8 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9604-9604 ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9604-9604 ●
157 RETAINER; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-48213-002-0 01 1 9605-9606 ● ●
157 RETAINER; VALVE
HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9605-9606 ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) 		1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9605-9606 ●
157 RETAINER; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-48213-002-0 01 1 9607-9904 ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 9607-9904 ● ●
157 RETAINER; VALVE
HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9607-9904 ● ●
157 RETAINER; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9607-9904 ●
157 RETAINER; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) 		1-48213-002-0 01 1 9607-9904 ●
157 RETAINER; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-48213-002-0 01 1 9607-9904 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9607-9904 ●
157 RETAINER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 01 1 9607-9904 ●
157 RETAINER; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9905-9910 ● ●
157 RETAINER; VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48213-002-0 01 1 9905-9910 ● ●
157 RETAINER; VALVE 1-48213-002-0 01 1 9905-9910 ● ●
157 RETAINER; VALVE
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9905-9910 ●
157 RETAINER; VALVE
BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ● ●
157 RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ● ●
157 RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48213-002-0 01 1 9911- ● ●
157 RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ● ●
157 RETAINER; VALVE
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 9911- ●
157 RETAINER; VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 02 1 9603-9606 ●
157 RETAINER; VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 02 1 9603-9606 ●
157 RETAINER; VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-48213-002-0 03 1 9607-9904 ●
157 RETAINER; VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48213-002-0 02 1 9905- ● ●
157 RETAINER; VALVE
BRAKE REGULATION HONG KONG<TCZ> 		1-48213-002-0 02 1 9905- ●
157 RETAINER; VALVE
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48213-002-0 02 1 9905- ●
158 SPRING; VALVE 1-47819-089-0 01 1 9603-9603 ●
158 SPRING; VALVE 1-47819-089-0 01 1 9603-9603 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 01 1 9603-9603 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 01 1 9603-9603 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 01 1 9603-9603 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 01 1 9603-9603 ●
158 SPRING; VALVE
-'96/4/8 		1-47819-089-0 01 1 9604-9604 ●
158 SPRING; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) -'96/4/8 		1-47819-089-0 01 1 9604-9604 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-47819-089-0 01 1 9604-9604 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-47819-089-0 01 1 9604-9604 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-47819-089-0 01 1 9604-9604 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-47819-089-0 01 1 9604-9604 ●
158 SPRING; VALVE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) 		1-47819-089-0 01 1 9604-9604 ● ●
158 SPRING; VALVE 1-47819-089-0 01 1 9604-9604 ●
158 SPRING; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) 		1-47819-089-0 01 1 9604-9604 ●
158 SPRING; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) 		1-47819-089-0 01 1 9604-9604 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 01 1 9604-9604 ●
158 SPRING; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-47819-089-0 01 1 9604-9604 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 01 1 9604-9604 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 01 1 9604-9604 ●
158 SPRING; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-47819-089-0 01 1 9605-9606 ● ●
158 SPRING; VALVE
HONG KONG EQUIPMENT(PQ1) 		1-47819-089-0 01 1 9605-9606 ● ●
158 SPRING; VALVE 1-47819-089-0 01 1 9605-9606 ●
158 SPRING; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) 		1-47819-089-0 01 1 9605-9606 ●
158 SPRING; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) 		1-47819-089-0 01 1 9605-9606 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 01 1 9605-9606 ●
158 SPRING; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-47819-089-0 01 1 9605-9606 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 01 1 9605-9606 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 01 1 9605-9606 ●
158 SPRING; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-47819-089-0 01 1 9607-9904 ● ●
158 SPRING; VALVE 1-47819-089-0 01 1 9607-9904 ● ●
158 SPRING; VALVE
HONG KONG EQUIPMENT(PQ1) 		1-47819-089-0 01 1 9607-9904 ● ●
158 SPRING; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) 		1-47819-089-0 01 1 9607-9904 ●
158 SPRING; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) 		1-47819-089-0 01 1 9607-9904 ●
158 SPRING; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-47819-089-0 01 1 9607-9904 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 01 1 9607-9904 ●
158 SPRING; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 01 1 9607-9904 ●
158 SPRING; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9905-9910 ● ●
158 SPRING; VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-47819-089-0 01 1 9905-9910 ● ●
158 SPRING; VALVE 1-47819-089-0 01 1 9905-9910 ● ●
158 SPRING; VALVE
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-47819-089-0 01 1 9905-9910 ●
158 SPRING; VALVE
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9905-9910 ●
158 SPRING; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9905-9910 ●
158 SPRING; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-47819-089-0 01 1 9905-9910 ●
158 SPRING; VALVE
BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9905-9910 ●
158 SPRING; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9905-9910 ●
158 SPRING; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9905-9910 ●
158 SPRING; VALVE
BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9911- ● ●
158 SPRING; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9911- ● ●
158 SPRING; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-47819-089-0 01 1 9911- ● ●
158 SPRING; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9911- ● ●
158 SPRING; VALVE
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-47819-089-0 01 1 9911- ●
158 SPRING; VALVE
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9911- ●
158 SPRING; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9911- ●
158 SPRING; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-47819-089-0 01 1 9911- ●
158 SPRING; VALVE
BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9911- ●
158 SPRING; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9911- ●
158 SPRING; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 9911- ●
158 SPRING; VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 02 1 9603-9606 ●
158 SPRING; VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 02 1 9603-9606 ●
158 SPRING; VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-47819-089-0 03 1 9607-9904 ●
158 SPRING; VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-47819-089-0 02 1 9905- ● ●
158 SPRING; VALVE
BRAKE REGULATION HONG KONG<TCZ> 		1-47819-089-0 02 1 9905- ●
158 SPRING; VALVE
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-47819-089-0 02 1 9905- ●
161 GUIDE; VALVE 1-48129-014-0 01 1 9603-9603 ●
161 GUIDE; VALVE 1-48129-014-0 01 1 9603-9603 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 01 1 9603-9603 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 01 1 9603-9603 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 01 1 9603-9603 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 01 1 9603-9603 ●
161 GUIDE; VALVE
-'96/4/8 		1-48129-014-0 01 1 9604-9604 ●
161 GUIDE; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) -'96/4/8 		1-48129-014-0 01 1 9604-9604 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-48129-014-0 01 1 9604-9604 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-48129-014-0 01 1 9604-9604 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-48129-014-0 01 1 9604-9604 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) -'96/4/8 		1-48129-014-0 01 1 9604-9604 ●
161 GUIDE; VALVE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) 		1-48129-014-0 01 1 9604-9604 ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 9604-9604 ●
161 GUIDE; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) 		1-48129-014-0 01 1 9604-9604 ●
161 GUIDE; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) 		1-48129-014-0 01 1 9604-9604 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 01 1 9604-9604 ●
161 GUIDE; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-48129-014-0 01 1 9604-9604 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 01 1 9604-9604 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 01 1 9604-9604 ●
161 GUIDE; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-48129-014-0 01 1 9605-9606 ● ●
161 GUIDE; VALVE
HONG KONG EQUIPMENT(PQ1) 		1-48129-014-0 01 1 9605-9606 ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 9605-9606 ●
161 GUIDE; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) 		1-48129-014-0 01 1 9605-9606 ●
161 GUIDE; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) 		1-48129-014-0 01 1 9605-9606 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 01 1 9605-9606 ●
161 GUIDE; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-48129-014-0 01 1 9605-9606 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 01 1 9605-9606 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 01 1 9605-9606 ●
161 GUIDE; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-48129-014-0 01 1 9607-9904 ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 9607-9904 ● ●
161 GUIDE; VALVE
HONG KONG EQUIPMENT(PQ1) 		1-48129-014-0 01 1 9607-9904 ● ●
161 GUIDE; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) 		1-48129-014-0 01 1 9607-9904 ●
161 GUIDE; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) 		1-48129-014-0 01 1 9607-9904 ●
161 GUIDE; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-48129-014-0 01 1 9607-9904 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 01 1 9607-9904 ●
161 GUIDE; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 01 1 9607-9904 ●
161 GUIDE; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9905-9910 ● ●
161 GUIDE; VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48129-014-0 01 1 9905-9910 ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 9905-9910 ● ●
161 GUIDE; VALVE
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48129-014-0 01 1 9905-9910 ●
161 GUIDE; VALVE
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9905-9910 ●
161 GUIDE; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9905-9910 ●
161 GUIDE; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-48129-014-0 01 1 9905-9910 ●
161 GUIDE; VALVE
BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9905-9910 ●
161 GUIDE; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9905-9910 ●
161 GUIDE; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9905-9910 ●
161 GUIDE; VALVE
BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9911- ● ●
161 GUIDE; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9911- ● ●
161 GUIDE; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48129-014-0 01 1 9911- ● ●
161 GUIDE; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9911- ● ●
161 GUIDE; VALVE
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48129-014-0 01 1 9911- ●
161 GUIDE; VALVE
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9911- ●
161 GUIDE; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9911- ●
161 GUIDE; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-48129-014-0 01 1 9911- ●
161 GUIDE; VALVE
BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9911- ●
161 GUIDE; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9911- ●
161 GUIDE; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 9911- ●
161 GUIDE; VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 02 1 9603-9606 ●
161 GUIDE; VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 02 1 9603-9606 ●
161 GUIDE; VALVE
NEW ZEALAND EQUIPMENT(PK5) 		1-48129-014-0 03 1 9607-9904 ●
161 GUIDE; VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> 		1-48129-014-0 02 1 9905- ● ●
161 GUIDE; VALVE
BRAKE REGULATION HONG KONG<TCZ> 		1-48129-014-0 02 1 9905- ●
161 GUIDE; VALVE
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> 		1-48129-014-0 02 1 9905- ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 9603-9603 ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 9603-9603 ●
164 PISTON; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48219-071-0 01 1 9603-9603 ●
164 PISTON; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48219-071-0 01 1 9603-9603 ●
164 PISTON; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48219-071-0 01 1 9603-9603 ●
164 PISTON; RELAY VALVE
(C) -'96/4/8 		1-48219-071-0 01 1 9604-9604 ● ●
164 PISTON; RELAY VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) -'96/4/8 		1-48219-071-0 01 1 9604-9604 ●
164 PISTON; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) -'96/4/8 		1-48219-071-0 01 1 9604-9604 ●
164 PISTON; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) -'96/4/8 		1-48219-071-0 01 1 9604-9604 ●
164 PISTON; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) -'96/4/8 		1-48219-071-0 01 1 9604-9604 ●
164 PISTON; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48219-071-0 01 1 9604-9604 ● ●
164 PISTON; RELAY VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-48219-071-0 01 1 9604-9604 ● ●
164 PISTON; RELAY VALVE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (C) 		1-48219-071-0 01 1 9604-9604 ● ●
164 PISTON; RELAY VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48219-071-0 01 1 9604-9604 ●
164 PISTON; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48219-071-0 01 1 9604-9604 ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 9605-9904 ● ●
164 PISTON; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48219-071-0 01 1 9605-9904 ● ●
164 PISTON; RELAY VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) 		1-48219-071-0 01 1 9605-9904 ●
164 PISTON; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48219-071-0 01 1 9605-9904 ●
164 PISTON; RELAY VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48219-071-0 01 1 9605-9904 ●
164 PISTON; RELAY VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9905-9910 ● ●
164 PISTON; RELAY VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48219-071-0 01 1 9905-9910 ● ●
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 9905-9910 ● ●
164 PISTON; RELAY VALVE
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48219-071-0 01 1 9905-9910 ●
164 PISTON; RELAY VALVE
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9905-9910 ●
164 PISTON; RELAY VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9905-9910 ●
164 PISTON; RELAY VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48219-071-0 01 1 9905-9910 ●
164 PISTON; RELAY VALVE
BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9905-9910 ●
164 PISTON; RELAY VALVE
BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9905-9910 ●
164 PISTON; RELAY VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9905-9910 ●
164 PISTON; RELAY VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9905-9910 ●
164 PISTON; RELAY VALVE
BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9911- ● ●
164 PISTON; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9911- ● ●
164 PISTON; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48219-071-0 01 1 9911- ● ●
164 PISTON; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9911- ● ●
164 PISTON; RELAY VALVE
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48219-071-0 01 1 9911- ●
164 PISTON; RELAY VALVE
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9911- ●
164 PISTON; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9911- ●
164 PISTON; RELAY VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-48219-071-0 01 1 9911- ●
164 PISTON; RELAY VALVE
BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9911- ●
164 PISTON; RELAY VALVE
BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9911- ●
164 PISTON; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9911- ●
164 PISTON; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) 		1-48219-071-0 01 1 9911- ●
164 PISTON; RELAY VALVE
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48219-032-0 01 1 9603-9904 ●
164 PISTON; RELAY VALVE
BRAKE REGULATION ECE<TDV> (A) 		1-48219-032-0 01 1 9905- ●
164 PISTON; RELAY VALVE
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48219-047-0 01 1 9603-9904 ●
164 PISTON; RELAY VALVE
BRAKE REGULATION ECE<TDV> (B) 		1-48219-047-0 01 1 9905- ●
164 PISTON; RELAY VALVE
NEW ZEALAND EQUIPMENT(PK5) (C) 		1-48219-071-0 02 1 9603-9904 ●
164 PISTON; RELAY VALVE
BRAKE REGULATION HONG KONG<TCZ> (C) 		1-48219-071-0 02 1 9905- ● ●
164 PISTON; RELAY VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (C) 		1-48219-071-0 02 1 9905- ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 9603-9603 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 9603-9603 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9603-9603 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9603-9603 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9603-9603 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9603-9603 ●
166 SPRING; PISTON
(A) -'96/4/8 		1-47819-090-0 01 1 9604-9604 ●
166 SPRING; PISTON
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) -'96/4/8 		1-47819-090-0 01 1 9604-9604 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) -'96/4/8 		1-47819-090-0 01 1 9604-9604 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) -'96/4/8 		1-47819-090-0 01 1 9604-9604 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) -'96/4/8 		1-47819-090-0 01 1 9604-9604 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) -'96/4/8 		1-47819-090-0 01 1 9604-9604 ●
166 SPRING; PISTON
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (A) 		1-47819-090-0 01 1 9604-9604 ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 9604-9604 ●
166 SPRING; PISTON
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (A) 		1-47819-090-0 01 1 9604-9604 ●
166 SPRING; PISTON
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) 		1-47819-090-0 01 1 9604-9604 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9604-9604 ●
166 SPRING; PISTON
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 		1-47819-090-0 01 1 9604-9604 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9604-9604 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9604-9604 ●
166 SPRING; PISTON
TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-47819-090-0 01 1 9605-9606 ● ●
166 SPRING; PISTON
HONG KONG EQUIPMENT(PQ1) (A) 		1-47819-090-0 01 1 9605-9606 ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 9605-9606 ●
166 SPRING; PISTON
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (A) 		1-47819-090-0 01 1 9605-9606 ●
166 SPRING; PISTON
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) 		1-47819-090-0 01 1 9605-9606 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9605-9606 ●
166 SPRING; PISTON
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 		1-47819-090-0 01 1 9605-9606 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9605-9606 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9605-9606 ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 9607-9611 ● ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9607-9611 ● ●
166 SPRING; PISTON
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) 		1-47819-090-0 01 1 9607-9611 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9607-9611 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9607-9611 ●
166 SPRING; PISTON
TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-47819-090-0 01 1 9612-9904 ● ●
166 SPRING; PISTON
HONG KONG EQUIPMENT(PQ1) (A) 		1-47819-090-0 01 1 9612-9904 ● ●
166 SPRING; PISTON
(A) 		1-47819-090-0 01 1 9612-9904 ●
166 SPRING; PISTON
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,HONG KONG EQUIPMENT(PQ1) (A) 		1-47819-090-0 01 1 9612-9904 ●
166 SPRING; PISTON
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) 		1-47819-090-0 01 1 9612-9904 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9612-9904 ●
166 SPRING; PISTON
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 		1-47819-090-0 01 1 9612-9904 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9612-9904 ●
166 SPRING; PISTON
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-090-0 01 1 9612-9904 ●
166 SPRING; PISTON
BRAKE REGULATION HONG KONG<TCZ> (A) 		1-47819-090-0 02 1 9905- ● ●
166 SPRING; PISTON
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-47819-090-0 02 1 9905- ● ●
166 SPRING; PISTON
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-165-0 02 1 9603-9606 ●
166 SPRING; PISTON
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-165-0 01 1 9603-9606 ●
166 SPRING; PISTON
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-165-0 01 1 9607-9611 ●
166 SPRING; PISTON
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-165-0 01 1 9607-9611 ●
166 SPRING; PISTON
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-165-0 01 1 9612-9904 ●
166 SPRING; PISTON
BRAKE REGULATION ECE<TDV> (A) 		1-47819-165-0 01 1 9905- ● ●
166 SPRING; PISTON
BRAKE REGULATION ECE<TDV> (A) 		1-47819-165-0 01 1 9905- ●
166 SPRING; PISTON
BRAKE REGULATION ECE<TDV> (A) 		1-47819-165-0 01 1 9905- ●
166 SPRING; PISTON
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48219-048-0 01 1 9603-9904 ●
166 SPRING; PISTON
BRAKE REGULATION ECE<TDV> (B) 		1-48219-048-0 01 1 9905- ●
166 SPRING; PISTON
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47819-165-0 02 1 9612-9904 ●
166 SPRING; PISTON
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) 		1-47819-090-0 01 1 9905-9910 ● ●
166 SPRING; PISTON
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-47819-090-0 01 1 9905-9910 ● ●
166 SPRING; PISTON
EXC. BRAKE REGULATION ECE<TDV> (A) 		1-47819-090-0 01 1 9905-9910 ● ●
166 SPRING; PISTON
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-47819-090-0 01 1 9905-9910 ●
166 SPRING; PISTON
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (A) 		1-47819-090-0 01 1 9905-9910 ●
166 SPRING; PISTON
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) 		1-47819-090-0 01 1 9905-9910 ●
166 SPRING; PISTON
TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-47819-090-0 01 1 9905-9910 ●
166 SPRING; PISTON
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (A) 		1-47819-090-0 01 1 9905-9910 ●
166 SPRING; PISTON
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) 		1-47819-090-0 01 1 9905-9910 ●
166 SPRING; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) 		1-47819-090-0 01 1 9911- ● ●
166 SPRING; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-47819-090-0 01 1 9911- ● ●
166 SPRING; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (A) 		1-47819-090-0 01 1 9911- ● ●
166 SPRING; PISTON
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-47819-090-0 01 1 9911- ●
166 SPRING; PISTON
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (A) 		1-47819-090-0 01 1 9911- ●
166 SPRING; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) 		1-47819-090-0 01 1 9911- ●
166 SPRING; PISTON
TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-47819-090-0 01 1 9911- ●
166 SPRING; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (A) 		1-47819-090-0 01 1 9911- ●
166 SPRING; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) 		1-47819-090-0 01 1 9911- ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 9603-9603 ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 9603-9603 ●
167 COVER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48219-070-0 01 1 9603-9603 ●
167 COVER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48219-070-0 01 1 9603-9603 ●
167 COVER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48219-070-0 01 1 9603-9603 ●
167 COVER; VALVE
(B) -'96/4/8 		1-48219-070-0 01 1 9604-9604 ● ●
167 COVER; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (B) -'96/4/8 		1-48219-070-0 01 1 9604-9604 ●
167 COVER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) -'96/4/8 		1-48219-070-0 01 1 9604-9604 ●
167 COVER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) -'96/4/8 		1-48219-070-0 01 1 9604-9604 ●
167 COVER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) -'96/4/8 		1-48219-070-0 01 1 9604-9604 ●
167 COVER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48219-070-0 01 1 9604-9604 ● ●
167 COVER; VALVE
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) 		1-48219-070-0 01 1 9604-9604 ● ●
167 COVER; VALVE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) 		1-48219-070-0 01 1 9604-9604 ● ●
167 COVER; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (B) 		1-48219-070-0 01 1 9604-9604 ●
167 COVER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48219-070-0 01 1 9604-9604 ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 9605-9904 ● ●
167 COVER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48219-070-0 01 1 9605-9904 ● ●
167 COVER; VALVE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (B) 		1-48219-070-0 01 1 9605-9904 ●
167 COVER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48219-070-0 01 1 9605-9904 ●
167 COVER; VALVE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48219-070-0 01 1 9605-9904 ●
167 COVER; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9905-9910 ● ●
167 COVER; VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48219-070-0 01 1 9905-9910 ● ●
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 9905-9910 ● ●
167 COVER; VALVE
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48219-070-0 01 1 9905-9910 ●
167 COVER; VALVE
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9905-9910 ●
167 COVER; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9905-9910 ●
167 COVER; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-48219-070-0 01 1 9905-9910 ●
167 COVER; VALVE
BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9905-9910 ●
167 COVER; VALVE
BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9905-9910 ●
167 COVER; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9905-9910 ●
167 COVER; VALVE
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9905-9910 ●
167 COVER; VALVE
BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9911- ● ●
167 COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9911- ● ●
167 COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48219-070-0 01 1 9911- ● ●
167 COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9911- ● ●
167 COVER; VALVE
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48219-070-0 01 1 9911- ●
167 COVER; VALVE
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9911- ●
167 COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9911- ●
167 COVER; VALVE
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-48219-070-0 01 1 9911- ●
167 COVER; VALVE
BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9911- ●
167 COVER; VALVE
BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9911- ●
167 COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9911- ●
167 COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) 		1-48219-070-0 01 1 9911- ●
167 COVER; VALVE
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48219-050-1 01 1 9603-9904 ●
167 COVER; VALVE
BRAKE REGULATION ECE<TDV> (A) 		1-48219-050-1 01 1 9905- ●
167 COVER; VALVE
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48219-070-0 02 1 9603-9904 ●
167 COVER; VALVE
BRAKE REGULATION HONG KONG<TCZ> (B) 		1-48219-070-0 02 1 9905- ● ●
167 COVER; VALVE
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (B) 		1-48219-070-0 02 1 9905- ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 9603-9603 ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 9603-9603 ●
170 SCREW; COVER TO BODY
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48219-039-0 04 1 9603-9603 ●
170 SCREW; COVER TO BODY
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48219-039-0 04 1 9603-9603 ●
170 SCREW; COVER TO BODY
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48219-039-0 04 1 9603-9603 ●
170 SCREW; COVER TO BODY
(A) -'96/4/8 		1-48219-039-0 04 1 9604-9604 ● ●
170 SCREW; COVER TO BODY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) -'96/4/8 		1-48219-039-0 04 1 9604-9604 ●
170 SCREW; COVER TO BODY
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) -'96/4/8 		1-48219-039-0 04 1 9604-9604 ●
170 SCREW; COVER TO BODY
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) -'96/4/8 		1-48219-039-0 04 1 9604-9604 ●
170 SCREW; COVER TO BODY
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) -'96/4/8 		1-48219-039-0 04 1 9604-9604 ●
170 SCREW; COVER TO BODY
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48219-039-0 04 1 9604-9604 ● ●
170 SCREW; COVER TO BODY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 		1-48219-039-0 04 1 9604-9604 ● ●
170 SCREW; COVER TO BODY
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (A) 		1-48219-039-0 04 1 9604-9604 ● ●
170 SCREW; COVER TO BODY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) 		1-48219-039-0 04 1 9604-9604 ●
170 SCREW; COVER TO BODY
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48219-039-0 04 1 9604-9604 ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 9605-9904 ● ●
170 SCREW; COVER TO BODY
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48219-039-0 04 1 9605-9904 ● ●
170 SCREW; COVER TO BODY
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) 		1-48219-039-0 04 1 9605-9904 ●
170 SCREW; COVER TO BODY
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48219-039-0 04 1 9605-9904 ●
170 SCREW; COVER TO BODY
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48219-039-0 04 1 9605-9904 ●
170 SCREW; COVER TO BODY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9905-9910 ● ●
170 SCREW; COVER TO BODY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48219-039-0 04 1 9905-9910 ● ●
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 9905-9910 ● ●
170 SCREW; COVER TO BODY
WHEEL BASE 4900MM(49W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48219-039-0 04 1 9905-9910 ●
170 SCREW; COVER TO BODY
WHEEL BASE 4500MM(45W) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9905-9910 ●
170 SCREW; COVER TO BODY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9905-9910 ●
170 SCREW; COVER TO BODY
TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-48219-039-0 04 1 9905-9910 ●
170 SCREW; COVER TO BODY
BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9905-9910 ●
170 SCREW; COVER TO BODY
BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9905-9910 ●
170 SCREW; COVER TO BODY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9905-9910 ●
170 SCREW; COVER TO BODY
EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9905-9910 ●
170 SCREW; COVER TO BODY
BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9911- ● ●
170 SCREW; COVER TO BODY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9911- ● ●
170 SCREW; COVER TO BODY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48219-039-0 04 1 9911- ● ●
170 SCREW; COVER TO BODY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9911- ● ●
170 SCREW; COVER TO BODY
WHEEL BASE 4900MM(49W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48219-039-0 04 1 9911- ●
170 SCREW; COVER TO BODY
WHEEL BASE 4500MM(45W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9911- ●
170 SCREW; COVER TO BODY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9911- ●
170 SCREW; COVER TO BODY
TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-48219-039-0 04 1 9911- ●
170 SCREW; COVER TO BODY
BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9911- ●
170 SCREW; COVER TO BODY
BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9911- ●
170 SCREW; COVER TO BODY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9911- ●
170 SCREW; COVER TO BODY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ>, TAIL PIPE SINGLE HORIZONTAL<NC2>,BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) 		1-48219-039-0 04 1 9911- ●
170 SCREW; COVER TO BODY
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-48219-039-0 08 1 9603-9904 ●
170 SCREW; COVER TO BODY
BRAKE REGULATION HONG KONG<TCZ> (A) 		1-48219-039-0 08 1 9905- ● ●
170 SCREW; COVER TO BODY
POWER CHAMBER BRAKE UPPERWARD FRT&RR<BFQ> (A) 		1-48219-039-0 08 1 9905- ● ●
170 SCREW; COVER TO BODY
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-48219-041-0 04 1 9603-9904 ●
170 SCREW; COVER TO BODY
BRAKE REGULATION ECE<TDV> (B) 		1-48219-041-0 04 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
