◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51145 - NHR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#52667) — 10 parça

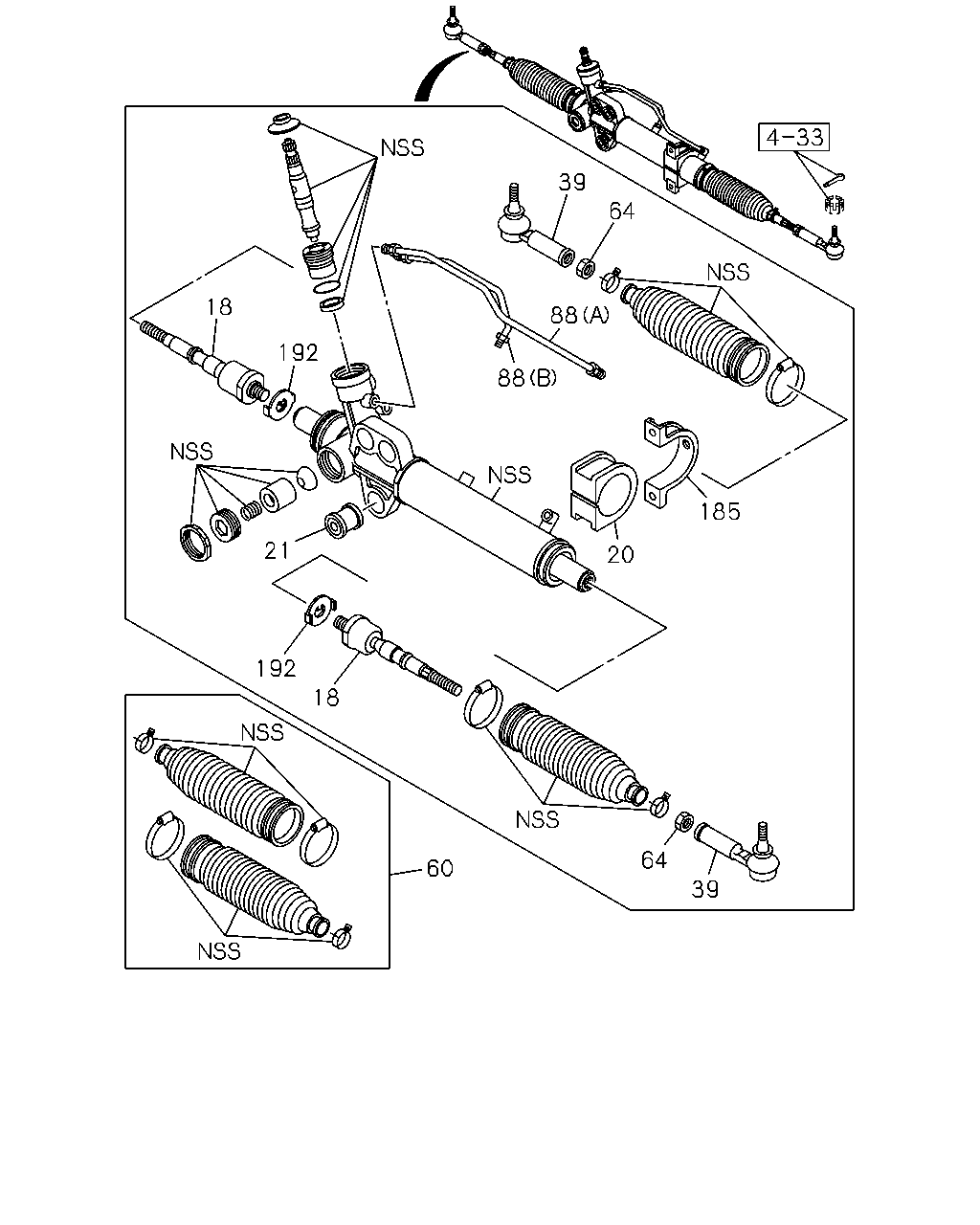

çizim 153615
39 64 18 88 192 88 185 21 20 192 18 64 60 39
BalonParca AdiParca NoAdetTipApplied Date
18 06.230 ROD ASM; INNER
ASM PART: A = 8-98001-408-3, 98001408 		8-98048-487-0 02 1 -
20 06.509 RUBBER; MTG
ASM PART: A = 8-98001-408-3, 98001408 		8-98032-633-0 01 1 -
21 06.509 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-98001-408-3, 98001408 		8-98061-372-0 03 1 -
39 06.233 ROD END ASM; OUTER
ASM PART: A = 8-98001-408-3, 98001408 		8-98008-838-0 02 1 -
60 06.242 BOOT KIT; STRG HSG
ASM PART: A = 8-98001-408-3, 98001408 		8-97357-199-0 01 1 -
64 06.242 NUT; ROD END OUTER TO INNER
03.330, M18 ASM PART: A = 8-98001-408-3, 98001408 		0-91111-518-0 02 1 -
88 06.671 PIPE; HSG TO VLV
(B) ASM PART: A = 8-98001-408-3, 98001408 		8-98032-635-0 01 1 -
88 06.671 PIPE; HSG TO VLV
(A) ASM PART: A = 8-98001-408-3, 98001408 		8-98172-104-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: A = 8-98001-408-3, 98001408 		8-97373-370-0 01 1 -
192 06.521 WASHER; LK,JOINT
ASM PART: A = 8-98001-408-3, 98001408 		8-97357-196-0 02 1 -
