Sayfa 3-20 - Isuzu EPC

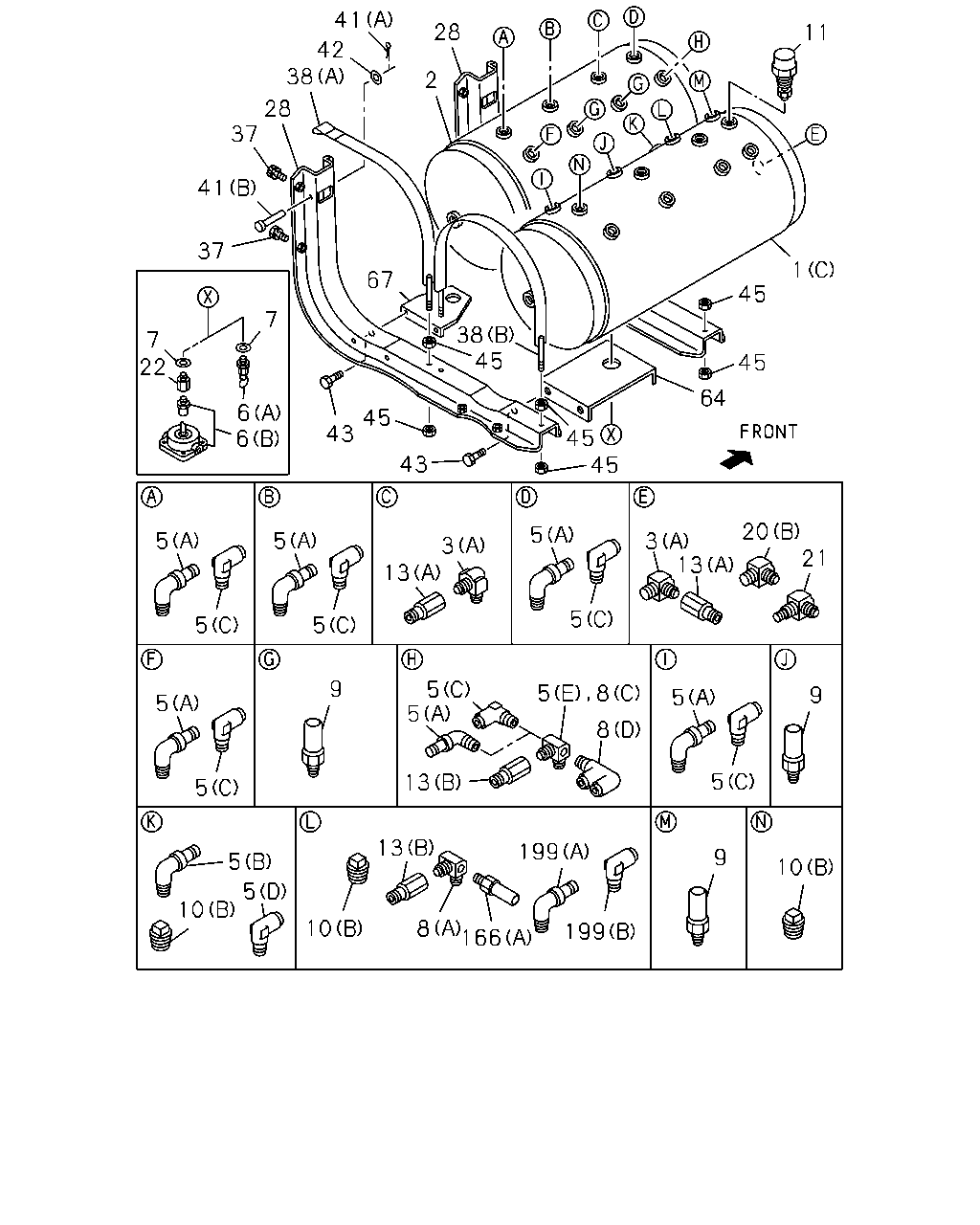

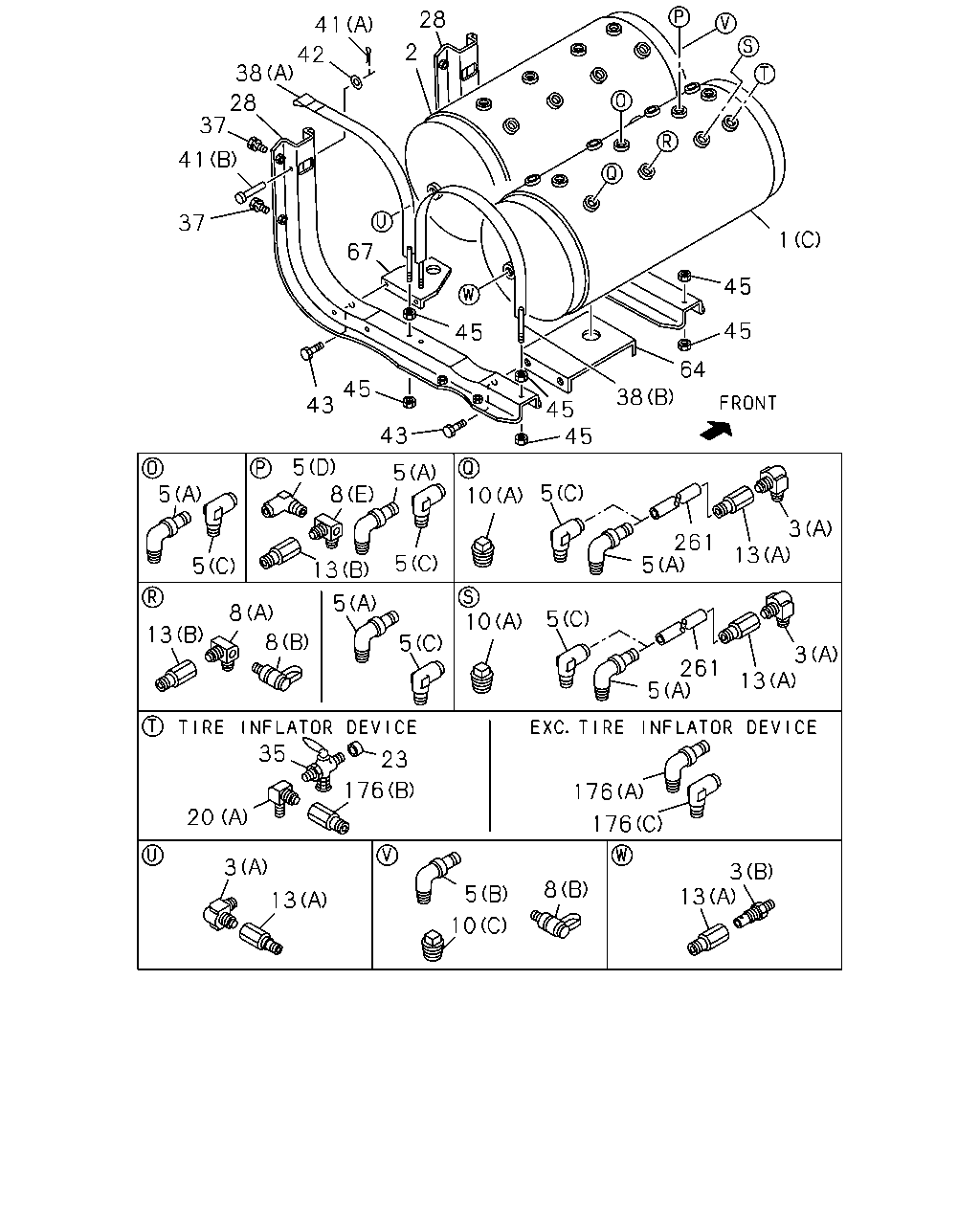

3-20 — AIR TANK (#5266) — 626 parça

82 82 32 82 79 130 73 80 82 79 81 63 46 71 128 71 55 80 43 129 83 176 176 62 36 63 46 46 46 81 82 67 74 55 46 77 80 216 78 1 215 216 24 217 1 24 208 55 207 46 136 39 39 209 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (C)	1-48370-221-0	01	1	9603-9910	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	9911-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) SUB	1-48370-400-0	01	1	9911-0001	●	●
1	TANK ASM; AIR L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) SUB	1-48370-400-0	01	1	0002-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAIN	1-48370-811-0	01	1	9911-0001	●	●
1	TANK ASM; AIR L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAIN	1-48370-811-0	01	1	0002-	●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=987	1-47496-254-0	01	1	9911-0001	●	●
24	PIPE ASM; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=987	1-47496-254-0	01	1	0002-	●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1110	1-47496-255-0	01	1	9911-0001	●	●
24	PIPE ASM; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1110	1-47496-255-0	01	1	0002-	●	●
32	NUT; BRKT TO FRAME AIR DRYER<PS7> M8	9-09110-508-0	01	1	9603-9606	●	●
32	NUT; BRKT TO FRAME AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-9910	●	●
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
32	NUT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
36	STAY; MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-522-0	01	1	9911-	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48317-301-0	01	1	9911-	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-302-0	02	1	9911-	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9607-9910	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	06	1	9911-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9911-	●	●
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	12	1	9911-	●	●
55	WASHER; PL,U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	06	1	9911-	●	●
62	BOLT; SUPPORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9911-	●	●
63	NUT; SUPPORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	9911-	●	●
67	STAY; SUB TANK	1-48317-711-0	01	1	9603-9910	●	●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-711-0	01	1	9911-	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-321-2	01	1	9911-	●	●
71	BRACKET; AIR MASTER,TANDEM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-327-0	02	1	9911-	●	●
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28681-240-0	06	1	9911-	●	●
74	NUT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	04	1	9911-	●	●
77	STAY; AIR MASTER UPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-293-1	01	1	9911-	●	●
78	BOLT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	04	1	9911-	●	●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) H=133	1-53318-216-0	01	1	9911-	●	●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) H=203	1-53318-217-0	01	1	9911-	●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28681-025-0	06	1	9911-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PRIMARY	1-47800-428-2	01	1	9911-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SECONDARY	1-47800-429-2	01	1	9911-	●	●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	06	1	9911-	●	●
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	10	1	9911-	●	●
128	PROTECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53319-018-0	01	1	9911-	●	●
129	BOLT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9911-	●	●
130	NUT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	9911-0001	●	●
136	BRACKET; CLIP L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	0002-	●	●
176	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	02	1	9911-0007	●	●
176	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0008-	●	●
176	ADAPTER TIRE INFLATOR DEVICE<W47> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9603-9904	●	●
176	ADAPTER TIRE INFLATOR DEVICE<W47> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-9910	●	●
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9911-0007	●	●
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●	●
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904	●	●
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9910	●	●
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<W47> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-	●	●
207	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=13 & 13 L=16 & 16	1-09700-666-0	01	1	9911-0001	●	●
207	CLIP; AIR PIPE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=13 & 13 L=16 & 16	1-09700-666-0	01	1	0002-	●	●
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	9911-0001	●	●
208	BOLT; CLIP L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	01	1	0002-	●	●
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9911-0001	●	●
209	NUT; CLIP L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0002-	●	●
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03266-300-0	01	1	9603-0103	●	●
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03566-300-0	01	1	0104-	●	●
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	9603-	●	●
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (B) ID=25 L=55	9-09917-573-0	01	1	9603-	●	●
217	BRACKET; RUBBER HOSE AIR DRYER<PS7> (A) L=95	1-82699-085-0	01	1	9603-9910	●	●
217	BRACKET; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) L=95	1-82699-085-0	01	1	9911-	●	●
217	BRACKET; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-682-1	01	1	9911-	●	●

41 28 11 42 38 2 28 37 41 37 1 67 45 7 38 45 7 22 45 64 6 6 45 43 45 45 43 20 21 5 5 3 13 3 13 5 5 5 9 5 5 9 5 8 5 13 5 13 199 9 5 10 5 10 10 8 166 199 5 5 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (C)	1-48370-221-0	01	1	9603-9910	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	9911-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) SUB	1-48370-400-0	01	1	9911-0001	●	●
1	TANK ASM; AIR L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) SUB	1-48370-400-0	01	1	0002-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAIN	1-48370-811-0	01	1	9911-0001	●	●
1	TANK ASM; AIR L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAIN	1-48370-811-0	01	1	0002-	●	●
2	TANK; AIR	1-48370-353-0	01	1	9603-9910	●	●
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-353-0	01	1	9911-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-48410-133-2	04	1	9603-9606	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9607-9910	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9911-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SUB TANK	1-48410-182-3	02	1	9911-0001	●	●
3	VALVE; CHECK,AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SUB TANK	1-48410-182-3	02	1	0002-	●	●
3	VALVE; CHECK,AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9603-9606	●	●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9603-9606		●
3	VALVE; CHECK,AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9910	●	●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9910		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9911-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9911-		●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-48410-182-3	01	1	9603-9910		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B)	1-48410-182-3	01	1	9911-		●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9603-9606		●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-9910		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9911-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) MAIN M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9911-0001	●	●
5	UNION; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) MAIN M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	0002-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) SUB	1-09656-548-1	01	1	9911-0001	●	●
5	UNION; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) SUB	1-09656-548-1	01	1	0002-0004	●	●
5	UNION; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) SUB	1-09656-548-1	01	1	0005-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) MAIN DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-0001	●	●
5	UNION; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) MAIN DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0002-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	9911-0001	●	●
5	UNION; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0002-	●	●
5	UNION; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0002-0004	●	●
5	UNION; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-	●	●
5	UNION; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) PT3/8 ELBOW	1-09660-696-0	01	1	9905-9910	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) PT3/8 ELBOW	1-09660-696-0	01	1	9911-	●	●
5	UNION; AIR TANK EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	9905-9910	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	9911-	●	●
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	09	1	9603-9904	●	●
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	9905-9905	●	●
5	UNION; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	9905-9910	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	9911-	●	●
5	UNION; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) SUB	1-09656-548-1	02	1	0005-	●	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904		●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9905		●
5	UNION; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9910	●	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9910		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-		●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9603-9904		●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9905-9910		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9911-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	9603-9910	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	03	1	9911-0001	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0002-	●	●
6	COCK; DRAIN,AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	01	1	0002-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9603-9910	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9911-	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9603-9910	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9911-0001	●	●
6	COCK; DRAIN,AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	02	1	0002-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48312-015-0	04	1	9911-	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-9603	●	●
7	GASKET; DRAIN COCK '96/3/25- ID=14.2 OD=23.0	9-09572-014-0	01	1	9603-9608	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9609-9910	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	01	1	9911-0001	●	●
7	GASKET; DRAIN COCK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	02	1	0002-	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9603-9604	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9609-9910	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	9911-0001	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	01	1	0002-	●	●
7	GASKET; DRAIN COCK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	01	1	0002-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	04	1	9911-	●	●
8	CONNECTOR; AIR TANK (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9603-9904	●	●
8	CONNECTOR; AIR TANK EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9905-9910	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,NEW ZEALAND EQUIPMENT(PK5) (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9911-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9911-		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9911-0001	●	●
8	CONNECTOR; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0002-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	9911-0001	●	●
8	CONNECTOR; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	0002-0004	●	●
8	CONNECTOR; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	0005-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	1-09660-091-3	02	1	9911-0001	●	●
8	CONNECTOR; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	1-09660-091-3	02	1	0002-	●	●
8	CONNECTOR; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9905-9910	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9911-	●	●
8	CONNECTOR; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9905-9910	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9911-	●	●
8	CONNECTOR; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	02	1	0005-	●	●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	9603-9910		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	9911-		●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	03	1	9603-9910		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	03	1	9911-		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) 530KPA	1-48340-054-1	03	1	9603-9910	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) 530KPA	1-48340-054-1	03	1	9911-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK NEW ZEALAND EQUIPMENT(PK5) 530KPA	1-48340-054-1	04	1	9603-9910		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) 530KPA	1-48340-054-1	04	1	9911-		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	9603-9910	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/8	9-09204-517-0	03	1	9911-	●	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	9603-9910	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	01	1	9911-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4	9-99204-513-0	02	1	9911-0004	●	●
10	PLUG; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	02	1	0005-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT1/4	9-99204-513-0	02	1	0005-	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4	9-99204-513-0	02	1	0005-		●
10	PLUG; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4	9-99204-513-0	02	1	9603-9910	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4	9-99204-513-0	01	1	9911-0001	●	●
10	PLUG; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0002-0004	●	●
10	PLUG; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0005-	●	●
10	PLUG; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0005-	●	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	9603-9910		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	9911-0001		●
10	PLUG; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT3/8	9-09204-517-0	01	1	0002-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	0002-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9603-0001	●	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-012-1	01	1	0002-	●	●
11	VALVE; SAFETY,AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48320-012-1	01	1	0002-	●	●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9905-9910	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9911-0007	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-	●	●
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9905-9910	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9911-0007	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9911-0001	●	●
13	ADAPTER; NYLON TUBE L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0002-0004	●	●
13	ADAPTER; NYLON TUBE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0005-	●	●
13	ADAPTER; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-9910	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9911-0007	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
13	ADAPTER; NYLON TUBE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0002-0007	●	●
13	ADAPTER; NYLON TUBE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●	●
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	9603-9904		●
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	03	1	9905-9910		●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	03	1	9911-0007		●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0008-		●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	9911-	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9911-	●	●
20	NIPPLE; AIR TANK L TYPE ENG<90L> EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9610-9906	●	●
20	NIPPLE; AIR TANK V TYPE ENG<91L> EXC. AIR DRYER<PS7>,ZF M/T<X9E> (B) M22	1-09650-277-0	01	1	9610-9906	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9603-9910	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9911-	●	●
21	VALVE; CHECK,AIR TANK V TYPE ENG<91L> ZF M/T<X9E> EXC. AIR DRYER<PS7> M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9610-9906	●	●
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9603-9910	●	●
22	ADAPTER; AUTO DRAIN VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78>	1-48319-031-0	01	1	9911-	●	●
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9603-9910	●	●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	9911-	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9603-9910	●	●
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9911-	●	●
38	BAND; AIR TANK (B)	1-48317-108-2	02	1	9603-9910	●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-108-2	02	1	9911-	●	●
38	BAND; AIR TANK (A)	1-48317-109-2	02	1	9603-9910	●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-109-2	02	1	9911-	●	●
41	PIN; BAND FIX (A) L=32.6	1-09987-142-0	02	1	9603-9910	●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=32.6	1-09987-142-0	02	1	9911-	●	●
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	9603-9910	●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OD=10 L=60	9-08224-060-0	02	1	9911-	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9603-9910	●	●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	9911-	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9607-9910	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	06	1	9911-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9911-	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-508-0	12	1	9603-9910	●	●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	12	1	9911-	●	●
64	STAY; AIR TANK,MAIN	1-48317-607-0	01	1	9603-9910	●	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-607-0	01	1	9911-	●	●
67	STAY; SUB TANK	1-48317-711-0	01	1	9603-9910	●	●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-711-0	01	1	9911-	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-321-2	01	1	9911-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 530KPA	1-48340-054-0	01	1	9911-0001	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 530KPA	1-48340-054-0	01	1	0002-0004	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 530KPA	1-48340-054-1	01	1	0005-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (A) 650KPA	1-48340-059-1	01	1	9603-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 530KPA	1-48340-054-1	02	1	0005-	●	●
199	CONNECTOR; AIR PIPE,AIR CHAMBER EXC. NEW ZEALAND EQUIPMENT(PK5),FULL FLOATING CAB(W16) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9904	●	●
199	CONNECTOR; AIR PIPE,AIR CHAMBER EXC. NEW ZEALAND EQUIPMENT(PK5),FULL FLOATING CAB(W16) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-9910	●	●
199	CONNECTOR; AIR PIPE,AIR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),FULL FLOATING CAB(W16) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9911-	●	●

8 41 2 42 38 28 37 41 37 1 67 45 45 45 64 38 45 43 45 45 43 5 8 5 5 5 10 3 261 5 13 5 5 13 10 5 8 5 13 8 5 3 261 5 13 35 23 176 176 20 176 3 3 8 5 13 13 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (C)	1-48370-221-0	01	1	9603-9910	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	9911-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) SUB	1-48370-400-0	01	1	9911-0001	●	●
1	TANK ASM; AIR L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) SUB	1-48370-400-0	01	1	0002-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAIN	1-48370-811-0	01	1	9911-0001	●	●
1	TANK ASM; AIR L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAIN	1-48370-811-0	01	1	0002-	●	●
2	TANK; AIR	1-48370-353-0	01	1	9603-9910	●	●
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-353-0	01	1	9911-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-48410-133-2	04	1	9603-9606	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9607-9910	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9911-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SUB TANK	1-48410-182-3	02	1	9911-0001	●	●
3	VALVE; CHECK,AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SUB TANK	1-48410-182-3	02	1	0002-	●	●
3	VALVE; CHECK,AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9603-9606	●	●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9603-9606		●
3	VALVE; CHECK,AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9910	●	●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9910		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9911-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9911-		●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-48410-182-3	01	1	9603-9910		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B)	1-48410-182-3	01	1	9911-		●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9603-9606		●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-9910		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9911-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) MAIN M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9911-0001	●	●
5	UNION; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) MAIN M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	0002-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) SUB	1-09656-548-1	01	1	9911-0001	●	●
5	UNION; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) SUB	1-09656-548-1	01	1	0002-0004	●	●
5	UNION; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) SUB	1-09656-548-1	01	1	0005-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) MAIN DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-0001	●	●
5	UNION; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) MAIN DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0002-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	9911-0001	●	●
5	UNION; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0002-	●	●
5	UNION; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0002-0004	●	●
5	UNION; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-	●	●
5	UNION; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) PT3/8 ELBOW	1-09660-696-0	01	1	9905-9910	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) PT3/8 ELBOW	1-09660-696-0	01	1	9911-	●	●
5	UNION; AIR TANK EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	9905-9910	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	9911-	●	●
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	09	1	9603-9904	●	●
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	9905-9905	●	●
5	UNION; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	9905-9910	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	9911-	●	●
5	UNION; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) SUB	1-09656-548-1	02	1	0005-	●	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904		●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9905		●
5	UNION; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9910	●	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9910		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-		●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9603-9904		●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9905-9910		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9911-		●
8	CONNECTOR; AIR TANK (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9603-9904	●	●
8	CONNECTOR; AIR TANK EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9905-9910	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,NEW ZEALAND EQUIPMENT(PK5) (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9911-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9911-		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9911-0001	●	●
8	CONNECTOR; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0002-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	9911-0001	●	●
8	CONNECTOR; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	0002-0004	●	●
8	CONNECTOR; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	0005-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	1-09660-091-3	02	1	9911-0001	●	●
8	CONNECTOR; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	1-09660-091-3	02	1	0002-	●	●
8	CONNECTOR; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9905-9910	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9911-	●	●
8	CONNECTOR; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9905-9910	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9911-	●	●
8	CONNECTOR; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	02	1	0005-	●	●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	9603-9910		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	9911-		●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	03	1	9603-9910		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	03	1	9911-		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	9603-9910	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/8	9-09204-517-0	03	1	9911-	●	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	9603-9910	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	01	1	9911-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4	9-99204-513-0	02	1	9911-0004	●	●
10	PLUG; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	02	1	0005-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT1/4	9-99204-513-0	02	1	0005-	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4	9-99204-513-0	02	1	0005-		●
10	PLUG; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4	9-99204-513-0	02	1	9603-9910	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4	9-99204-513-0	01	1	9911-0001	●	●
10	PLUG; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0002-0004	●	●
10	PLUG; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0005-	●	●
10	PLUG; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0005-	●	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	9603-9910		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	9911-0001		●
10	PLUG; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT3/8	9-09204-517-0	01	1	0002-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	0002-		●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9905-9910	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9911-0007	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-	●	●
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9905-9910	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9911-0007	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9911-0001	●	●
13	ADAPTER; NYLON TUBE L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0002-0004	●	●
13	ADAPTER; NYLON TUBE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0005-	●	●
13	ADAPTER; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-9910	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9911-0007	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
13	ADAPTER; NYLON TUBE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0002-0007	●	●
13	ADAPTER; NYLON TUBE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●	●
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	9603-9904		●
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	03	1	9905-9910		●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	03	1	9911-0007		●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0008-		●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	9911-	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9911-	●	●
20	NIPPLE; AIR TANK L TYPE ENG<90L> EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9610-9906	●	●
20	NIPPLE; AIR TANK V TYPE ENG<91L> EXC. AIR DRYER<PS7>,ZF M/T<X9E> (B) M22	1-09650-277-0	01	1	9610-9906	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9603-9910	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9911-	●	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9603-9910	●	●
23	CAP; COCK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9911-	●	●
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9603-9910	●	●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	9911-	●	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9603-9910	●	●
35	COCK; AIR,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9911-0101	●	●
35	COCK; AIR,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0102-	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9603-9910	●	●
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9911-	●	●
38	BAND; AIR TANK (B)	1-48317-108-2	02	1	9603-9910	●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-108-2	02	1	9911-	●	●
38	BAND; AIR TANK (A)	1-48317-109-2	02	1	9603-9910	●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-109-2	02	1	9911-	●	●
41	PIN; BAND FIX (A) L=32.6	1-09987-142-0	02	1	9603-9910	●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=32.6	1-09987-142-0	02	1	9911-	●	●
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	9603-9910	●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OD=10 L=60	9-08224-060-0	02	1	9911-	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9603-9910	●	●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	9911-	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9607-9910	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	06	1	9911-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9911-	●	●
45	NUT; AIR TANK,MAIN M8	9-09110-508-0	12	1	9603-9910	●	●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	12	1	9911-	●	●
64	STAY; AIR TANK,MAIN	1-48317-607-0	01	1	9603-9910	●	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-607-0	01	1	9911-	●	●
67	STAY; SUB TANK	1-48317-711-0	01	1	9603-9910	●	●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-711-0	01	1	9911-	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-321-2	01	1	9911-	●	●
176	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) DIN8 & M16 STRAIGHT	1-09661-095-0	02	1	9911-0007	●	●
176	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0008-	●	●
176	ADAPTER TIRE INFLATOR DEVICE<W47> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9603-9904	●	●
176	ADAPTER TIRE INFLATOR DEVICE<W47> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-9910	●	●
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9911-0007	●	●
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●	●
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904	●	●
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9910	●	●
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<W47> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-	●	●
261	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) L=300 SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9603-9904	●	●
261	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9905-9910	●	●
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9911-	●	●

5 10 10 8 20 284 8 5 11 1 175 174 10 10 7 5 6 166 8 3 3 1 5 7 6 8 13 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (C)	1-48370-221-0	01	1	9603-9910	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48370-221-0	01	1	9911-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) SUB	1-48370-400-0	01	1	9911-0001	●	●
1	TANK ASM; AIR L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) SUB	1-48370-400-0	01	1	0002-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAIN	1-48370-811-0	01	1	9911-0001	●	●
1	TANK ASM; AIR L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) MAIN	1-48370-811-0	01	1	0002-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-48410-133-2	04	1	9603-9606	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9607-9910	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9911-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SUB TANK	1-48410-182-3	02	1	9911-0001	●	●
3	VALVE; CHECK,AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SUB TANK	1-48410-182-3	02	1	0002-	●	●
3	VALVE; CHECK,AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9603-9606	●	●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9603-9606		●
3	VALVE; CHECK,AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5),AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9910	●	●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-9910		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9911-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9911-		●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-48410-182-3	01	1	9603-9910		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B)	1-48410-182-3	01	1	9911-		●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9603-9606		●
3	VALVE; CHECK,AIR TANK NEW ZEALAND EQUIPMENT(PK5) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-9910		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9911-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) MAIN M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9911-0001	●	●
5	UNION; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) MAIN M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	0002-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) SUB	1-09656-548-1	01	1	9911-0001	●	●
5	UNION; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) SUB	1-09656-548-1	01	1	0002-0004	●	●
5	UNION; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) SUB	1-09656-548-1	01	1	0005-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) MAIN DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-0001	●	●
5	UNION; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) MAIN DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0002-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	9911-0001	●	●
5	UNION; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0002-	●	●
5	UNION; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0002-0004	●	●
5	UNION; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-	●	●
5	UNION; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) PT3/8 ELBOW	1-09660-696-0	01	1	9905-9910	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) PT3/8 ELBOW	1-09660-696-0	01	1	9911-	●	●
5	UNION; AIR TANK EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	9905-9910	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	9911-	●	●
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	09	1	9603-9904	●	●
5	UNION; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	9905-9905	●	●
5	UNION; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	9905-9910	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	9911-	●	●
5	UNION; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) SUB	1-09656-548-1	02	1	0005-	●	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904		●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9905		●
5	UNION; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9910	●	●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9910		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-	●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9911-		●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9603-9904		●
5	UNION; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9905-9910		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9911-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	9603-9910	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	03	1	9911-0001	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0002-	●	●
6	COCK; DRAIN,AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	01	1	0002-	●	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9603-9910	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9911-	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9603-9910	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9911-0001	●	●
6	COCK; DRAIN,AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48312-015-0	02	1	0002-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48312-015-0	04	1	9911-	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-9603	●	●
7	GASKET; DRAIN COCK '96/3/25- ID=14.2 OD=23.0	9-09572-014-0	01	1	9603-9608	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9609-9910	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	01	1	9911-0001	●	●
7	GASKET; DRAIN COCK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	02	1	0002-	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9603-9604	●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9609-9910	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	9911-0001	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	01	1	0002-	●	●
7	GASKET; DRAIN COCK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	01	1	0002-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	04	1	9911-	●	●
8	CONNECTOR; AIR TANK (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9603-9904	●	●
8	CONNECTOR; AIR TANK EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9905-9910	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28>,NEW ZEALAND EQUIPMENT(PK5) (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9911-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (C) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9911-		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9911-0001	●	●
8	CONNECTOR; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0002-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	9911-0001	●	●
8	CONNECTOR; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	0002-0004	●	●
8	CONNECTOR; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	0005-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	1-09660-091-3	02	1	9911-0001	●	●
8	CONNECTOR; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	1-09660-091-3	02	1	0002-	●	●
8	CONNECTOR; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9905-9910	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (E) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9911-	●	●
8	CONNECTOR; AIR TANK MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9905-9910	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9911-	●	●
8	CONNECTOR; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	02	1	0005-	●	●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	9603-9910		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	02	1	9911-		●
8	CONNECTOR; AIR TANK NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	03	1	9603-9910		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B)	1-47459-013-0	03	1	9911-		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	9603-9910	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/8	9-09204-517-0	03	1	9911-	●	●
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	9603-9910	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	01	1	9911-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4	9-99204-513-0	02	1	9911-0004	●	●
10	PLUG; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	02	1	0005-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT1/4	9-99204-513-0	02	1	0005-	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4	9-99204-513-0	02	1	0005-		●
10	PLUG; AIR TANK EXC. NEW ZEALAND EQUIPMENT(PK5) (C) PT1/4	9-99204-513-0	02	1	9603-9910	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4	9-99204-513-0	01	1	9911-0001	●	●
10	PLUG; AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0002-0004	●	●
10	PLUG; AIR TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0005-	●	●
10	PLUG; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<W47> (C) PT1/4	9-99204-513-0	01	1	0005-	●	●
10	PLUG; AIR TANK NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	9603-9910		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	9911-0001		●
10	PLUG; AIR TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT3/8	9-09204-517-0	01	1	0002-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) PT3/8	9-09204-517-0	01	1	0002-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-0	01	1	9603-0001	●	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-012-1	01	1	0002-	●	●
11	VALVE; SAFETY,AIR TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48320-012-1	01	1	0002-	●	●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9905-9910	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9911-0007	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-	●	●
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9905-9910	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9911-0007	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9911-0001	●	●
13	ADAPTER; NYLON TUBE L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0002-0004	●	●
13	ADAPTER; NYLON TUBE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0005-	●	●
13	ADAPTER; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9904	●	●
13	ADAPTER; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-9910	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9911-0007	●	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-	●	●
13	ADAPTER; NYLON TUBE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0002-0007	●	●
13	ADAPTER; NYLON TUBE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●	●
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	9603-9904		●
13	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	03	1	9905-9910		●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	03	1	9911-0007		●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0008-		●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FULL FLOATING CAB(W16) (C) M12 & PT1/4 3WAY	1-09656-586-1	01	1	9911-	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9911-	●	●
20	NIPPLE; AIR TANK L TYPE ENG<90L> EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9610-9906	●	●
20	NIPPLE; AIR TANK V TYPE ENG<91L> EXC. AIR DRYER<PS7>,ZF M/T<X9E> (B) M22	1-09650-277-0	01	1	9610-9906	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9603-9910	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9911-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 530KPA	1-48340-054-0	01	1	9911-0001	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 530KPA	1-48340-054-0	01	1	0002-0004	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 530KPA	1-48340-054-1	01	1	0005-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (A) 650KPA	1-48340-059-1	01	1	9603-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 530KPA	1-48340-054-1	02	1	0005-	●	●
174	COCK; AIR,INFLATOR L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	0002-0101	●	●
174	COCK; AIR,INFLATOR L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0102-	●	●
175	CAP; AIR COCK L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0002-	●	●
284	CONNECTOR; MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9911-0001	●	●
284	CONNECTOR; MAG VLV L TYPE ENG<90L>,V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0002-	●	●

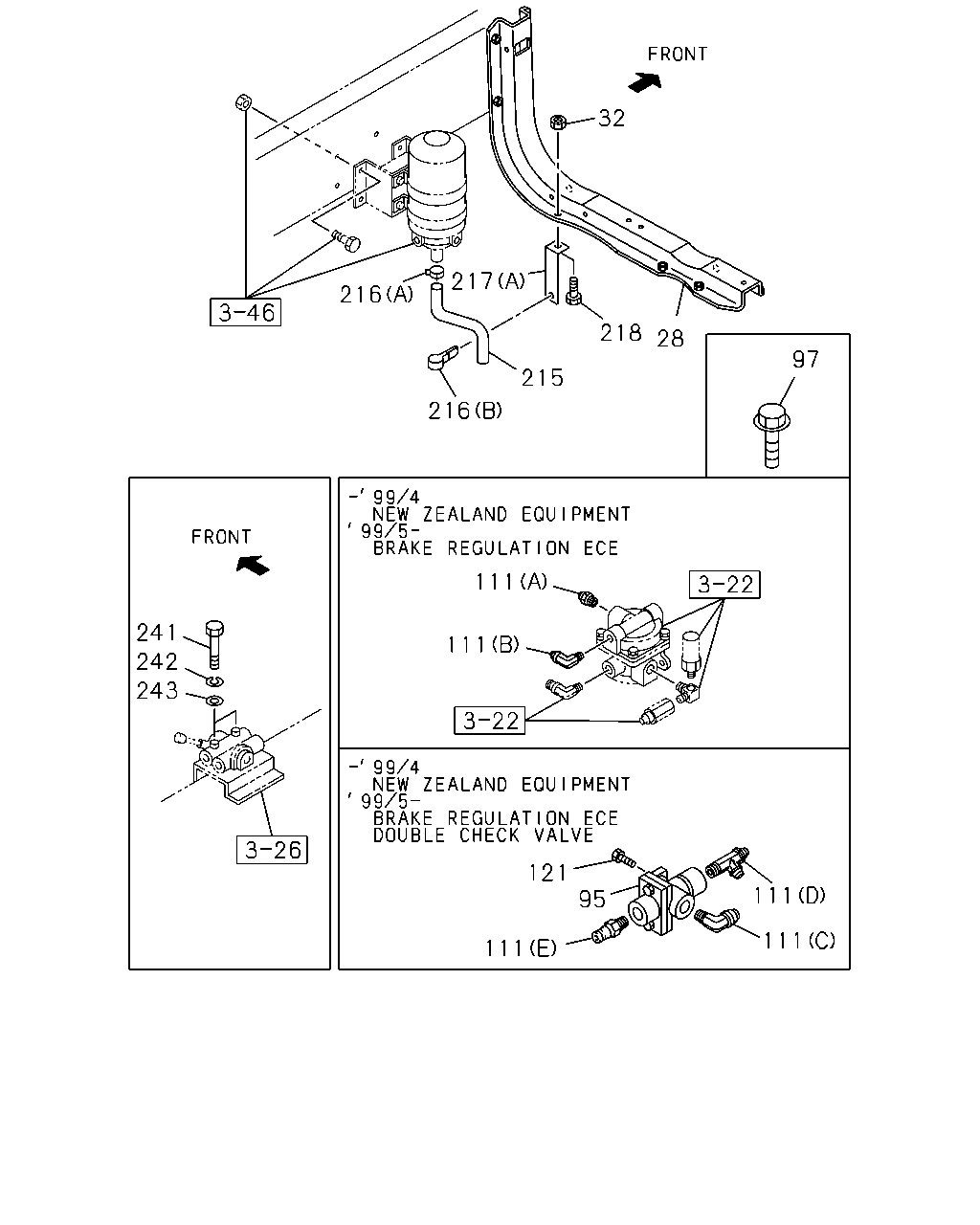

32 217 216 218 28 97 215 216 111 241 111 242 243 121 111 95 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BRACKET; AIR TANK	1-48317-601-5	02	1	9603-9910	●	●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	9911-	●	●
32	NUT; BRKT TO FRAME AIR DRYER<PS7> M8	9-09110-508-0	01	1	9603-9606	●	●
32	NUT; BRKT TO FRAME AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-9910	●	●
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
32	NUT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-050-0	02	1	9603-9803		●
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-050-0	01	1	9804-9902		●
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-050-0	01	1	9804-9902		●
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-531-0	01	1	9903-9904		●
95	VALVE; DOUBLE CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48410-531-0	01	1	9903-9904		●
95	VALVE; DOUBLE CHECK BRAKE REGULATION ECE<TDV>	1-48410-531-0	01	1	9905-	●	●
95	VALVE; DOUBLE CHECK BRAKE REGULATION ECE<TDV>	1-48410-531-0	01	1	9905-		●
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	04	1	9603-9904	●
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> M8X30 FLANGE	0-28080-830-0	04	1	9905-	●
97	BOLT; BRKT,DBL CHECK VLV HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	04	1	9603-9904		●
97	BOLT; BRKT,DBL CHECK VLV BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28080-820-0	04	1	9905-		●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9603-9904		●
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-	●	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904		●
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-	●	●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9904		●
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-		●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (D) DIN8X2 & R3/8 3WAY	1-09660-658-1	02	1	9603-9803		●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (D) DIN8X2 & R3/8 3WAY	1-09660-658-1	01	1	9804-9904		●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (D) DIN8X2 & R3/8 3WAY	1-09660-658-1	01	1	9804-9904		●
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (D) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9905-	●	●
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (D) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9905-		●
111	CONNECTOR; CHECK VLV NEW ZEALAND EQUIPMENT(PK5) (E) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9603-9904		●
111	CONNECTOR; CHECK VLV BRAKE REGULATION ECE<TDV> (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9905-		●
121	BOLT; DOUBLE CHECK VLV NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE	0-28080-816-0	04	1	9603-9904		●
121	BOLT; DOUBLE CHECK VLV BRAKE REGULATION ECE<TDV> M8X16 FLANGE	0-28080-816-0	04	1	9905-	●	●
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03266-300-0	01	1	9603-0103	●	●
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03566-300-0	01	1	0104-	●	●
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	9603-	●	●
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (B) ID=25 L=55	9-09917-573-0	01	1	9603-	●	●
217	BRACKET; RUBBER HOSE AIR DRYER<PS7> (A) L=95	1-82699-085-0	01	1	9603-9910	●	●
217	BRACKET; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) L=95	1-82699-085-0	01	1	9911-	●	●
217	BRACKET; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-682-1	01	1	9911-	●	●
218	BOLT; BRKT AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
218	BOLT; BRKT AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9607-9910	●	●
218	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9911-	●	●
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9603-9708	●	●
241	BOLT; SET,CONT VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9709-		●
241	BOLT; SET,CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X65	0-10805-865-0	02	1	9603-9703	●	●
241	BOLT; SET,CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8X70 FLANGE	0-28080-870-0	02	1	9704-9708	●	●
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8X70 FLANGE	0-28080-870-0	02	1	9709-	●
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> M8X70 FLANGE	0-28080-870-0	02	1	9709-		●
242	WASHER; LK,CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=8.2	9-09150-508-0	02	1	9603-9703	●	●
243	WASHER; PL,CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=8.4	9-09160-508-0	02	1	9603-9703	●	●

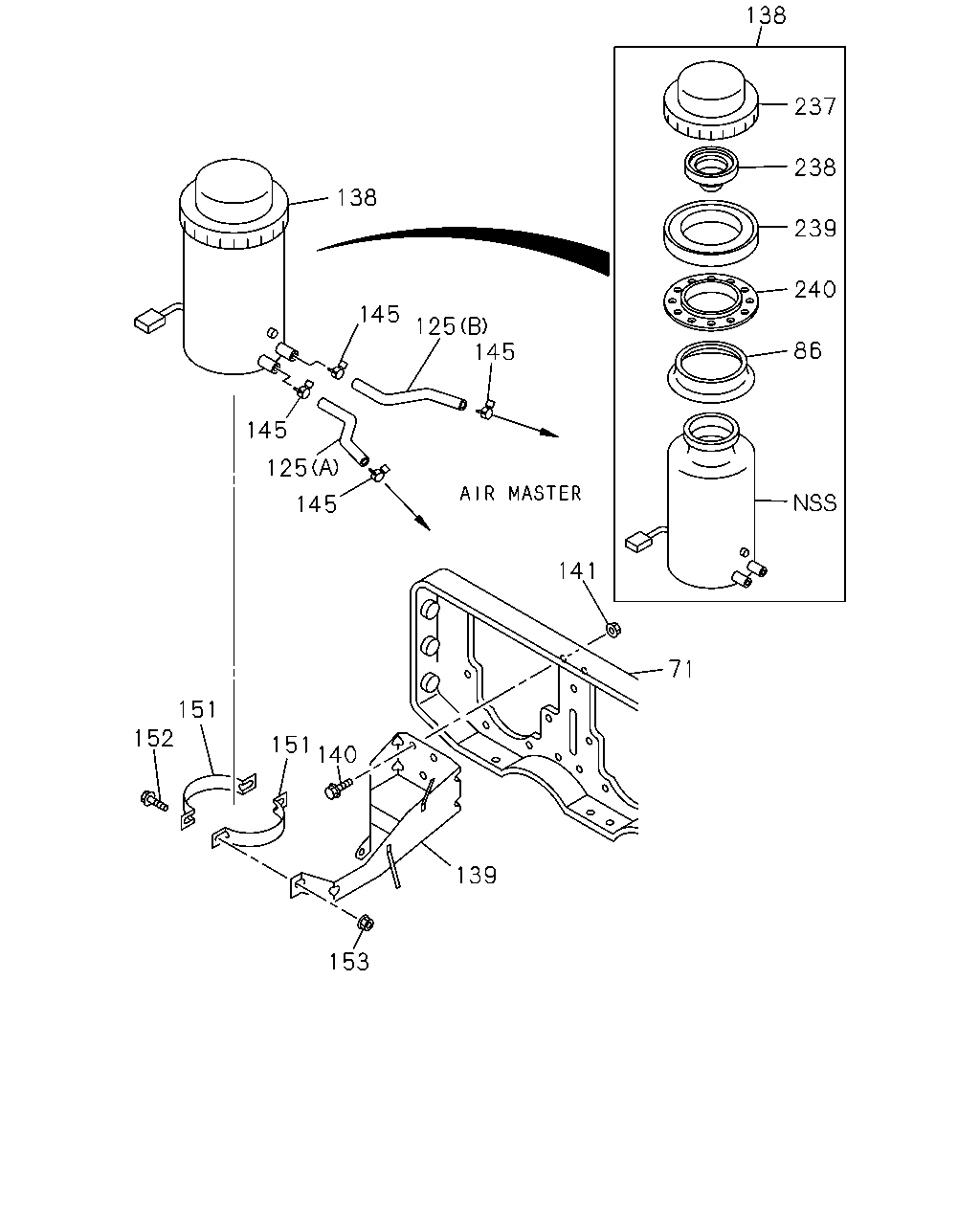

138 237 238 138 239 240 145 125 145 86 145 125 145 141 71 151 152 151 140 139 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	BRACKET; AIR MASTER,TANDEM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-327-0	02	1	9911-	●	●
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	9911-	●	●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=140	1-47469-051-1	01	1	9911-	●	●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=190	1-47469-052-2	01	1	9911-	●	●
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-170-1	01	1	9911-0011	●	●
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-184-0	01	1	0012-	●	●
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-114-3	01	1	9911-	●	●
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28681-025-0	03	1	9911-	●	●
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	03	1	9911-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	9911-	●	●
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-113-0	02	1	9911-	●	●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	9911-	●	●
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-024-0	01	1	9911-0011	●	●
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-030-0	01	1	0012-	●	●
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	9911-	●	●
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	9911-	●	●
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	9911-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
