Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶

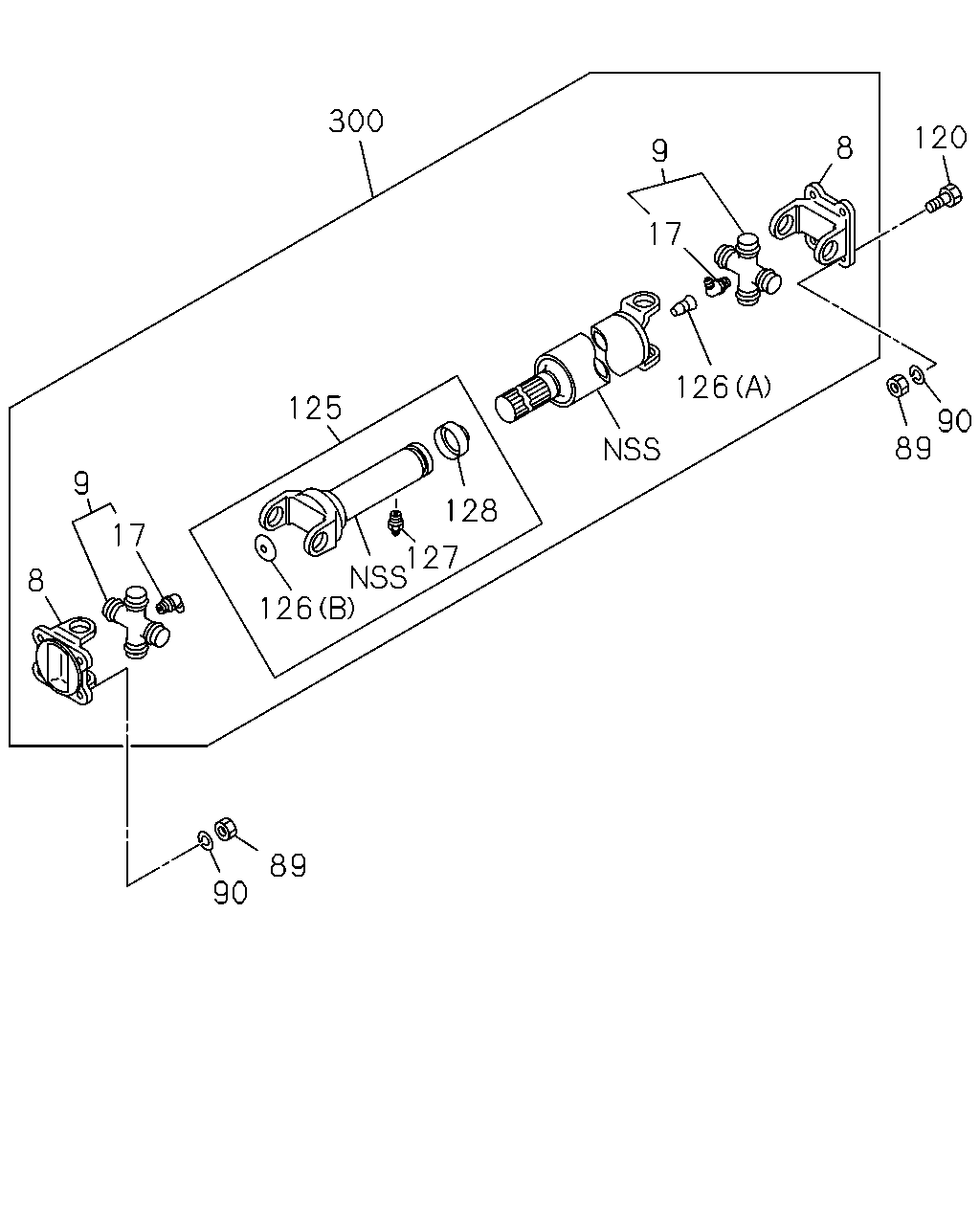

4-01 — PROPELLER SHAFT
(#52657) — 13 parça
300
120
8
9
17
126
125
90
89
9
128
17
127
126
8
89
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
05.544 YOKE; FLANGE,PROP SHAFT
D=80
8-97322-663-0
02
1
0712-
9
05.548 JOURNAL ASM; PROP SHAFT
8-98033-605-1
02
1
0712-
17
05.601 NIPPLE; GREASE,PROP SHAFT
08.984 PT1/8 ELBOW
0-90301-610-0
02
1
0712-
89
05.586 NUT; YOKE TO RR AXLE
M12
8-97365-450-1
08
1
0712-
90
05.586 WASHER; LK,YOKE TO RR AXLE
07.347 ID=12.2
0-91510-812-0
08
1
0712-
120
05.586 BOLT; YOKE TO RR AXLE
M12X35
8-97365-451-1
04
1
0712-
125
05.545 YOKE ASM; SPLINED,PROP SHAFT
L=246
8-98034-338-1
01
1
0712-
126
05.556 PLUG; SPLINED YOKE
(A)
1-09600-023-0
01
1
0712-
126
05.556 PLUG; SPLINED YOKE
(B)
8-94366-900-0
01
1
0712-
127
05.586 NIPPLE; GREASE,SPLINED YOKE
05.601 M6 STRAIGHT
0-90301-406-0
01
1
0712-
128
05.586 SEAL; SLEEVE
8-97145-746-0
01
1
0712-
300
05.544 SHAFT ASM; PROP,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=969
8-98001-994-2
01
1
0712-
300
05.544 SHAFT ASM; PROP,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) L=899
8-97383-842-2
01
1
0712-
