3-60 — BRAKE PIPING; VACUUM (#52656) — 84 parça
çizim 153588
116 39 184 165 39 184 12 116 12 13
BalonParca AdiParca NoAdetTipApplied Date
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 06 1 0712-0911
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 0912-
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 06 1 0712-
13 04.681 JOINT; HOSE,VAC
03.163 (A) 		8-97353-668-0 02 1 0712-
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 0712-
39 04.681 CLIP; HOSE,VAC
03.162 (D) ID=16 		8-98008-098-0 02 1 0912-
39 04.681 CLIP; HOSE,VAC
04.930 (A) ID=16 		5-09707-023-2 02 1 0712-
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 04 1 0712-0911
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0912-
39 04.681 CLIP; HOSE,VAC
(C) ID=25.5 		8-97077-492-0 01 1 0712-
116 04.931 HOSE; VAC,M/VAC
(C) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0712-
116 04.931 HOSE; VAC,M/VAC
(B) 		8-97389-684-3 01 1 0712-
116 04.931 HOSE; VAC,M/VAC
(A) 		8-98103-931-1 01 1 0712-
165 04.686 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0712-
184 04.685 BRACKET; UNION FIX
(A) 		8-98034-128-2 01 1 0712-1312
184 04.685 BRACKET; UNION FIX
(B) 		8-98251-816-0 01 1 1401-

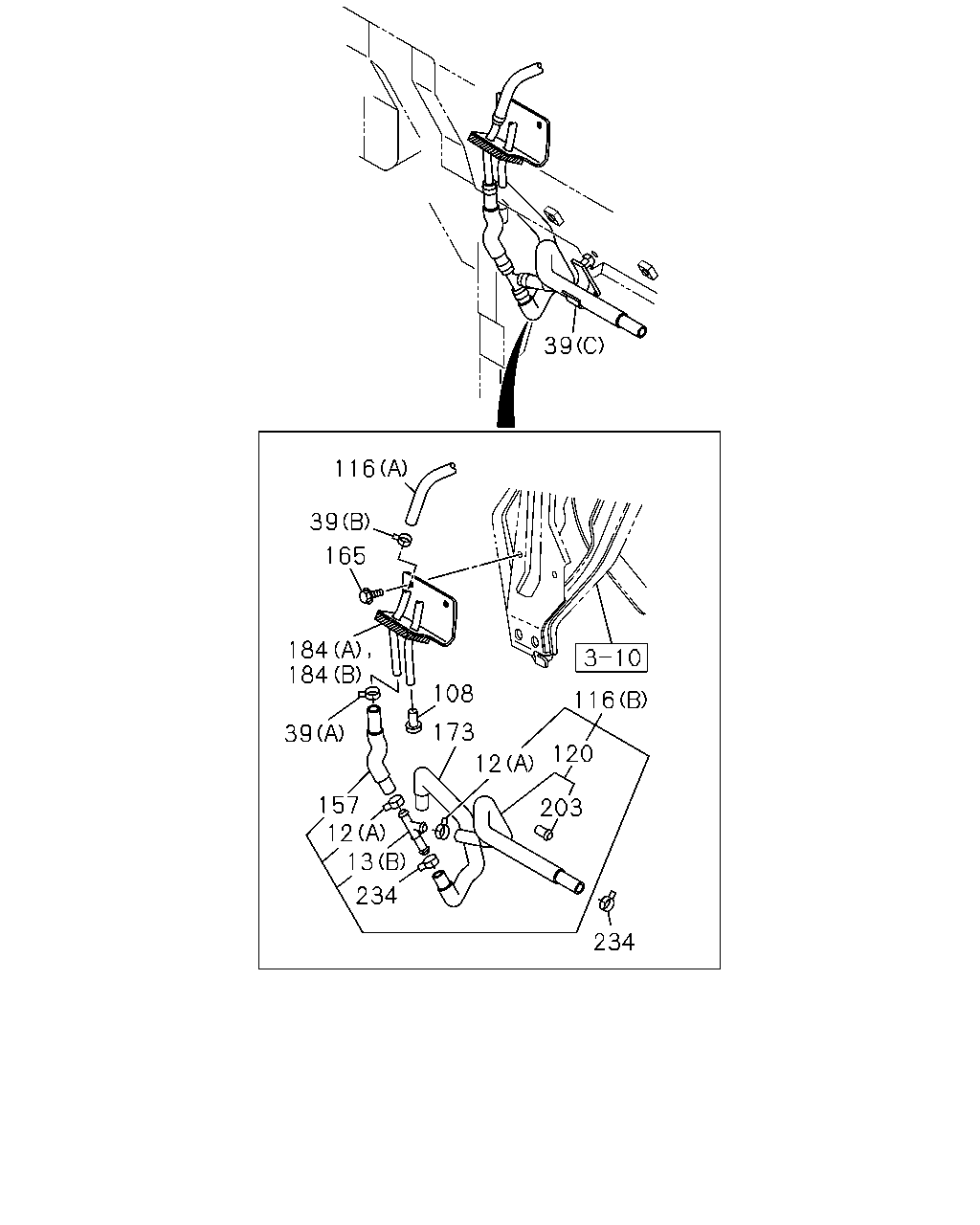

çizim 153591
116 39 184 165 184 39 108 116 120 203 234 12 173 157 12 13 234 39
BalonParca AdiParca NoAdetTipApplied Date
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 06 1 0712-0911
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 0912-
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 06 1 0712-
13 04.681 JOINT; HOSE,VAC
03.163 (A) 		8-97353-668-0 02 1 0712-
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 0712-
39 04.681 CLIP; HOSE,VAC
03.162 (D) ID=16 		8-98008-098-0 02 1 0912-
39 04.681 CLIP; HOSE,VAC
04.930 (A) ID=16 		5-09707-023-2 02 1 0712-
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 04 1 0712-0911
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0912-
39 04.681 CLIP; HOSE,VAC
(C) ID=25.5 		8-97077-492-0 01 1 0712-
108 04.931 GROMMET; PIPE 9-09956-353-0 01 1 0712-1312
116 04.931 HOSE; VAC,M/VAC
(C) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0712-
116 04.931 HOSE; VAC,M/VAC
(B) 		8-97389-684-3 01 1 0712-
116 04.931 HOSE; VAC,M/VAC
(A) 		8-98103-931-1 01 1 0712-
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 8-98032-517-3 01 1 0712-
157 04.931 HOSE; JOINT 8-98032-516-3 01 1 0712-
165 04.686 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0712-
173 04.931 HOSE; VAC,VAC TANK SIDE 8-98032-515-2 01 1 0712-
184 04.685 BRACKET; UNION FIX
(A) 		8-98034-128-2 01 1 0712-1312
184 04.685 BRACKET; UNION FIX
(B) 		8-98251-816-0 01 1 1401-
203 04.690 VALVE; CHECK 8-94386-540-0 01 1 0712-
234 04.685 CLAMP; PIPE
04.930 ID=16 		8-94238-568-0 02 1 0712-

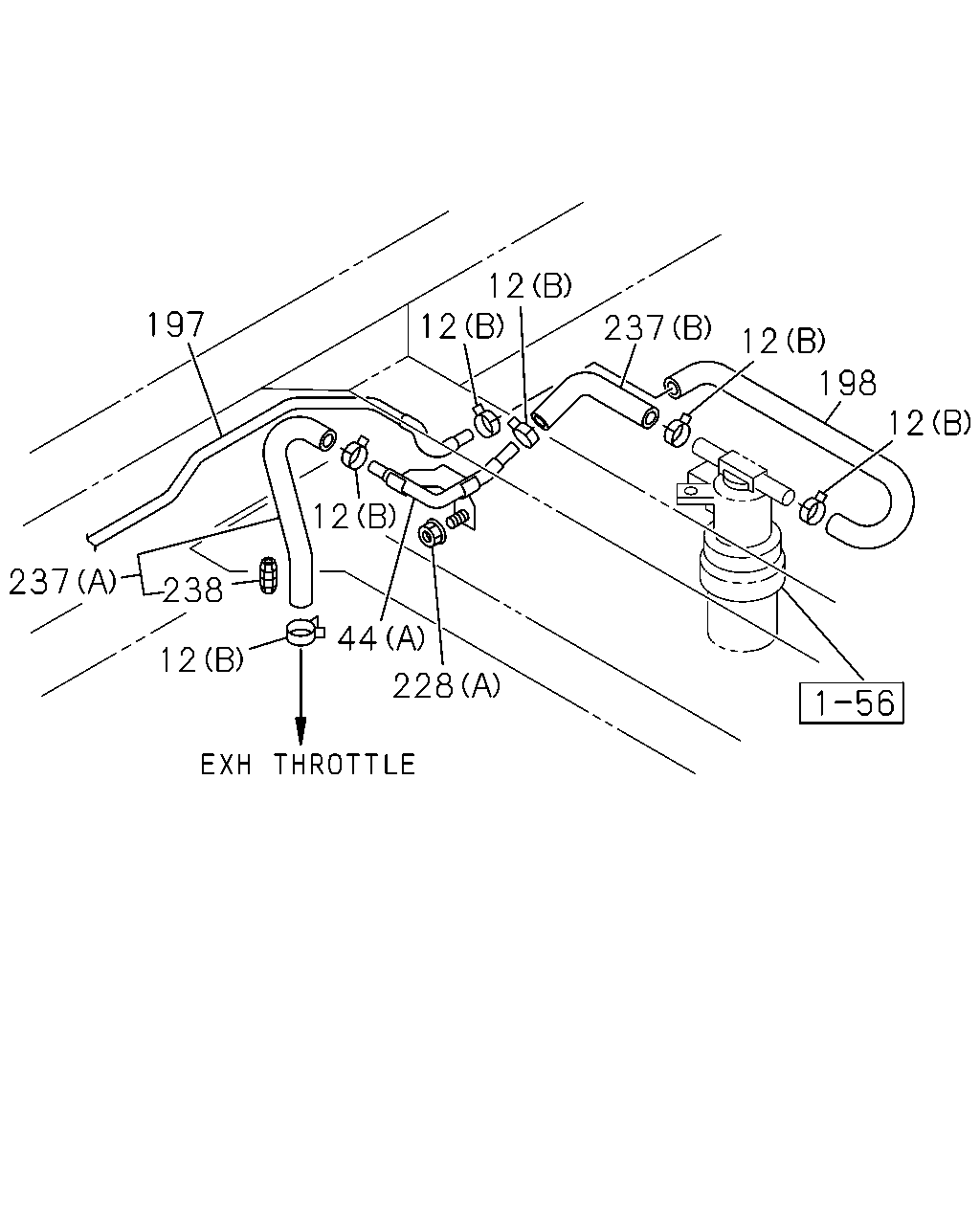

çizim 153593
12 12 197 237 12 198 12 12 237 238 44 12 228
BalonParca AdiParca NoAdetTipApplied Date
12 04.681 CLIP; HOSE
04.930 (B) ID=16 		8-94238-568-0 06 1 0712-0911
12 04.681 CLIP; HOSE
03.162 (B) ID=16 		8-98008-098-0 06 1 0912-
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 06 1 0712-
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98039-808-2 01 1 0712-
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98042-654-0 01 1 0712-
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98089-483-0 01 1 0712-
198 04.931 HOSE; VAC,PIPE TO MAG VLV 8-97371-687-0 01 1 0712-
228 04.930 NUT; PIPE
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0712-
228 04.930 NUT; PIPE
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0712-
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98036-102-0 01 1 0712-
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98039-790-0 01 1 0712-
238 04.892 ORIFICE; VACUUM HOSE 8-97377-521-0 01 1 0712-

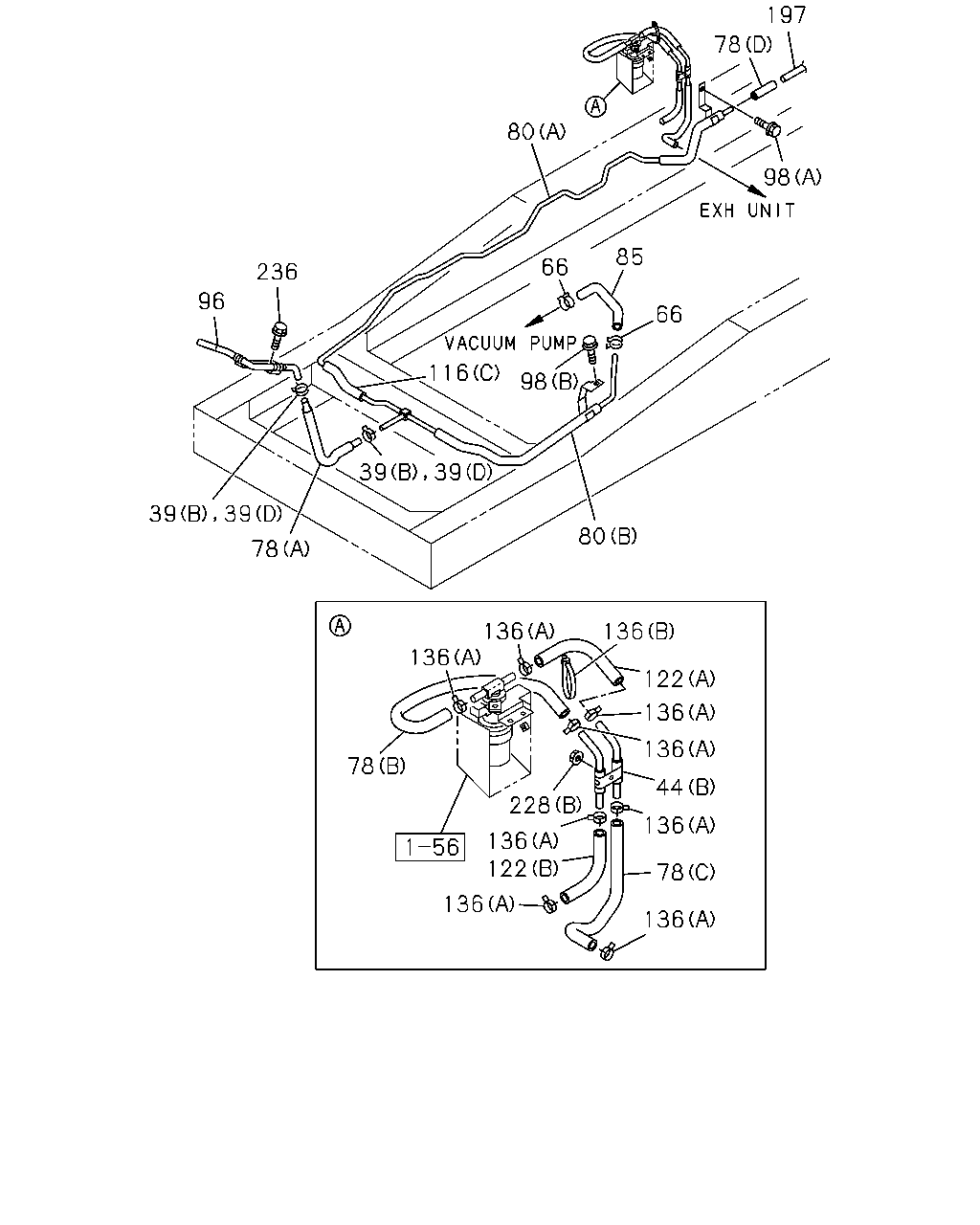

çizim 153600
197 78 80 98 85 66 236 96 66 116 98 80 78 136 136 136 122 136 136 78 44 228 136 136 122 78 136 136
BalonParca AdiParca NoAdetTipApplied Date
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98039-808-2 01 1 0712-
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98042-654-0 01 1 0712-
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0712-0911
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912-
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 (D) L=200 SERVICED BY L=3000 		0-08258-300-0 01 1 0712-
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98033-134-1 01 1 0712-
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98042-690-1 01 1 0712-1104
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98189-223-0 01 1 1105-
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98042-691-2 01 1 0712-1104
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98189-224-0 01 1 1105-
80 04.930 PIPE; VAC,ENG SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98064-345-2 01 1 0911-
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98042-655-2 01 1 0712-
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98075-014-0 01 1 0712-0910
80 04.930 PIPE; VAC,ENG SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98075-014-0 01 1 0911-
85 04.931 HOSE; VAC,ENG SIDE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-98135-573-0 01 1 0911-
85 04.931 HOSE; VAC,ENG SIDE 8-98075-176-0 01 1 0712-0910
85 04.931 HOSE; VAC,ENG SIDE
AIR CONDITIONER MANUAL CONT(C60) 		8-98075-176-0 01 1 0911-
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98039-736-1 01 1 0712-
98 04.931 BOLT; VAC PIPE FIX
EXC. AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE 		0-28650-820-0 01 1 0911-
98 04.931 BOLT; VAC PIPE FIX
00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0712-
116 04.931 HOSE; VAC,M/VAC
(C) L=130 SERVICED BY L=3000 		0-08158-300-0 01 1 0712-
116 04.931 HOSE; VAC,M/VAC
(B) 		8-97389-684-3 01 1 0712-
116 04.931 HOSE; VAC,M/VAC
(A) 		8-98103-931-1 01 1 0712-
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
(B) 		8-98042-689-2 01 1 0712-1104
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
(A) 		8-98189-222-0 01 1 1105-
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
(A) 		8-98089-657-0 01 1 0712-1104
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
(B) 		8-98189-226-0 01 1 1105-
136 04.681 CLIP; VAC HOSE
03.162 (B) L=140 		5-09707-031-1 01 1 0712-
136 04.681 CLIP; VAC HOSE
04.930 (A) ID=16 		8-94238-568-0 06 1 0712-0911
136 04.681 CLIP; VAC HOSE
03.162 (A) ID=16 		8-98008-098-0 06 1 0912-
197 04.930 PIPE; VAC,PIPE TO MAG VLV 8-98089-483-0 01 1 0712-
228 04.930 NUT; PIPE
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0712-
228 04.930 NUT; PIPE
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0712-
236 04.930 BOLT; PIPE
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0712-
