Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#52655) — 24 parça
◀

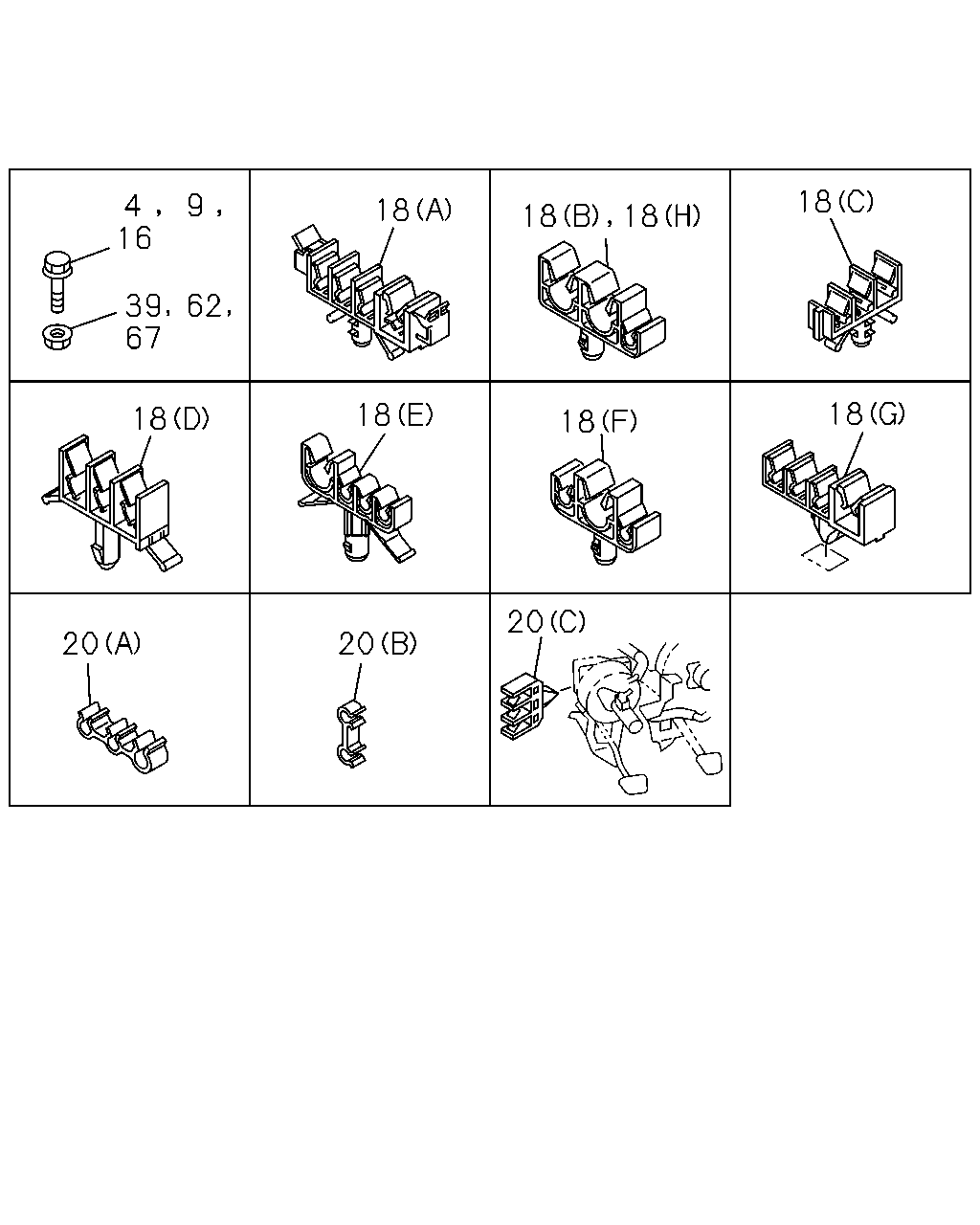

[358A] CLIP (19 parça)
[358A] FIXING;BRACKET (5 parça)
▶
18
9
4
16
18
18
18
62
39
67
18
18
18
18
20
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
04.686 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0712-
9
04.686 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0712-
16
04.686 BOLT; BRKT TO FRAME
FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE
0-28050-812-0
02
1
0712-
18
04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3
8-97168-819-0
08
1
0712-
18
04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3
8-97168-820-0
02
1
0712-
18
04.686 CLIP; BRK PIPE
03.162 (C) ID=10 & 6.4 & 4.8
8-97064-484-1
03
1
0712-
18
04.686 CLIP; BRK PIPE
(F) ID=12 & 6.35 & 4.76
8-97305-169-1
05
1
0712-1005
18
04.686 CLIP; BRK PIPE
(F) ID=12 & 6.35 & 4.76
8-97305-169-1
04
1
1006-
18
04.686 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2
8-94131-710-2
01
1
0712-
18
04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3
8-97326-158-1
04
1
0712-
18
04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10X2 & 4.76
8-97305-170-0
01
1
0712-0801
18
04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (H) ID=10 OR 12X2 & 4.76
8-98058-323-0
01
1
0802-
18
04.686 CLIP; BRK PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=12 & 6.35 & 4.76
8-97305-169-1
01
1
0712-
20
04.686 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2
8-94146-043-0
01
1
0712-
20
04.686 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2
8-94250-923-2
01
1
0712-
20
04.686 CLIP; BRK PIPE
(B)
8-94338-104-0
01
1
0712-
39
04.686 NUT; BRKT FIX
01.062 M8 FLANGE
0-91180-108-0
01
1
0712-
62
04.686 NUT
03.162 M10 FLANGE
0-91180-110-0
01
1
0712-
67
04.686 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0712-
19
67
68
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
04.686 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0712-
19
04.686 BRACKET; OIL PIPE
8-98009-117-2
01
1
0712-1006
19
04.686 BRACKET; OIL PIPE
8-98162-759-0
01
1
1007-
67
04.686 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0712-
68
04.686 BRACKET; CLIP
8-98039-558-2
01
1
0712-
