Isuzu WW
▶
TRUCKS
▶
NHR
▶
51145 - NHR
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#52652) — 25 parça
◀

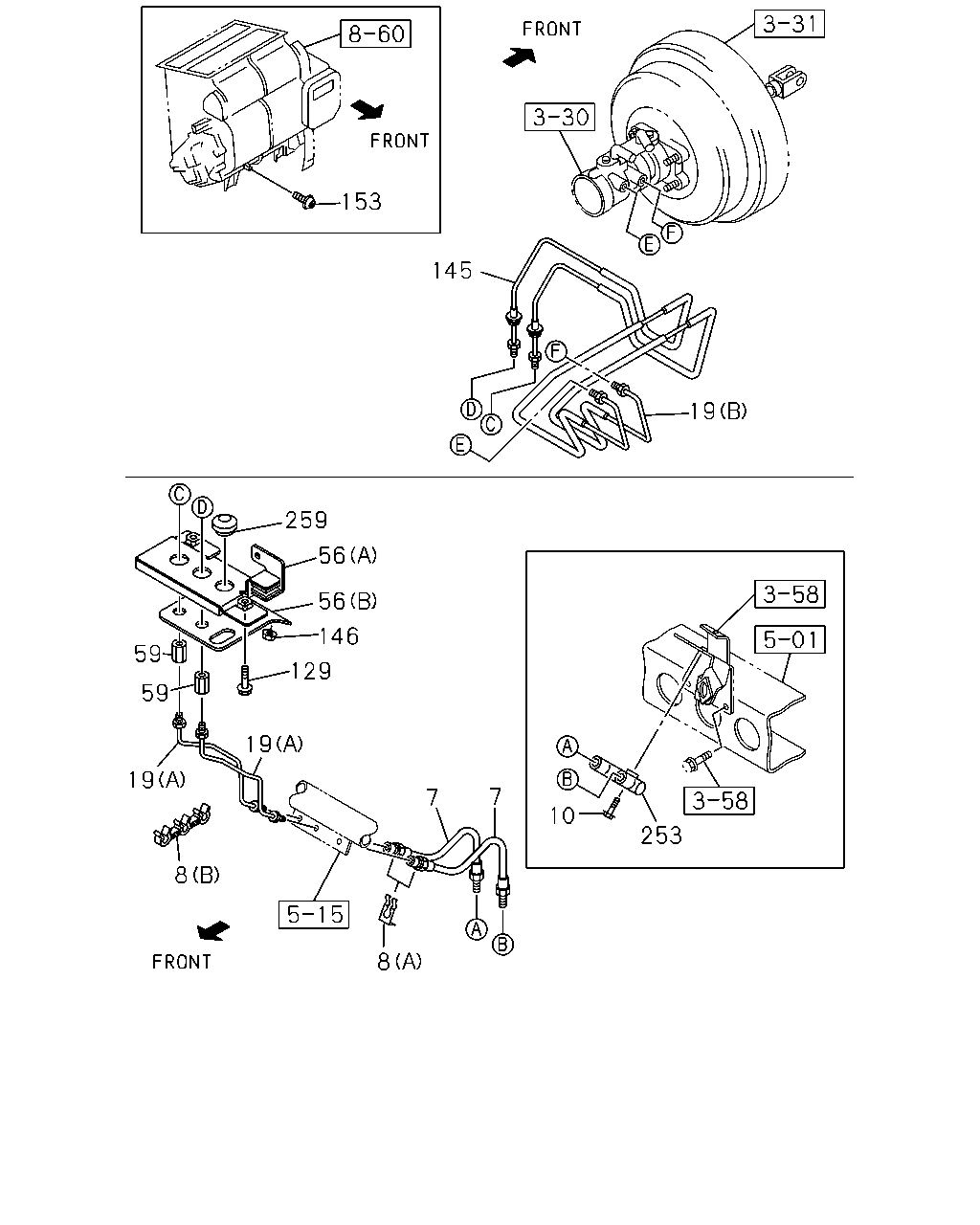

[350A] CAB SIDE (15 parça)
[350A] FRAME SIDE (10 parça)
▶
153
145
19
259
56
56
146
59
129
59
19
19
7
7
10
253
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
8-98029-865-0
02
1
0712-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
0712-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(B)
8-98056-614-0
01
1
0712-
10
04.686 BOLT; JOINT
00.685 M6X40 FLANGE
0-28650-640-0
01
1
0712-
19
04.685 PIPE; BRK,M/CYL TO UNION
(B)
8-97389-319-2
01
1
0712-
19
04.685 PIPE; BRK,M/CYL TO UNION
(A)
8-97389-365-0
02
1
0712-
56
04.686 BRACKET; UNION,BRK
(A)
8-98002-151-0
01
1
0712-
56
04.686 BRACKET; UNION,BRK
(B)
8-98018-253-0
01
1
0712-
59
04.686 UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
02
1
0712-
129
04.710 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0712-
145
04.685 PIPE; BRK,METERING VLV TO UNION
8-97389-287-2
01
1
0712-
146
04.685 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
02
1
0712-
153
04.730 SCREW; BRKT FIX
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
01
1
0712-
253
04.840 JOINT
04.686
8-97120-033-2
01
1
0712-
259
04.840 PLUG; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483
8-94294-358-0
01
1
0712-
11
35
164
13
263
260
262
261
261
11
26
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
04.686 VALVE; BRK CONT
04.730
8-97070-721-0
01
1
0712-
13
04.686 BOLT; VLV TO BRKT
02.343 M8X16 FLANGE
0-28050-816-0
04
1
0712-
26
04.730 BRACKET; PROPORTIONING VLV
8-98029-821-0
01
1
0712-
35
04.685 PIPE; BRK,VLV TO RR AXLE
8-98064-716-0
01
1
0712-
104
04.730 BOLT; BRKT TO BODY
02.343 M8X16 FLANGE
0-28050-816-0
02
1
0712-
164
04.730 SCREW; BLEEDER
04.685
8-97093-663-0
01
1
0712-
260
04.685 SHACKLE; LSPV
04.710
8-97173-366-0
01
1
0712-
261
04.685 BUSHING; LSPV
04.710
8-97145-631-0
02
1
0712-
262
04.685 COLLAR; LSPV
04.710
8-97139-186-0
01
1
0712-
263
04.685 CAP; BLEEDER
8-97093-662-0
01
1
0712-
