Sayfa 3-11 - Isuzu EPC

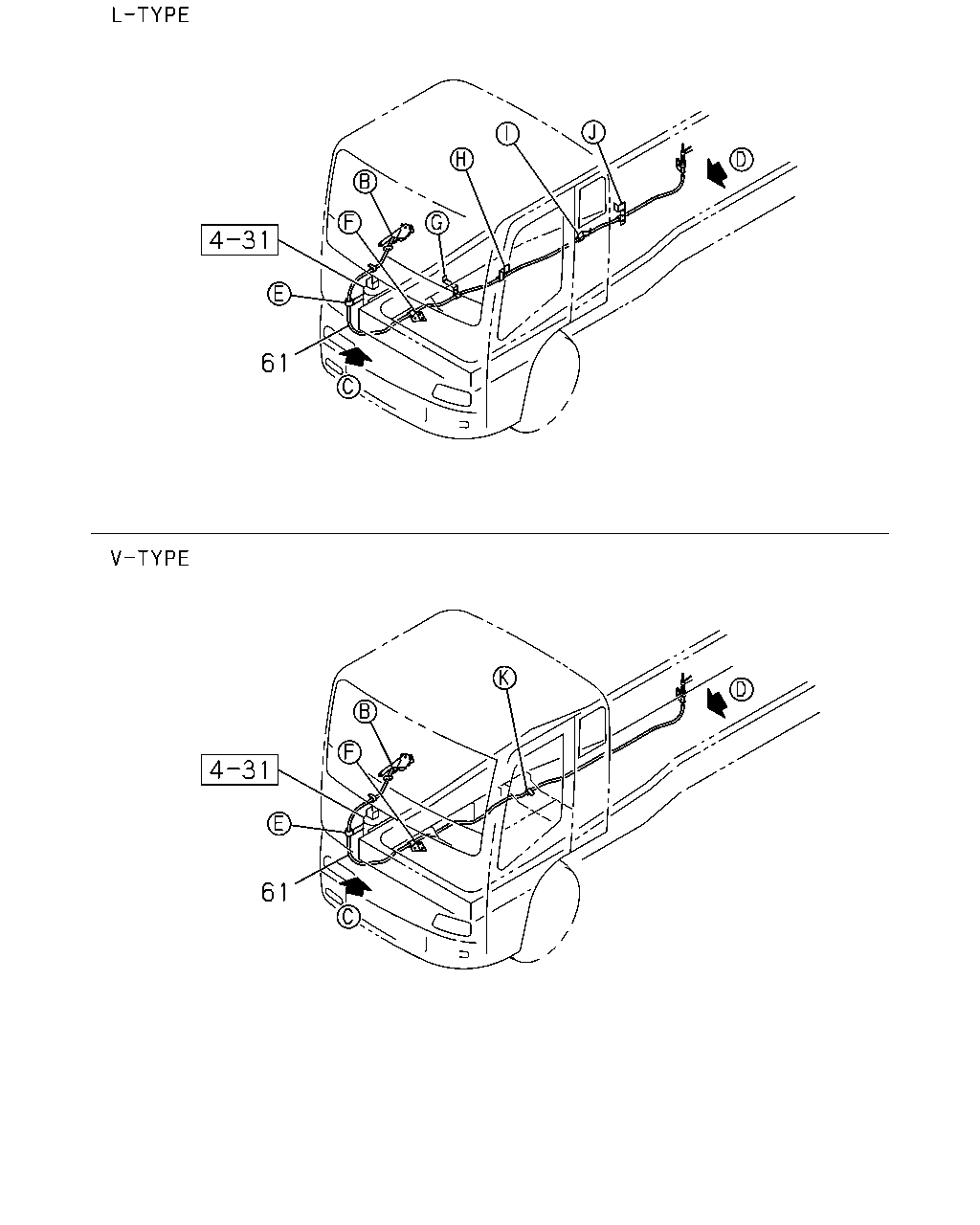

61 61

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	61	CABLE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> MIXER TRUCK<RA2> L=5102	1-79996-513-0	01	1	9911-	●	●
	61	CABLE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. MIXER TRUCK<RA2> L=5032	1-79996-194-3	01	1	9911-	●	●

51 73 52 52 90 28 61 23 241 187 4 61 46 324 61 90 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	STEM; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-79996-487-0	01	1	9911-	●	●
23	SWITCH; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-82440-100-0	01	1	9911-	●	●
28	BOLT; HAND BRK LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9911-	●	●
45	BOLT; CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR<PJ8> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9911-	●	●
46	CLIP; FRT CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR<PJ8> ID=13 L=20	9-09525-235-0	01	1	9911-	●	●
51	PIN; JOINT,RELAY LEVER PARKING BRAKE TRANSMISSION REAR<PJ8>	1-09987-243-1	01	1	9911-	●	●
52	WASHER; CURVED RELAY LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> ID=19	8-94206-429-1	02	1	9911-	●	●
61	CABLE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> MIXER TRUCK<RA2> L=5102	1-79996-513-0	01	1	9911-	●	●
61	CABLE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. MIXER TRUCK<RA2> L=5032	1-79996-194-3	01	1	9911-	●	●
73	WASHER; PL,CABLE PARKING BRAKE TRANSMISSION REAR<PJ8> ID=17	9-09160-516-0	01	1	9911-	●	●
90	BOLT; CABLE TO BRKT PARKING BRAKE TRANSMISSION REAR<PJ8> M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0104-	●	●
90	BOLT; CABLE TO BRKT PARKING BRAKE TRANSMISSION REAR<PJ8> M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9911-0103	●	●
90	BOLT; CABLE TO BRKT PARKING BRAKE TRANSMISSION REAR<PJ8> M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0104-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47477-503-0	01	1	9911-	●	●
187	BRACKET; HAND BRK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-46147-264-0	01	1	9911-	●	●
187	BRACKET; HAND BRK PARKING BRAKE TRANSMISSION REAR<PJ8> (A)	1-79996-223-0	01	1	9911-	●	●
241	NUT; BRKT PARKING BRAKE TRANSMISSION REAR<PJ8> M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> (B)	1-82699-831-0	01	1	9911-	●	●
324	BRACKET PARKING BRAKE TRANSMISSION REAR<PJ8> (A)	1-79996-140-1	01	1	9911-	●	●

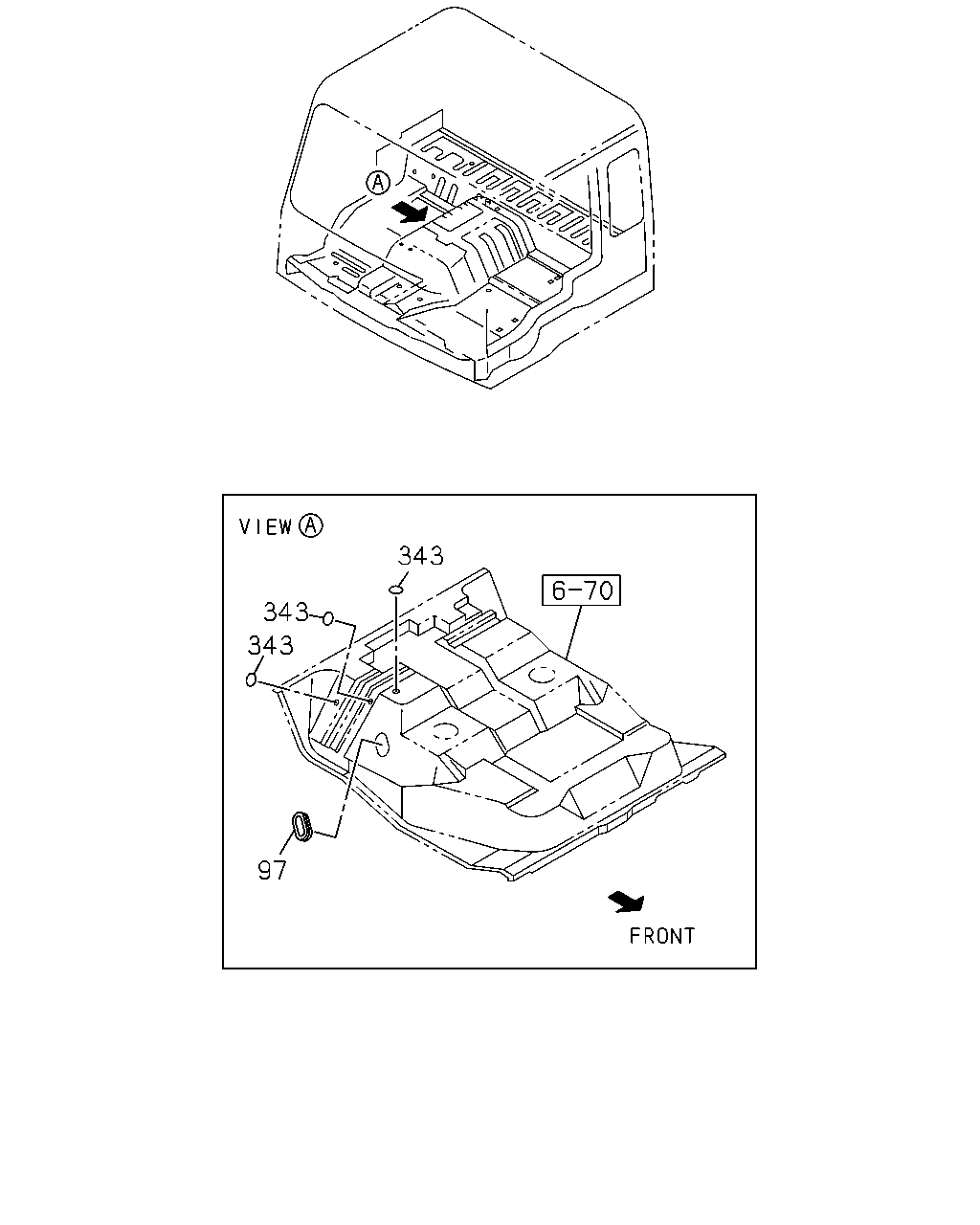

343 343 343 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
97	GROMMET; PARKING BRK CABLE	1-09983-078-0	01	1	9603-9910	●	●
97	GROMMET; PARKING BRK CABLE EXC. PARKING BRAKE TRANSMISSION REAR<PJ8>	1-09983-078-0	01	1	9911-	●	●
343	SEAL OD=25 BLACK	1-76798-019-0	03	1	9701-9904	●	●
343	SEAL OD=25 BLACK	1-76798-019-0	02	1	9905-9910	●	●
343	SEAL EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> OD=25 BLACK	1-76798-019-0	02	1	9911-	●	●
343	SEAL PARKING BRAKE VALVE LEVER TYPE<W48> OD=25 BLACK	1-76798-019-0	01	1	9905-0011	●	●
343	SEAL OD=25 BLACK	1-76798-019-0	01	1	9905-0011	●	●
343	SEAL PARKING BRAKE VALVE LEVER TYPE<W48> OD=25 BLACK	1-76798-019-0	01	1	0012-	●
343	SEAL OD=25 BLACK	1-76798-019-0	01	1	0012-	●
343	SEAL PARKING BRAKE VALVE LEVER TYPE<W48> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) OD=25 BLACK	1-76798-019-0	01	1	0012-		●
343	SEAL EXC. DRIVER ISRINGHAUSEN SEAT(SJA) OD=25 BLACK	1-76798-019-0	01	1	0012-		●

61 102 101 98 99 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	CABLE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> MIXER TRUCK<RA2> L=5102	1-79996-513-0	01	1	9911-	●	●
61	CABLE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. MIXER TRUCK<RA2> L=5032	1-79996-194-3	01	1	9911-	●	●
98	BOLT; RR COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9911-	●	●
99	NUT; CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	9911-	●	●
101	NUT; CABLE TO LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46259-007-0	01	1	9911-	●	●
102	NUT; LK,CABLE TO LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9911-	●	●

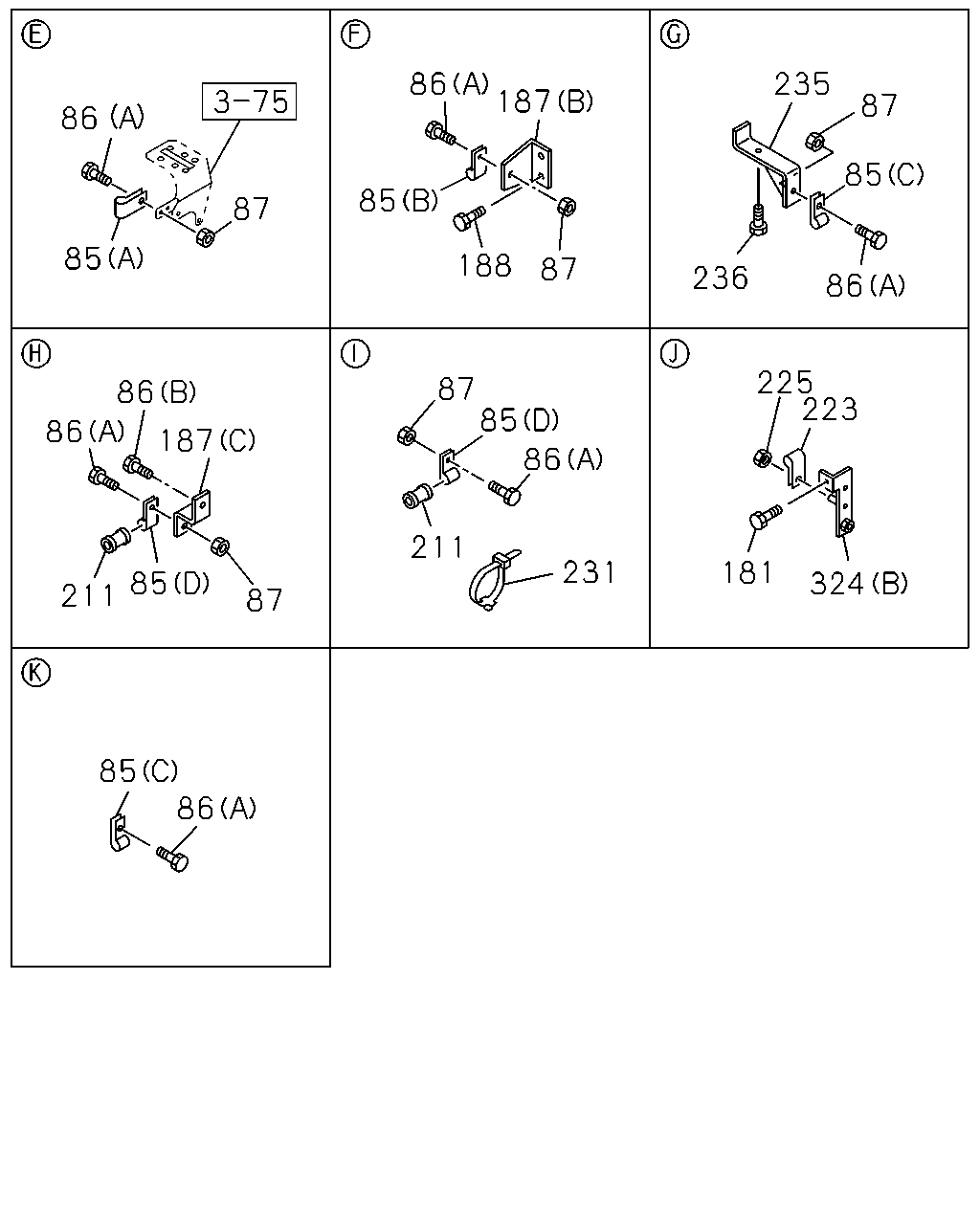

235 86 187 87 86 85 85 87 85 188 87 236 86 225 223 87 85 86 86 187 86 211 231 181 85 324 211 87 85 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14	1-09700-057-1	01	1	9911-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14.5 L=20	1-09701-012-0	01	1	9911-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14.5 L=28	1-09701-013-0	01	1	9911-	●	●
85	CLIP; BRKT L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=31 L=30	1-09700-969-0	02	1	9911-	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE	0-28680-825-0	03	1	9911-	●	●
86	BOLT L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X25 FLANGE	0-28680-825-0	01	1	9911-	●	●
86	BOLT L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X20 FLANGE	0-28781-020-0	01	1	9911-	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9911-	●	●
87	NUT L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
181	BOLT; BRKT L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9911-0001	●	●
181	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> M8X25 FLANGE	0-28680-825-0	01	1	0002-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47477-503-0	01	1	9911-	●	●
187	BRACKET; HAND BRK L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-46147-264-0	01	1	9911-	●	●
187	BRACKET; HAND BRK PARKING BRAKE TRANSMISSION REAR<PJ8> (A)	1-79996-223-0	01	1	9911-	●	●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	9911-	●	●
211	SLEEVE; RUBBER L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=13 L=32	1-09337-029-0	02	1	9911-	●	●
223	CLIP; PARKING BRK CABLE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.5 L=28	1-09701-013-0	01	1	9911-9911	●	●
223	CLIP; PARKING BRK CABLE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> ID=14.5 L=28	1-09701-013-0	01	1	9911-	●	●
225	NUT; CABLE CLIP L TYPE ENG<90L> MJD7 M/T<X9J> M8 FLANGE	0-91150-108-0	01	1	9911-9911	●	●
225	NUT; CABLE CLIP L TYPE ENG<90L> EXC. MJD7 M/T<X9J> M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
231	CLIP; BAND,BRK CABLE L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=150	1-09707-145-1	01	1	9911-	●	●
235	BRACKET; CONT CABLE TO FRAME L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46147-169-1	01	1	9911-	●	●
236	BOLT; BRKT TO FRAME L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9911-	●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> (B)	1-82699-831-0	01	1	9911-	●	●
324	BRACKET PARKING BRAKE TRANSMISSION REAR<PJ8> (A)	1-79996-140-1	01	1	9911-	●	●
