3-11 — PARKING BRAKE CONTROL
(#52647) — 60 parça
◀

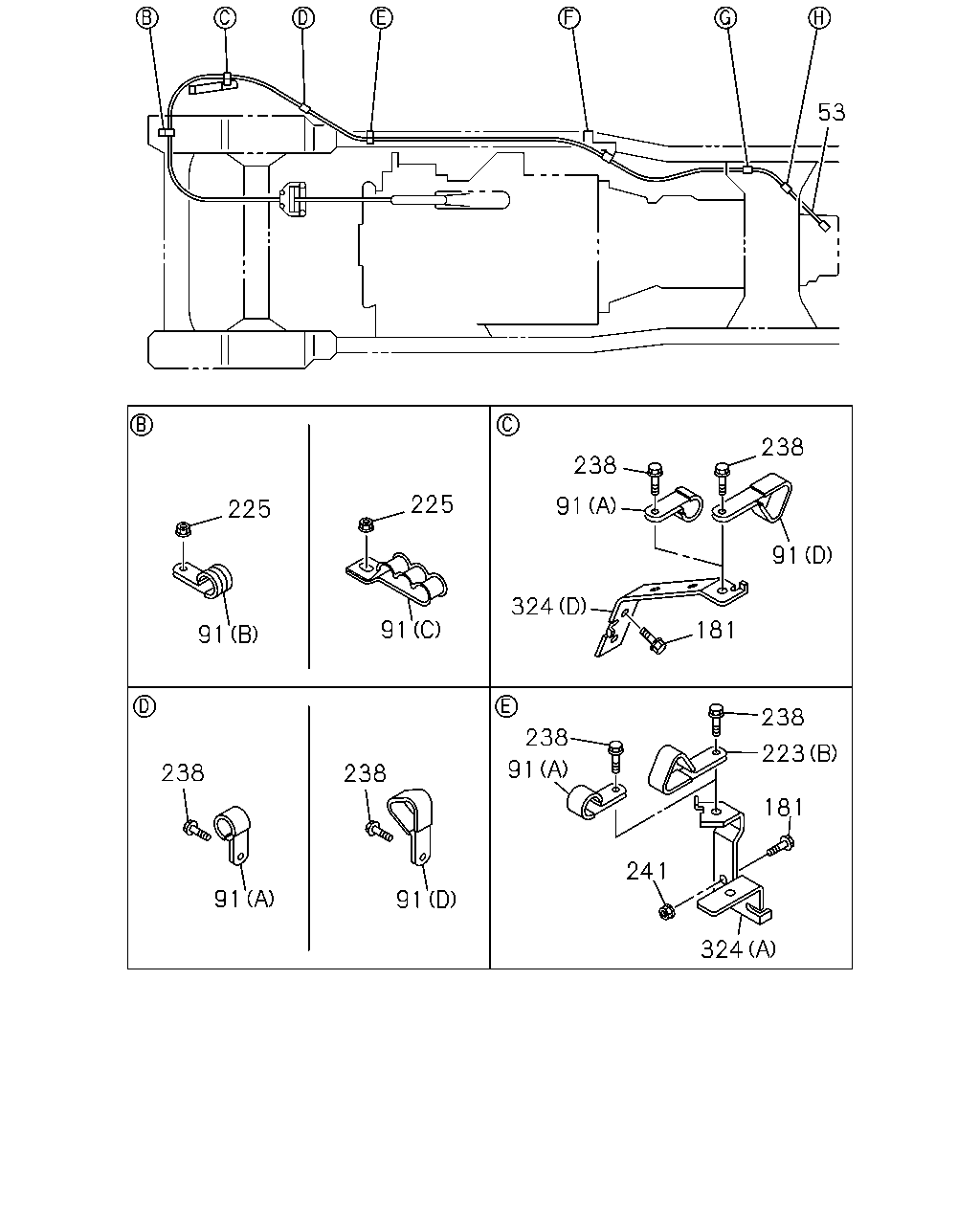

[311A] FIXING PARTS(NO.1) (19 parça)

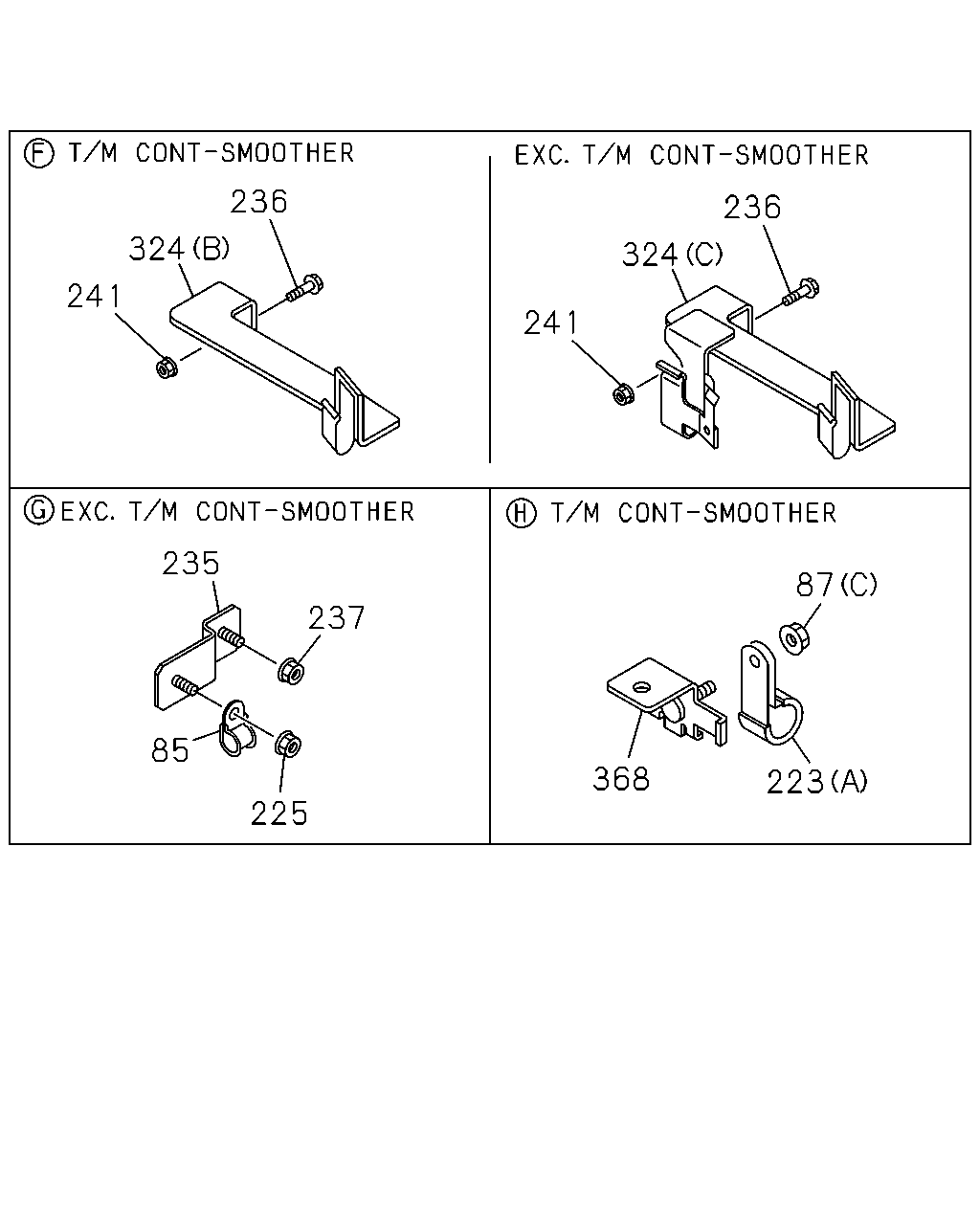

[311A] FIXING PARTS(NO.2) (18 parça)

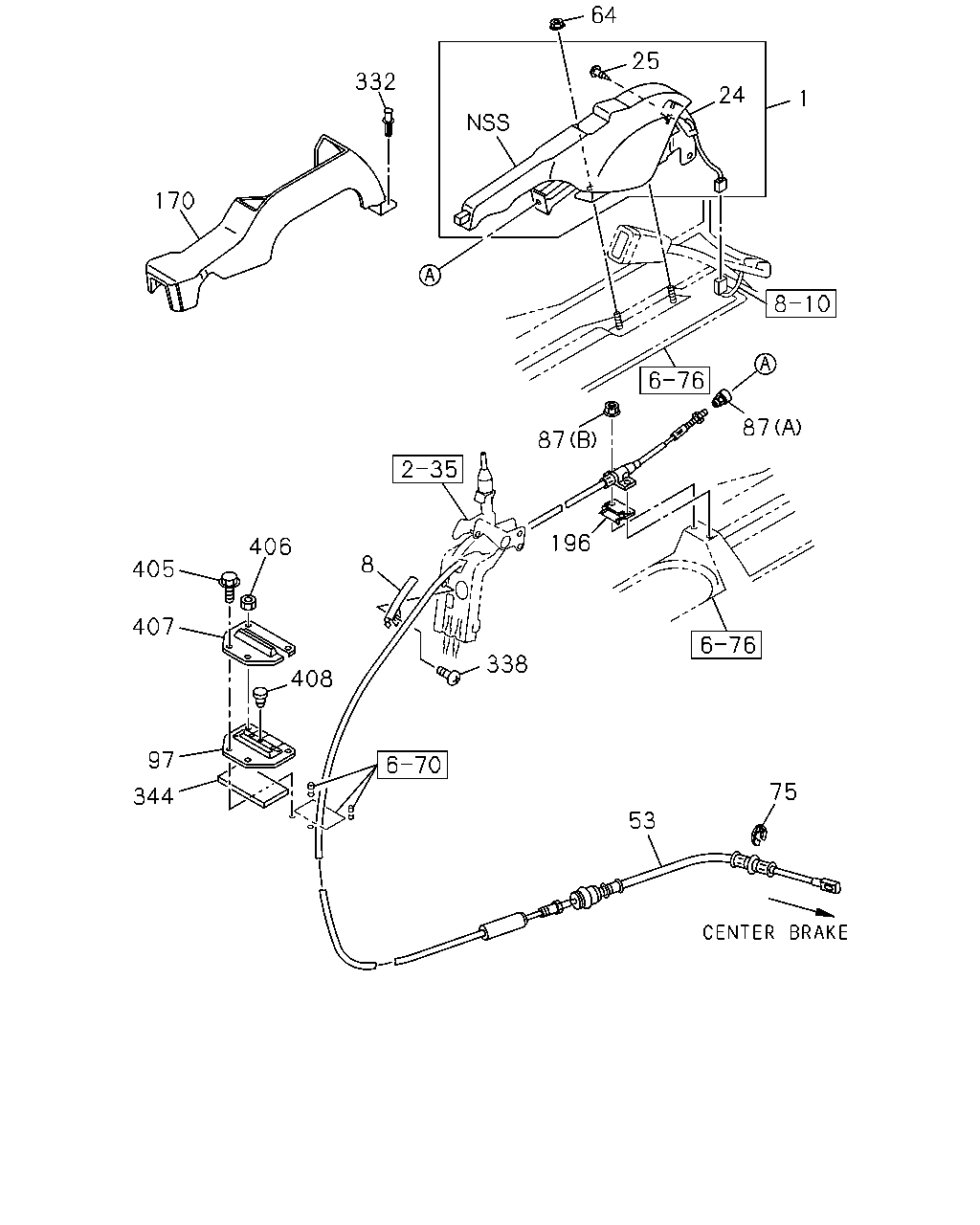

[311A] STEM AND CABLE (23 parça)
▶
53
238
238
225
91
225
91
324
91
181
91
238
238
223
91
238
238
181
241
91
91
324
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
04.779 CABLE; PARK BRK,FRT LWR
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98000-826-3
01
1
0712-
53
04.779 CABLE; PARK BRK,FRT LWR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98074-001-1
01
1
0712-
91
04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28
0-95235-255-0
03
1
0712-
91
04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32
1-09701-235-0
01
1
0712-
91
04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)
8-97036-333-1
02
1
0712-
91
04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)
8-98023-622-0
01
1
0712-
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0712-
181
04.785 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE
0-28650-825-0
01
1
0712-
223
04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (A) ID=13 L=20
1-09701-138-1
01
1
0712-
223
04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B)
8-97036-333-1
01
1
0712-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0712-
225
04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE
0-91180-108-0
01
1
0712-
238
04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE
0-28650-825-0
03
1
0712-
241
04.785 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0712-
241
04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE
0-91180-108-0
01
1
0712-
324
04.785 BRACKET
(A)
8-98003-642-1
01
1
0712-
324
04.785 BRACKET
FRT INDEPENDENT SUSPENSION(FF0) (D)
8-98032-783-1
01
1
0712-
324
04.785 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98038-563-0
01
1
0712-
324
04.785 BRACKET
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)
8-98026-099-2
01
1
0712-
236
236
324
324
241
241
235
87
237
85
368
223
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
85
04.785 CLIP; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20
1-09701-012-0
01
1
0712-
87
04.785 NUT
01.062 (B) M8 FLANGE
0-91180-108-0
02
1
0712-
87
04.785 NUT
(A) M6
8-98034-313-1
01
1
0712-
87
04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE
0-91180-110-0
01
1
0712-
223
04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (A) ID=13 L=20
1-09701-138-1
01
1
0712-
223
04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B)
8-97036-333-1
01
1
0712-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0712-
225
04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE
0-91180-108-0
01
1
0712-
235
04.785 BRACKET; CONT CABLE TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98034-352-0
01
1
0712-
236
04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0712-
237
04.785 NUT; BRKT TO FRAME
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE
0-91180-108-0
01
1
0712-
241
04.785 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0712-
241
04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE
0-91180-108-0
01
1
0712-
324
04.785 BRACKET
(A)
8-98003-642-1
01
1
0712-
324
04.785 BRACKET
FRT INDEPENDENT SUSPENSION(FF0) (D)
8-98032-783-1
01
1
0712-
324
04.785 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98038-563-0
01
1
0712-
324
04.785 BRACKET
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)
8-98026-099-2
01
1
0712-
368
04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97372-863-1
01
1
0712-
64
25
332
24
1
170
87
87
196
406
8
405
407
338
408
97
75
344
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97405-353-0
01
1
0712-1303
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97426-513-0
01
1
1304-
8
04.592 GUIDE; PARKING BRK
8-97190-672-0
01
1
0712-
24
04.589 SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0712-1303
24
04.589 SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1304-
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0712-
53
04.779 CABLE; PARK BRK,FRT LWR
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98000-826-3
01
1
0712-
53
04.779 CABLE; PARK BRK,FRT LWR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98074-001-1
01
1
0712-
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
0712-
75
04.790 RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
0712-
87
04.785 NUT
01.062 (B) M8 FLANGE
0-91180-108-0
02
1
0712-
87
04.785 NUT
(A) M6
8-98034-313-1
01
1
0712-
87
04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE
0-91180-110-0
01
1
0712-
97
04.785 GROMMET; PARKING BRK CABLE
04.010
8-97061-403-2
01
1
0712-
170
04.595 COVER; PARKING BRK LEVER
GRAY
8-97406-168-1
01
1
0712-
196
04.784 SPACER; CABLE TO LEVER
8-98034-201-0
01
1
0712-
332
04.785 CLIP; COVER
03.602 D6X12.5
8-94146-425-0
01
1
0712-
338
04.785 SCREW; GUIDE
M6X10
0-34218-610-0
01
1
0712-
344
04.595 GASKET; DASH LWR
04.047
8-97096-753-0
01
1
0712-
405
04.785 BOLT; GROMMET
00.785 M6X20 FLANGE
0-28450-620-0
02
1
0712-
406
04.785 NUT; GROMMET
01.062 M6 FLANGE
0-91180-106-0
02
1
0712-
407
04.785 RETAINER; GROMMET
04.047
8-97048-319-1
01
1
0712-
408
04.785 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010
8-97371-108-0
02
1
0712-
