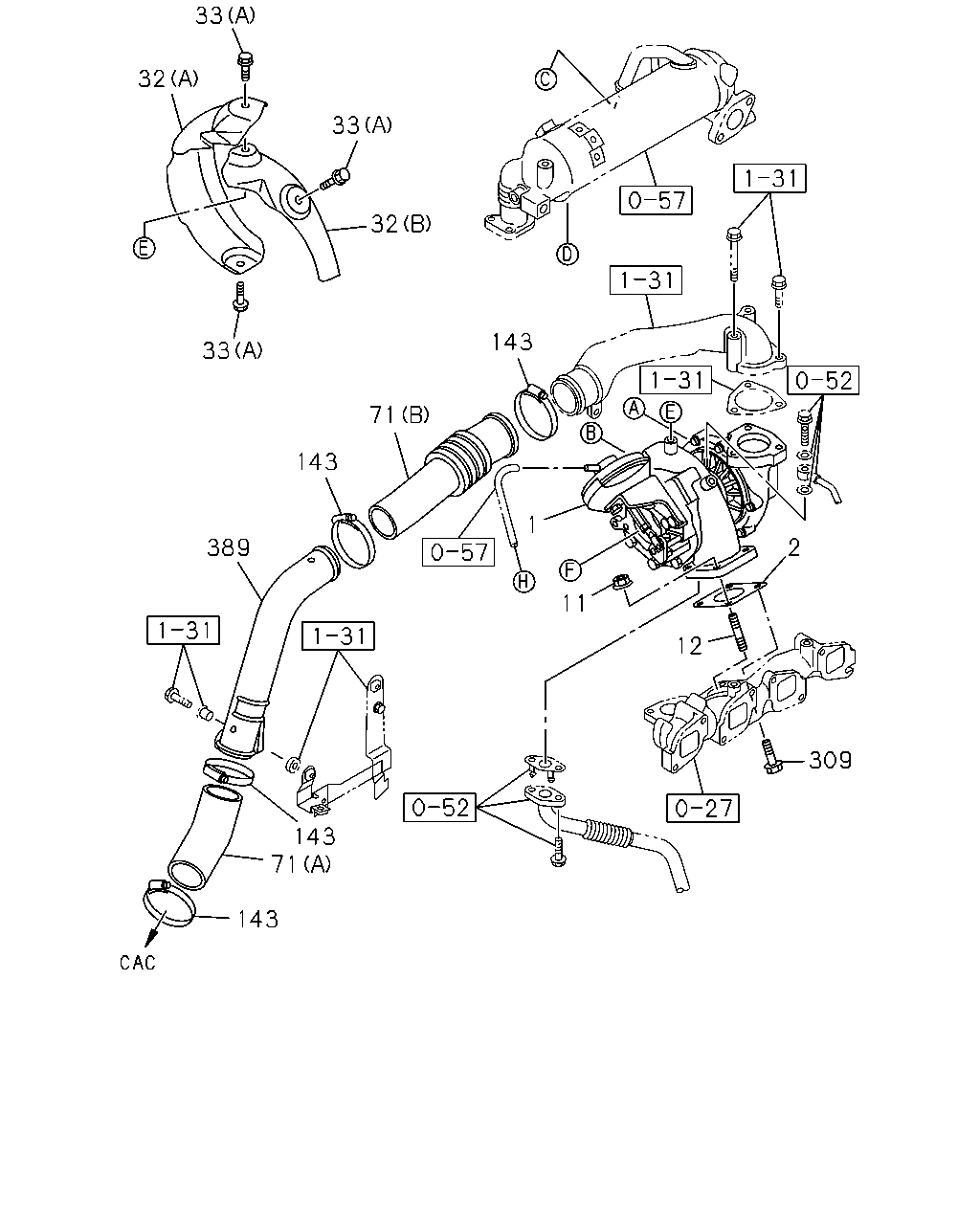

0-36 — TURBOCHARGER SYSTEM (#52643) — 155 parça

309 12 2 11 1 143 71 143 389 143 71 43 33 32 33 33 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM EURO5 SPECIFICATION(NT5)	8-98083-041-2	01	1	1009-
1	03.342 TURBOCHARGER ASM	8-97381-507-4	01	1	0908-1008
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	1009-
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0908-
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0908-
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0908-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	0908-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0908-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0908-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0908-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	0908-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-919-0	01	1	0908-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=45-65	8-98133-348-0	04	1	0908-1001
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=60-65	8-98096-418-0	04	1	1002-
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0908-
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-997-1	01	1	0908-

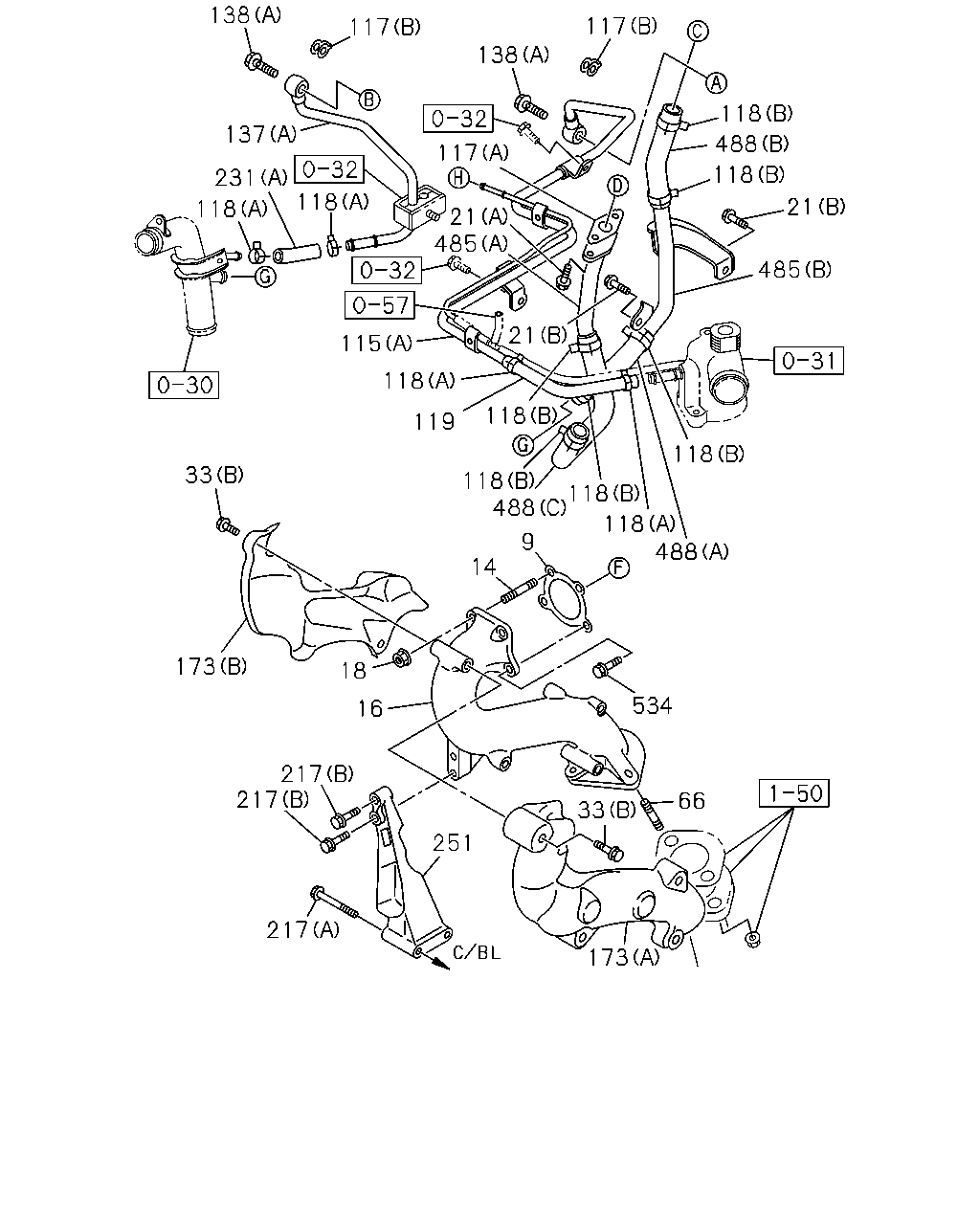

173 66 33 251 217 217 16 18 217 173 534 14 488 9 118 118 118 119 118 118 115 33 488 485 21 118 488 118 117 138 117 21 118 118 231 137 138 117 21 118 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	0908-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0908-
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0908-0910
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0908-
21	03.358 BOLT; PIPE EURO5 SPECIFICATION(NT5) 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	1009-
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0908-1008
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1009-
21	03.358 BOLT; PIPE 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	0908-1008
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	1009-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0908-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0908-
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0908-
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (B)	8-98083-025-1	01	1	1009-
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	0908-1008
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (A)	8-98113-333-0	01	1	1009-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1009-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0908-1008
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 01.531 (A)	8-97262-117-0	01	1	1009-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	0908-1008
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) 01.531 (C) ID=14.2 OD=20.0	8-98113-762-0	01	1	1009-
118	03.342 CLIP; WATER HOSE EURO5 SPECIFICATION(NT5) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1009-
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0908-
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0908-1003
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1004-
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0908-1008
119	03.342 HOSE; WATER,TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98113-336-0	01	1	1009-
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO5 SPECIFICATION(NT5) (B)	8-98074-761-0	01	1	1009-
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97381-650-0	01	1	0908-1008
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (A)	8-97381-650-0	01	1	1009-
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1009-
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	0908-1008
138	03.342 BOLT; EYE,WATER PIPE EURO5 SPECIFICATION(NT5) 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1009-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	0908-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0908-
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0908-
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0908-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (C)	8-98075-182-1	01	1	1009-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (B)	8-98120-394-1	01	1	1009-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (A)	8-98030-402-0	01	1	0908-1008
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (A)	8-98030-402-0	01	1	1009-
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0908-
485	01.097 PIPE; WATER EGR EURO5 SPECIFICATION(NT5) (C)	8-98082-424-1	01	1	1009-
485	01.097 PIPE; WATER EGR EURO5 SPECIFICATION(NT5) (D)	8-98107-346-0	01	1	1009-
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	0908-1008
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (A)	8-97381-651-0	01	1	1009-
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	0908-1008
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (B)	8-97381-652-0	01	1	1009-
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (D) L=110 SERVICED BY L=3000	0-03666-300-0	01	1	1009-1102
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (D) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1103-
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (E)	8-98075-184-0	01	1	1009-
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (F)	8-98082-221-0	01	1	1009-
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0908-1008
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1009-
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0908-1008
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1009-
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	0908-1008
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (C)	8-98015-118-0	01	1	1009-
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0908-

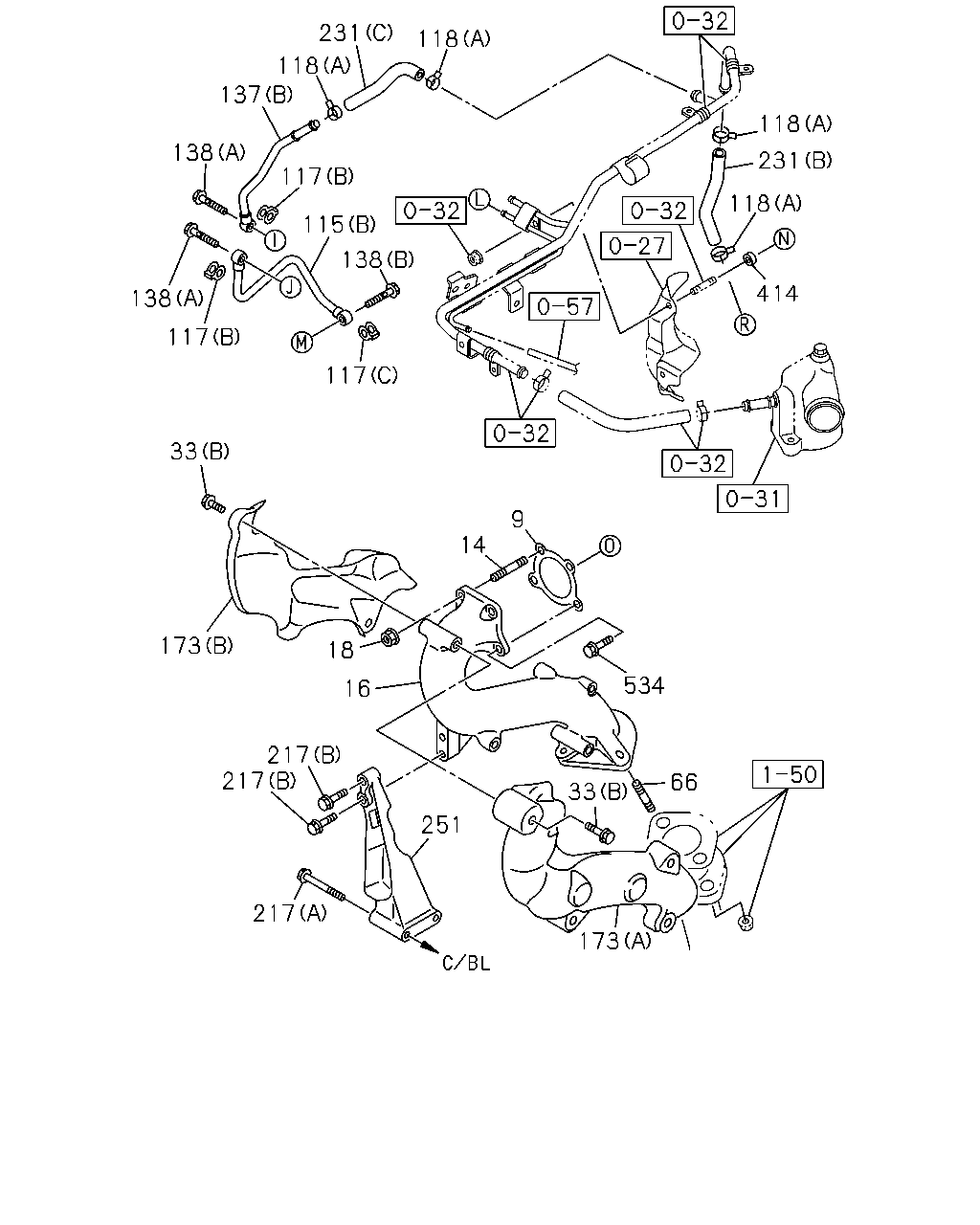

231 118 118 137 138 117 115 138 117 117 138 118 231 118 414 33 173 18 14 9 16 534 217 217 217 251 33 66 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	0908-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0908-
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0908-0910
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0908-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0908-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0908-
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0908-
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (B)	8-98083-025-1	01	1	1009-
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	0908-1008
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (A)	8-98113-333-0	01	1	1009-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1009-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0908-1008
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 01.531 (A)	8-97262-117-0	01	1	1009-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	0908-1008
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) 01.531 (C) ID=14.2 OD=20.0	8-98113-762-0	01	1	1009-
118	03.342 CLIP; WATER HOSE EURO5 SPECIFICATION(NT5) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1009-
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0908-
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0908-1003
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1004-
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO5 SPECIFICATION(NT5) (B)	8-98074-761-0	01	1	1009-
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97381-650-0	01	1	0908-1008
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (A)	8-97381-650-0	01	1	1009-
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1009-
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	0908-1008
138	03.342 BOLT; EYE,WATER PIPE EURO5 SPECIFICATION(NT5) 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1009-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	0908-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0908-
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0908-
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0908-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (C)	8-98075-182-1	01	1	1009-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO5 SPECIFICATION(NT5) (B)	8-98120-394-1	01	1	1009-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (A)	8-98030-402-0	01	1	0908-1008
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (A)	8-98030-402-0	01	1	1009-
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0908-
414	03.602 SPACER EURO5 SPECIFICATION(NT5)	8-98143-884-0	01	1	1009-
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0908-

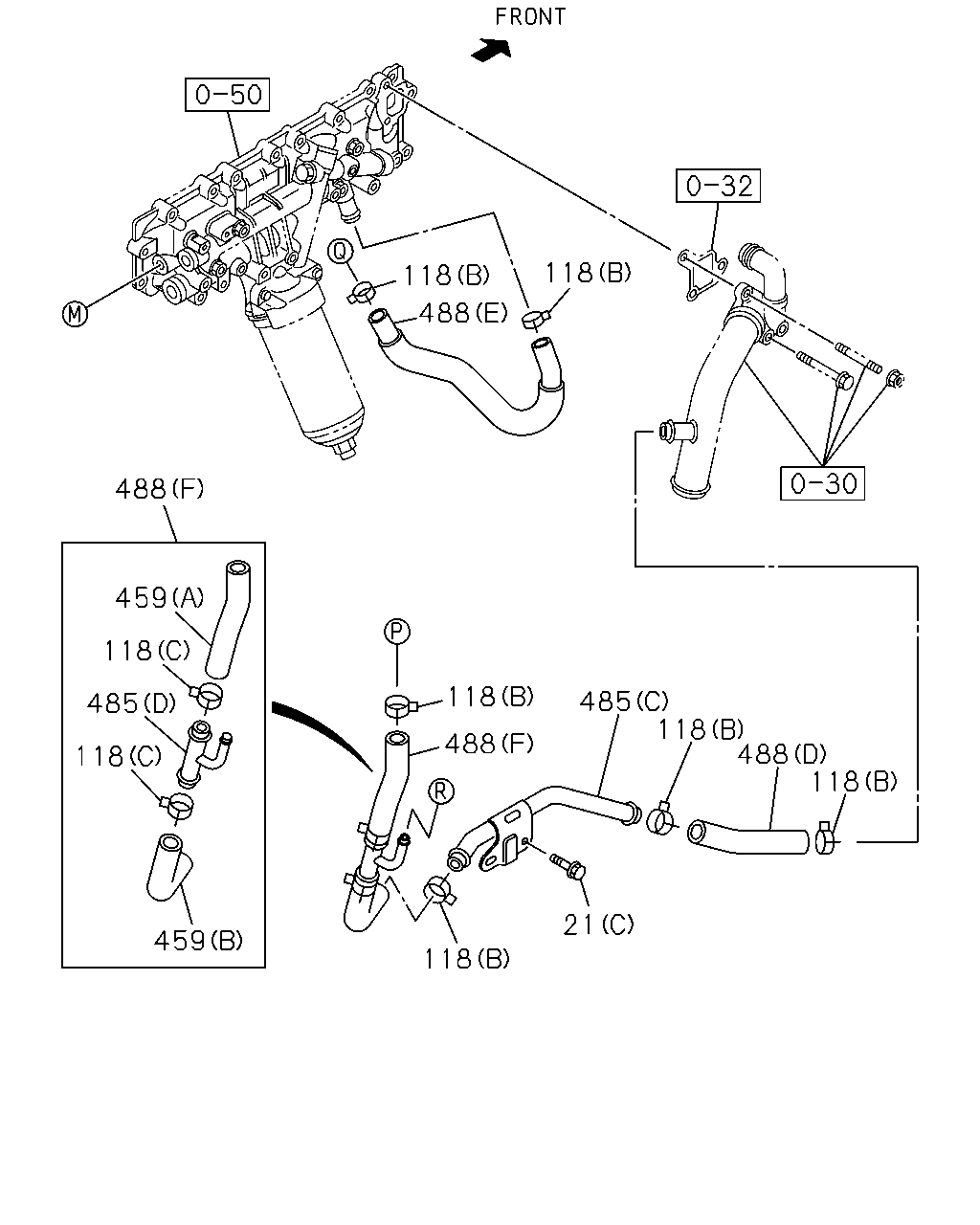

118 488 118 488 118 488 485 118 488 118 21 118 459 118 485 118 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	03.358 BOLT; PIPE EURO5 SPECIFICATION(NT5) 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	1009-
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0908-1008
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1009-
21	03.358 BOLT; PIPE 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	0908-1008
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	1009-
118	03.342 CLIP; WATER HOSE EURO5 SPECIFICATION(NT5) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1009-
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0908-
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0908-1003
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1004-
459	03.341 HOSE; WATER EURO5 SPECIFICATION(NT5) (A)	8-98107-347-0	01	1	1009-
459	03.341 HOSE; WATER EURO5 SPECIFICATION(NT5) (B)	8-98108-321-0	01	1	1009-
485	01.097 PIPE; WATER EGR EURO5 SPECIFICATION(NT5) (C)	8-98082-424-1	01	1	1009-
485	01.097 PIPE; WATER EGR EURO5 SPECIFICATION(NT5) (D)	8-98107-346-0	01	1	1009-
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	0908-1008
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (A)	8-97381-651-0	01	1	1009-
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	0908-1008
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (B)	8-97381-652-0	01	1	1009-
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (D) L=110 SERVICED BY L=3000	0-03666-300-0	01	1	1009-1102
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (D) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1103-
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (E)	8-98075-184-0	01	1	1009-
488	03.163 HOSE; RUBBER EURO5 SPECIFICATION(NT5) (F)	8-98082-221-0	01	1	1009-
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0908-1008
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1009-
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0908-1008
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1009-
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	0908-1008
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (C)	8-98015-118-0	01	1	1009-

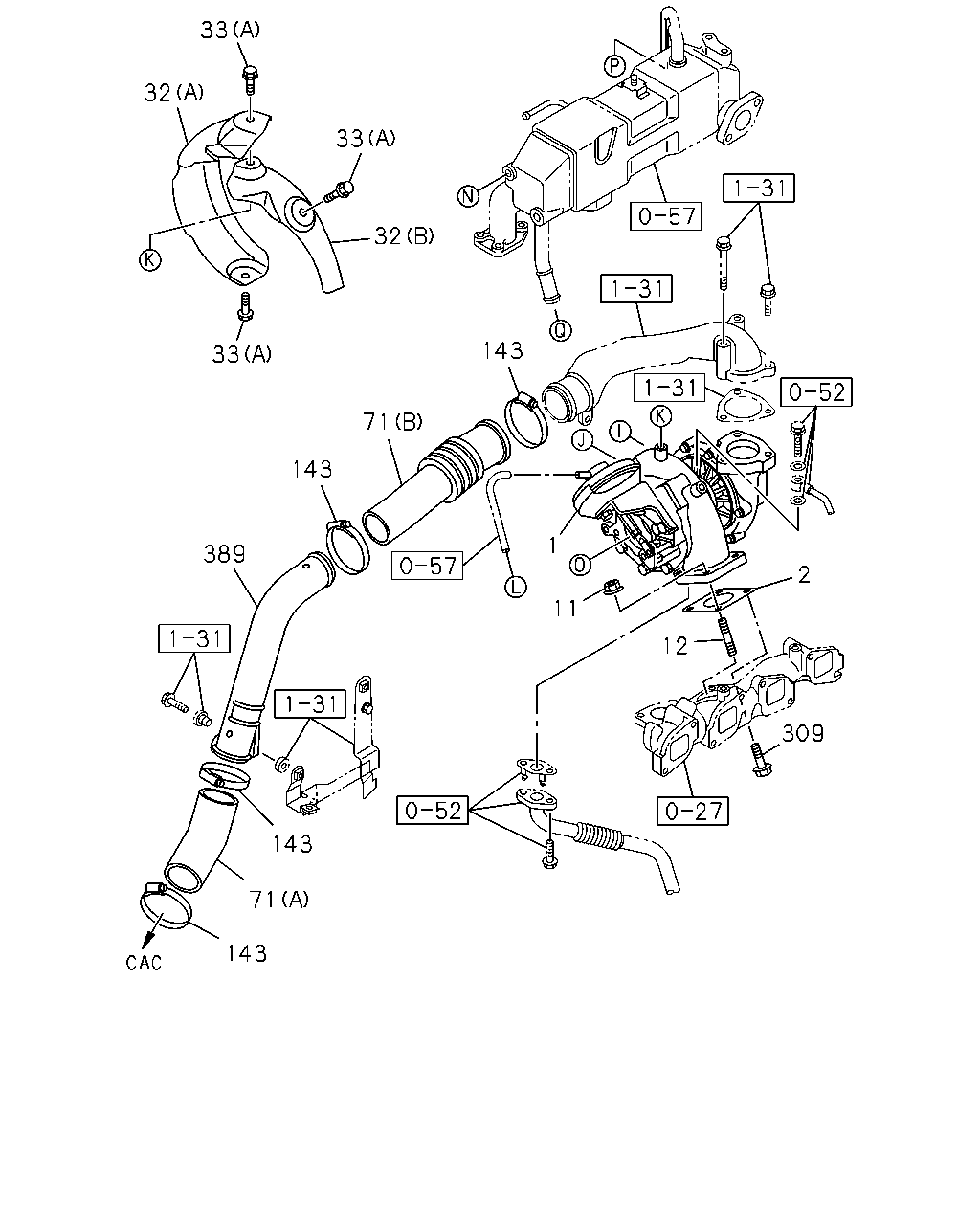

309 2 12 11 1 143 71 32 33 33 32 33 143 389 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM EURO5 SPECIFICATION(NT5)	8-98083-041-2	01	1	1009-
1	03.342 TURBOCHARGER ASM	8-97381-507-4	01	1	0908-1008
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	1009-
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0908-
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0908-
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0908-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	0908-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0908-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0908-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0908-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	0908-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-919-0	01	1	0908-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=45-65	8-98133-348-0	04	1	0908-1001
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=60-65	8-98096-418-0	04	1	1002-
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0908-
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-997-1	01	1	0908-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
