0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#52641) — 30 parça
◀

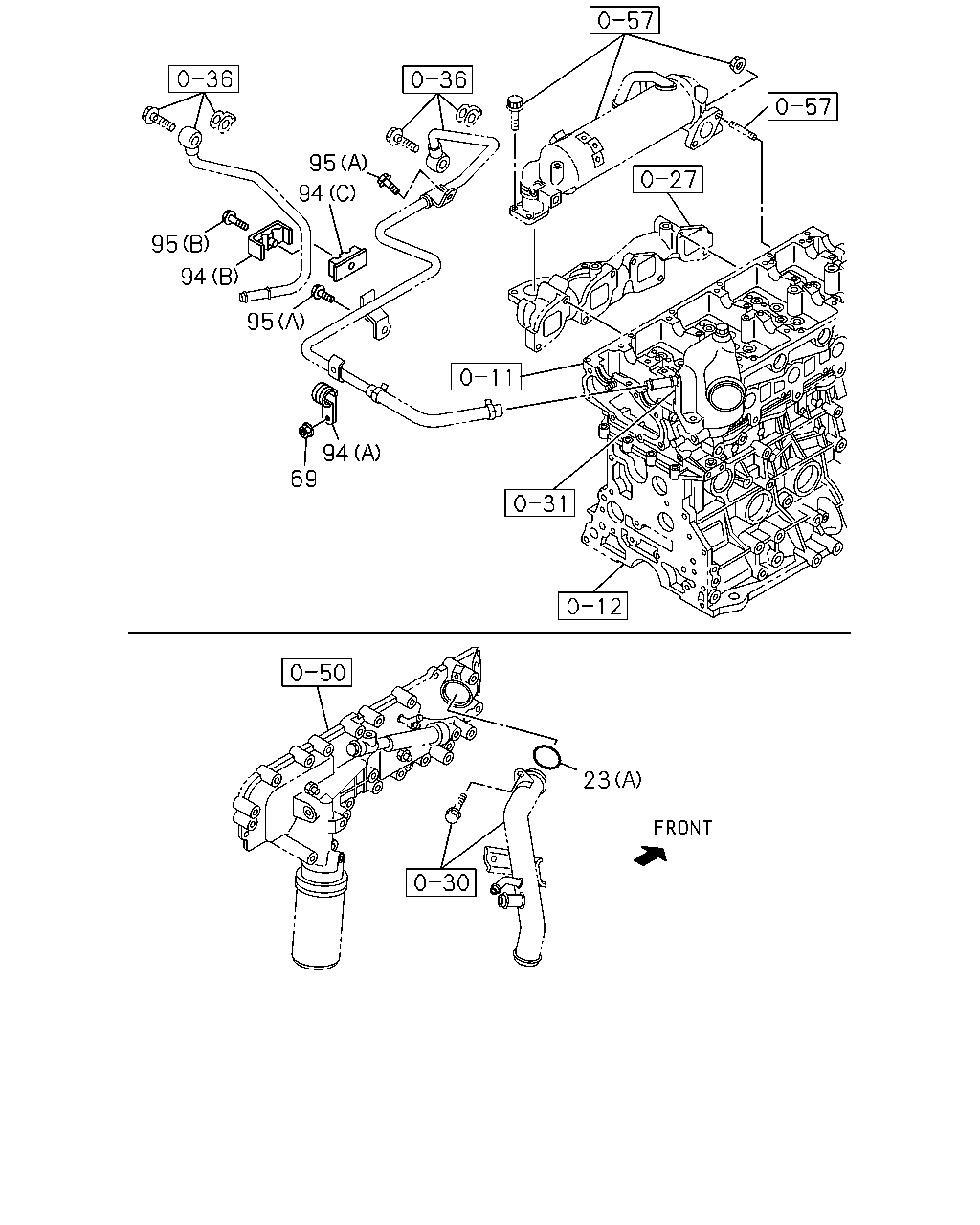

[032A] EURO4 SPECIFICATION (15 parça)

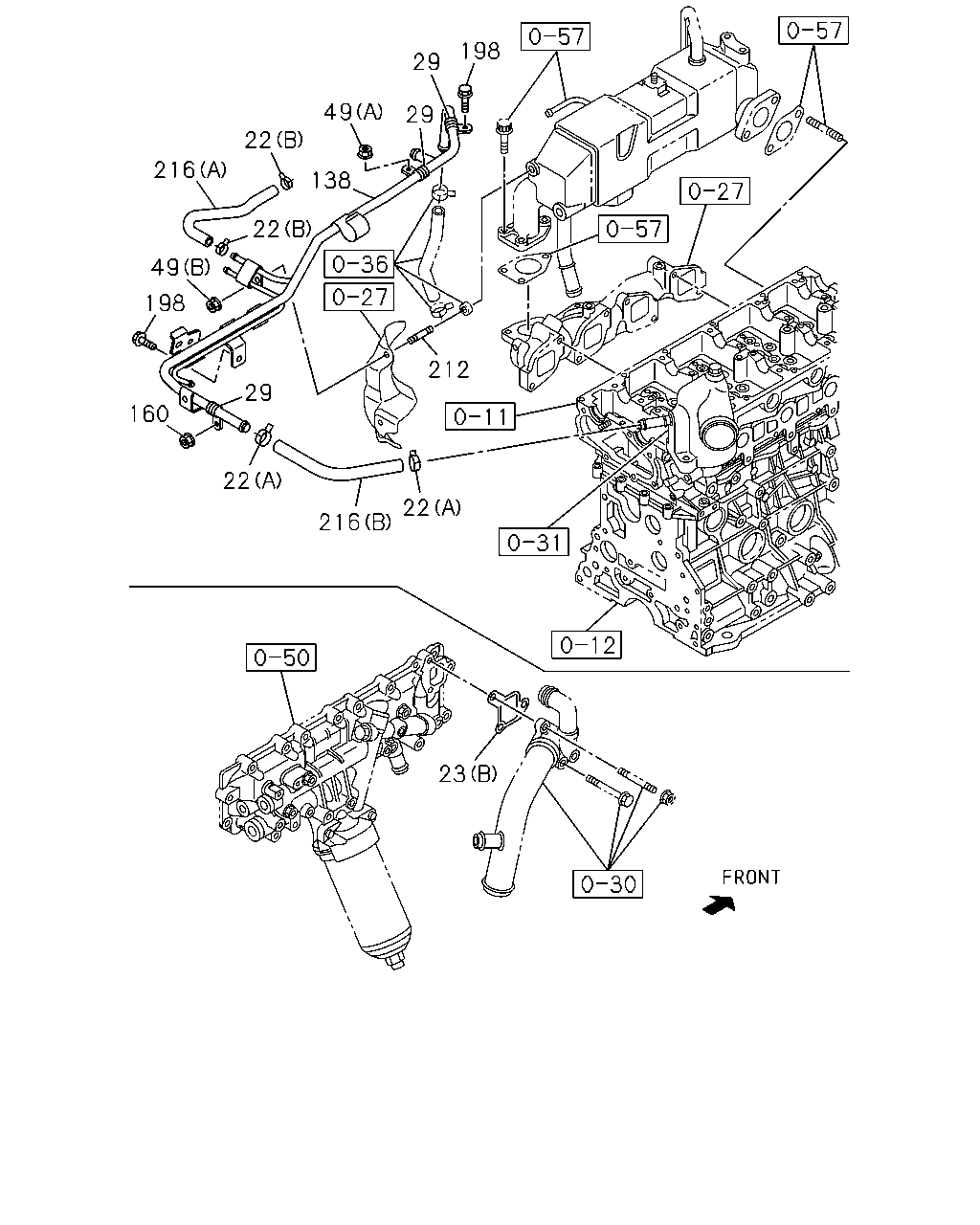

[032A] EURO5 SPECIFICATION (15 parça)
▶
95
94
95
94
95
94
69
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (B)
8-98075-127-0
01
1
1009-
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
0-95690-338-0
01
1
0908-1008
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (A)
0-95690-338-0
01
1
1009-
69
01.153 NUT; WATER PIPE
01.540 M6 FLANGE
0-91180-206-0
01
1
0908-1008
69
01.153 NUT; WATER PIPE
EURO4 SPECIFICATION(NT4) 01.540 M6 FLANGE
0-91180-206-0
01
1
1009-
94
01.153 CLIP; WATER PIPE
04.047 (A) ID=12 L=20
1-09700-911-1
01
1
0908-1008
94
01.153 CLIP; WATER PIPE
EURO4 SPECIFICATION(NT4) 04.047 (A) ID=12 L=20
1-09700-911-1
01
1
1009-
94
01.153 CLIP; WATER PIPE
01.531 (B) ID=7 & 9 L=25
1-09701-228-3
01
1
0908-1008
94
01.153 CLIP; WATER PIPE
EURO4 SPECIFICATION(NT4) 01.531 (B) ID=7 & 9 L=25
1-09701-228-3
01
1
1009-
94
01.153 CLIP; WATER PIPE
01.531 (C) ID=7 & 9 L=25
1-09701-229-2
01
1
0908-1008
94
01.153 CLIP; WATER PIPE
EURO4 SPECIFICATION(NT4) 01.531 (C) ID=7 & 9 L=25
1-09701-229-2
01
1
1009-
95
01.240 BOLT; CLIP
03.162 (A) M6X12 FLANGE
0-28050-612-0
02
1
0908-1008
95
01.240 BOLT; CLIP
EURO4 SPECIFICATION(NT4) 03.162 (A) M6X12 FLANGE
0-28050-612-0
02
1
1009-
95
01.240 BOLT; CLIP
03.162 (B) M6X35 FLANGE
0-28650-635-0
01
1
0908-1008
95
01.240 BOLT; CLIP
EURO4 SPECIFICATION(NT4) 03.162 (B) M6X35 FLANGE
0-28650-635-0
01
1
1009-
198
29
29
49
138
22
216
22
49
198
160
29
22
216
22
212
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
01.153 CLIP; WATER HOSE
EURO5 SPECIFICATION(NT5) (A) ID=12.8
8-94367-943-0
02
1
1009-
22
01.153 CLIP; WATER HOSE
EURO5 SPECIFICATION(NT5) (B) ID=11
8-97375-639-0
02
1
1009-
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (B)
8-98075-127-0
01
1
1009-
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
0-95690-338-0
01
1
0908-1008
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (A)
0-95690-338-0
01
1
1009-
29
01.166 CLIP; PIPE
EURO5 SPECIFICATION(NT5) 01.251
8-98120-917-0
03
1
1009-
49
01.153 NUT; WATER PIPE
EURO5 SPECIFICATION(NT5) 01.540 (A) M6 FLANGE
0-91180-206-0
01
1
1009-
49
01.153 NUT; WATER PIPE
EURO5 SPECIFICATION(NT5) 03.613 (B) M8 FLANGE
8-97161-607-0
01
1
1009-
138
01.251 PIPE; WATER
EURO5 SPECIFICATION(NT5)
8-98080-381-2
01
1
1009-1104
138
01.251 PIPE; WATER
EURO5 SPECIFICATION(NT5)
8-98131-462-4
01
1
1105-
160
01.153 NUT; WATER PIPE
EURO5 SPECIFICATION(NT5) 01.540 M6 FLANGE
0-91180-206-0
01
1
1009-
198
01.242 BOLT; PIPE
EURO5 SPECIFICATION(NT5) 03.162 M6X12 FLANGE
0-28050-612-0
02
1
1009-
212
01.153 STUD; PIPE
EURO5 SPECIFICATION(NT5) 03.601 M8X25 L=36
8-97378-062-0
01
1
1009-
216
01.240 HOSE; WATER
EURO5 SPECIFICATION(NT5) (A)
8-98074-982-0
01
1
1009-
216
01.240 HOSE; WATER
EURO5 SPECIFICATION(NT5) 03.342 (B)
8-98113-336-0
01
1
1009-
