◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#5264) — 27 parça

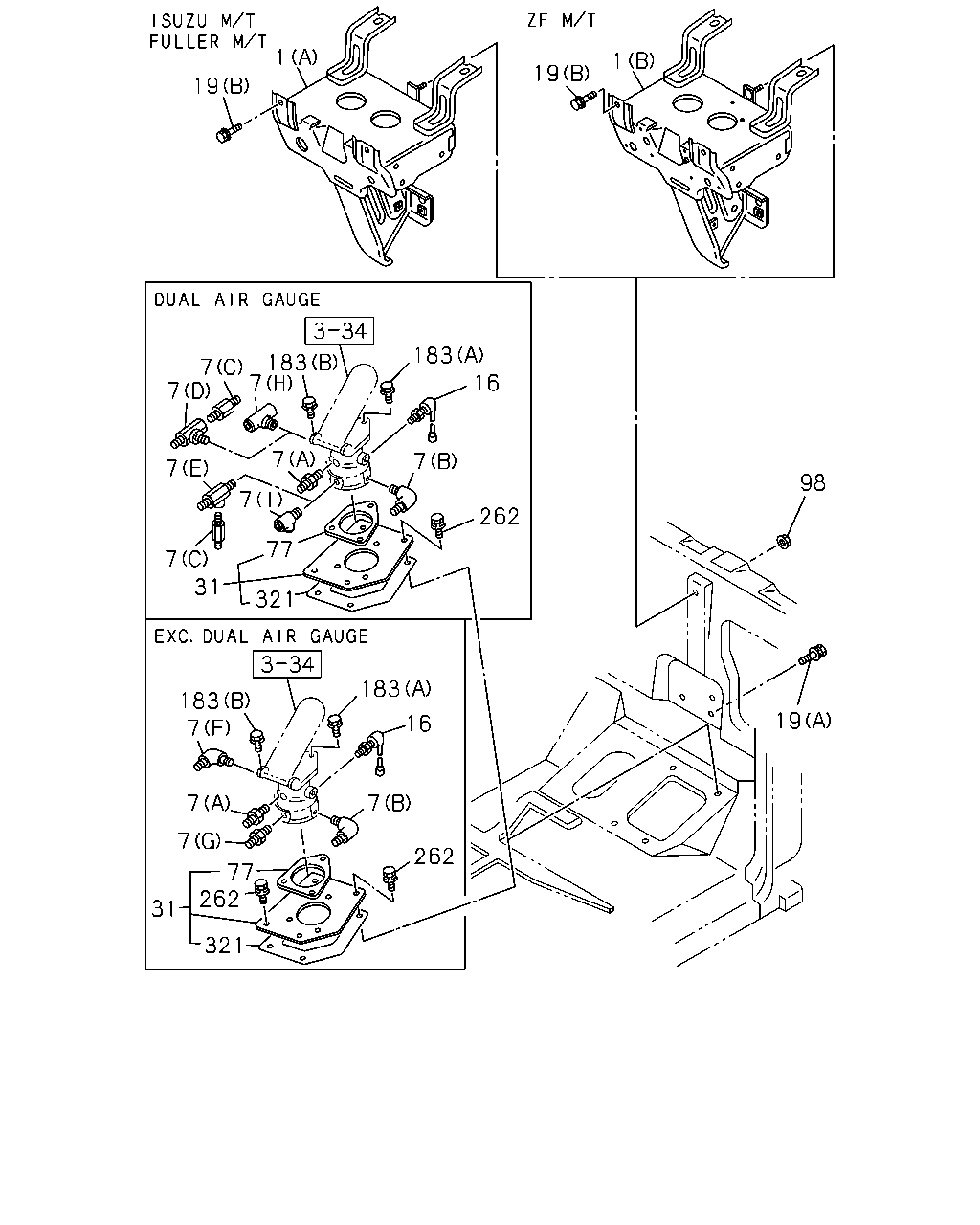

çizim 40710
1 1 19 19 183 16 183 7 7 7 7 7 7 98 7 262 77 7 31 321 183 183 7 19 16 7 7 7 262 77 262 31 321
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-73998-935-9 01 1 9603-9705 ● ●
1 BRACKET ASM; PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) 		1-73908-280-1 01 1 9706- ● ●
1 BRACKET ASM; PEDAL
ZF M/T<X9E> (B) 		1-73907-392-6 01 1 9603- ● ●
7 CONNECTOR; BRK VALVE
(A) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9603-9910 ● ●
7 CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9911- ● ●
7 CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9910 ● ●
7 CONNECTOR; BRK VALVE
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9911- ● ●
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (C) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 02 1 9603-9910 ● ●
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (H) 		1-09661-284-0 01 1 9911- ● ●
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (D) 		1-09660-802-0 01 1 9603-9910 ● ●
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (E) 		1-09660-803-0 01 1 9603-9910 ● ●
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (I) 		1-09661-285-0 01 1 9911- ● ●
7 CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (F) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9603-9910 ● ●
7 CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9911- ● ●
7 CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (G) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 9603-9910 ● ●
7 CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (G) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 9911- ● ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-0 02 1 9603- ● ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 9603- ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9603- ● ●
31 PLATE; MTG,BRKT VLV
DUAL AIR GAUGE<UG2> 		1-73996-271-2 01 1 9603- ● ●
31 PLATE; MTG,BRKT VLV
EXC. DUAL AIR GAUGE<UG2> 		1-73996-329-0 01 1 9603- ● ●
77 RUBBER; SEAL,BRK 1-73996-207-0 01 1 9603- ● ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9603- ● ●
183 BOLT; BRK VLV
(A) M10X25 W/LK WASHER 		1-09980-503-0 01 1 9603- ● ●
183 BOLT; BRK VLV
(B) M10X35 W/LK WASHER 		1-09980-504-0 02 1 9603- ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9603- ● ●
321 SEAL; VALVE 1-73996-143-0 01 1 9603- ● ●
