Isuzu WW
▶
TRUCKS
▶
NLS
▶
51258 - NLS RHD
▶
0 - Engine, Emission, Engine Electrical
▶

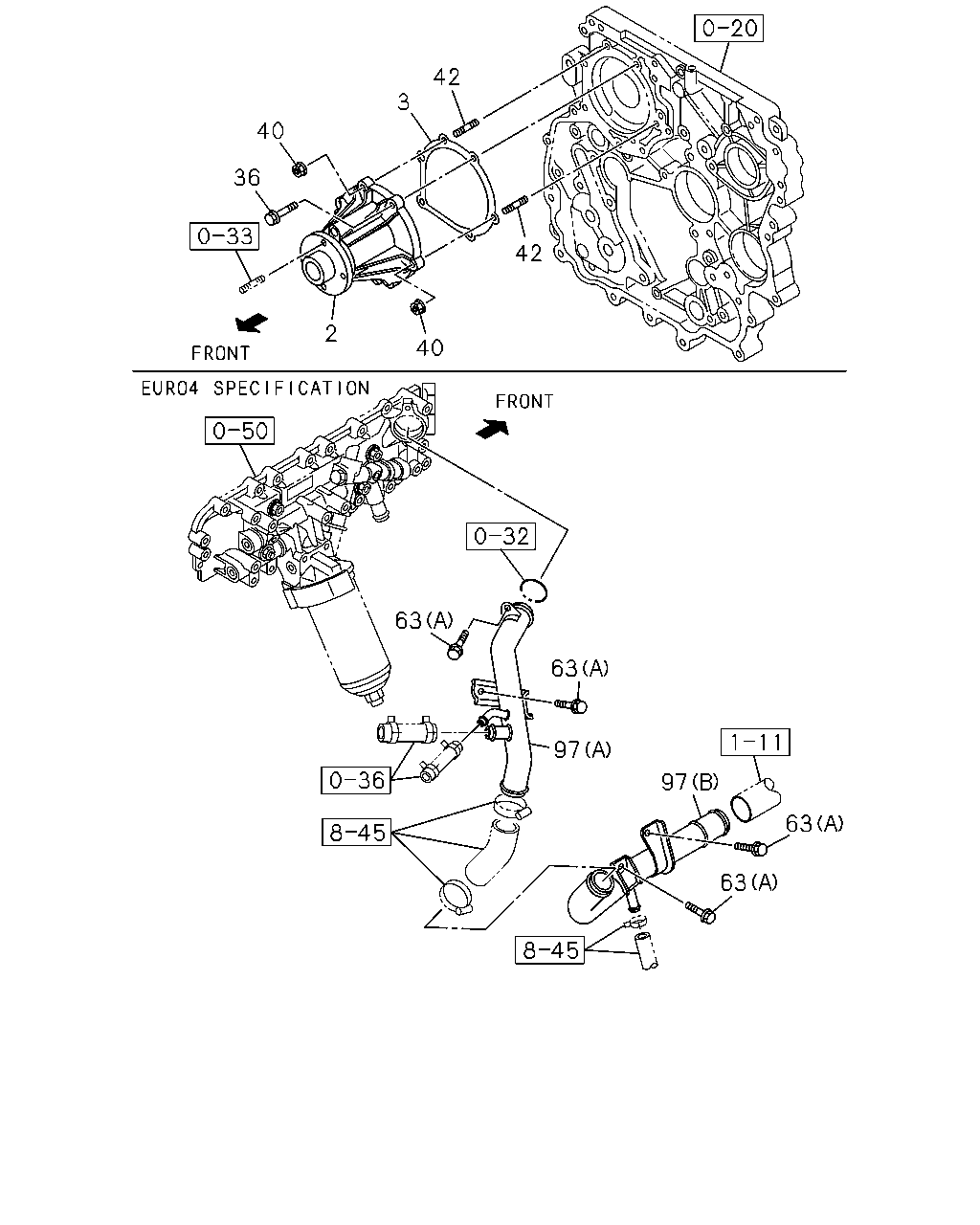

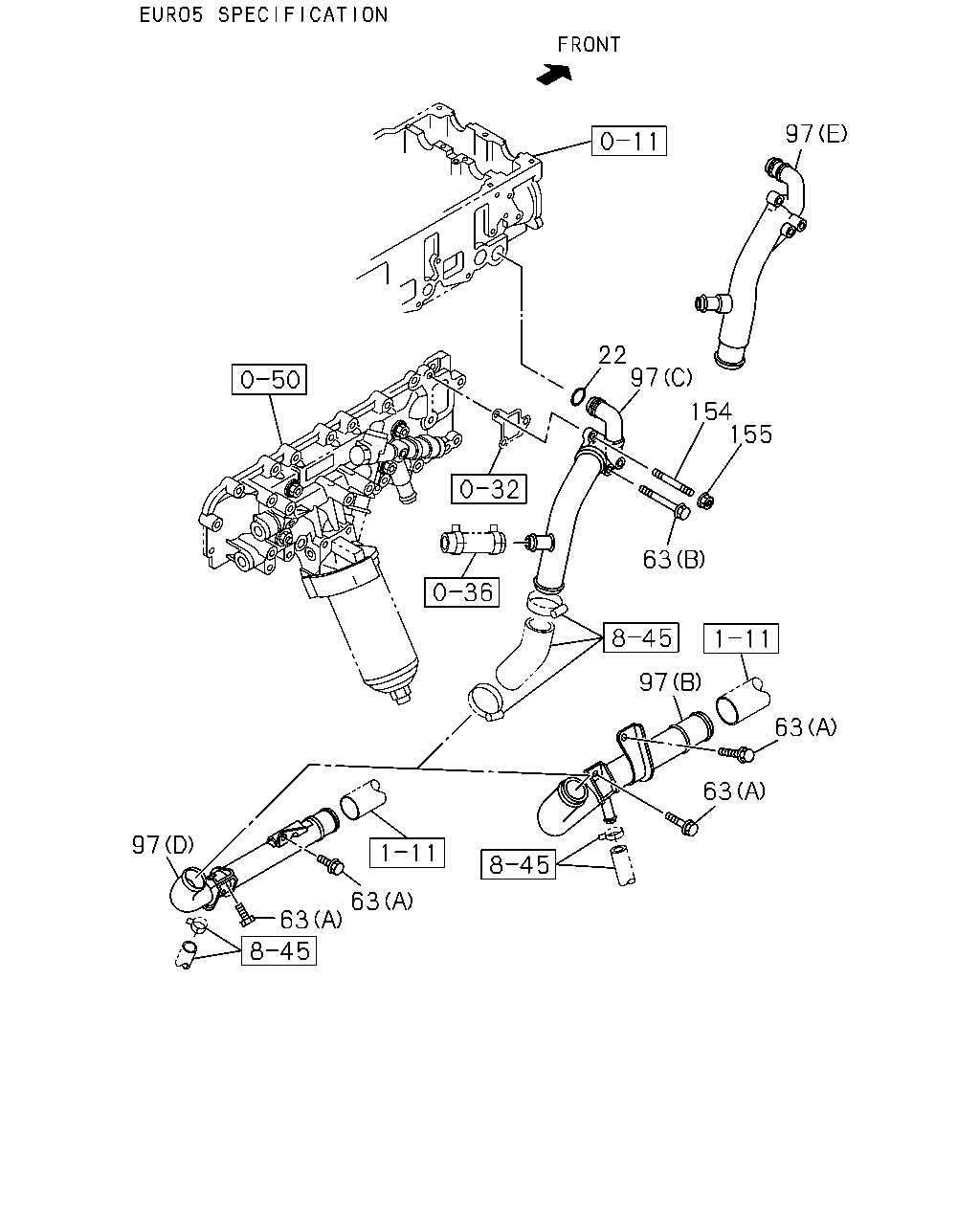

0-30 - WATER PUMP AND CORROSION RESISTOR
▶
0-30 — WATER PUMP AND CORROSION RESISTOR
(#52639) — 34 parça
◀
[030A] NO.1 (18 parça)
[030A] NO.2 (16 parça)
▶
42
3
40
36
2
40
42
63
63
97
97
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
01.069 PUMP ASM; WATER
8-98004-292-3
01
1
0908-
3
01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97312-156-0
01
1
0908-
36
00.386 BOLT; WATER PUMP TO C/BL
04.686 M8X60 FLANGE
0-28050-860-0
04
1
0908-
40
07.874 NUT; WATER PUMP
01.540 M8 FLANGE
0-91180-208-0
02
1
0908-
42
01.073 STUD; WATER PUMP
M8X28 L=40
0-41010-828-0
02
1
0908-
63
01.073 BOLT; INL PIPE
EURO5 SPECIFICATION(NT5) 02.343 (A) M8X16 FLANGE
0-28050-816-0
02
1
1009-
63
01.073 BOLT; INL PIPE
EURO5 SPECIFICATION(NT5) 00.206 (B) M8X70 FLANGE
0-28050-870-0
01
1
1009-
63
01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE
0-28050-816-0
04
1
0908-1008
63
01.073 BOLT; INL PIPE
EURO4 SPECIFICATION(NT4) 02.343 (A) M8X16 FLANGE
0-28050-816-0
04
1
1009-
97
01.097 PIPE; WATER
EURO5 SPECIFICATION(NT5) (D)
8-98152-996-2
01
1
1110-
97
01.097 PIPE; WATER
(B)
8-98009-676-3
01
1
1009-1109
97
01.097 PIPE; WATER
EURO4 SPECIFICATION(NT4) (B)
8-98009-676-3
01
1
1110-
97
01.097 PIPE; WATER
(A)
8-97381-499-2
01
1
0908-1008
97
01.097 PIPE; WATER
EURO4 SPECIFICATION(NT4) (A)
8-97381-499-2
01
1
1009-
97
01.097 PIPE; WATER
(B)
8-98009-676-3
01
1
0908-1008
97
01.097 PIPE; WATER
EURO5 SPECIFICATION(NT5) (C)
8-98074-752-0
01
1
1009-1102
97
01.097 PIPE; WATER
EURO5 SPECIFICATION(NT5) (C)
8-98171-992-0
01
1
1103-1311
97
01.097 PIPE; WATER
EURO5 SPECIFICATION(NT5) (E)
8-98237-773-1
01
1
1312-
97
155
154
97
22
63
97
63
63
63
97
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
01.079 GASKET
EURO5 SPECIFICATION(NT5) 01.159
0-95690-226-0
01
1
1009-
63
01.073 BOLT; INL PIPE
EURO5 SPECIFICATION(NT5) 02.343 (A) M8X16 FLANGE
0-28050-816-0
02
1
1009-
63
01.073 BOLT; INL PIPE
EURO5 SPECIFICATION(NT5) 00.206 (B) M8X70 FLANGE
0-28050-870-0
01
1
1009-
63
01.073 BOLT; INL PIPE
02.343 (A) M8X16 FLANGE
0-28050-816-0
04
1
0908-1008
63
01.073 BOLT; INL PIPE
EURO4 SPECIFICATION(NT4) 02.343 (A) M8X16 FLANGE
0-28050-816-0
04
1
1009-
97
01.097 PIPE; WATER
EURO5 SPECIFICATION(NT5) (D)
8-98152-996-2
01
1
1110-
97
01.097 PIPE; WATER
(B)
8-98009-676-3
01
1
1009-1109
97
01.097 PIPE; WATER
EURO4 SPECIFICATION(NT4) (B)
8-98009-676-3
01
1
1110-
97
01.097 PIPE; WATER
(A)
8-97381-499-2
01
1
0908-1008
97
01.097 PIPE; WATER
EURO4 SPECIFICATION(NT4) (A)
8-97381-499-2
01
1
1009-
97
01.097 PIPE; WATER
(B)
8-98009-676-3
01
1
0908-1008
97
01.097 PIPE; WATER
EURO5 SPECIFICATION(NT5) (C)
8-98074-752-0
01
1
1009-1102
97
01.097 PIPE; WATER
EURO5 SPECIFICATION(NT5) (C)
8-98171-992-0
01
1
1103-1311
97
01.097 PIPE; WATER
EURO5 SPECIFICATION(NT5) (E)
8-98237-773-1
01
1
1312-
154
01.097 STUD; PIPE
EURO5 SPECIFICATION(NT5) 01.780 M8X35 L=47
0-41010-835-0
02
1
1009-
155
01.097 NUT; PIPE
EURO5 SPECIFICATION(NT5) 01.540 M8 FLANGE
0-91180-208-0
02
1
1009-
