Isuzu WW
▶
TRUCKS
▶
NLS
▶
51258 - NLS RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶
0-27 — EXHAUST MANIFOLD
(#52638) — 50 parça
◀

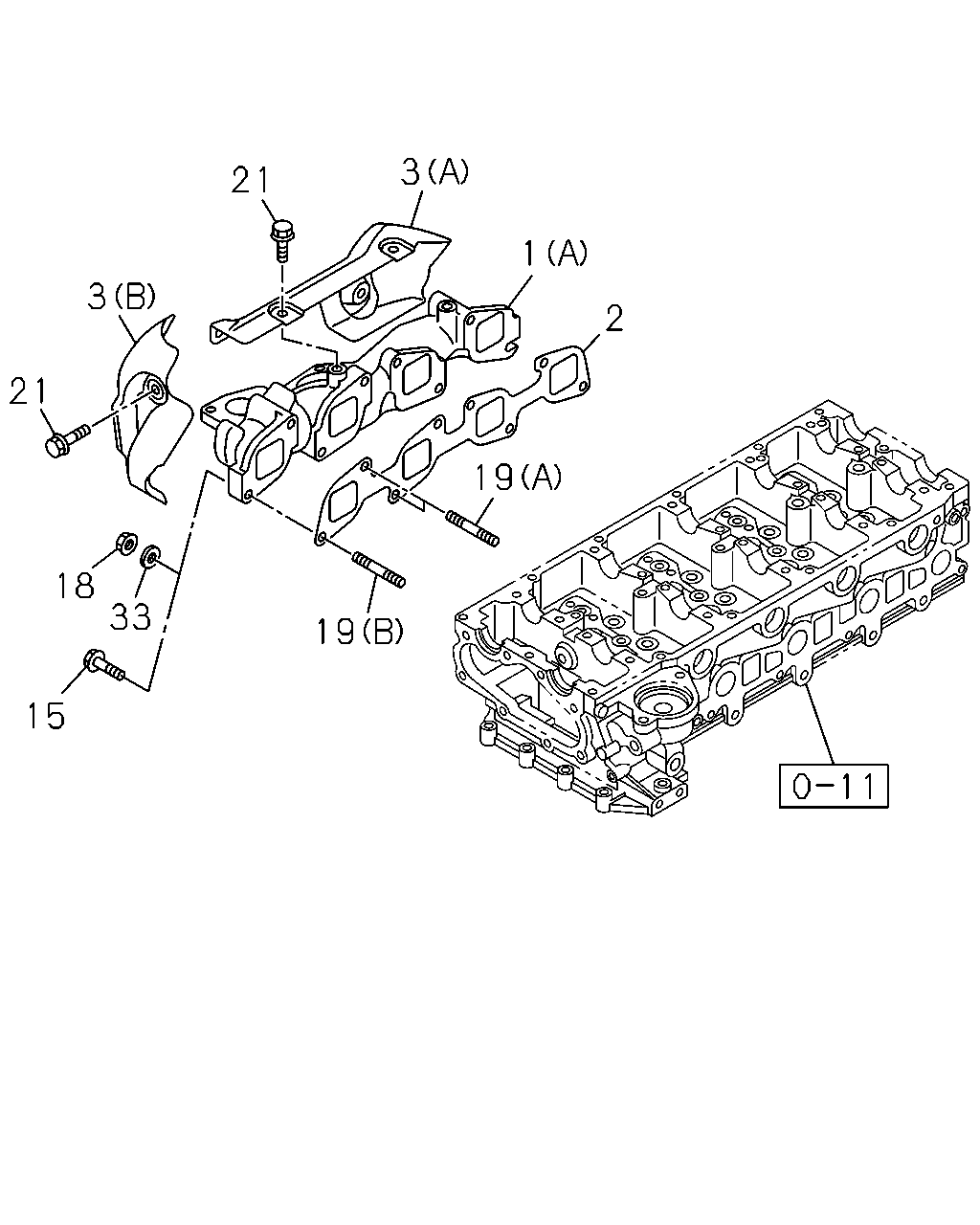

[027A] EURO4 SPECIFICATION (25 parça)

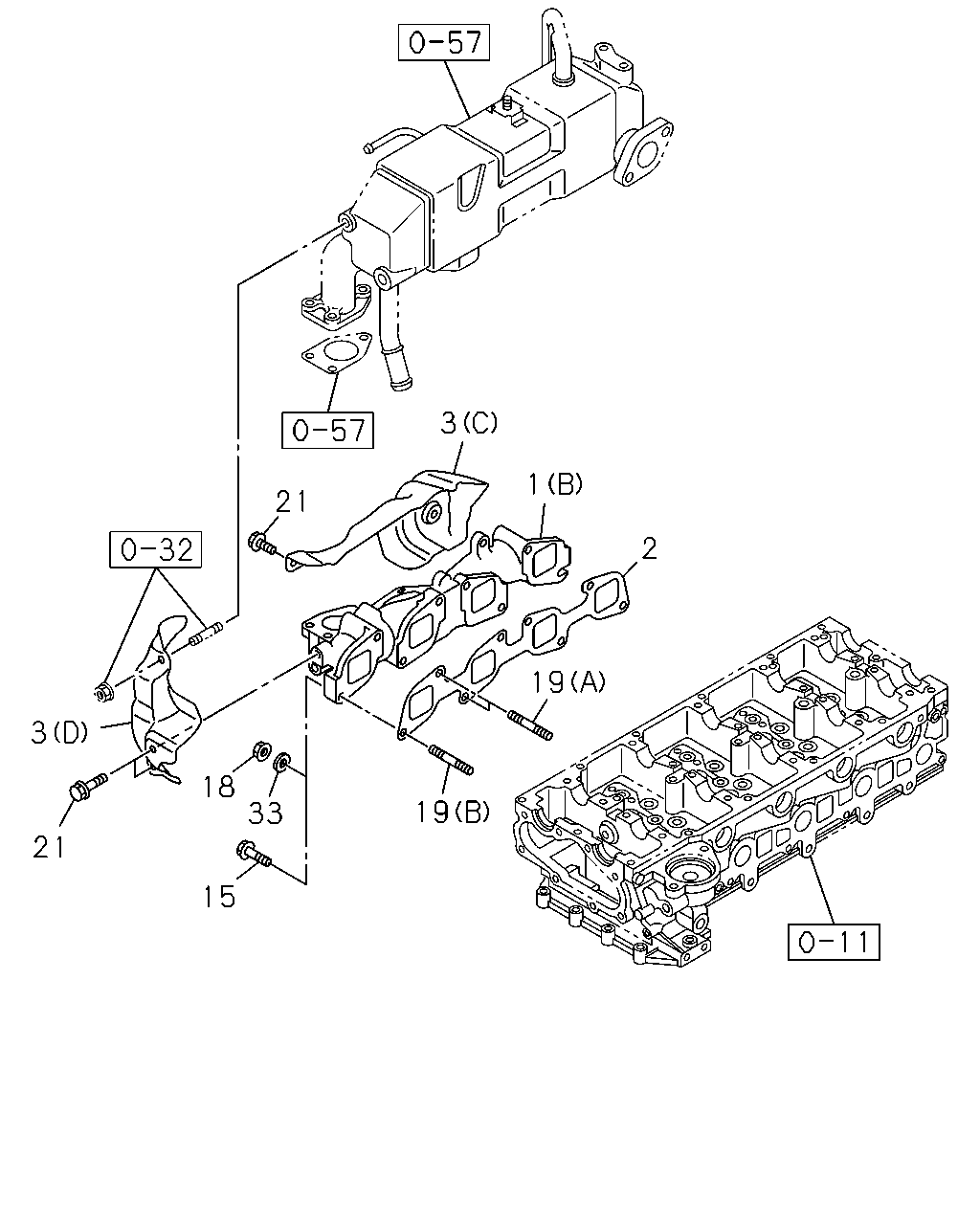

[027A] EURO5 SPECIFICATION (25 parça)
▶
19
19
2
1
3
21
3
21
18
33
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.601 MANIFOLD; EXHAUST
EURO5 SPECIFICATION(NT5) (B)
8-98080-313-0
01
1
1009-1210
1
03.601 MANIFOLD; EXHAUST
EURO5 SPECIFICATION(NT5) (B)
8-98147-698-0
01
1
1211-
1
03.601 MANIFOLD; EXHAUST
(A)
8-98033-941-1
01
1
0908-1008
1
03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4) (A)
8-98033-941-1
01
1
1009-
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97356-028-2
01
1
0908-1204
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98215-752-0
01
1
1205-1312
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98229-782-0
01
1
1401-
3
03.602 PROTECTOR; HEAT,EXH MANIF
EURO5 SPECIFICATION(NT5) (D)
8-98105-030-1
01
1
1009-1309
3
03.602 PROTECTOR; HEAT,EXH MANIF
EURO5 SPECIFICATION(NT5) (D)
8-98231-992-0
01
1
1310-
3
03.602 PROTECTOR; HEAT,EXH MANIF
EURO5 SPECIFICATION(NT5) (C)
8-98105-031-1
01
1
1009-1210
3
03.602 PROTECTOR; HEAT,EXH MANIF
EURO5 SPECIFICATION(NT5) (C)
8-98147-699-0
01
1
1211-
3
03.602 PROTECTOR; HEAT,EXH MANIF
(A)
8-97381-503-4
01
1
0908-1008
3
03.602 PROTECTOR; HEAT,EXH MANIF
EURO4 SPECIFICATION(NT4) (A)
8-97381-503-4
01
1
1009-
3
03.602 PROTECTOR; HEAT,EXH MANIF
(B)
8-98011-523-0
01
1
0908-1008
3
03.602 PROTECTOR; HEAT,EXH MANIF
EURO4 SPECIFICATION(NT4) (B)
8-98011-523-0
01
1
1009-
15
03.604 BOLT; EXH MANIF
M10X30 FLANGE
8-98032-158-0
04
1
1304-
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
08
1
0908-1303
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
04
1
1304-
19
03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48
8-97307-075-2
04
1
0908-1303
19
03.604 STUD; MANIF TO CYL HD
(A) M10X70 L=83
8-98048-446-0
04
1
0908-
21
03.604 BOLT; HEAT PROTECTOR
EURO5 SPECIFICATION(NT5) 02.343 M8X12 FLANGE
0-28050-812-0
06
1
1009-1210
21
03.604 BOLT; HEAT PROTECTOR
EURO5 SPECIFICATION(NT5) 02.343 M8X12 FLANGE
0-28050-812-0
05
1
1211-
21
03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
07
1
0908-1008
21
03.604 BOLT; HEAT PROTECTOR
EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE
0-28050-812-0
07
1
1009-
33
03.604 WASHER; EXH MANIF
03.613 ID=10.5
5-09500-013-0
08
1
0908-
2
1
3
19
19
33
18
15
21
3
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.601 MANIFOLD; EXHAUST
EURO5 SPECIFICATION(NT5) (B)
8-98080-313-0
01
1
1009-1210
1
03.601 MANIFOLD; EXHAUST
EURO5 SPECIFICATION(NT5) (B)
8-98147-698-0
01
1
1211-
1
03.601 MANIFOLD; EXHAUST
(A)
8-98033-941-1
01
1
0908-1008
1
03.601 MANIFOLD; EXHAUST
EURO4 SPECIFICATION(NT4) (A)
8-98033-941-1
01
1
1009-
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97356-028-2
01
1
0908-1204
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98215-752-0
01
1
1205-1312
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98229-782-0
01
1
1401-
3
03.602 PROTECTOR; HEAT,EXH MANIF
EURO5 SPECIFICATION(NT5) (D)
8-98105-030-1
01
1
1009-1309
3
03.602 PROTECTOR; HEAT,EXH MANIF
EURO5 SPECIFICATION(NT5) (D)
8-98231-992-0
01
1
1310-
3
03.602 PROTECTOR; HEAT,EXH MANIF
EURO5 SPECIFICATION(NT5) (C)
8-98105-031-1
01
1
1009-1210
3
03.602 PROTECTOR; HEAT,EXH MANIF
EURO5 SPECIFICATION(NT5) (C)
8-98147-699-0
01
1
1211-
3
03.602 PROTECTOR; HEAT,EXH MANIF
(A)
8-97381-503-4
01
1
0908-1008
3
03.602 PROTECTOR; HEAT,EXH MANIF
EURO4 SPECIFICATION(NT4) (A)
8-97381-503-4
01
1
1009-
3
03.602 PROTECTOR; HEAT,EXH MANIF
(B)
8-98011-523-0
01
1
0908-1008
3
03.602 PROTECTOR; HEAT,EXH MANIF
EURO4 SPECIFICATION(NT4) (B)
8-98011-523-0
01
1
1009-
15
03.604 BOLT; EXH MANIF
M10X30 FLANGE
8-98032-158-0
04
1
1304-
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
08
1
0908-1303
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
04
1
1304-
19
03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48
8-97307-075-2
04
1
0908-1303
19
03.604 STUD; MANIF TO CYL HD
(A) M10X70 L=83
8-98048-446-0
04
1
0908-
21
03.604 BOLT; HEAT PROTECTOR
EURO5 SPECIFICATION(NT5) 02.343 M8X12 FLANGE
0-28050-812-0
06
1
1009-1210
21
03.604 BOLT; HEAT PROTECTOR
EURO5 SPECIFICATION(NT5) 02.343 M8X12 FLANGE
0-28050-812-0
05
1
1211-
21
03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
07
1
0908-1008
21
03.604 BOLT; HEAT PROTECTOR
EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE
0-28050-812-0
07
1
1009-
33
03.604 WASHER; EXH MANIF
03.613 ID=10.5
5-09500-013-0
08
1
0908-
