Isuzu WW
▶
TRUCKS
▶
NLS
▶
51258 - NLS RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶

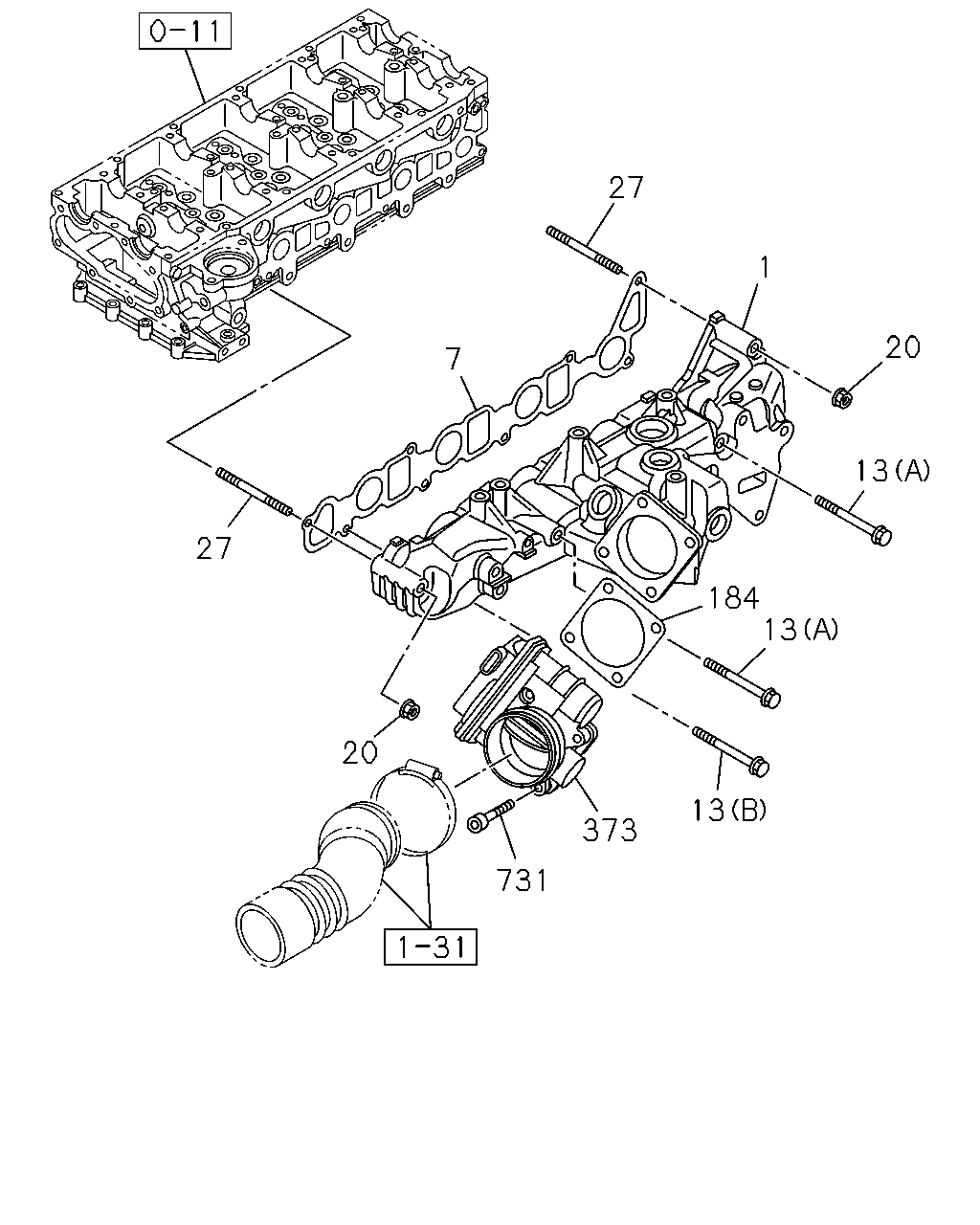

0-25 — INLET MANIFOLD
(#52637) — 10 parça
27
7
27
1
20
13
13
184
13
373
731
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.265 MANIFOLD; INL
8-98024-411-1
01
1
0908-
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98063-396-0
01
1
0908-1211
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98212-999-0
01
1
1212-
13
03.275 BOLT; INL MANIF
(A) M8X110 FLANGE
0-28055-811-0
02
1
0908-
13
03.275 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD
8-97101-065-0
04
1
0908-
20
03.275 NUT; INL MANIF
01.540 M8 FLANGE
0-91180-208-0
02
1
0908-
27
03.275 STUD; INL MANIF
M8X71 L=83
8-98017-063-0
02
1
0908-
184
03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98096-968-0
01
1
0908-
373
03.265 THROTTLE ASM; INT
8-98040-003-4
01
1
0908-
731
02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET
0-58330-650-0
04
1
0908-
