Isuzu WW
▶
TRUCKS
▶
NLS
▶
51258 - NLS RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

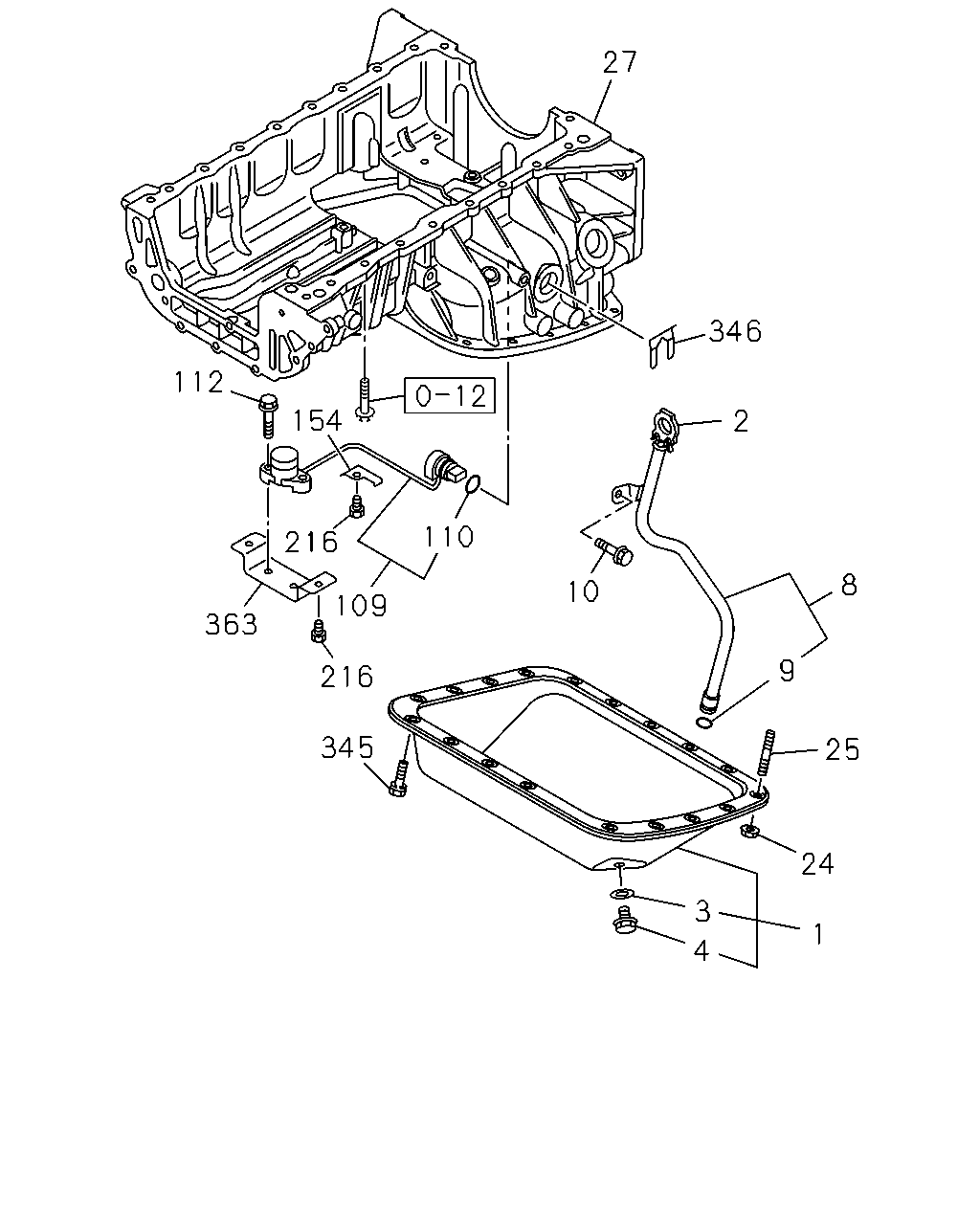

0-13 — OIL PAN AND LEVEL GAUGE
(#52632) — 21 parça
112
154
216
363
109
216
345
110
10
346
27
2
9
8
25
24
3
4
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.426 PAN ASM; OIL
8-97383-069-2
01
1
0908-
2
01.516 GAUGE; OIL LEVEL
8-98112-777-1
01
1
0908-
3
01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
0908-
4
01.453 PLUG; DRAIN,OIL
03.001 M14X14
8-94152-613-0
01
1
0908-
8
01.516 TUBE; GUIDE,OIL LEVEL GAUGE
8-97381-490-3
01
1
0908-
9
01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
01
1
0908-
10
01.516 BOLT; GUIDE TUBE
02.343 M8X12 FLANGE
0-28050-812-0
01
1
0908-
24
01.453 NUT; OIL PAN
01.540 M8 FLANGE
0-91180-208-0
02
1
0908-
25
01.453 STUD; OIL PAN
M8X16 L=28
0-41010-816-0
02
1
0908-1405
25
01.453 STUD; OIL PAN
00.349 M8X20 L=31
8-97945-022-0
02
1
1406-
27
01.426 CRANKCASE
EURO5 SPECIFICATION(NT5)
8-97383-063-6
01
1
1107-
27
01.426 CRANKCASE
8-97383-063-5
01
1
0908-1106
27
01.426 CRANKCASE
EURO4 SPECIFICATION(NT4)
8-97383-063-6
01
1
1107-
109
01.516 SWITCH; OIL LEVEL
8-97328-879-0
01
1
0908-
110
01.456 GASKET; SW,OIL LEVEL
8-98048-191-0
01
1
0908-
112
01.516 BOLT; SW,OIL LEVEL
03.680 M6X30 FLANGE
0-28650-630-0
02
1
0908-
154
01.428 BRACKET; CLIP,ENG HARNESS
8-97386-380-0
01
1
0908-
216
01.429 BOLT; BRKT
02.343 M8X12 FLANGE
0-28050-812-0
03
1
0908-
345
01.516 BOLT; SENSOR,OIL LEVEL
02.343 M8X12 FLANGE
0-28050-812-0
17
1
0908-
346
01.516 CLIP; OIL LEVEL SW
04.047 ID=19.2
8-97211-011-0
01
1
0908-
363
01.516 BRACKET; OIL LEVEL SW
8-97381-486-0
01
1
0908-
