9-01 — TOOLS (#52626) — 95 parça

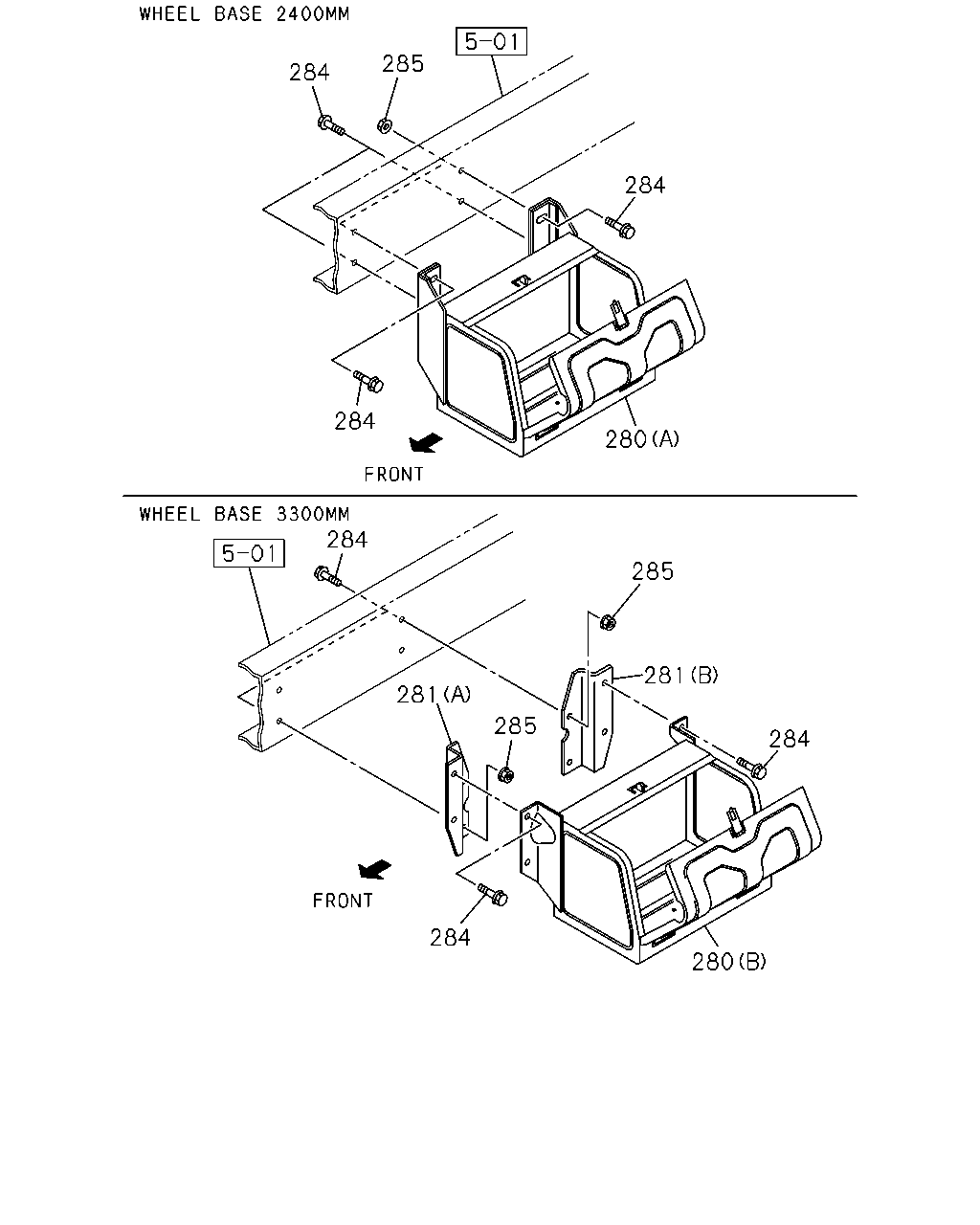

çizim 159867
285 281 284 280 284 285 281 284 280 284 284 285 284
BalonParca AdiParca NoAdetTipApplied Date
280 08.821 BOX; TOOL
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> (A) 		8-98054-885-0 01 1 0907-
280 08.821 BOX; TOOL
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-97384-079-0 01 1 0907-
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 0907-
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 0907-
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0907-
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0907-
285 08.821 NUT; TOOL BOX
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907-
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0907-

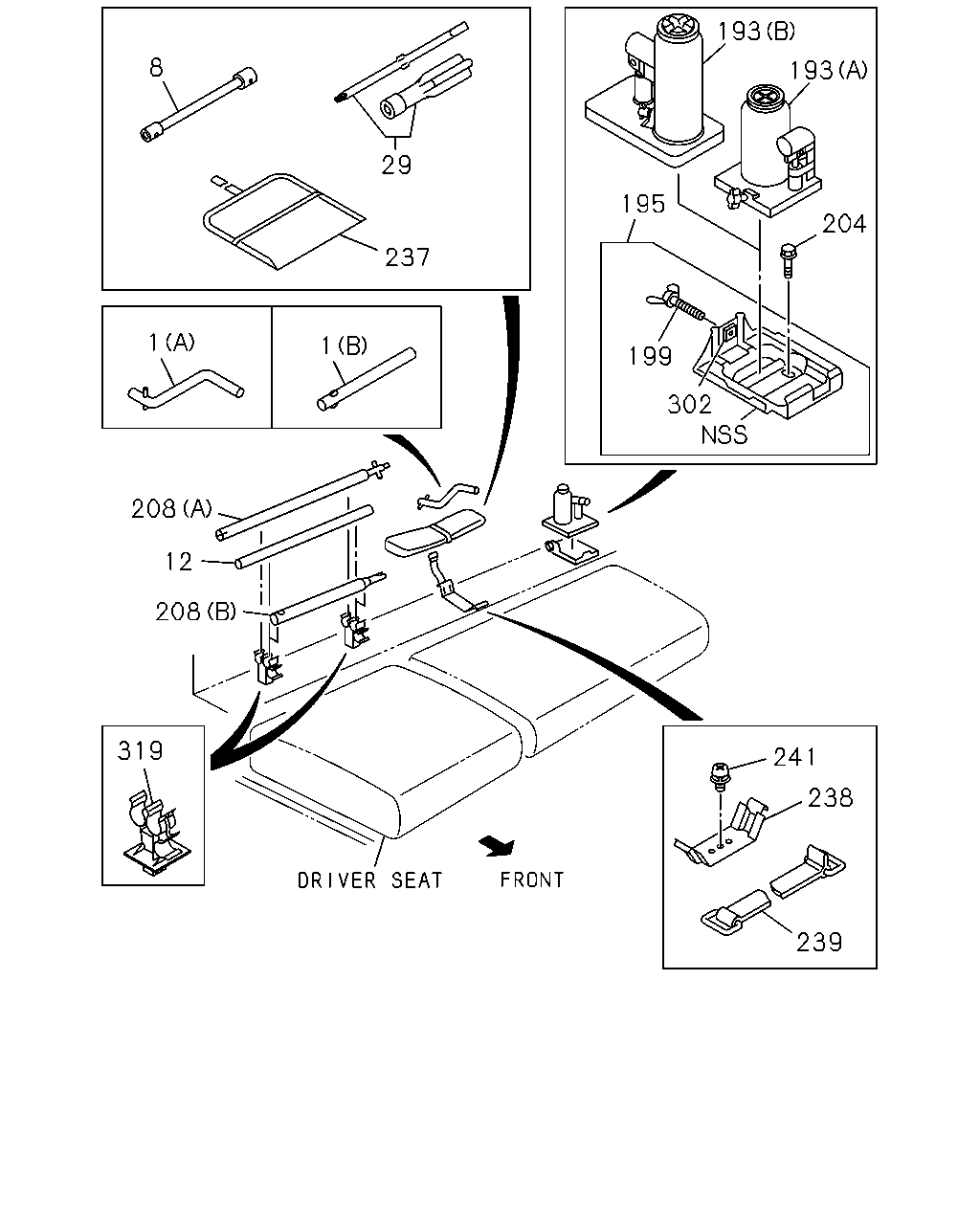

çizim 159869
237 1 1 8 29 208 208 12 319 302 241 238 239 199 204 195 193 193
BalonParca AdiParca NoAdetTipApplied Date
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0907-0910
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0907-0910
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0911-1003
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0911-1003
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 1004-1108
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 1004-1108
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1109-1111
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1109-1111
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EXC. SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1112-1204
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1112-1204
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1205-
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1205-
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 0907-1111
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 1112-1204
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 1205-
8 08.821 WRENCH; WHEEL
B=41X19 L=330 		8-94386-490-1 01 1 0907-0909
8 08.821 WRENCH; WHEEL
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) B=41X19 L=330 		8-94386-490-1 01 1 0910-0910
8 08.821 WRENCH; WHEEL
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) B=41X19 L=330 		8-94386-490-1 01 1 0911-1003
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) B=41X19 L=330 		8-94386-490-1 01 1 1004-1111
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) B=41X19 L=330 		8-94386-490-1 01 1 1112-1204
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) B=41X19 L=330 		8-94386-490-1 01 1 1205-
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> OD=25 L=590 		8-97332-988-0 01 1 0907-1001
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1111
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1112-1204
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1205-1407
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> OD=25 L=480 		8-98257-407-0 01 1 1408-
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0907-0909
29 08.821 DRIVER; SCREW
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) <+>,<-> L=160 		8-94242-798-1 01 1 0910-0910
29 08.821 DRIVER; SCREW
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) <+>,<-> L=160 		8-94242-798-1 01 1 0911-1003
29 08.821 DRIVER; SCREW
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) <+>,<-> L=160 		8-94242-798-1 01 1 1004-1111
29 08.821 DRIVER; SCREW
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) <+>,<-> L=160 		8-94242-798-1 01 1 1112-1204
29 08.821 DRIVER; SCREW
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) <+>,<-> L=160 		8-94242-798-1 01 1 1205-
193 08.820 JACK ASM
AUSTRALIA EQUIPMENT(B13) FRT INDEPENDENT SUSPENSION(FF0) (A) 4TON 		8-94438-020-3 01 1 1004-
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) EXC. AUSTRALIA EQUIPMENT(B13),SUSPENSION -RR UNDER SLUNG<V4U> (A) 4TON 		8-98090-823-0 01 1 1004-1108
193 08.820 JACK ASM
SUSPENSION - RR UNDER SLUNG<V4U> EXC. AUSTRALIA EQUIPMENT(B13) (A) 4TON 		8-98090-823-0 01 1 1004-1108
193 08.820 JACK ASM
HONG KONG EQUIPMENT(B14) FRT INDEPENDENT SUSPENSION(FF0) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 4TON 		8-98090-823-0 01 1 1109-1311
193 08.820 JACK ASM
HONG KONG EQUIPMENT(B14) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 4TON 		8-98090-823-0 01 1 1109-1311
193 08.820 JACK ASM
HONG KONG EQUIPMENT(B14) FRT INDEPENDENT SUSPENSION(FF0) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) 4TON 		8-98239-828-0 01 1 1312-
193 08.820 JACK ASM
HONG KONG EQUIPMENT(B14) SUSPENSION - RR UNDER SLUNG<V4U> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 4TON 		8-98239-828-0 01 1 1312-
193 08.820 JACK ASM
AUSTRALIA EQUIPMENT(B13) (B) 4TON 		8-94438-019-2 01 1 0910-1003
193 08.820 JACK ASM
AUSTRALIA EQUIPMENT(B13) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 4TON 		8-94438-019-2 01 1 1004-1108
193 08.820 JACK ASM
(A) 4TON 		8-98012-285-0 01 1 0907-0909
193 08.820 JACK ASM
EXC. AUSTRALIA EQUIPMENT(B13) (A) 4TON 		8-98012-285-0 01 1 0910-1003
193 08.820 JACK ASM
EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0),SUSPENSION - RR UNDER SLUNG<V4U> (A) 4TON 		8-98012-285-0 01 1 1004-1108
193 08.820 JACK ASM
HONG KONG EQUIPMENT(B14) EXC. FRT INDEPENDENT SUSPENSION(FF0), SUSPENSION - RR UNDER SLUNG<V4U> (A) 4TON 		8-98012-285-0 01 1 1109-
195 08.820 BRACKET; JACK
AUSTRALIA EQUIPMENT(B13) FRT INDEPENDENT SUSPENSION(FF0) 		8-98034-916-0 01 1 1004-
195 08.820 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(FF0) EXC. AUSTRALIA EQUIPMENT(B13),SUSPENSION -RR UNDER SLUNG<V4U> 		8-97589-376-2 01 1 1004-
195 08.820 BRACKET; JACK
SUSPENSION - RR UNDER SLUNG<V4U> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97589-376-2 01 1 1004-
195 08.820 BRACKET; JACK
AUSTRALIA EQUIPMENT(B13) 		8-98034-917-0 01 1 0910-1003
195 08.820 BRACKET; JACK
AUSTRALIA EQUIPMENT(B13) EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98034-917-0 01 1 1004-
195 08.820 BRACKET; JACK 8-98033-737-2 01 1 0907-0909
195 08.820 BRACKET; JACK
EXC. AUSTRALIA EQUIPMENT(B13) 		8-98033-737-2 01 1 0910-1003
195 08.820 BRACKET; JACK
EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98033-737-2 01 1 1004-
199 08.820 BOLT; JACK
AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-98005-536-0 01 1 0910-1003
199 08.820 BOLT; JACK
AUSTRALIA EQUIPMENT(B13) EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING 		8-98005-536-0 01 1 1004-
199 08.820 BOLT; JACK
FRT INDEPENDENT SUSPENSION(FF0) EXC. AUSTRALIA EQUIPMENT(B13),SUSPENSION -RR UNDER SLUNG<V4U> M8X30 WING 		8-98005-536-0 01 1 1004-
199 08.820 BOLT; JACK
SUSPENSION - RR UNDER SLUNG<V4U> EXC. AUSTRALIA EQUIPMENT(B13) M8X30 WING 		8-98005-536-0 01 1 1004-
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 0907-0909
199 08.820 BOLT; JACK
EXC. AUSTRALIA EQUIPMENT(B13) M8X50 WING 		8-98005-537-0 01 1 0910-1003
199 08.820 BOLT; JACK
AUSTRALIA EQUIPMENT(B13) FRT INDEPENDENT SUSPENSION(FF0) M8X50 WING 		8-98005-537-0 01 1 1004-
199 08.820 BOLT; JACK
EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0),SUSPENSION - RR UNDER SLUNG<V4U> M8X50 WING 		8-98005-537-0 01 1 1004-
204 08.820 BOLT; BRKT,JACK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907-
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0907-0910
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0907-0910
208 08.820 HANDLE; JACK
EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0911-1003
208 08.820 HANDLE; JACK
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0911-1003
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 1004-1108
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 1004-1108
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1109-1111
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1109-1111
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1112-1204
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1112-1204
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1205-
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1205-
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-97217-800-0 01 1 0907-1108
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-98181-477-0 01 1 1109-
237 08.821 BAG; TOOL 8-97130-903-0 01 1 0907-0909
237 08.821 BAG; TOOL
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) 		8-97130-903-0 01 1 0910-0910
237 08.821 BAG; TOOL
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) 		8-97130-903-0 01 1 0911-1003
237 08.821 BAG; TOOL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) 		8-97130-903-1 01 1 1004-1111
237 08.821 BAG; TOOL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 		8-97130-903-1 01 1 1112-1204
237 08.821 BAG; TOOL
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J -116.5 5-WHL/NUT(CVU) 		8-97130-903-1 01 1 1205-
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0907-
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0907-
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0907-
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 0907-
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0907-
