8-73 — BLOWER UNIT (#52622) — 85 parça

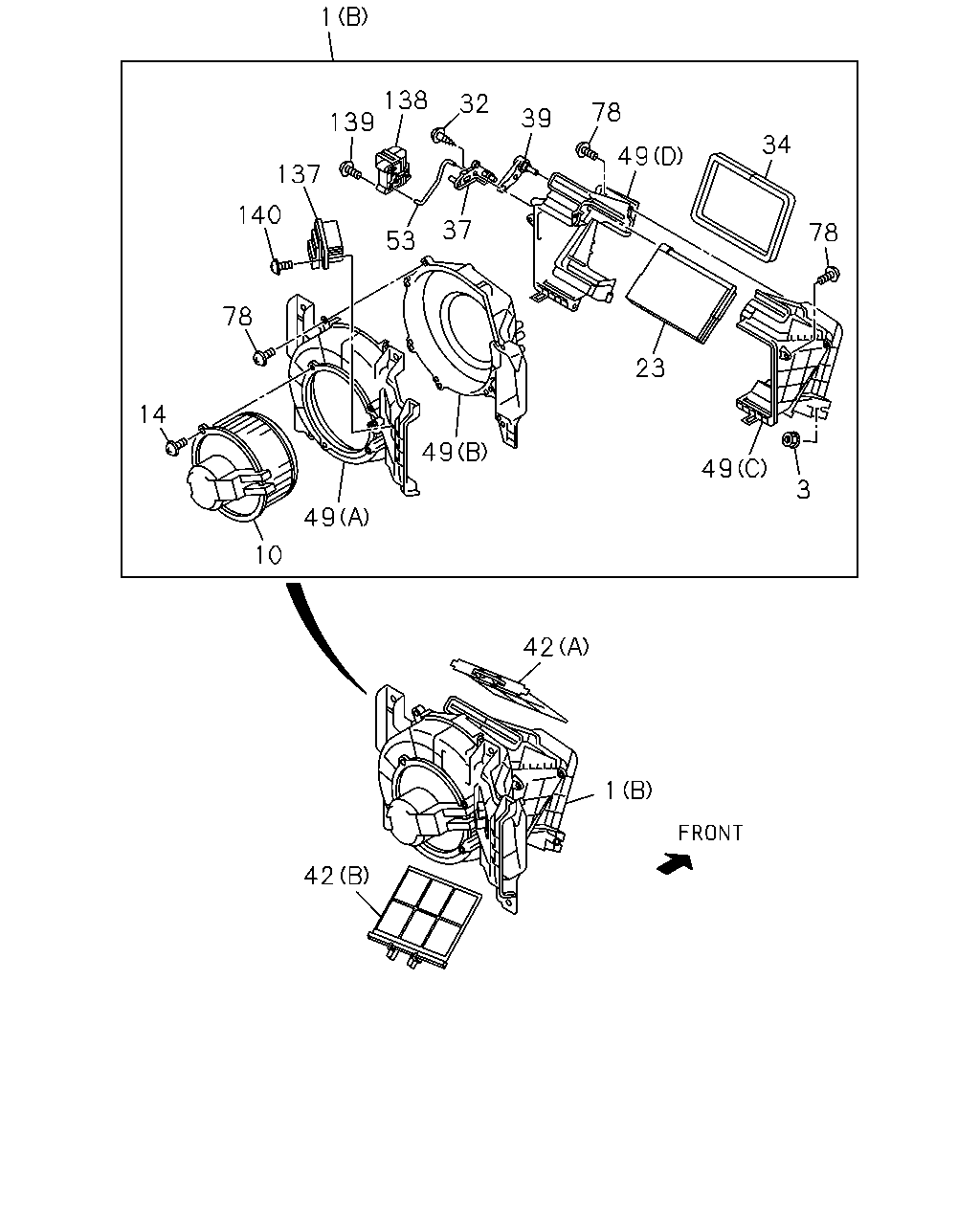

1 139 137 140 78 14 10 49 49 53 138 39 32 37 78 23 49 49 34 78 3 1 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	08.855 BLOWER ASM FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-977-3	01	1	0910-1012
1	08.855 BLOWER ASM FULLAUTO AIR CONDITIONER(C68) (B)	8-98183-591-0	01	1	1101-
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-976-3	01	1	0907-1012
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98183-589-0	01	1	1101-
3	08.855 NUT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-419-0	02	1	0907-0909
3	08.855 NUT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-419-0	02	1	0910-1012
3	08.855 NUT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.190 M6	1-83539-354-0	02	1	1101-
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-767-0	01	1	0907-0909
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-767-0	01	1	0910-1012
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98183-924-0	01	1	1101-
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16	8-98047-448-0	03	1	0907-0909
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M5X16	8-98047-448-0	03	1	0910-
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-437-0	01	1	0907-0909
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-437-0	01	1	0910-
32	08.856 SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	01	1	0907-0909
32	08.856 SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16	8-98047-416-0	01	1	0910-
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-430-0	01	1	0907-0909
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-430-0	01	1	0910-
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-436-0	01	1	0907-0909
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-436-0	01	1	0910-
39	09.786 LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-435-0	01	1	0907-0909
39	09.786 LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-435-0	01	1	0910-
42	08.857 FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97387-096-1	01	1	0907-0909
42	08.857 FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97387-096-1	01	1	0910-
42	08.857 FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98025-006-1	01	1	0907-0909
42	08.857 FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98025-006-1	01	1	0910-
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-440-0	01	1	0907-0909
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-440-0	01	1	0910-
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-441-0	01	1	0907-0909
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-441-0	01	1	0910-
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98047-442-0	01	1	0907-0909
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98047-442-0	01	1	0910-
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98047-443-0	01	1	0907-0909
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98047-443-0	01	1	0910-
53	08.856 ROD; ACTUATOR,BLOWER UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-456-0	01	1	0910-
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 M4X16	8-98047-418-0	15	1	0907-0909
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.845 M4X16	8-98047-418-0	15	1	0910-1012
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	15	1	1101-
137	08.855 MODULE ASM; BLOWER FULLAUTO AIR CONDITIONER(C68)	8-98047-458-0	01	1	0910-
138	08.855 SERVO ASM; BLOWER FULLAUTO AIR CONDITIONER(C68)	8-98045-383-0	01	1	0910-
139	09.782 SCREW; SERVO FULLAUTO AIR CONDITIONER(C68) M4X35	8-98047-455-0	03	1	0910-
140	08.857 SCREW; MODULE FULLAUTO AIR CONDITIONER(C68) 08.845 M4X16	8-98047-418-0	02	1	0910-1012
140	08.857 SCREW; MODULE FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	02	1	1101-

1 38 49 78 39 34 78 23 49 37 3 49 49 10 14 78 105 104 42 32 1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	08.855 BLOWER ASM FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-977-3	01	1	0910-1012
1	08.855 BLOWER ASM FULLAUTO AIR CONDITIONER(C68) (B)	8-98183-591-0	01	1	1101-
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-976-3	01	1	0907-1012
1	08.855 BLOWER ASM HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98183-589-0	01	1	1101-
3	08.855 NUT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-419-0	02	1	0907-0909
3	08.855 NUT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-419-0	02	1	0910-1012
3	08.855 NUT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.190 M6	1-83539-354-0	02	1	1101-
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-767-0	01	1	0907-0909
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-767-0	01	1	0910-1012
10	08.855 MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98183-924-0	01	1	1101-
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16	8-98047-448-0	03	1	0907-0909
14	08.857 SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) M5X16	8-98047-448-0	03	1	0910-
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-437-0	01	1	0907-0909
23	08.857 SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-437-0	01	1	0910-
32	08.856 SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	01	1	0907-0909
32	08.856 SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16	8-98047-416-0	01	1	0910-
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-430-0	01	1	0907-0909
34	08.856 LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-430-0	01	1	0910-
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-436-0	01	1	0907-0909
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-436-0	01	1	0910-
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-432-0	01	1	0907-1012
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854	8-98047-417-0	01	1	1101-
39	09.786 LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-435-0	01	1	0907-0909
39	09.786 LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-435-0	01	1	0910-
42	08.857 FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97387-096-1	01	1	0907-0909
42	08.857 FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97387-096-1	01	1	0910-
42	08.857 FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98025-006-1	01	1	0907-0909
42	08.857 FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98025-006-1	01	1	0910-
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-440-0	01	1	0907-0909
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-440-0	01	1	0910-
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-441-0	01	1	0907-0909
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-441-0	01	1	0910-
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98047-442-0	01	1	0907-0909
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98047-442-0	01	1	0910-
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98047-443-0	01	1	0907-0909
49	08.857 CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98047-443-0	01	1	0910-
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 M4X16	8-98047-418-0	15	1	0907-0909
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.845 M4X16	8-98047-418-0	15	1	0910-1012
78	08.857 SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	15	1	1101-
104	08.855 RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-113-0	01	1	0907-
105	08.855 SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 M4X16	8-98047-418-0	02	1	0907-1012
105	08.855 SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	02	1	1101-
