Isuzu WW
▶
TRUCKS
▶
NMR
▶
51250 - NMR85(RHD)EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-71 - COMPRESSOR; AIR CONDITIONING
▶

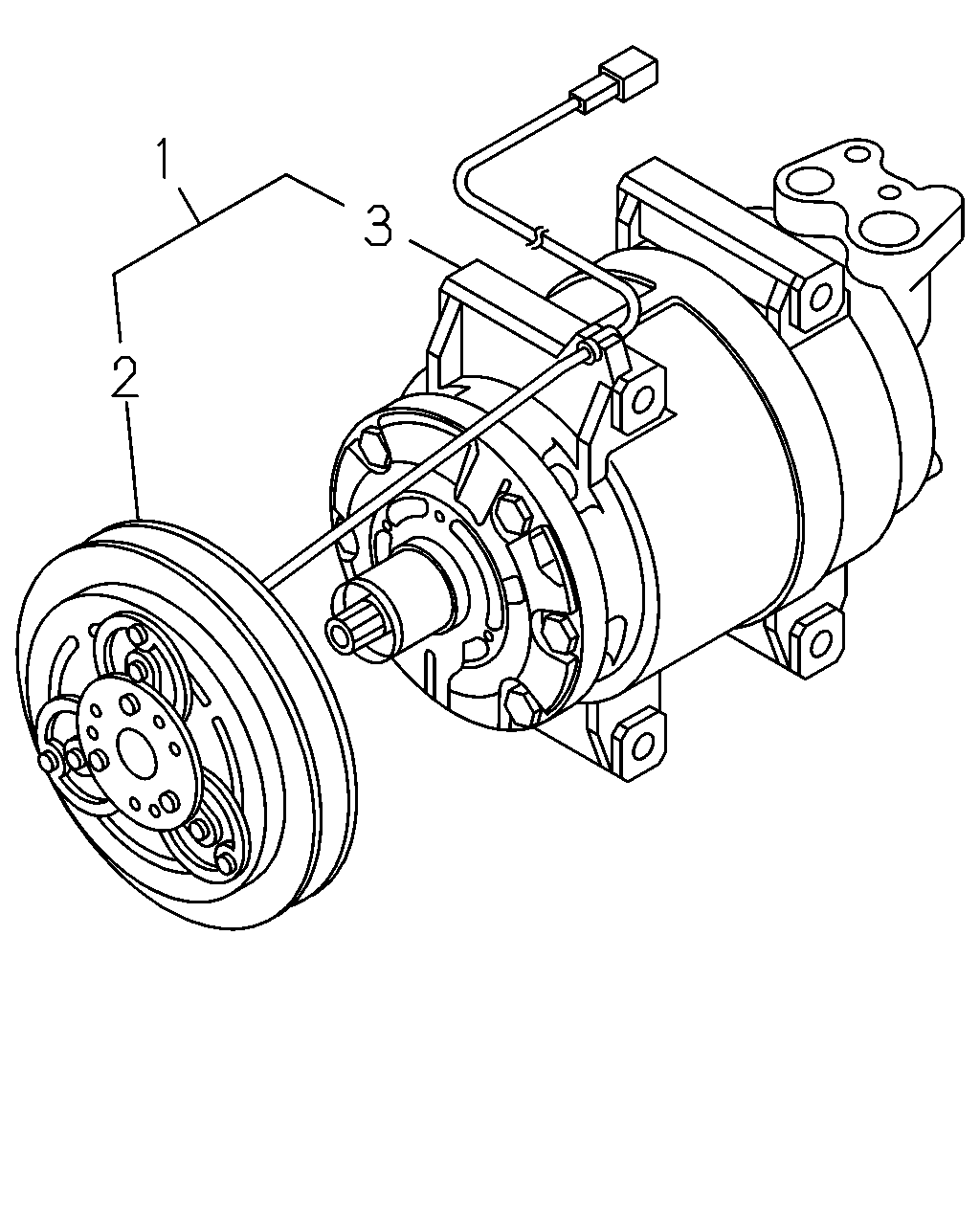

8-71 — COMPRESSOR; AIR CONDITIONING
(#52621) — 8 parça
1
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98000-988-2
01
1
0907-0909
1
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) VALEO
8-98000-988-2
01
1
0910-1211
1
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) VALEO
8-98214-324-0
01
1
1212-1410
1
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) VALEO
8-98286-199-0
01
1
1411-
2
09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98208-772-0
01
1
0907-0909
2
09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)
8-98208-772-1
01
1
0910-
3
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98042-531-1
01
1
0907-0909
3
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)
8-98042-531-1
01
1
0910-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
