◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 3 - Brakes, Brake System ▶ 3-08B - PARKING BRAKE ▶
3-08B — PARKING BRAKE (#5262) — 90 parça

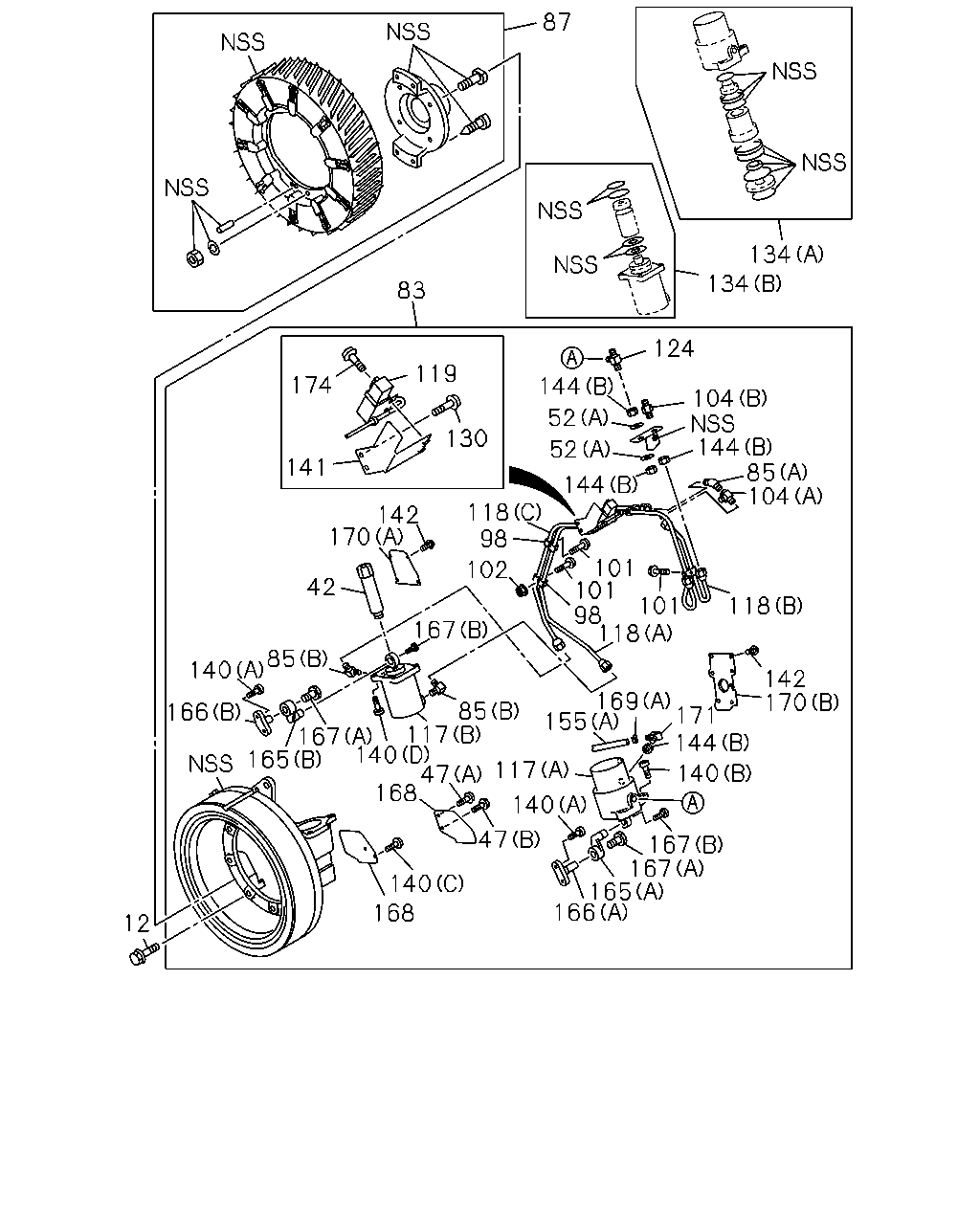

çizim 5230
87 134 134 83 124 119 144 174 104 144 85 104 52 130 52 141 144 118 98 142 170 101 101 101 98 118 102 42 118 167 85 171 144 140 142 170 169 155 85 167 117 140 165 47 168 166 117 140 140 47 167 167 165 166 140 168 12
BalonParca AdiParca NoAdetTipApplied Date
12 BOLT; FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE 		0-28791-235-0 08 1 9707-9904
12 BOLT; FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE 		0-28791-235-0 08 1 9905-
42 SPRING; RETURN,LEVER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-071-1 01 1 9707-9904
42 SPRING; RETURN,LEVER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-071-1 01 1 9905-
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X10 HEX SOCKET 		1-48629-133-0 01 1 9707-9904
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X10 HEX SOCKET 		1-48629-133-0 01 1 9905-
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET 		1-48629-145-0 01 1 9707-9904
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET 		1-48629-145-0 01 1 9905-
52 WASHER; PL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26 		9-09160-612-0 02 1 9707-9904
83 RETARDER ASM; PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-46200-245-2 01 1 9707-9904
83 RETARDER ASM; PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-46200-245-3 01 1 9905-
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-150-0 01 1 9707-9904
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-150-0 01 1 9905-
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8 		9-09224-306-2 02 1 9707-9904
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8 		9-09224-306-2 02 1 9905-
87 DRUM; RETARDER,PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-46210-269-1 01 1 9707-9904
87 DRUM; RETARDER,PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-46210-269-3 01 1 9905-
98 CLIP; AIR PIPE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-131-0 06 1 9707-9904
98 CLIP; AIR PIPE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-131-0 06 1 9905-
101 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X18 		1-48629-134-0 03 1 9707-9904
101 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X18 		1-48629-134-0 03 1 9905-
102 NUT; CLIP,AIR PIPE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		5-09440-004-0 01 1 9707-9904
102 NUT; CLIP,AIR PIPE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		5-09440-004-0 01 1 9905-
104 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-149-0 01 1 9707-9904
104 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-149-0 01 1 9905-
104 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-187-0 01 1 9707-9904
104 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-187-0 01 1 9905-
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-142-0 01 1 9707-9904
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-142-0 01 1 9905-
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-146-0 01 1 9707-9904
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-146-0 01 1 9905-
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-49115-875-0 01 1 9707-9904
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-49115-875-0 01 1 9905-
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) 		1-49115-877-0 01 1 9707-9904
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) 		1-49115-877-0 01 1 9905-
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-49118-551-0 01 1 9707-9904
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-49118-551-0 01 1 9905-
119 SWITCH; THERMO
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82450-054-0 01 1 9707-9904
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-188-0 01 1 9707-9904
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-188-0 01 1 9905-
130 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET 		1-48629-145-0 01 1 9707-9904
130 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET 		1-48629-145-0 01 1 9905-
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-137-0 01 1 9707-9904
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-137-0 01 1 9905-
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-138-0 01 1 9707-9904
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-138-0 01 1 9905-
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20 		1-48629-070-0 04 1 9707-9904
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-104-0 03 1 9707-9904
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-104-0 03 1 9905-
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET 		1-48629-133-0 01 1 9707-9904
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET 		1-48629-133-0 01 1 9905-
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) 		1-48629-148-0 04 1 9707-9904
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) 		1-48629-148-0 04 1 9905-
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20 		1-48629-070-0 04 1 9905-
141 BRACKET
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-111-2 01 1 9707-9904
141 BRACKET
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-111-2 01 1 9905-
142 SCREW
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD 		9-93490-510-0 11 1 9707-9904
142 SCREW
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD 		9-93490-510-0 11 1 9905-
144 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 		9-09840-280-0 04 1 9707-9904
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-092-0 01 1 9707-9904
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9707-9904
165 LINK; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-140-0 01 1 9707-9904
165 LINK; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-140-0 01 1 9905-
165 LINK; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-141-0 01 1 9707-9904
165 LINK; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-141-0 01 1 9905-
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-066-0 01 1 9707-9904
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-066-0 01 1 9905-
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-067-0 01 1 9707-9904
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-067-0 01 1 9905-
167 STOPPER; LINKAGE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-069-0 02 1 9707-9904
167 STOPPER; LINKAGE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-069-0 02 1 9905-
167 STOPPER; LINKAGE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-127-0 02 1 9707-9904
167 STOPPER; LINKAGE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-127-0 02 1 9905-
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-190-0 02 1 9707-9904
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-190-0 02 1 9905-
169 CLAMP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-126-0 01 1 9707-9904
169 CLAMP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-126-0 01 1 9905-
170 COVER; CASE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-063-0 01 1 9707-9904
170 COVER; CASE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-063-0 01 1 9905-
170 COVER; CASE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-240-0 01 1 9707-9904
170 COVER; CASE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-240-0 01 1 9905-
171 BREATHER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-144-0 01 1 9707-9904
174 BOLT; SWITCH
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET 		1-48629-133-0 02 1 9707-9904
174 BOLT; SWITCH
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET 		1-48629-133-0 02 1 9905-

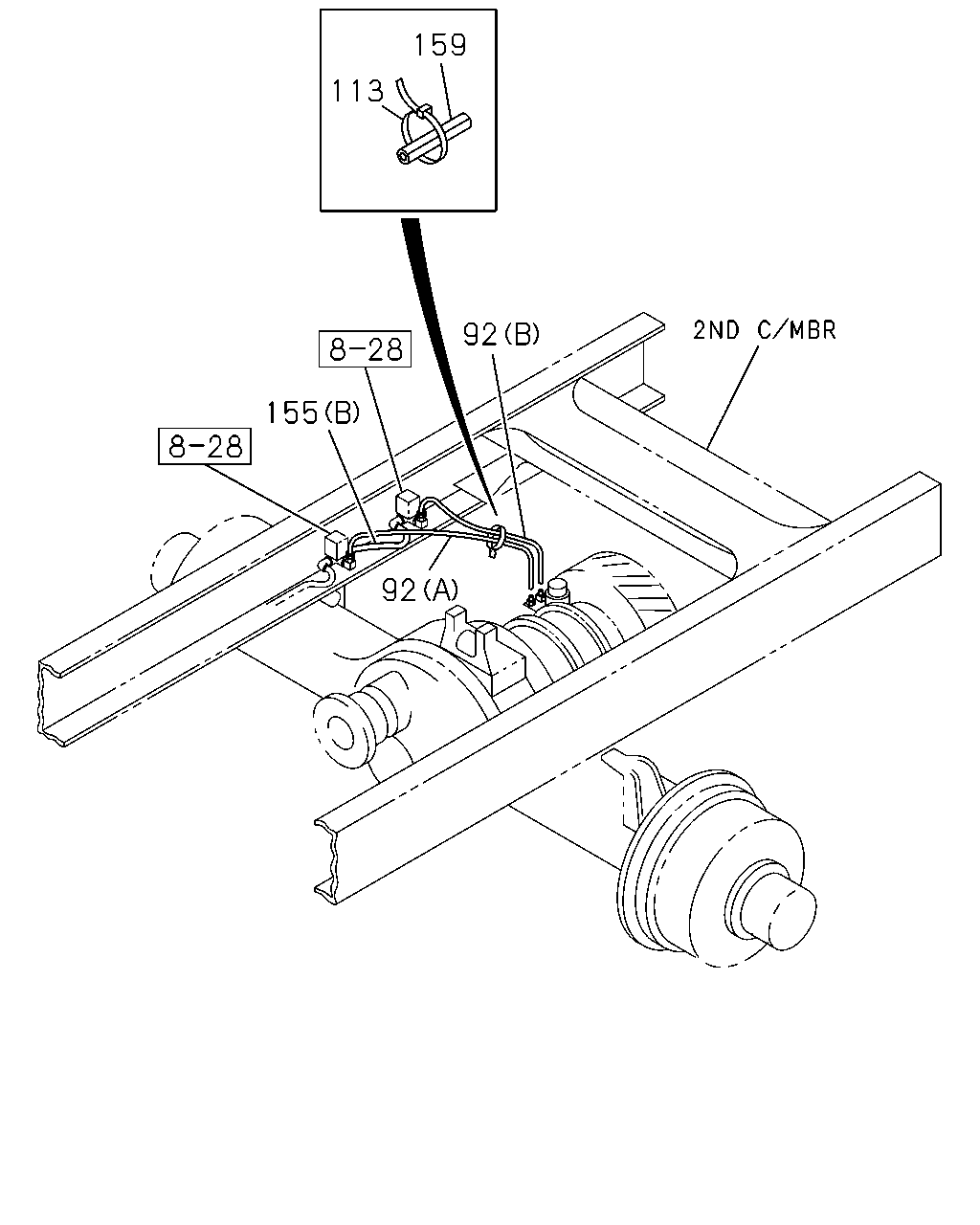

çizim 40656
159 113 92 155 92
BalonParca AdiParca NoAdetTipApplied Date
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=420 		1-09363-615-0 01 1 9707-9904
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=390 		1-09363-616-0 01 1 9707-9904
113 CLIP; HOSE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=140 		5-09707-031-1 01 1 9707-9904
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-092-0 01 1 9707-9904
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9707-9904
159 SLEEVE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50 		1-09337-023-0 01 1 9707-9904
