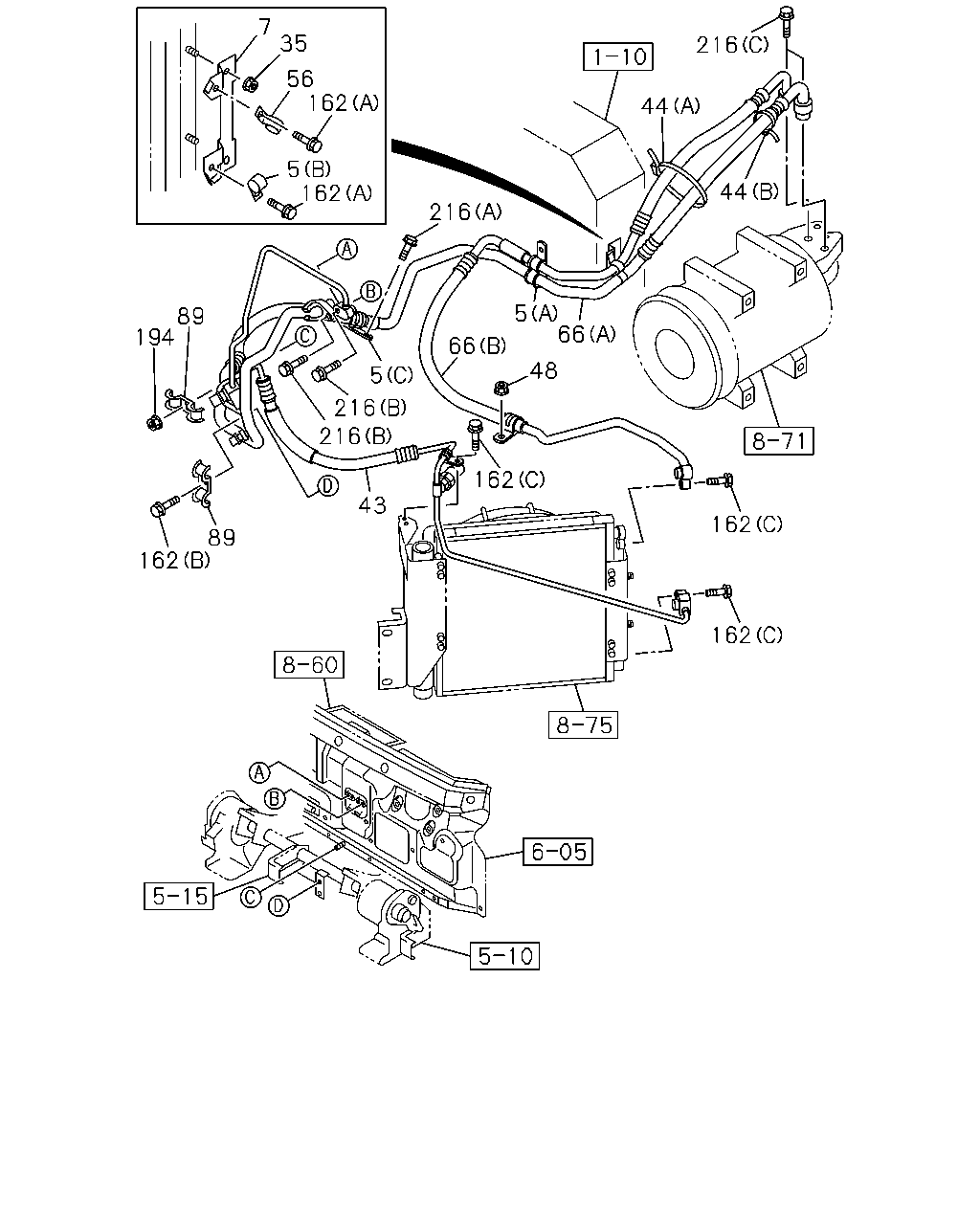

8-52 — PIPING; AIR CONDITIONING (#52618) — 81 parça

7 35 56 162 5 162 89 194 89 162 43 216 216 5 216 44 216 44 5 66 66 48 162 162 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	0907-0909
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	0910-1311
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98038-798-0	01	1	0907-0909
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98038-798-0	01	1	0910-
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98052-857-0	01	1	0907-0909
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98052-857-0	01	1	0910-
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	0907-0909
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97388-130-1	01	1	0910-
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0907-0909
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	0910-
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-98130-324-1	01	1	0907-0909
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98130-324-1	01	1	0910-1001
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98154-918-0	01	1	1002-1009
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98177-563-0	01	1	1010-
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0907-0909
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 02.559 (A) L=250	5-09707-030-1	01	1	0910-
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0907-0909
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 03.162 (B) L=140	5-09707-031-1	01	1	0910-
48	09.242 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-0909
48	09.242 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	01	1	0910-
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=13 H=12 L=20	8-98038-485-0	01	1	0907-0909
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=13 H=12 L=20	8-98038-485-0	01	1	0910-1311
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98111-461-1	01	1	0907-0909
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98111-461-1	01	1	0910-1009
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) LOW PRESSURE	8-98178-841-0	01	1	1010-1311
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) LOW PRESSURE	8-98248-636-0	01	1	1312-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98130-323-2	01	1	0907-0909
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98130-323-2	01	1	0910-1001
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98159-997-0	01	1	1002-1311
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) HIGH PRESSURE	8-98248-640-0	01	1	1312-
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98029-613-0	02	1	0907-0909
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98029-613-0	02	1	0910-1009
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98151-264-0	02	1	1010-
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	03	1	0907-0909
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 00.685 (C) M6X25 FLANGE	0-28650-625-0	03	1	0910-
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0907-0909
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0910-
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0907-0909
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0910-
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-0909
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	01	1	0910-
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0907-0909
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0910-
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	0907-0909
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	0910-
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0907-0909
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0910-

50 148 147 43 202 66 50 67 148 147 67 49 66 67 49 67 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60)	8-98130-324-1	01	1	0907-0909
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98130-324-1	01	1	0910-1001
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98154-918-0	01	1	1002-1009
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98177-563-0	01	1	1010-
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98257-461-0	01	1	1312-
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98257-462-0	01	1	1312-
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	1-83574-249-0	01	1	0907-0909
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83574-249-0	01	1	0910-
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	0907-0909
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) ID=7.5	1-83539-316-0	02	1	0910-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98111-461-1	01	1	0907-0909
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98111-461-1	01	1	0910-1009
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) LOW PRESSURE	8-98178-841-0	01	1	1010-1311
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) LOW PRESSURE	8-98248-636-0	01	1	1312-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98130-323-2	01	1	0907-0909
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98130-323-2	01	1	0910-1001
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98159-997-0	01	1	1002-1311
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) HIGH PRESSURE	8-98248-640-0	01	1	1312-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	0907-0909
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7	8-97095-907-0	02	1	0910-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	0907-0909
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5	8-97095-908-0	01	1	0910-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	0907-0909
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=17.6	8-98036-895-0	01	1	0910-
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK L	1-83539-331-0	01	1	0907-0909
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) CAP MARK L	1-83539-331-0	01	1	0910-
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97095-911-0	01	1	0907-0909
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) CAP MARK H	8-97095-911-0	01	1	0910-
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97095-909-0	01	1	0907-0909
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97095-909-0	01	1	0910-
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98031-629-0	01	1	0907-0909
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98031-629-0	01	1	0910-
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	0907-0909
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	1-83564-392-1	01	1	0910-
