◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#52617) — 31 parça

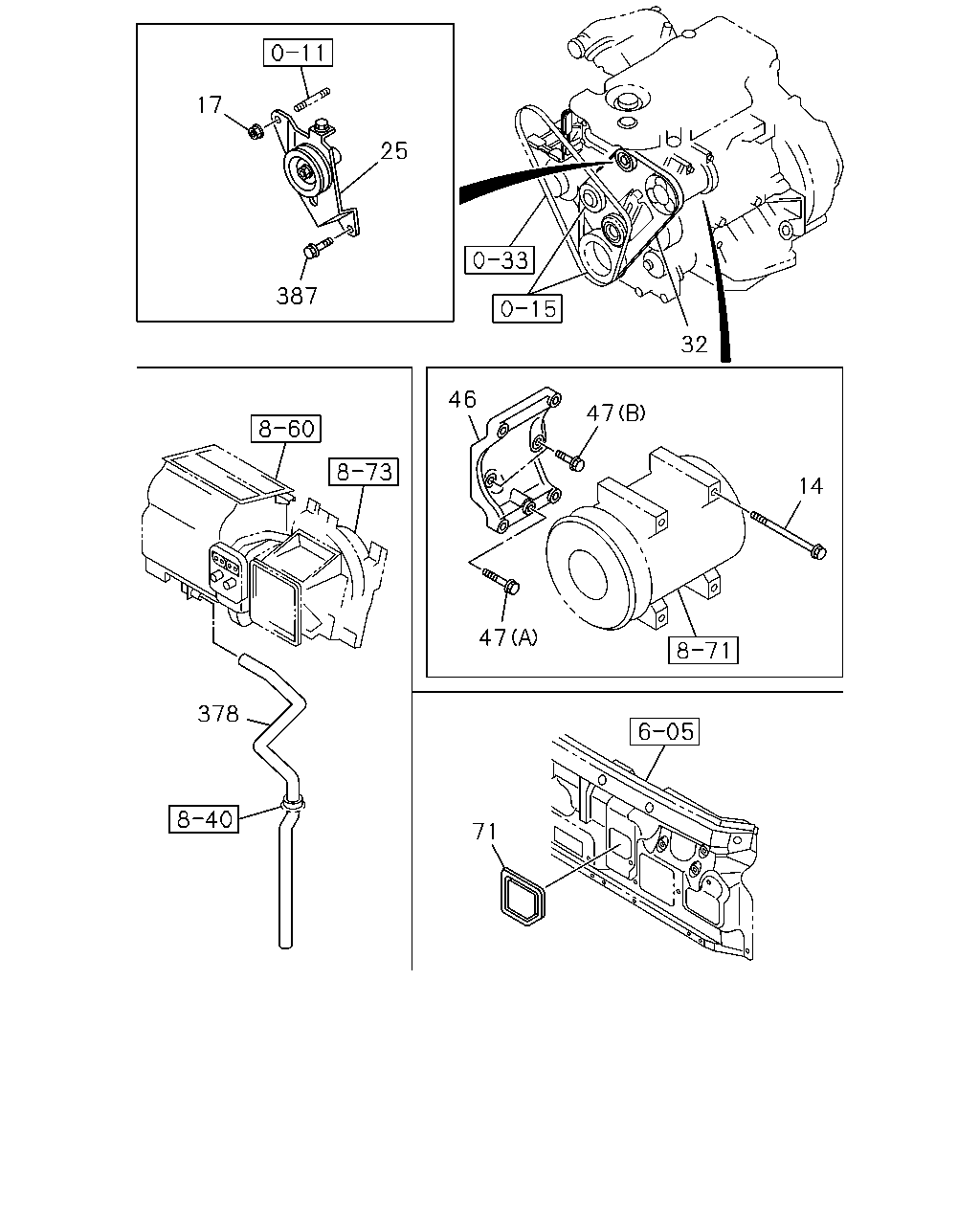

çizim 159825
17 25 387 46 47 32 14 47 71 378
BalonParca AdiParca NoAdetTipApplied Date
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 0907-0909
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 0910-
17 09.171 NUT; CMPR
AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0907-0909
17 09.171 NUT; CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0910-
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0907-0909
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 1-GROOVE 		8-98051-011-0 01 1 0910-1006
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 1-GROOVE 		8-98114-437-0 01 1 1007-
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-103-0 01 1 0907-0909
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) BEST VALUE PARTS 		5-87610-103-0 01 1 0910-
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0907-0909
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0910-
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-98037-322-0 01 1 0907-0909
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.242 		8-98037-322-0 01 1 0910-
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE 		0-28050-845-0 01 1 0907-0909
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X45 FLANGE 		0-28050-845-0 01 1 0910-
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0907-0909
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0910-
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98017-234-1 01 1 0907-0909
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 0910-
378 09.211 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98001-241-2 01 1 0907-0909
378 09.211 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98001-241-2 01 1 0910-
387 09.190 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0907-0909
387 09.190 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0910-

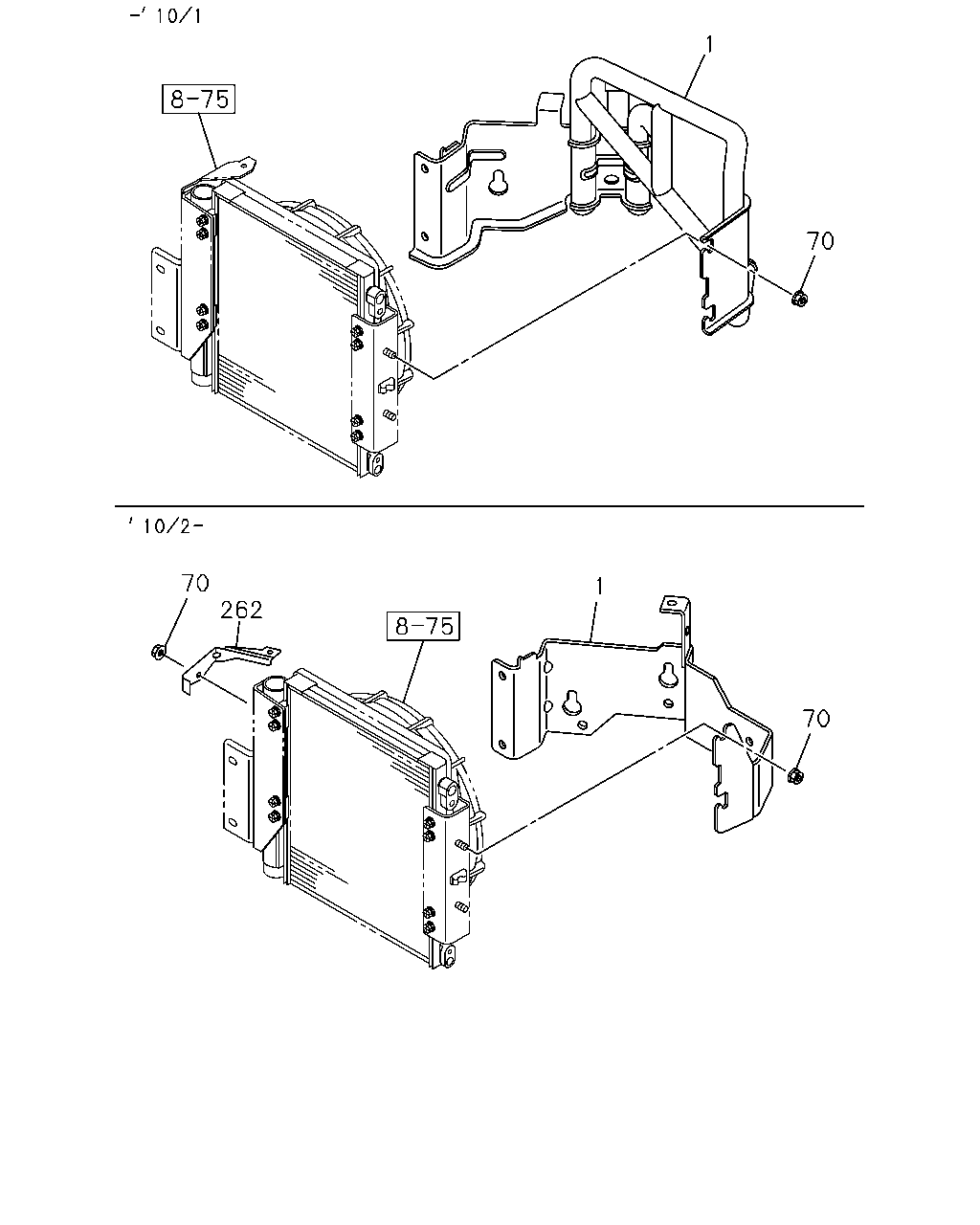

çizim 159842
1 70 70 262 1 70
BalonParca AdiParca NoAdetTipApplied Date
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98111-518-1 01 1 0907-0909
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98111-518-1 01 1 0910-1001
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98146-843-0 01 1 1002-
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1002-
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907-0909
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0910-
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98158-870-0 01 1 1002-1009
262 09.190 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98174-735-0 01 1 1010-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
