8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#52611) — 225 parça

507 257 689 703 106 257 96 104 372 257 498 257 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

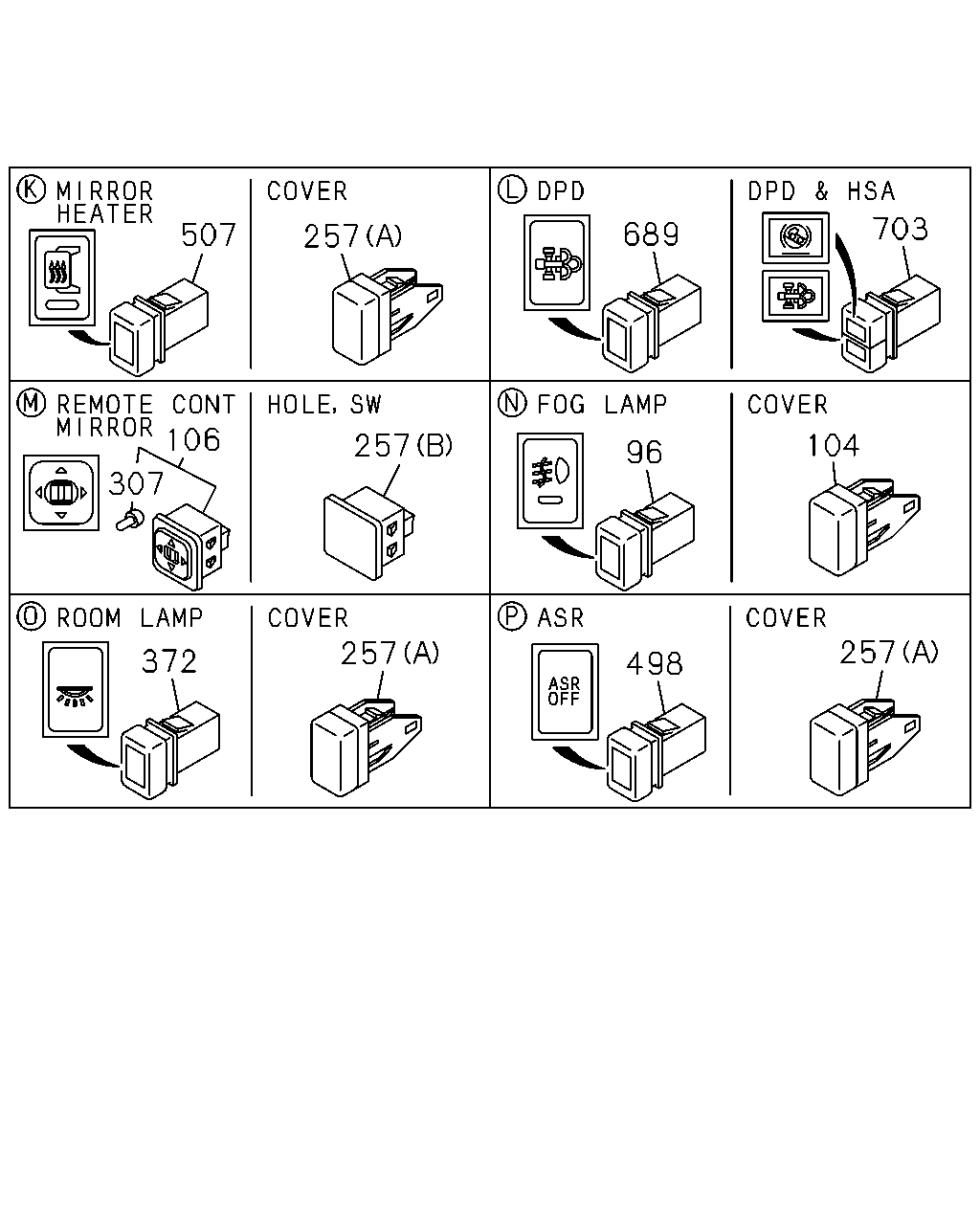

96	02.485 SWITCH; FOG LAMP	8-97387-031-3	01	1	0907-0909
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-3	01	1	0910-1111
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-97387-031-3	01	1	1112-1112
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-3	01	1	1201-1204
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-97387-031-3	01	1	1205-1211
96	02.485 SWITCH; FOG LAMP AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-97387-031-4	01	1	1212-
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96> 16.081	8-98025-954-1	01	1	0910-1111
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081	8-98025-954-1	01	1	1112-1112
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96> 16.081	8-98025-954-1	01	1	1201-1204
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081	8-98025-954-1	01	1	1205-1211
104	09.778 COVER; SW HOLE,FOG LAMP AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081	8-98025-954-1	01	1	1212-
106	10.186 SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-97173-294-1	01	1	0910-
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0907-0912
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUALCONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUALCONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0910-
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (C)	8-98029-917-0	01	1	0907-1310
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	1311-
307	08.991 BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V	8-98226-896-0	01	1	0910-
372	08.852 SWITCH; ROOM LAMP FLUORESCENT LAMP<6UC>	8-97386-917-2	01	1	1001-
498	03.883 SWITCH; ASR	8-97386-920-2	01	1	0907-
507	10.186 SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-97386-924-3	01	1	0910-
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	1311-
689	02.780 SWITCH; DPD EXC. H.S.A SYSTEM<6EP>	8-97386-921-2	01	1	0907-
703	02.780 SWITCH; DPD & HSA H.S.A SYSTEM<6EP>	8-98011-346-2	01	1	0907-

249 497 257 497 257 77 257 672 257 636 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

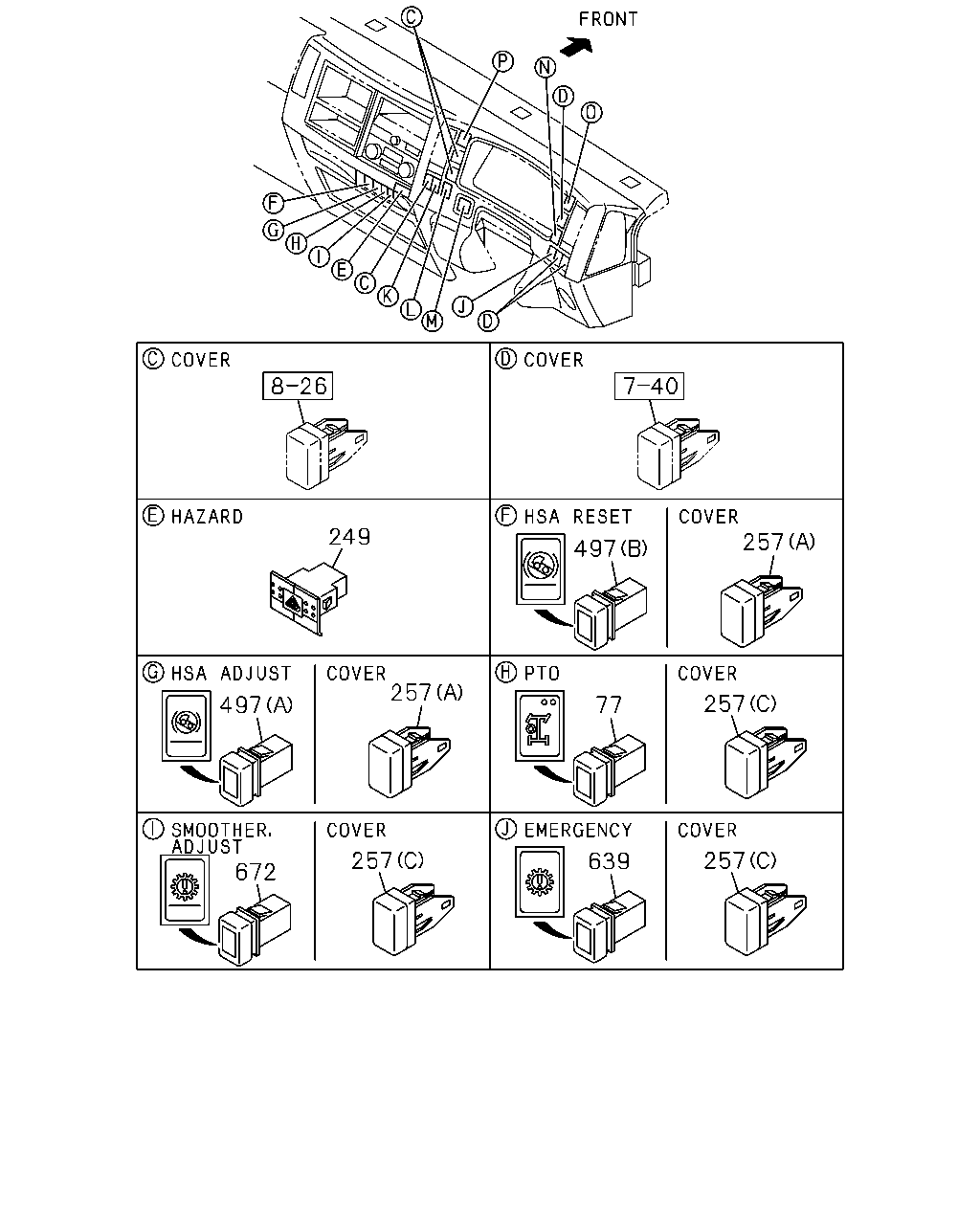

77	04.439 SWITCH; PTO AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-964-2	01	1	1311-
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	0907-
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0907-0912
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUALCONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUALCONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0910-
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (C)	8-98029-917-0	01	1	0907-1310
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	1311-
497	04.439 SWITCH; HSA H.S.A SYSTEM<6EP> (B) RESET	8-98119-946-0	01	1	0907-
497	04.439 SWITCH; HSA H.S.A SYSTEM<6EP> (A) ADJUST	8-98119-947-1	01	1	0907-
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	1311-
672	16.263 SWITCH; SMOOTHER,ADJUST TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP>	8-98119-949-1	01	1	1311-

609 317 610 610 595 12 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

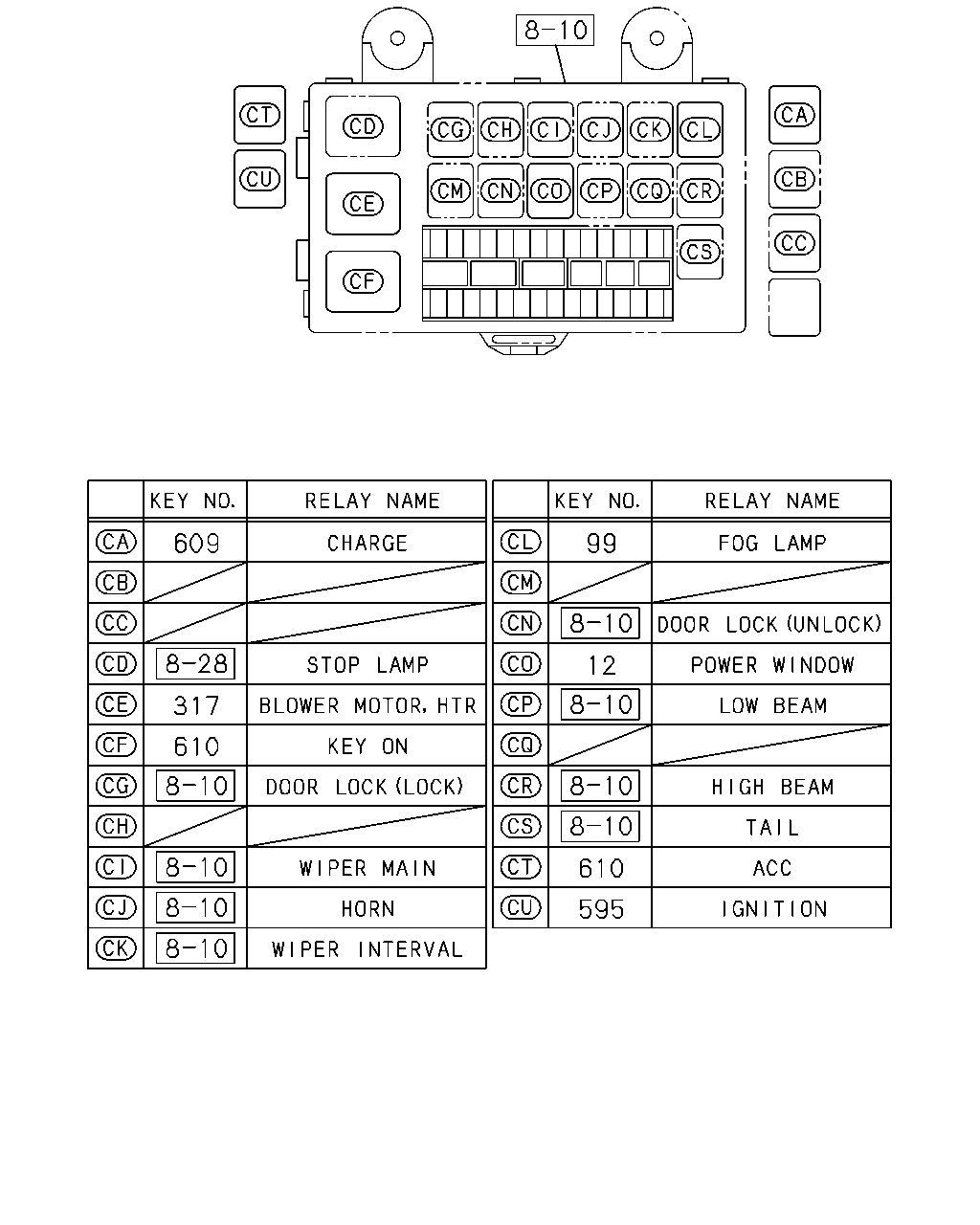

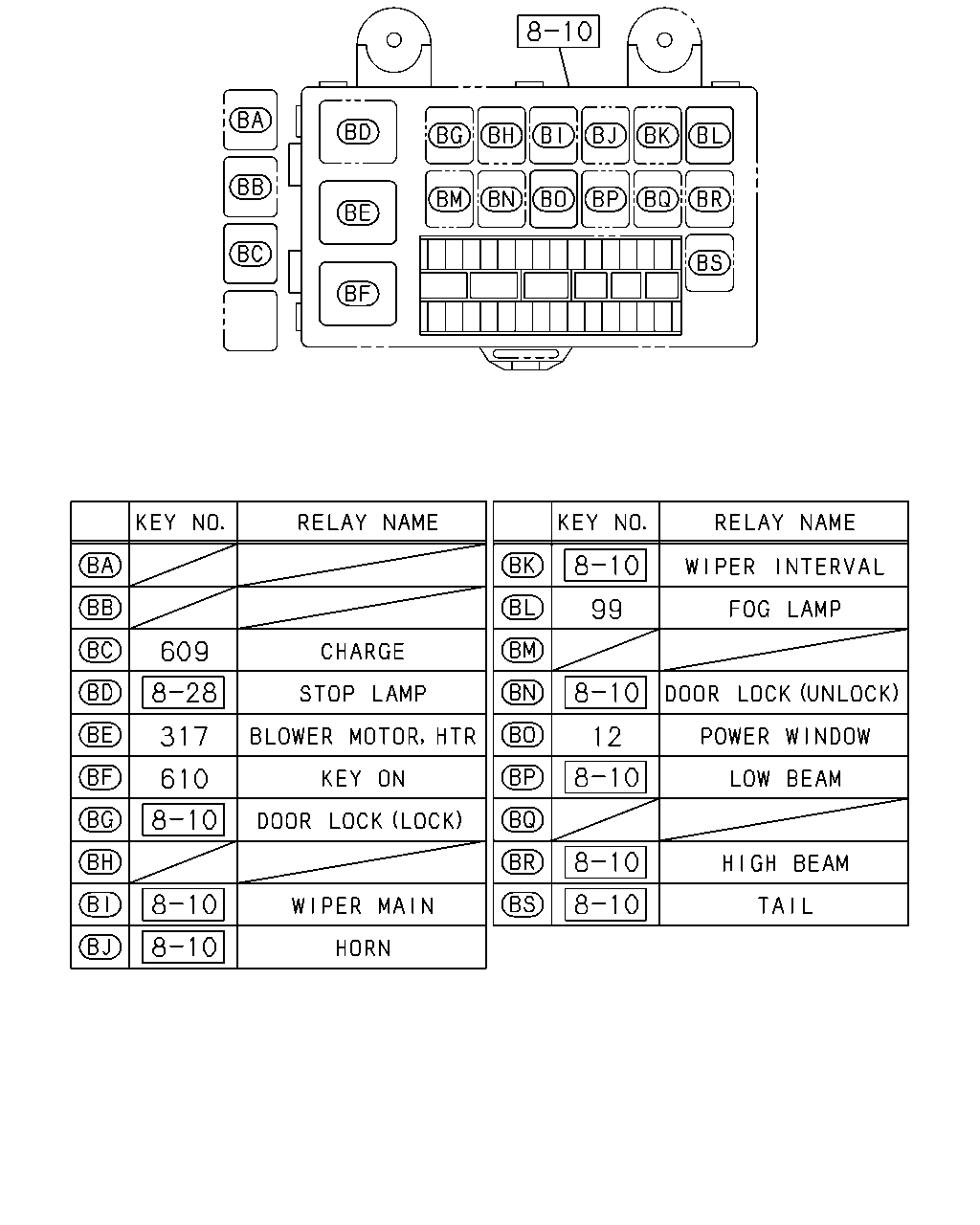

12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0907-
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0907-0909
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0910-1111
99	02.485 RELAY; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1112-1112
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1201-1204
99	02.485 RELAY; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1205-
317	02.510 RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0907-0909
317	02.510 RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0910-
595	02.510 RELAY; IGNITION 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-
609	02.485 RELAY; CHARGE H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0907-
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0907-1204
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	1311-

257 29 30 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

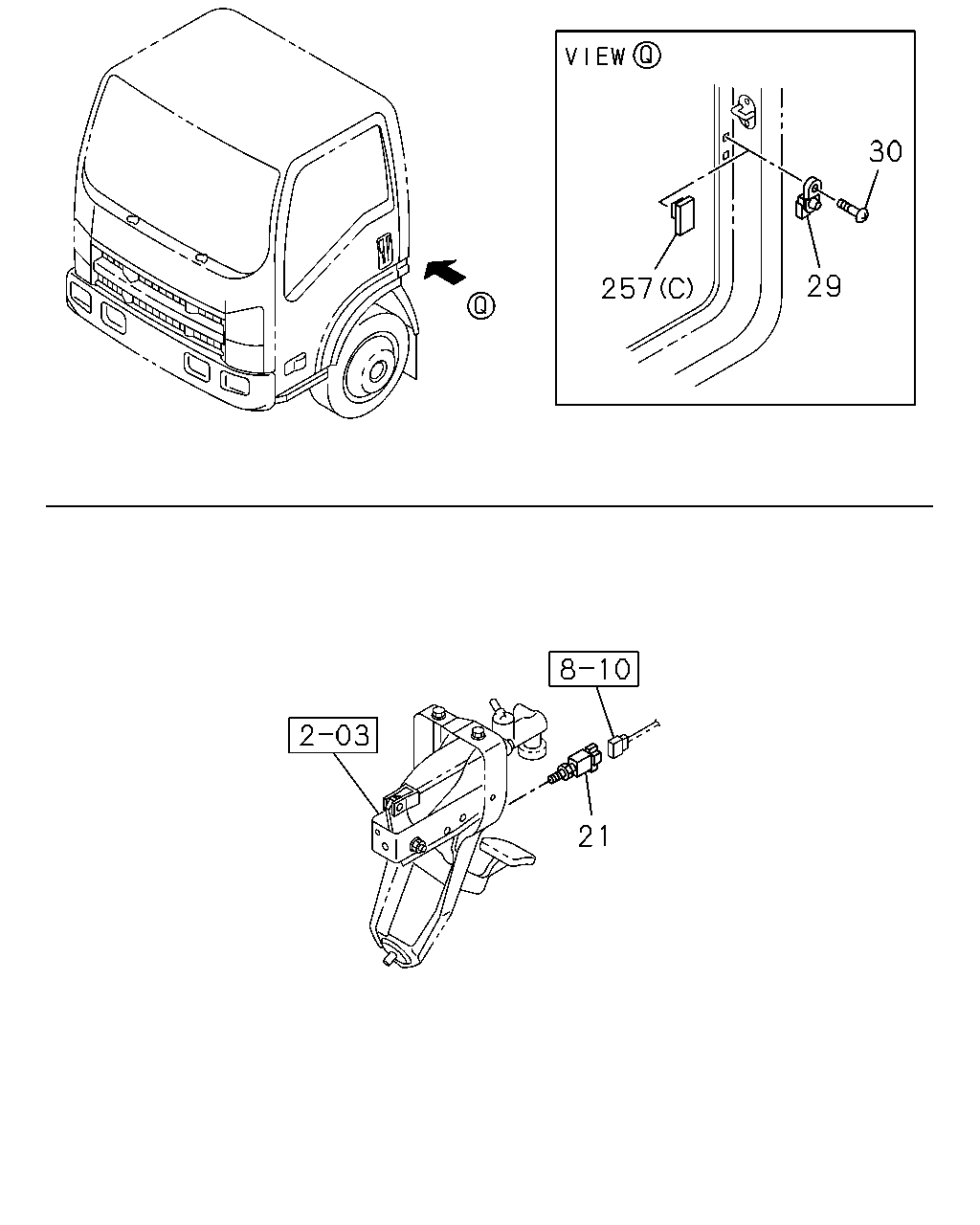

21	02.575 SWITCH; CLU	8-97358-248-0	01	1	0907-1310
21	02.575 SWITCH; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-248-0	01	1	1311-
29	16.263 SWITCH; DOOR H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> BLACK	8-98022-211-0	01	1	0907-1310
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> BLACK	8-98022-211-0	01	1	0907-1310
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> BLACK	8-98022-211-0	01	1	0907-1310
29	16.263 SWITCH; DOOR BLACK	8-98022-211-0	01	1	0907-1310
29	16.263 SWITCH; DOOR H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK	8-98022-211-0	01	1	1311-
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK	8-98022-211-0	01	1	1311-
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK	8-98022-211-0	01	1	1311-
29	16.263 SWITCH; DOOR TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK	8-98022-211-0	01	1	1311-
29	16.263 SWITCH; DOOR BLACK	8-98022-211-0	01	1	1311-
30	16.263 SCREW; DOOR SW H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	02	1	0907-1310
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	02	1	0907-1310
30	16.263 SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	02	1	0907-1310
30	16.263 SCREW; DOOR SW H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	02	1	1311-
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	02	1	1311-
30	16.263 SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	02	1	1311-
30	16.263 SCREW; DOOR SW TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	02	1	1311-
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	01	1	0907-1310
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	01	1	1311-
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0907-0912
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (A)	8-98025-954-1	01	1	1001-1211
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUALCONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1212-1310
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW EXC. FLUORESCENT LAMP<6UC> (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUALCONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1311-
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0910-
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-0909
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0910-0912
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (C)	8-98029-917-0	01	1	0907-1310
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98029-917-0	01	1	1311-
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	1311-

608 151 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0907-0909
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0910-
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0907-0909
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0910-
608	02.485 RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	1311-1402
608	02.485 RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA	8-98259-779-0	01	1	1403-
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	1311-

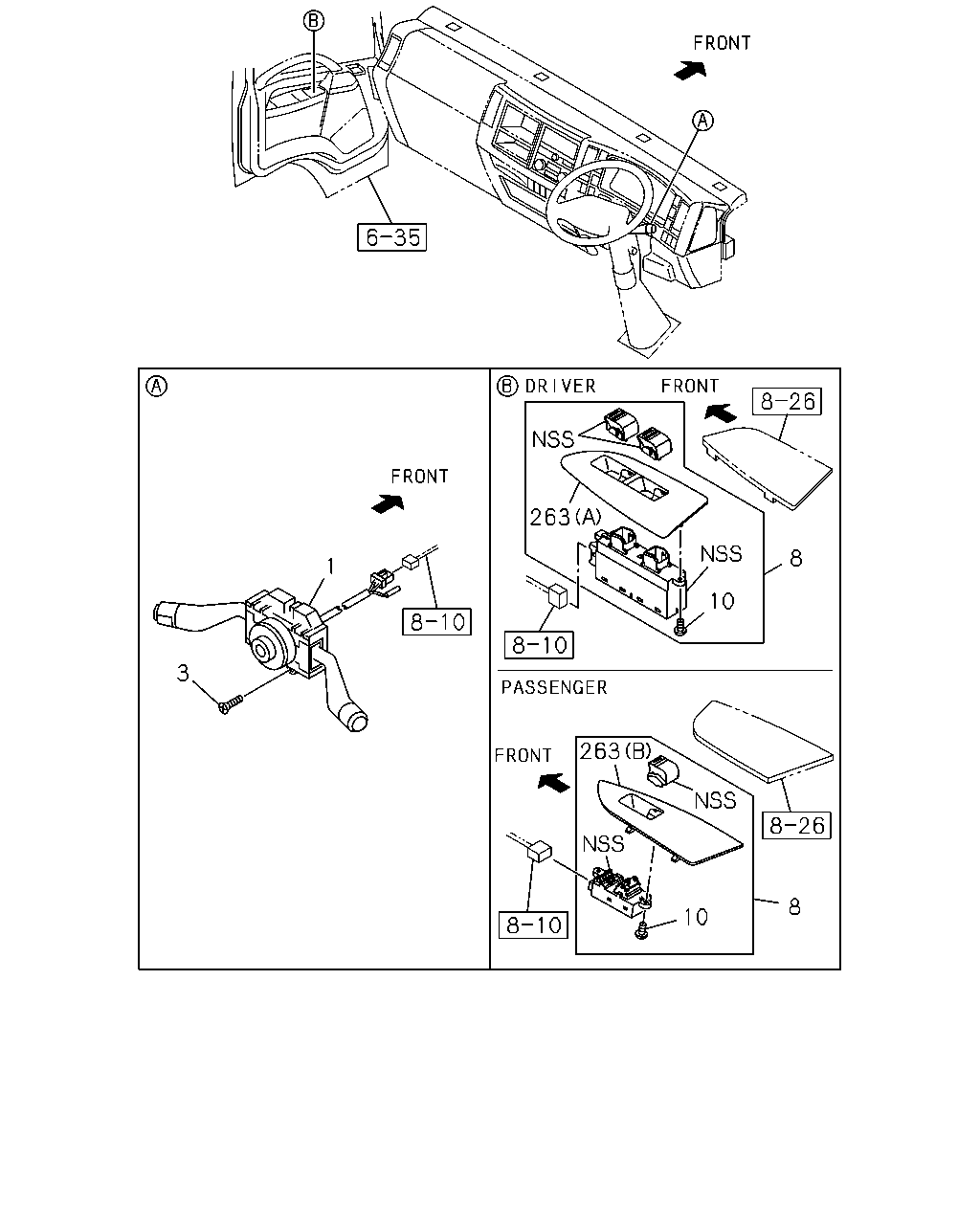

1 3 263 10 8 8 10 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98146-635-0	01	1	0907-1210
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98217-808-0	01	1	1211-1310
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98243-725-0	01	1	1311-
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98069-995-1	01	1	0907-1310
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98243-729-0	01	1	1311-
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98069-993-2	01	1	0907-1310
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98243-728-0	01	1	1311-
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0907-
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-98129-844-0	01	1	0907-1001
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-98159-543-0	01	1	1002-1509
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-98298-750-0	01	1	1510-
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-97387-034-2	01	1	0907-1509
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-98316-415-0	01	1	1510-
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-98153-865-0	03	1	0907-
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (A)	8-98153-836-0	01	1	0907-
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (B)	8-98153-841-0	01	1	0907-
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	1311-

609 317 610 99 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0907-
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0907-0909
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0910-1111
99	02.485 RELAY; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1112-1112
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1201-1204
99	02.485 RELAY; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1205-
317	02.510 RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0907-0909
317	02.510 RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0910-
609	02.485 RELAY; CHARGE H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0907-
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0907-1204
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	1311-

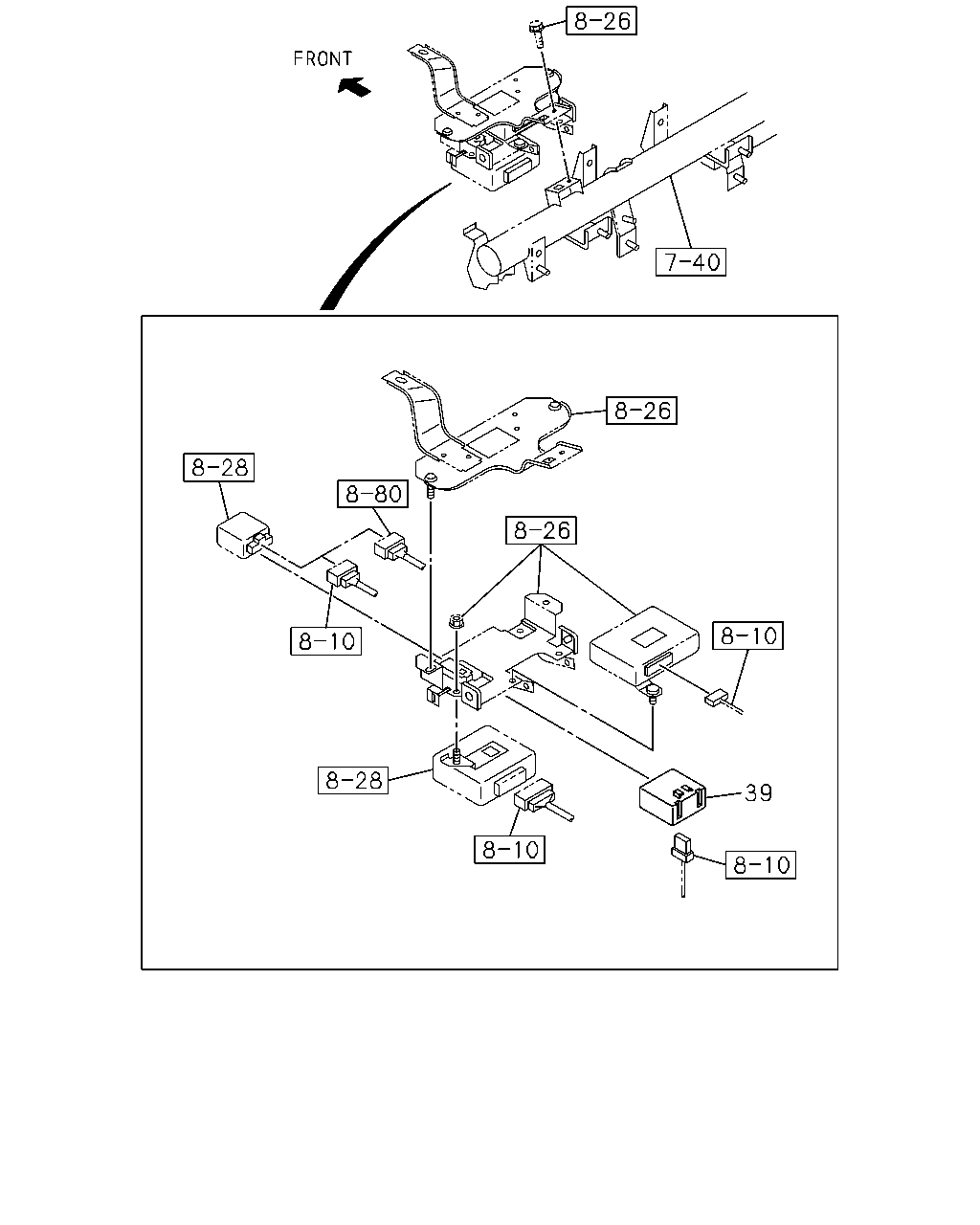

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	0907-
	639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	1311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
