8-21 — METER ASM (#52610) — 38 parça

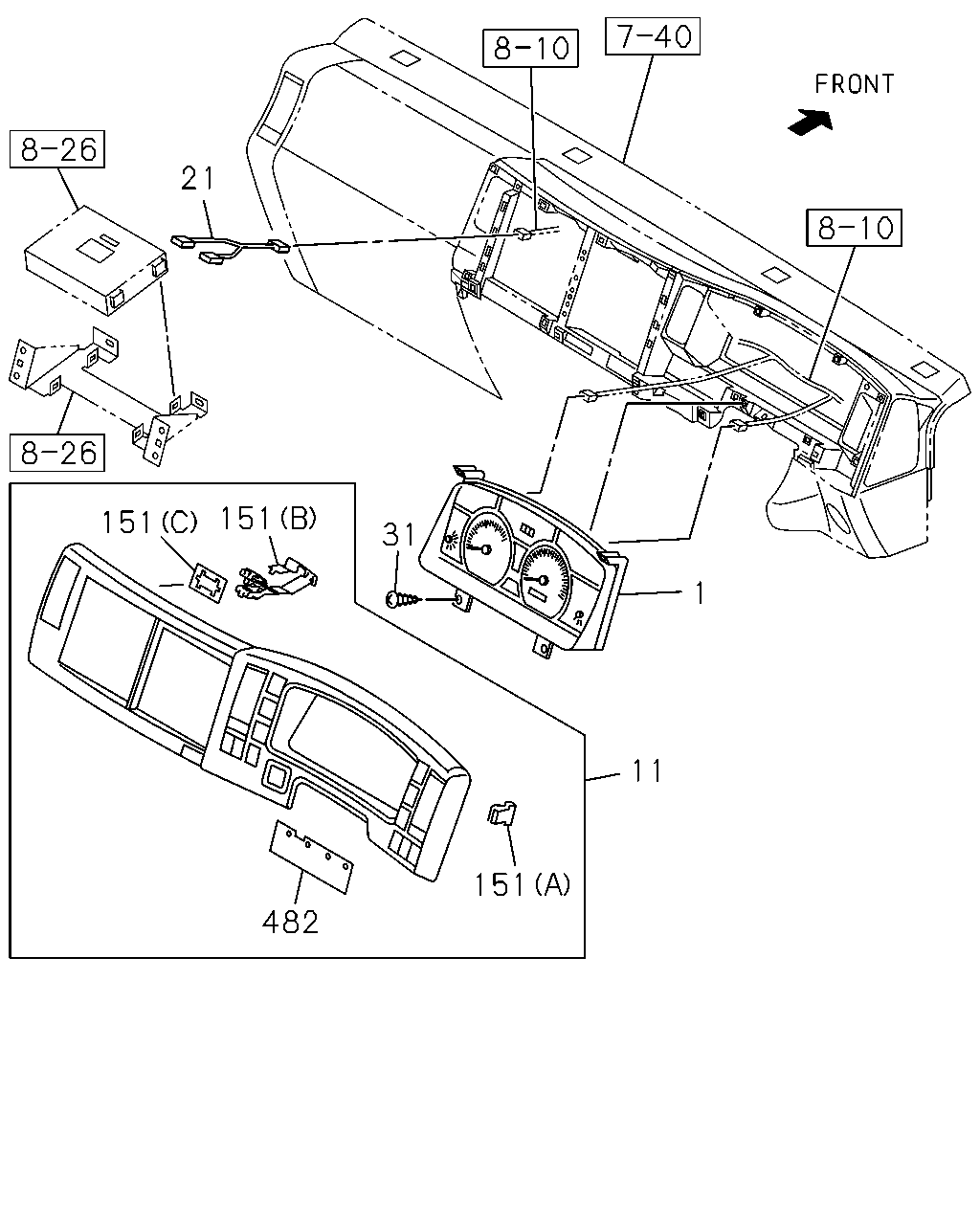

çizim 159859
21 1 11 151 482 151 151 31
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4> 		8-98021-251-4 01 1 1311-
1 09.735 METER COMPL; CLUSTER
EXC. DUMP CONTROL LEVER<RC4> 		8-98021-249-4 01 1 1005-1310
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98021-249-4 01 1 1311-
1 09.735 METER COMPL; CLUSTER 8-98096-900-3 01 1 0907-1004
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> 		8-98096-900-4 01 1 1005-1310
1 09.735 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(B13) DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98096-900-4 01 1 1311-
11 09.743 CLUSTER ASM; METER
AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97418-532-1 01 1 1002-
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-5 01 1 0907-1001
11 09.743 CLUSTER ASM; METER
HONG KONG EQUIPMENT(B14) DARK GRAY 		8-97405-350-6 01 1 1002-1504
11 09.743 CLUSTER ASM; METER
EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY 		8-97405-350-6 01 1 1505-
21 09.743 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD(8PG) 		8-98204-881-1 01 1 1112-
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0907-1101
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
151 09.747 CLIP; METER CLUSTER
AUSTRALIA EQUIPMENT(B13) 16.090 (B) 		8-98152-030-0 01 1 1002-
151 09.747 CLIP; METER CLUSTER
AUSTRALIA EQUIPMENT(B13) 16.090 (C) 		8-98152-031-0 01 1 1002-
151 09.747 CLIP; METER CLUSTER
HONG KONG EQUIPMENT(B14) 16.085 (A) 		8-98021-271-0 13 1 1002-1504
151 09.747 CLIP; METER CLUSTER
EXC. AUSTRALIA EQUIPMENT(B13) 16.085 (A) 		8-98021-271-0 13 1 1505-
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 13 1 0907-1001
151 09.747 CLIP; METER CLUSTER
AUSTRALIA EQUIPMENT(B13) 16.085 (A) 		8-98021-271-0 12 1 1002-
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 0907-1001
482 09.772 SEAL; CLUSTER METER
AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) 		8-98116-842-0 01 1 1002-1504
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 1505-

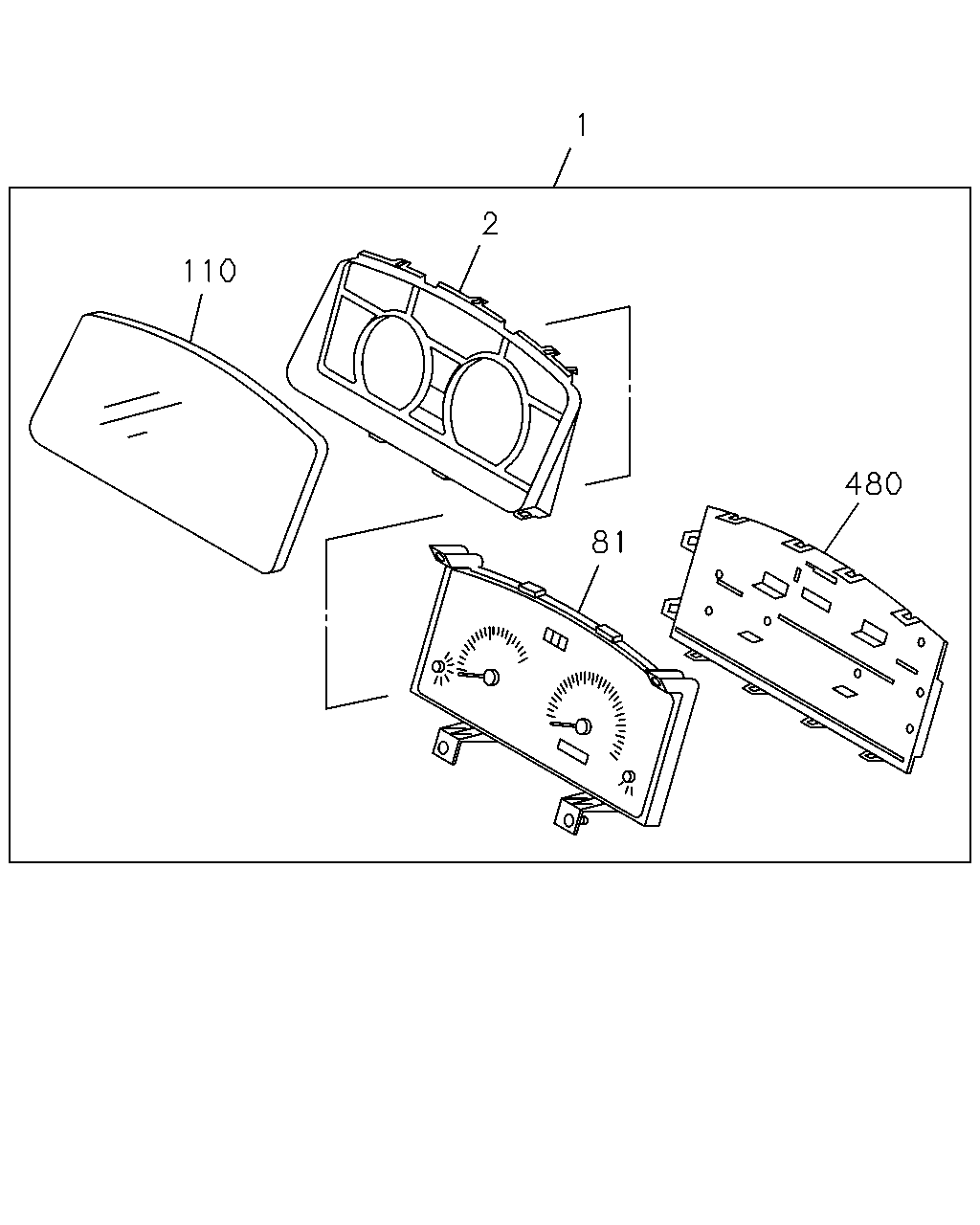

çizim 159861
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4> 		8-98021-251-4 01 1 1311-
1 09.735 METER COMPL; CLUSTER
EXC. DUMP CONTROL LEVER<RC4> 		8-98021-249-4 01 1 1005-1310
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98021-249-4 01 1 1311-
1 09.735 METER COMPL; CLUSTER 8-98096-900-3 01 1 0907-1004
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> 		8-98096-900-4 01 1 1005-1310
1 09.735 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(B13) DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98096-900-4 01 1 1311-
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 0907-
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4> 		8-98073-680-0 01 1 1311-
81 09.735 METER SUB ASM
EXC. DUMP CONTROL LEVER<RC4> 		8-98073-677-0 01 1 1005-1310
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4> 		8-98073-677-0 01 1 1311-
81 09.735 METER SUB ASM 8-98096-965-0 01 1 0907-1004
81 09.735 METER SUB ASM
DUMP CONTROL LEVER<RC4> 		8-98096-965-0 01 1 1005-1310
81 09.735 METER SUB ASM
AUSTRALIA EQUIPMENT(B13) DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98096-965-0 01 1 1311-
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 0907-
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 0907-
