Sayfa 3-08A - Isuzu EPC

3-08A — PARKING BRAKE (#5261) — 414 parça

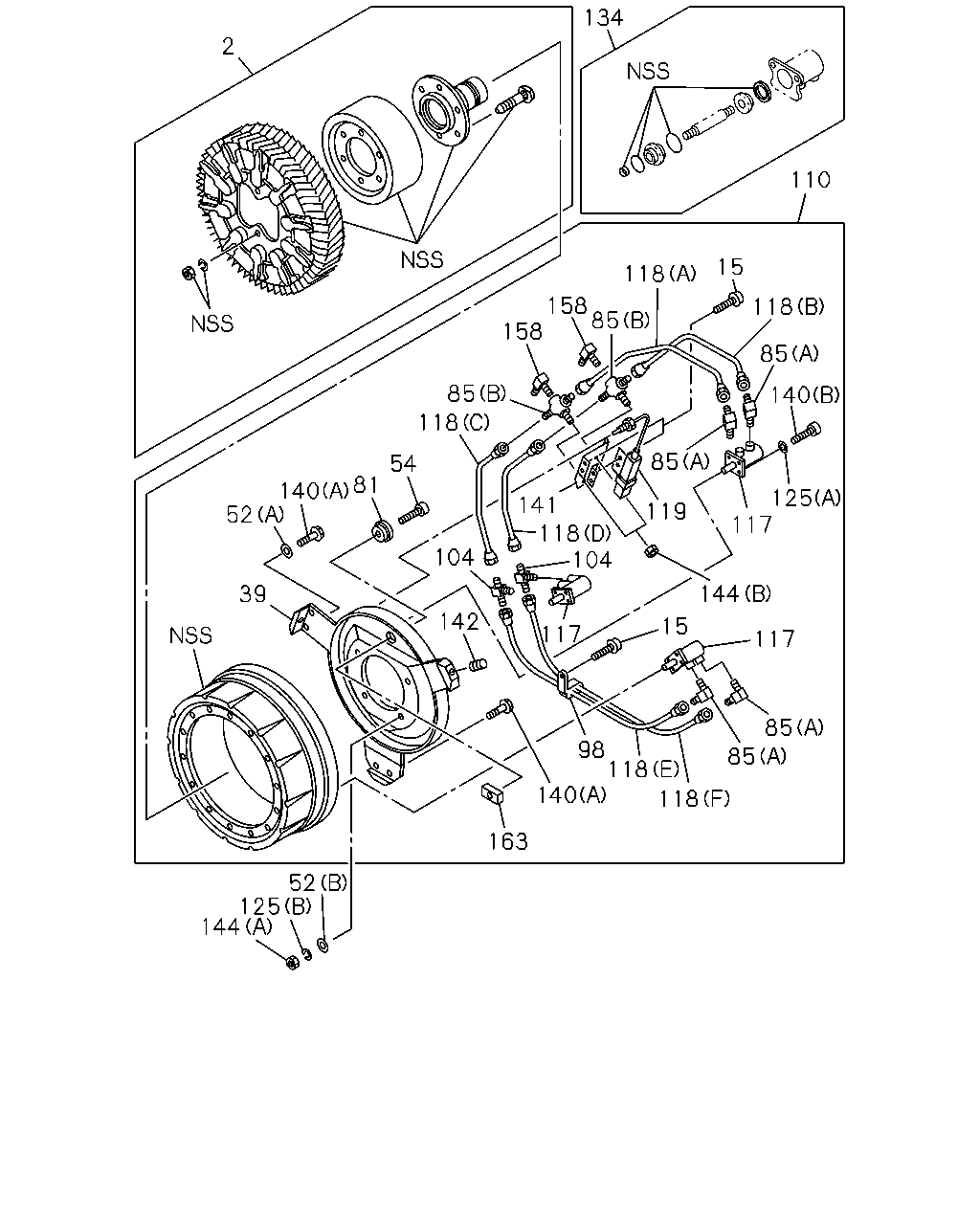

134 2 110 15 118 158 85 158 118 85 85 140 118 85 54 81 140 125 117 141 118 104 119 52 104 144 39 142 15 117 117 85 98 118 85 140 118 163 52 125 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-227-2	01	1	9603-9904	●
2	DRUM; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-257-2	01	1	9905-	●
2	DRUM; PARKING BRK	1-46211-026-1	01	1	9911-		●
15	BOLT; FLANGE BRAKE SYSTEM RETARDER<RE2>	1-48629-123-0	05	1	9603-9904	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9911-		●
39	COVER; DUST,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46213-094-1	01	1	9603-9904	●
39	COVER; DUST,PARKING BRK	1-46213-066-1	01	1	9911-		●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	9-09160-612-0	02	1	9707-9904	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	9-09160-612-0	02	1	9905-9910	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2	1-09503-223-0	04	1	9603-	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=10.5 OD=26	9-09160-710-0	05	1	9603-9904	●
54	BOLT; COVER BRAKE SYSTEM RETARDER<RE2> M8X16	9-05820-816-0	01	1	9603-9904	●
81	COVER; CHECK HOLE,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48629-151-0	01	1	9603-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	9707-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	9905-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	9707-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	9-09224-306-2	01	1	9905-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-060-1	02	1	9603-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-211-0	01	1	9905-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/8	9-09224-306-2	04	1	9603-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	9905-	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	9707-9904	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	9905-	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2>	1-47477-009-0	01	1	9603-9904	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	9707-9904	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	9905-	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	9707-9904	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	9905-	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-059-0	02	1	9603-9904	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	01	1	9905-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-257-0	01	1	9603-9702	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-328-0	01	1	9703-9904	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-381-3	01	1	9905-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	9707-9904	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	9905-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	9707-9904	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	9905-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2>	1-48629-020-1	03	1	9603-9904	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-192-0	01	1	9905-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-193-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	9707-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	9707-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	9707-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (E) LOWER,FRONT	1-49112-398-1	01	1	9603-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-210-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (F) LOWER,REAR	1-49112-399-1	01	1	9603-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-201-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A) UPPER,FRONT	1-49114-769-0	01	1	9603-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B) UPPER,REAR	1-49114-770-0	01	1	9603-9606	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B) UPPER,REAR	1-49117-520-0	01	1	9607-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (C) CENTER,FRONT	1-49114-771-0	01	1	9603-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D) CENTER,REAR	1-49114-772-0	01	1	9603-9904	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	9707-9904	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-054-0	01	1	9905-9910	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-043-0	01	1	9603-9904	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=5.1	9-09150-505-0	12	1	9603-9904	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-206-0	02	1	9905-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2	9-09150-516-0	04	1	9603-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	9707-9904	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	9905-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	9707-9904	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	9905-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2>	1-85576-130-1	03	1	9603-9904	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-217-0	01	1	9905-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-218-0	01	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	9707-9904	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M10X20	1-48629-070-0	08	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	9707-9904	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	9707-9904	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	9707-9904	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M10X25	0-28191-025-0	06	1	9603-9904	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-040-0	12	1	9603-9904	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C) M8X18	1-48629-134-0	02	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M8X12	1-48629-205-0	02	1	9905-	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	9707-9904	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	9905-	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-122-1	01	1	9603-9606	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-185-0	01	1	9607-9904	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-172-0	01	1	9905-	●
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	9707-9904	●
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	9905-	●
142	SCREW BRAKE SYSTEM RETARDER<RE2>	9-06043-810-0	03	1	9603-9904	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12	9-09840-280-0	04	1	9707-9904	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M12	9-09840-280-0	04	1	9905-9910	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M16	9-99110-516-0	04	1	9603-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M12	9-99111-412-0	02	1	9603-9904	●
158	NIPPLE BRAKE SYSTEM RETARDER<RE2> M20 & PT1/4 ELBOW	1-09660-681-0	02	1	9603-9702	●
158	NIPPLE BRAKE SYSTEM RETARDER<RE2> M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9703-9904	●
163	BAR; FLAT BRAKE SYSTEM RETARDER<RE2>	1-48629-125-0	01	1	9603-9904	●

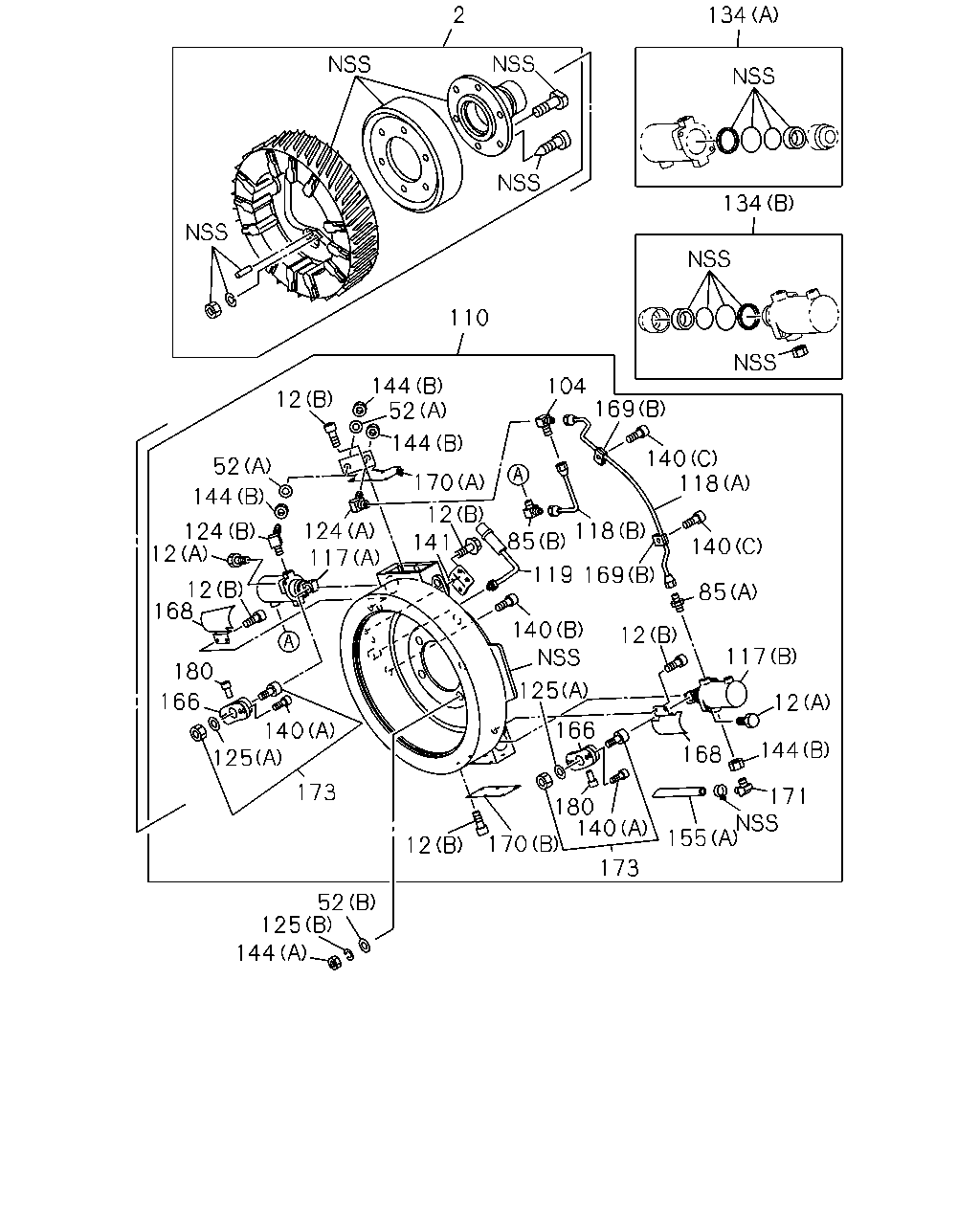

2 134 134 110 144 52 104 12 169 144 140 118 52 170 12 141 144 118 124 117 124 12 85 140 119 169 12 168 85 140 12 117 180 125 166 12 166 140 125 144 168 173 171 180 140 155 170 12 173 52 125 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-227-2	01	1	9603-9904	●
2	DRUM; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-257-2	01	1	9905-	●
2	DRUM; PARKING BRK	1-46211-026-1	01	1	9911-		●
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE	0-28791-235-0	08	1	9707-9904	●
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE	0-28791-235-0	08	1	9905-	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> (B) M6X14 HEX SOCKET	1-48629-145-0	20	1	9905-	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-170-0	04	1	9905-	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	9-09160-612-0	02	1	9707-9904	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	9-09160-612-0	02	1	9905-9910	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2	1-09503-223-0	04	1	9603-	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=10.5 OD=26	9-09160-710-0	05	1	9603-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	9707-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	9905-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	9707-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	9-09224-306-2	01	1	9905-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-060-1	02	1	9603-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-211-0	01	1	9905-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/8	9-09224-306-2	04	1	9603-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	9905-	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	9707-9904	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	9905-	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	9707-9904	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	9905-	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-059-0	02	1	9603-9904	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	01	1	9905-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-257-0	01	1	9603-9702	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-328-0	01	1	9703-9904	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-381-3	01	1	9905-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	9707-9904	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	9905-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	9707-9904	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	9905-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2>	1-48629-020-1	03	1	9603-9904	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-192-0	01	1	9905-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-193-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	9707-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	9707-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	9707-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (E) LOWER,FRONT	1-49112-398-1	01	1	9603-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-210-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (F) LOWER,REAR	1-49112-399-1	01	1	9603-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-201-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A) UPPER,FRONT	1-49114-769-0	01	1	9603-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B) UPPER,REAR	1-49114-770-0	01	1	9603-9606	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B) UPPER,REAR	1-49117-520-0	01	1	9607-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (C) CENTER,FRONT	1-49114-771-0	01	1	9603-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D) CENTER,REAR	1-49114-772-0	01	1	9603-9904	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	9707-9904	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-054-0	01	1	9905-9910	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-043-0	01	1	9603-9904	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-188-0	01	1	9707-9904	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-188-0	01	1	9905-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-203-0	01	1	9905-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-204-0	01	1	9905-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=5.1	9-09150-505-0	12	1	9603-9904	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-206-0	02	1	9905-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2	9-09150-516-0	04	1	9603-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	9707-9904	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	9905-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	9707-9904	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	9905-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2>	1-85576-130-1	03	1	9603-9904	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-217-0	01	1	9905-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-218-0	01	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	9707-9904	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M10X20	1-48629-070-0	08	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	9707-9904	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	9707-9904	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	9707-9904	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M10X25	0-28191-025-0	06	1	9603-9904	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-040-0	12	1	9603-9904	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C) M8X18	1-48629-134-0	02	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M8X12	1-48629-205-0	02	1	9905-	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	9707-9904	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	9905-	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-122-1	01	1	9603-9606	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-185-0	01	1	9607-9904	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-172-0	01	1	9905-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12	9-09840-280-0	04	1	9707-9904	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M12	9-09840-280-0	04	1	9905-9910	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M16	9-99110-516-0	04	1	9603-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M12	9-99111-412-0	02	1	9603-9904	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	9707-9904	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-092-0	01	1	9905-9910	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9707-9904	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	9707-9904	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	9905-	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	9707-9904	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	9905-	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-191-0	02	1	9905-	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-190-0	02	1	9707-9904	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-190-0	02	1	9905-	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	9905-	●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-126-0	01	1	9707-9904	●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-126-0	01	1	9905-	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-209-0	04	1	9905-	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	9707-9904	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	9905-	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	9707-9904	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	9905-	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-195-0	01	1	9905-	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-196-0	01	1	9905-	●
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	9707-9904	●
171	BREATHER BRAKE SYSTEM RETARDER<RE2>	1-48629-144-0	01	1	9905-9910	●
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-159-0	02	1	9905-	●
180	PIN; RETAINING BRAKE SYSTEM RETARDER<RE2>	1-48629-198-0	02	1	9905-	●

87 134 134 83 124 119 104 144 144 174 52 130 52 141 85 104 144 118 98 142 170 101 101 101 98 118 102 42 118 167 85 171 144 140 142 170 169 155 85 167 117 140 165 47 168 166 117 140 140 47 167 167 165 166 140 168 12

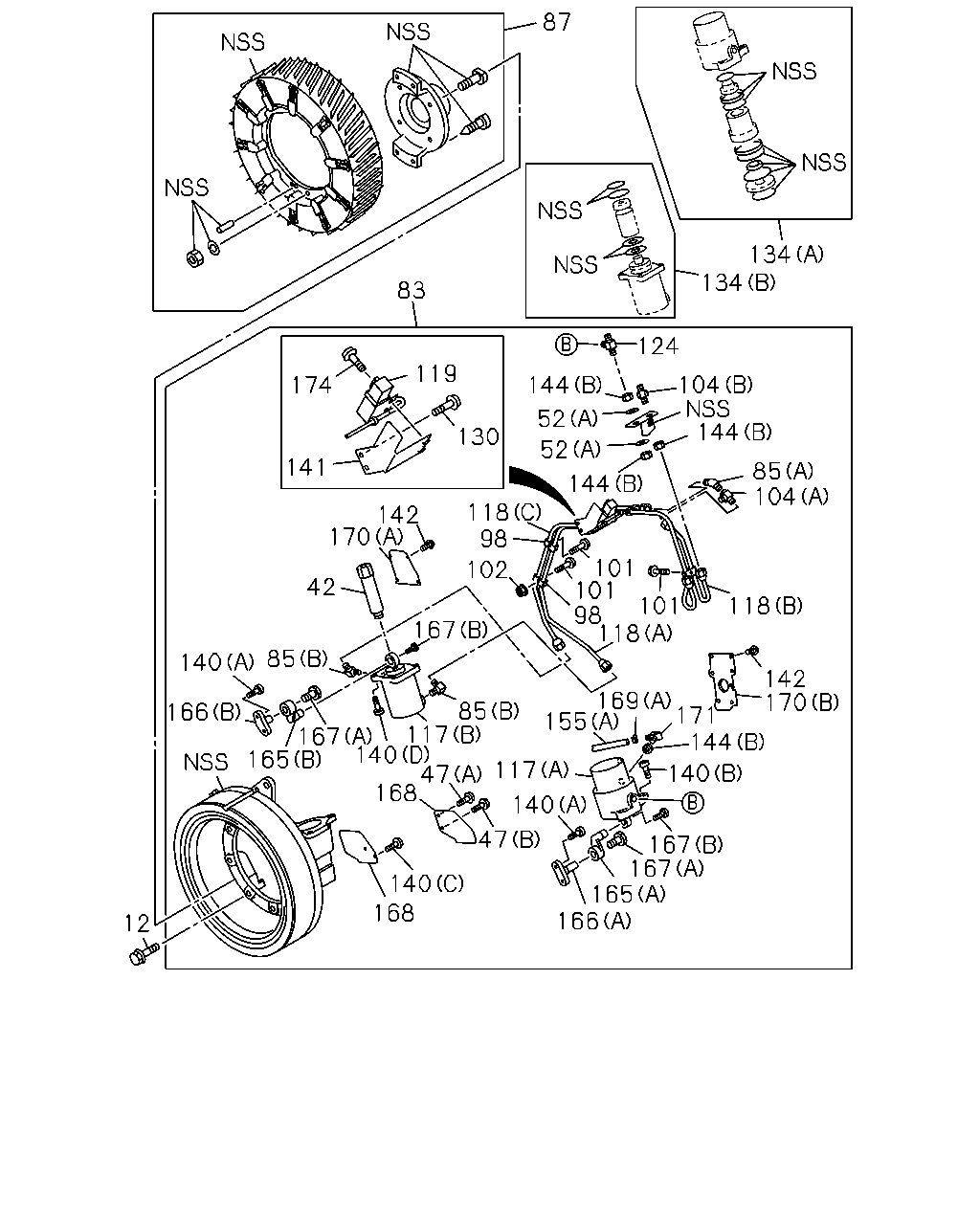

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE	0-28791-235-0	08	1	9707-9904	●
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE	0-28791-235-0	08	1	9905-	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> (B) M6X14 HEX SOCKET	1-48629-145-0	20	1	9905-	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-170-0	04	1	9905-	●
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	9707-9904	●
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	9905-	●
42	SPRING; RETURN,LEVER	1-09583-128-0	01	1	9911-		●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	9707-9904	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	9905-	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET	1-48629-145-0	01	1	9707-9904	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET	1-48629-145-0	01	1	9905-	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=12.5 OD=26	9-09160-612-0	02	1	9707-9904	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	9-09160-612-0	02	1	9905-9910	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2	1-09503-223-0	04	1	9603-	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=10.5 OD=26	9-09160-710-0	05	1	9603-9904	●
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46200-245-2	01	1	9707-9904	●
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46200-245-3	01	1	9905-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	9707-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	9905-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	9707-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	9-09224-306-2	01	1	9905-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-060-1	02	1	9603-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-211-0	01	1	9905-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/8	9-09224-306-2	04	1	9603-9904	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	9905-	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46210-269-1	01	1	9707-9904	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46210-269-3	01	1	9905-	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	9707-9904	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	9905-	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2>	1-47477-009-0	01	1	9603-9904	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X18	1-48629-134-0	03	1	9707-9904	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X18	1-48629-134-0	03	1	9905-	●
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	5-09440-004-0	01	1	9707-9904	●
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	5-09440-004-0	01	1	9905-	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	9707-9904	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	9905-	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	9707-9904	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	9905-	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-059-0	02	1	9603-9904	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	01	1	9905-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	9707-9904	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	9905-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	9707-9904	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	9905-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2>	1-48629-020-1	03	1	9603-9904	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-192-0	01	1	9905-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-193-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	9707-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	9707-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	9707-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (E) LOWER,FRONT	1-49112-398-1	01	1	9603-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-210-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (F) LOWER,REAR	1-49112-399-1	01	1	9603-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-201-0	01	1	9905-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A) UPPER,FRONT	1-49114-769-0	01	1	9603-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B) UPPER,REAR	1-49114-770-0	01	1	9603-9606	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B) UPPER,REAR	1-49117-520-0	01	1	9607-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (C) CENTER,FRONT	1-49114-771-0	01	1	9603-9904	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D) CENTER,REAR	1-49114-772-0	01	1	9603-9904	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	9707-9904	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-054-0	01	1	9905-9910	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-043-0	01	1	9603-9904	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-188-0	01	1	9707-9904	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-188-0	01	1	9905-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-203-0	01	1	9905-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-204-0	01	1	9905-	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	9707-9904	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	9905-	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M8X25 FLANGE	0-28080-825-0	02	1	9603-9904	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28080-825-0	02	1	9905-	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28080-830-0	02	1	9603-9904	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	02	1	9905-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	9707-9904	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	9905-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	9707-9904	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	9905-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2>	1-85576-130-1	03	1	9603-9904	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-217-0	01	1	9905-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-218-0	01	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	9707-9904	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M10X20	1-48629-070-0	08	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	9707-9904	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	9707-9904	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	9707-9904	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M10X25	0-28191-025-0	06	1	9603-9904	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-040-0	12	1	9603-9904	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C) M8X18	1-48629-134-0	02	1	9905-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M8X12	1-48629-205-0	02	1	9905-	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	9707-9904	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	9905-	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-122-1	01	1	9603-9606	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-185-0	01	1	9607-9904	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-172-0	01	1	9905-	●
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	9707-9904	●
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	9905-	●
142	SCREW BRAKE SYSTEM RETARDER<RE2>	9-06043-810-0	03	1	9603-9904	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12	9-09840-280-0	04	1	9707-9904	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M12	9-09840-280-0	04	1	9905-9910	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M16	9-99110-516-0	04	1	9603-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M12	9-99111-412-0	02	1	9603-9904	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	9707-9904	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-092-0	01	1	9905-9910	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9707-9904	●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	9707-9904	●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	9905-	●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	9707-9904	●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	9905-	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	9707-9904	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	9905-	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	9707-9904	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	9905-	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-191-0	02	1	9905-	●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	9707-9904	●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	9905-	●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-127-0	02	1	9707-9904	●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-127-0	02	1	9905-	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-190-0	02	1	9707-9904	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-190-0	02	1	9905-	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	9905-	●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-126-0	01	1	9707-9904	●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-126-0	01	1	9905-	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-209-0	04	1	9905-	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	9707-9904	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	9905-	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	9707-9904	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	9905-	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-195-0	01	1	9905-	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-196-0	01	1	9905-	●
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	9707-9904	●
171	BREATHER BRAKE SYSTEM RETARDER<RE2>	1-48629-144-0	01	1	9905-9910	●
174	BOLT; SWITCH BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	02	1	9707-9904	●
174	BOLT; SWITCH BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	02	1	9905-	●

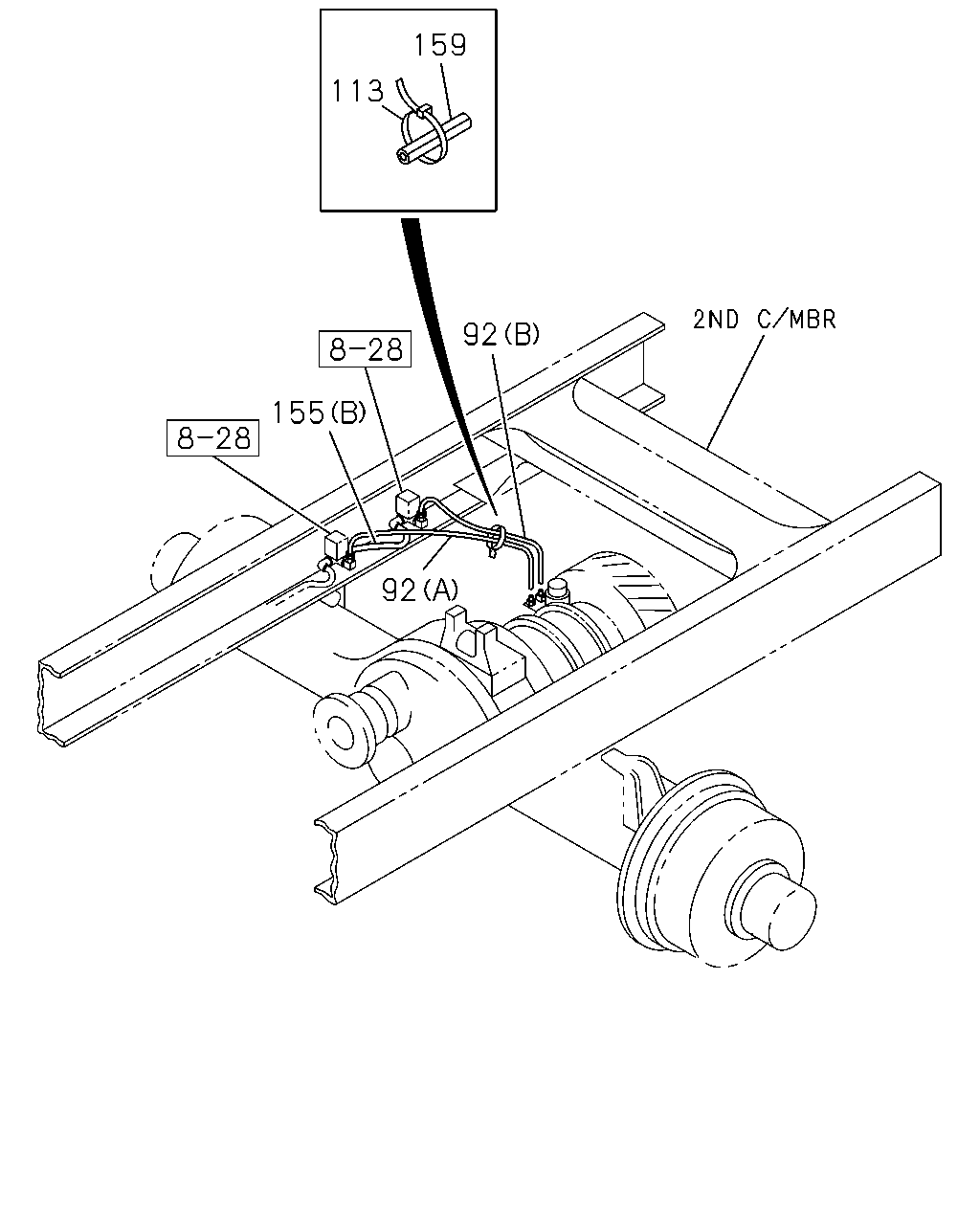

159 113 92 155 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=420	1-09363-615-0	01	1	9707-9904	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=390	1-09363-616-0	01	1	9707-9904	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> L=320	0-07120-320-0	02	1	9603-9702	●
92	HOSE; FLEX,RETARDER V TYPE ENG<91L> BRAKE SYSTEM RETARDER<RE2> L=320	1-09363-656-0	02	1	9703-9906	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> L=320	1-09363-656-0	02	1	9907-	●
92	HOSE; FLEX,RETARDER L TYPE ENG<90L> BRAKE SYSTEM RETARDER<RE2> L=400	1-09363-606-0	02	1	9703-	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=140	5-09707-031-1	01	1	9707-9904	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-092-0	01	1	9707-9904	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-092-0	01	1	9905-9910	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9707-9904	●
159	SLEEVE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50	1-09337-023-0	01	1	9707-9904	●

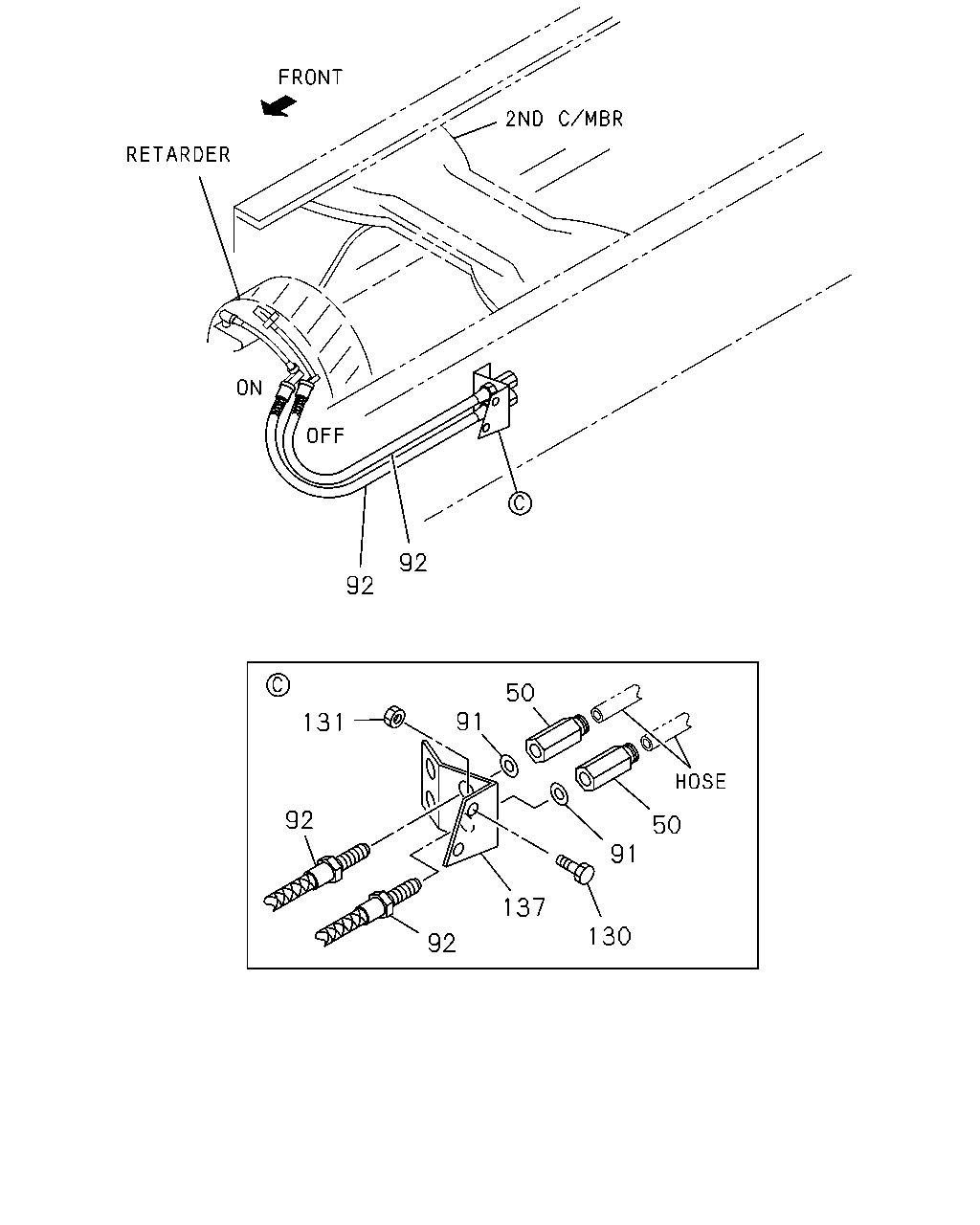

92 92 50 91 131 92 50 91 137 130 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
50	ADAPTER; PARK BRK BRAKE SYSTEM RETARDER<RE2> DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	9603-9904	●
50	ADAPTER; PARK BRK BRAKE SYSTEM RETARDER<RE2> DIN8 & M12 STRAIGHT	1-09661-093-0	02	1	9905-0005	●
50	ADAPTER; PARK BRK BRAKE SYSTEM RETARDER<RE2> DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0006-	●
91	GASKET BRAKE SYSTEM RETARDER<RE2> ID=11 OD=18	9-09572-510-0	02	1	9603-9702	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=420	1-09363-615-0	01	1	9707-9904	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=390	1-09363-616-0	01	1	9707-9904	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> L=320	0-07120-320-0	02	1	9603-9702	●
92	HOSE; FLEX,RETARDER V TYPE ENG<91L> BRAKE SYSTEM RETARDER<RE2> L=320	1-09363-656-0	02	1	9703-9906	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> L=320	1-09363-656-0	02	1	9907-	●
92	HOSE; FLEX,RETARDER L TYPE ENG<90L> BRAKE SYSTEM RETARDER<RE2> L=400	1-09363-606-0	02	1	9703-	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	9707-9904	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	9905-	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M8X25 FLANGE	0-28080-825-0	02	1	9603-9904	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28080-825-0	02	1	9905-	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28080-830-0	02	1	9603-9904	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28080-830-0	02	1	9905-	●
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> M8	9-09110-408-0	02	1	9603-9606	●
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	02	1	9607-	●
137	BRACKET; AIR PIPE BRAKE SYSTEM RETARDER<RE2>	1-47477-635-0	01	1	9603-	●

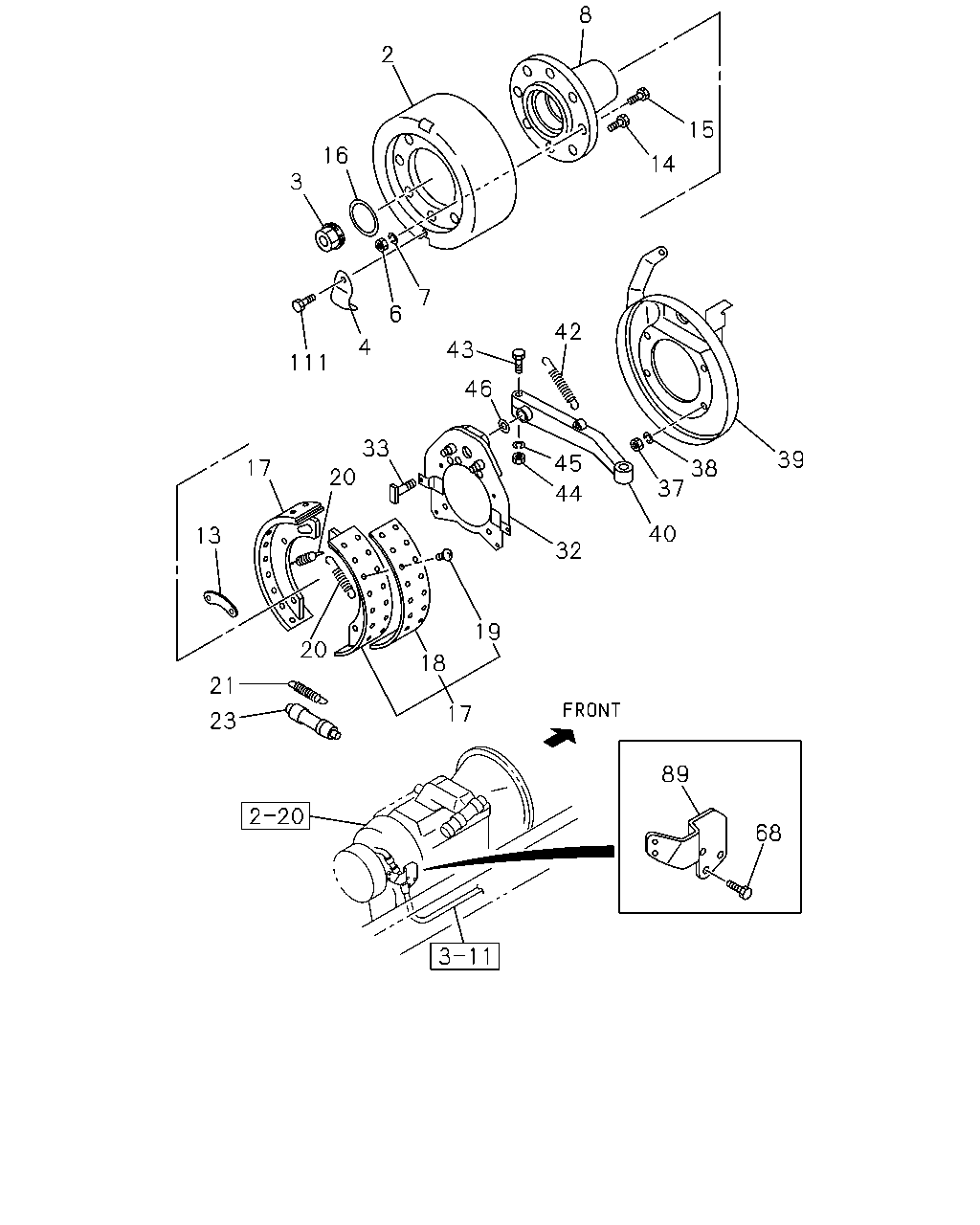

8 2 15 16 14 3 7 6 42 4 43 111 46 33 39 45 17 38 37 20 44 40 13 32 19 20 18 21 17 23 89 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-227-2	01	1	9603-9904	●
2	DRUM; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-257-2	01	1	9905-	●
2	DRUM; PARKING BRK	1-46211-026-1	01	1	9911-		●
3	NUT; LK M46	1-09449-062-0	01	1	9911-		●
4	COVER; ADJ HOLE	1-46219-019-0	02	1	9911-		●
6	NUT; FLANGE M16	9-99110-516-0	02	1	9911-		●
7	WASHER; LK,FLANGE ID=16.2	9-09150-516-0	02	1	9911-		●
8	FLANGE; PARKING BRK	1-37243-215-0	01	1	9911-		●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9911-		●
14	BOLT; DRUM TO FLANGE M16X38	1-46219-010-0	02	1	9911-		●
15	BOLT; FLANGE BRAKE SYSTEM RETARDER<RE2>	1-48629-123-0	05	1	9603-9904	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9911-		●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9911-		●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9911-		●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	9911-		●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	9911-		●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9911-		●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9911-		●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9911-		●
32	PLATE; SUPPORT,PARKING BRK	1-46213-033-0	01	1	9911-		●
33	SHAFT; CAM,PARKING BRK	9-46251-069-0	01	1	9911-		●
37	NUT; SUPPORT PLATE M16	9-99110-516-0	04	1	9911-		●
38	WASHER; LK,SUPPORT PLATE ID=16.2	9-09150-516-0	04	1	9911-		●
39	COVER; DUST,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46213-094-1	01	1	9603-9904	●
39	COVER; DUST,PARKING BRK	1-46213-066-1	01	1	9911-		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-014-0	01	1	9911-		●
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	9707-9904	●
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-071-1	01	1	9905-	●
42	SPRING; RETURN,LEVER	1-09583-128-0	01	1	9911-		●
43	BOLT; LEVER TO CM/SHF	0-10811-045-0	01	1	9911-		●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	9911-		●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	9911-		●
46	WASHER; LEVER	9-09855-362-0	01	1	9911-		●
68	BOLT; BRKT,PARKING BRK CONT M10X22 FLANGE	0-28181-022-0	03	1	9911-		●
89	BRACKET; PARKING BRK CONT	1-46147-198-1	01	1	9911-		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9911-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
