Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#52608) — 328 parça

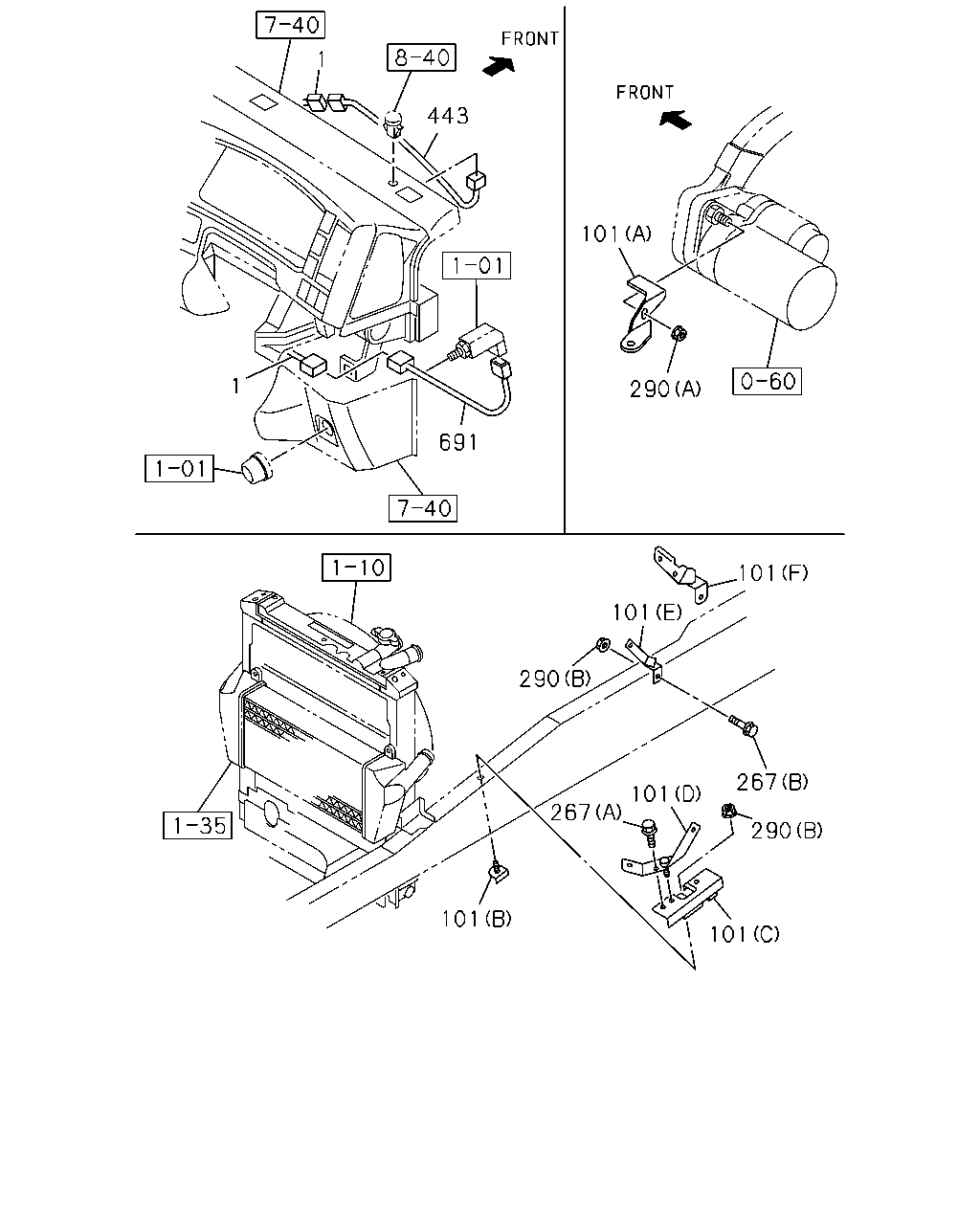

443 101 290 691 1 101 267 290 101 101 101 101 267 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP>	8-98204-554-1	01	1	1311-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>	8-98204-553-1	01	1	1311-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98228-702-2	01	1	1311-
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) REMOTE CONT DOOR LOCK<6NF> CAN INTERFACE FMS STD(8PG)	8-98204-549-0	01	1	1112-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-549-0	01	1	1205-1310
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-549-0	01	1	1311-
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF> CAN INTERFACE FMS STD(8PG)	8-98204-550-0	01	1	1112-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF>	8-98204-550-0	01	1	1205-1310
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-550-0	01	1	1311-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO DOOR LOCK<AU4>,FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98158-583-0	01	1	1006-1006
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98158-583-0	01	1	1006-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98207-643-0	01	1	1205-1310
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98207-643-0	01	1	1311-
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>, FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,R EMOTE CONT DOOR LOCK<6NF>	8-98158-582-0	01	1	1006-1006
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98158-582-0	01	1	1006-1204
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98207-642-0	01	1	1205-1310
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98207-642-0	01	1	1311-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF>	8-98087-341-4	01	1	0910-0912
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF>	8-98154-787-0	01	1	1001-1111
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF> EXC. CAN INTERFACE FMS STD(8PG)	8-98154-787-0	01	1	1112-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98087-340-4	01	1	0907-0909
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-340-4	01	1	0910-0912
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98154-786-0	01	1	1001-1111
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. FULLAUTO AIR CONDITIONER(C68),CAN INTERFACE FMS STD(8PG)	8-98154-786-0	01	1	1112-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98087-339-4	01	1	0907-0909
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98087-339-4	01	1	0910-1005
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98087-339-5	01	1	1006-1204
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98207-645-0	01	1	1205-1310
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98207-645-0	01	1	1311-
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-338-5	01	1	0907-0909
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98087-338-5	01	1	0910-1204
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98207-646-0	01	1	1205-1310
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98207-646-0	01	1	1311-
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98087-337-4	01	1	0907-0909
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98087-337-4	01	1	0910-1005
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98087-337-5	01	1	1006-1204
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98207-644-0	01	1	1205-1310
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98207-644-0	01	1	1311-
101	02.483 BRACKET; HARNESS CONNECTOR 02.183 (A)	8-98030-725-1	01	1	0907-1310
101	02.483 BRACKET; HARNESS CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	1311-
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98078-070-1	01	1	0907-
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98078-071-1	01	1	0907-
101	02.483 BRACKET; HARNESS CONNECTOR (E)	8-98079-011-1	01	1	0907-1205
101	02.483 BRACKET; HARNESS CONNECTOR (F)	8-98217-757-0	01	1	1206-
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98093-465-1	01	1	0907-
267	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0907-1003
267	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1004-1309
267	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1004-1309
267	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1310-
267	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1310-
267	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1310-
267	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0907-
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0907-
290	02.483 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0907-1310
290	02.483 NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1311-
443	02.480 HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98029-830-0	01	1	0910-
691	02.480 HARNESS; IDLE CONT	8-98049-014-2	01	1	0907-0909
691	02.480 HARNESS; IDLE CONT SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98049-014-2	01	1	0910-

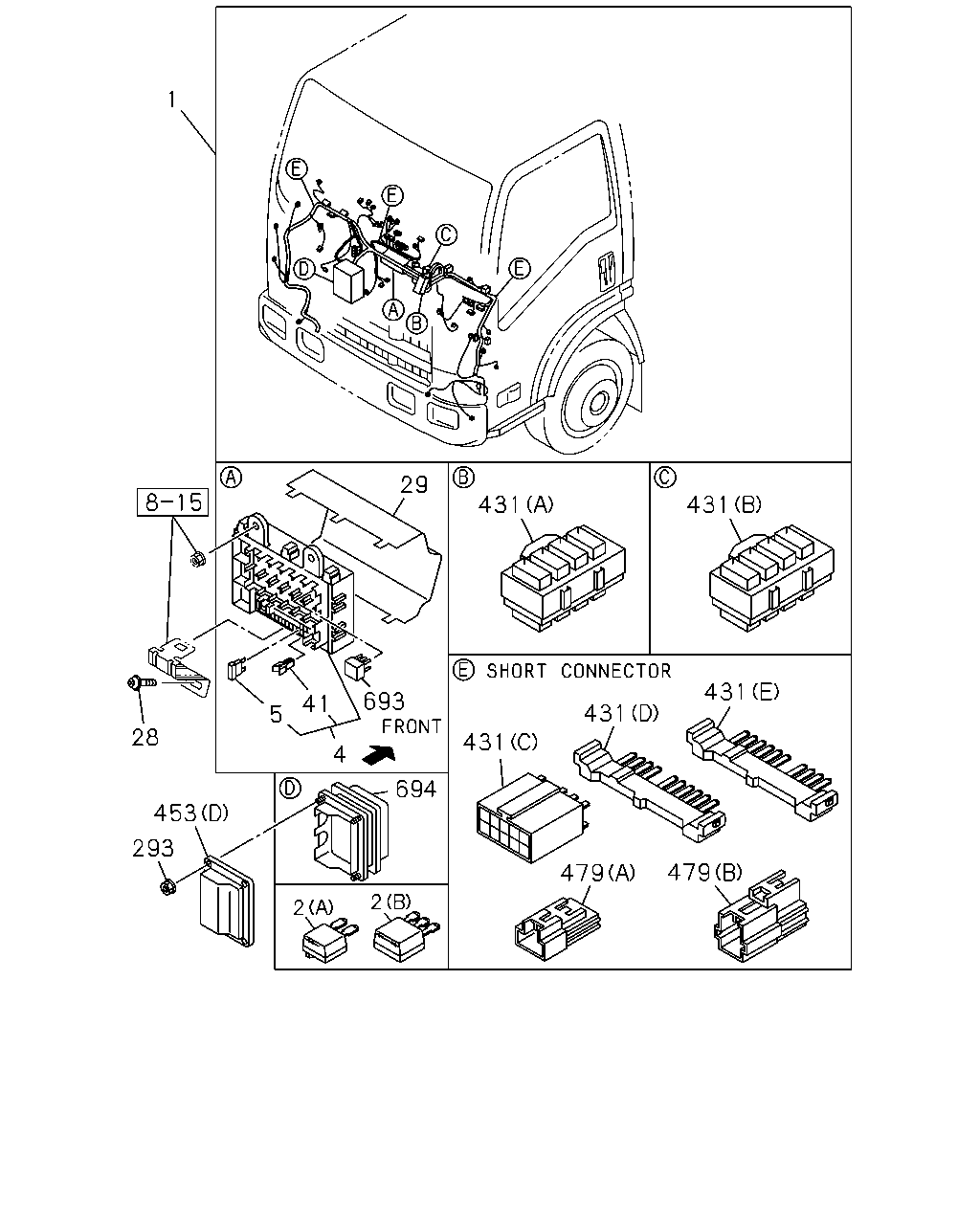

1 29 41 5 4 693 694 2 2 453 293 431 431 431 479 479 431 431 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP>	8-98204-554-1	01	1	1311-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>	8-98204-553-1	01	1	1311-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98228-702-2	01	1	1311-
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) REMOTE CONT DOOR LOCK<6NF> CAN INTERFACE FMS STD(8PG)	8-98204-549-0	01	1	1112-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-549-0	01	1	1205-1310
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98204-549-0	01	1	1311-
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF> CAN INTERFACE FMS STD(8PG)	8-98204-550-0	01	1	1112-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF>	8-98204-550-0	01	1	1205-1310
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-550-0	01	1	1311-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO DOOR LOCK<AU4>,FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98158-583-0	01	1	1006-1006
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98158-583-0	01	1	1006-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98207-643-0	01	1	1205-1310
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98207-643-0	01	1	1311-
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4>, FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,R EMOTE CONT DOOR LOCK<6NF>	8-98158-582-0	01	1	1006-1006
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98158-582-0	01	1	1006-1204
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98207-642-0	01	1	1205-1310
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98207-642-0	01	1	1311-
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF>	8-98087-341-4	01	1	0910-0912
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF>	8-98154-787-0	01	1	1001-1111
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) REMOTE CONT DOOR LOCK<6NF> EXC. CAN INTERFACE FMS STD(8PG)	8-98154-787-0	01	1	1112-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF>	8-98087-340-4	01	1	0907-0909
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-340-4	01	1	0910-0912
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98154-786-0	01	1	1001-1111
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. FULLAUTO AIR CONDITIONER(C68),CAN INTERFACE FMS STD(8PG)	8-98154-786-0	01	1	1112-1204
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98087-339-4	01	1	0907-0909
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98087-339-4	01	1	0910-1005
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98087-339-5	01	1	1006-1204
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98207-645-0	01	1	1205-1310
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98207-645-0	01	1	1311-
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-338-5	01	1	0907-0909
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98087-338-5	01	1	0910-1204
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98207-646-0	01	1	1205-1310
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98207-646-0	01	1	1311-
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98087-337-4	01	1	0907-0909
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98087-337-4	01	1	0910-1005
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98087-337-5	01	1	1006-1204
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98207-644-0	01	1	1205-1310
1	02.480 HARNESS; CAB H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98207-644-0	01	1	1311-
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	0907-
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	0907-

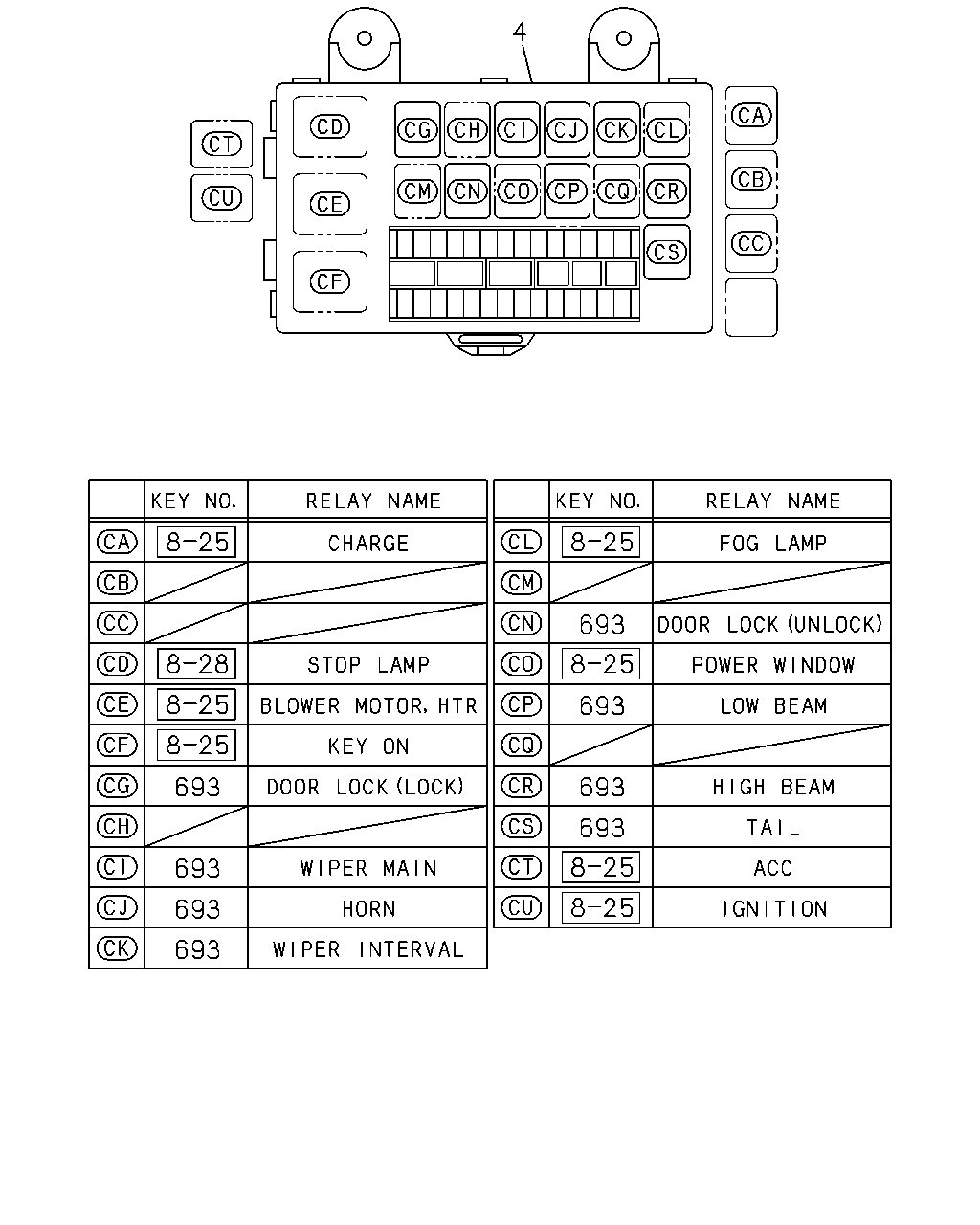

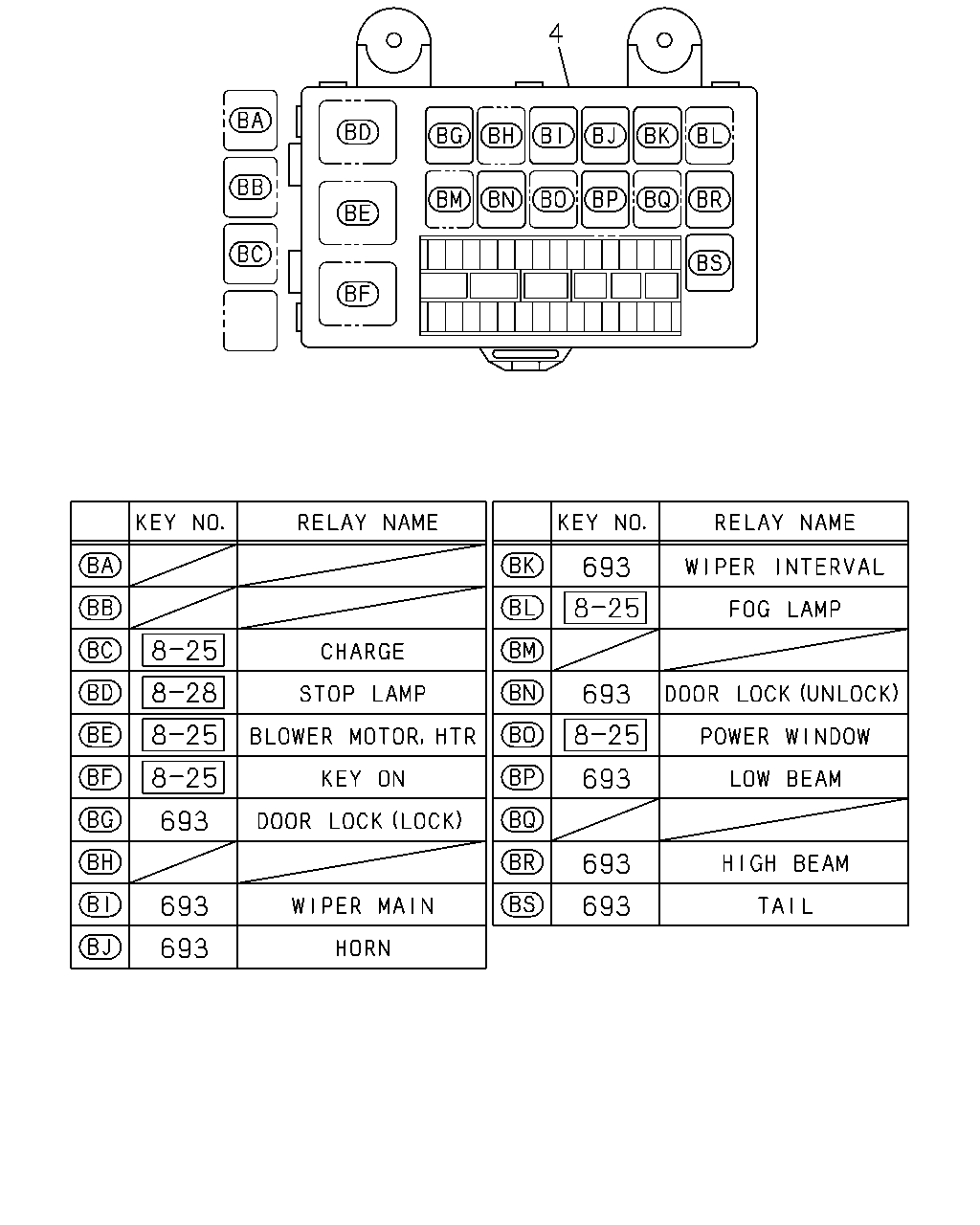

4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0907-
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0907-
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0907-
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0907-
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0907-1101
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	0907-
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	0907-
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	0907-
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	02	1	1001-1005
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	02	1	0907-0912
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	01	1	1001-1204
431	02.530 CONNECTOR; JOINT (E) 10P GREEN	1-82699-599-0	01	1	0907-1204
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	0907-1204
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	0907-
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	0907-
453	02.483 PROTECTOR; HARNESS FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-94417-716-0	03	1	1311-1409
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC) (A)	8-94417-716-0	03	1	1311-1409
453	02.483 PROTECTOR; HARNESS FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-94417-716-0	03	1	1311-1409
453	02.483 PROTECTOR; HARNESS FRT INDEPENDENT SUSPENSION(FF0) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94417-716-0	03	1	1311-1409
453	02.483 PROTECTOR; HARNESS IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-94417-716-0	03	1	1311-1409
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	03	1	0907-1310
453	02.483 PROTECTOR; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC) (A)	8-94417-716-0	02	1	1311-1409
453	02.483 PROTECTOR; HARNESS FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC) (A)	8-94417-716-0	02	1	1311-1409
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	03	1	1410-
453	02.483 PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	0907-
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	0907-
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	0907-
453	02.483 PROTECTOR; HARNESS (D)	8-98034-039-1	01	1	0907-
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98108-678-0	01	1	1205-
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98108-679-0	01	1	1205-
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0907-
694	02.483 BOX ASM; CONNECTOR	8-98057-772-0	01	1	0907-

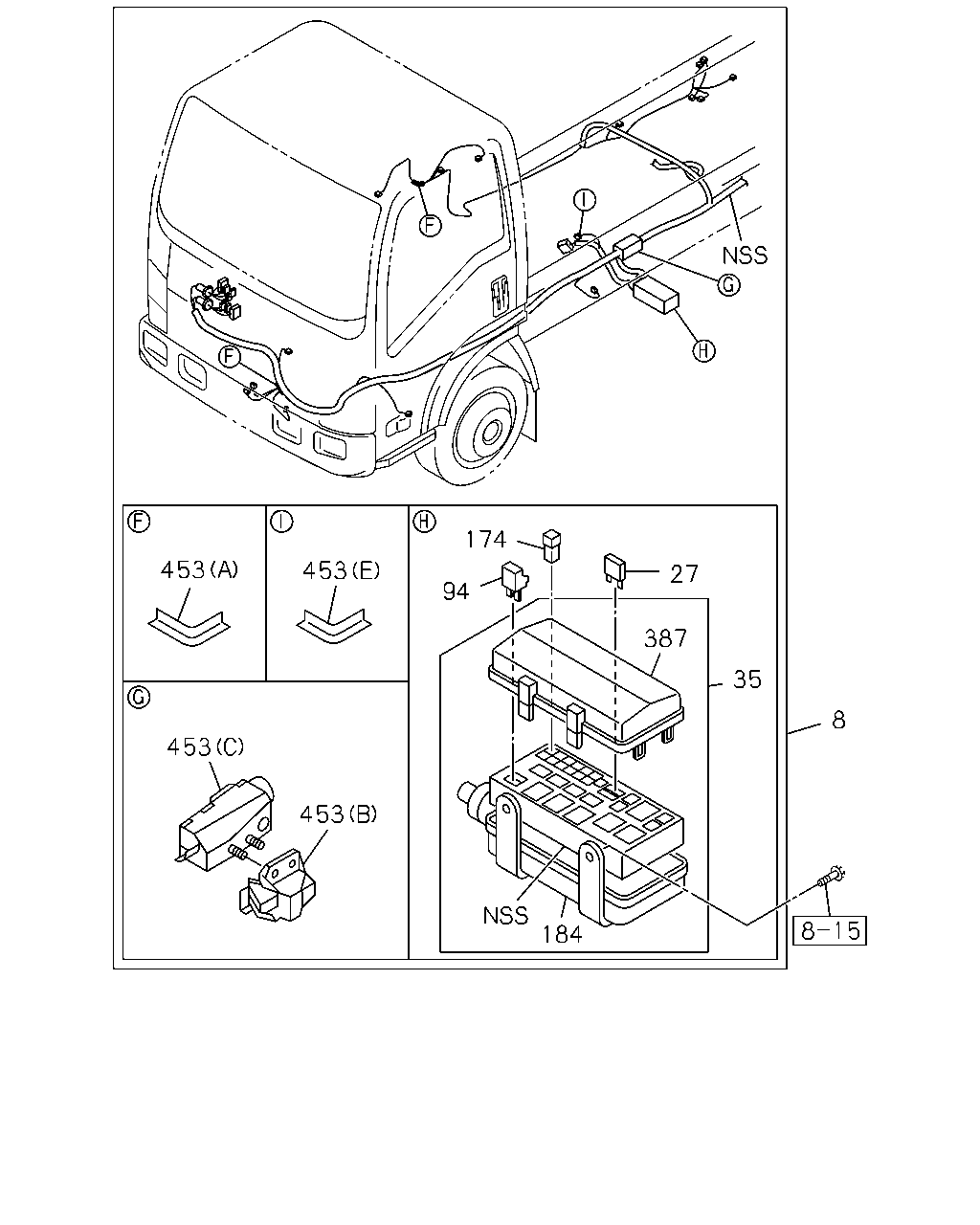

27 8 35 387 174 94 453 453 453 453 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

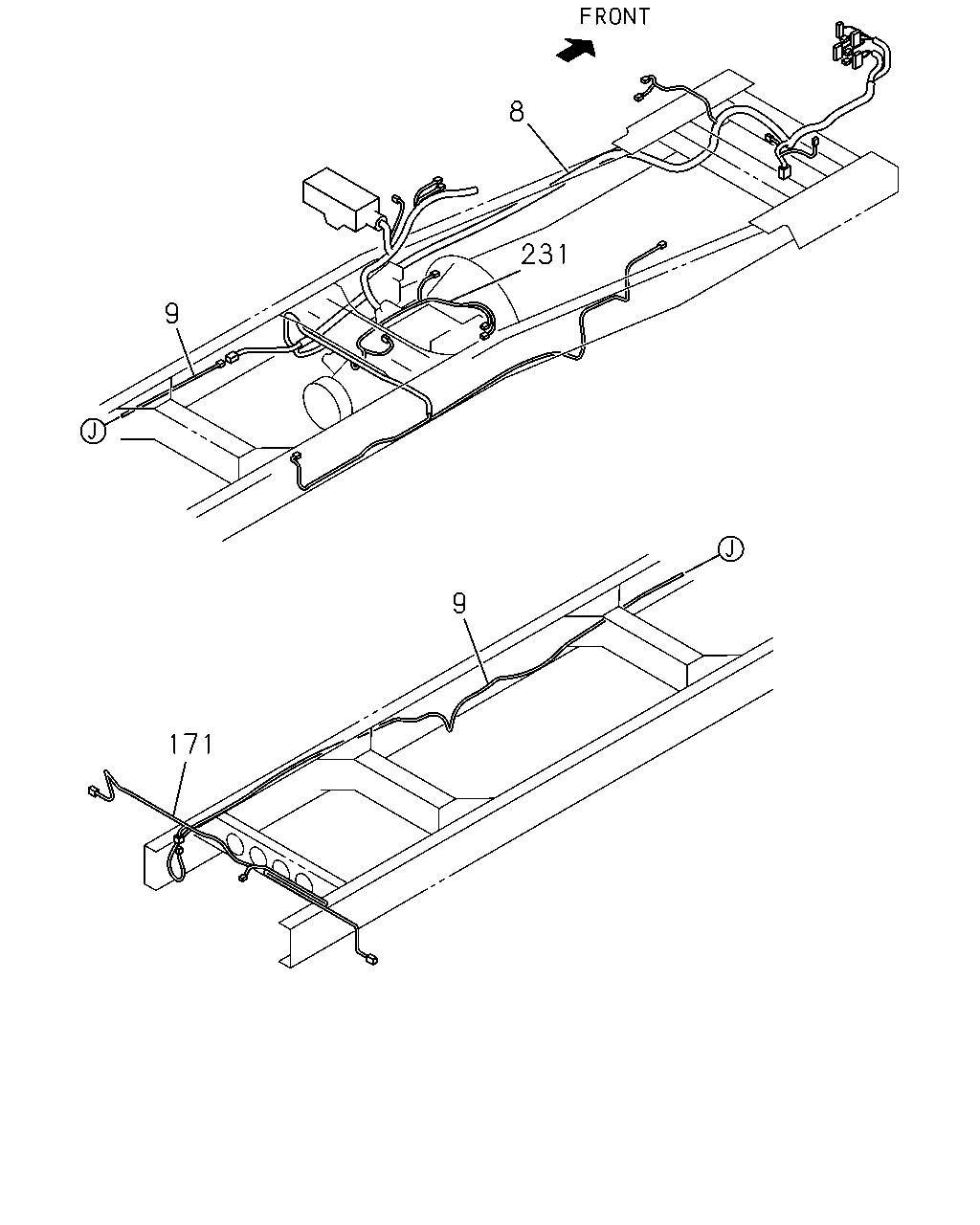

8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98139-878-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-878-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98294-020-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-020-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC)	8-98254-304-0	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98254-304-0	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC)	8-98294-024-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-024-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-876-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-876-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-018-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-018-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98139-874-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98294-016-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-872-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-014-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC)	8-98139-870-1	01	1	0910-1003
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98139-870-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC)	8-98139-870-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98139-870-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98139-870-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98294-012-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-012-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-868-1	01	1	0910-1003
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-868-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) IMMOBILIZER SYSTEM(7KC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-868-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-868-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-868-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-010-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-010-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98139-866-1	01	1	0910-1003
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98139-866-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98139-866-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98294-008-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-864-1	01	1	0910-1003
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-864-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-864-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-006-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98139-863-1	01	1	0907-0909
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IMMOBILIZER SYSTEM(7KC)	8-98139-863-1	01	1	0910-1003
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC)	8-98139-863-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IMMOBILIZER SYSTEM(7KC)	8-98139-863-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC)	8-98139-863-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98139-863-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC)	8-98294-005-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-005-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98139-862-1	01	1	0907-0909
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,IMMOBILIZER SYSTEM(7KC)	8-98139-862-1	01	1	0910-1003
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),IMMOBILIZER SYSTEM(7KC)	8-98139-862-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),IMMOBILIZER SYSTEM(7KC)	8-98139-862-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),IMMOBILIZER SYSTEM(7KC)	8-98294-004-0	01	1	1410-
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	0907-
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	0907-
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	0907-1310
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	1311-
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	0907-
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	0907-
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	0907-
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	0907-
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	0907-
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	0907-
453	02.483 PROTECTOR; HARNESS FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-94417-716-0	03	1	1311-1409
453	02.483 PROTECTOR; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC) (A)	8-94417-716-0	03	1	1311-1409
453	02.483 PROTECTOR; HARNESS FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-94417-716-0	03	1	1311-1409
453	02.483 PROTECTOR; HARNESS FRT INDEPENDENT SUSPENSION(FF0) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94417-716-0	03	1	1311-1409
453	02.483 PROTECTOR; HARNESS IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-94417-716-0	03	1	1311-1409
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	03	1	0907-1310
453	02.483 PROTECTOR; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC) (A)	8-94417-716-0	02	1	1311-1409
453	02.483 PROTECTOR; HARNESS FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC) (A)	8-94417-716-0	02	1	1311-1409
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	03	1	1410-
453	02.483 PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	0907-
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	0907-
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	0907-
453	02.483 PROTECTOR; HARNESS (D)	8-98034-039-1	01	1	0907-

693 693 693 693 693 693 693 693 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0907-
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0907-

693 693 693 693 693 693 693 693 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0907-
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0907-

9 171 9 231 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98139-878-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-878-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98294-020-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-020-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC)	8-98254-304-0	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98254-304-0	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC)	8-98294-024-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-024-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-876-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-876-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-018-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-018-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98139-874-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98294-016-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-872-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-014-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC)	8-98139-870-1	01	1	0910-1003
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98139-870-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC)	8-98139-870-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98139-870-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98139-870-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98294-012-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-012-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-868-1	01	1	0910-1003
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-868-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) IMMOBILIZER SYSTEM(7KC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-868-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-868-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-868-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-010-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-010-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98139-866-1	01	1	0910-1003
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98139-866-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98139-866-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98294-008-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-864-1	01	1	0910-1003
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-864-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98139-864-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-006-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98139-863-1	01	1	0907-0909
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IMMOBILIZER SYSTEM(7KC)	8-98139-863-1	01	1	0910-1003
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC)	8-98139-863-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. IMMOBILIZER SYSTEM(7KC)	8-98139-863-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC)	8-98139-863-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98139-863-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0), IMMOBILIZER SYSTEM(7KC)	8-98294-005-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC)	8-98294-005-0	01	1	1410-
8	02.480 HARNESS; FRAME,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98139-862-1	01	1	0907-0909
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,IMMOBILIZER SYSTEM(7KC)	8-98139-862-1	01	1	0910-1003
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),IMMOBILIZER SYSTEM(7KC)	8-98139-862-1	01	1	1004-1310
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),IMMOBILIZER SYSTEM(7KC)	8-98139-862-1	01	1	1311-1409
8	02.480 HARNESS; FRAME,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),IMMOBILIZER SYSTEM(7KC)	8-98294-004-0	01	1	1410-
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-419-1	01	1	1112-
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-418-2	01	1	1112-
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-412-2	01	1	0910-
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-419-1	01	1	0910-1003
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-418-2	01	1	0910-1003
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-422-2	01	1	0910-
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W)	8-98048-414-2	01	1	0907-0909
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-414-2	01	1	0910-
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98048-424-1	01	1	0907-0909
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-424-1	01	1	0910-
171	02.596 HARNESS; CABLE,TAIL LAMP EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)	8-98008-095-2	01	1	0910-0911
171	02.596 HARNESS; CABLE,TAIL LAMP EXC. AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)	8-98156-028-0	01	1	0912-
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98070-319-1	01	1	0907-0909
171	02.596 HARNESS; CABLE,TAIL LAMP AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)	8-98070-319-1	01	1	0910-1006
171	02.596 HARNESS; CABLE,TAIL LAMP AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14)	8-98156-027-0	01	1	1007-
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-598-1	01	1	1311-

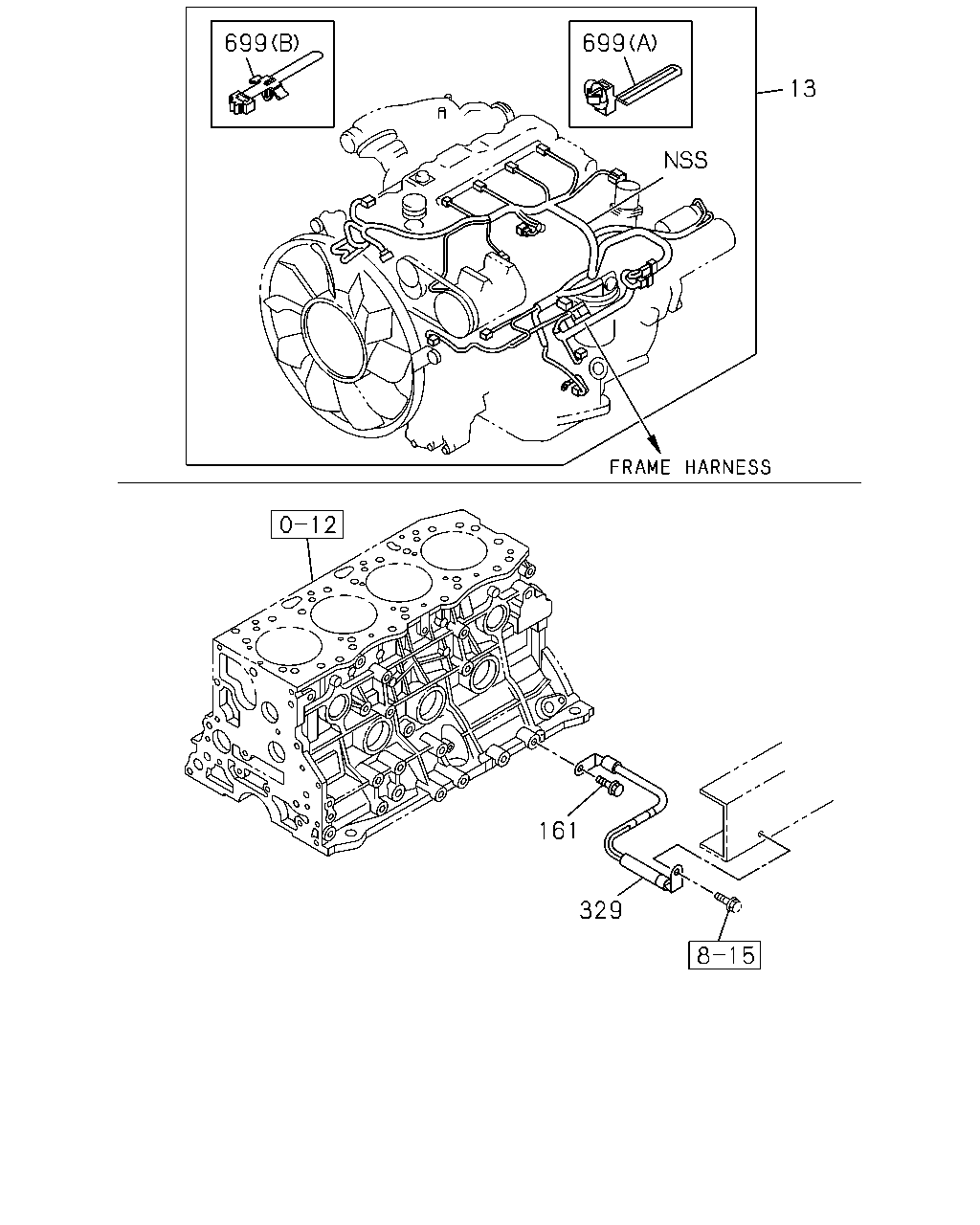

13 699 699 161 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	02.525 HARNESS; ENG	8-98082-045-5	01	1	0907-1006
13	02.525 HARNESS; ENG	8-98147-729-0	01	1	1007-1310
13	02.525 HARNESS; ENG	8-98244-735-0	01	1	1311-
161	02.559 BOLT; GROUND,HARNESS 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0907-
329	02.480 CABLE; ENG TO FRAME	8-98039-854-1	01	1	0907-
699	02.559 CLIP; ENG HARNESS 04.105 (A) L=140	8-97122-360-0	03	1	0907-1310
699	02.559 CLIP; ENG HARNESS (B)	8-98088-438-0	01	1	0907-1310

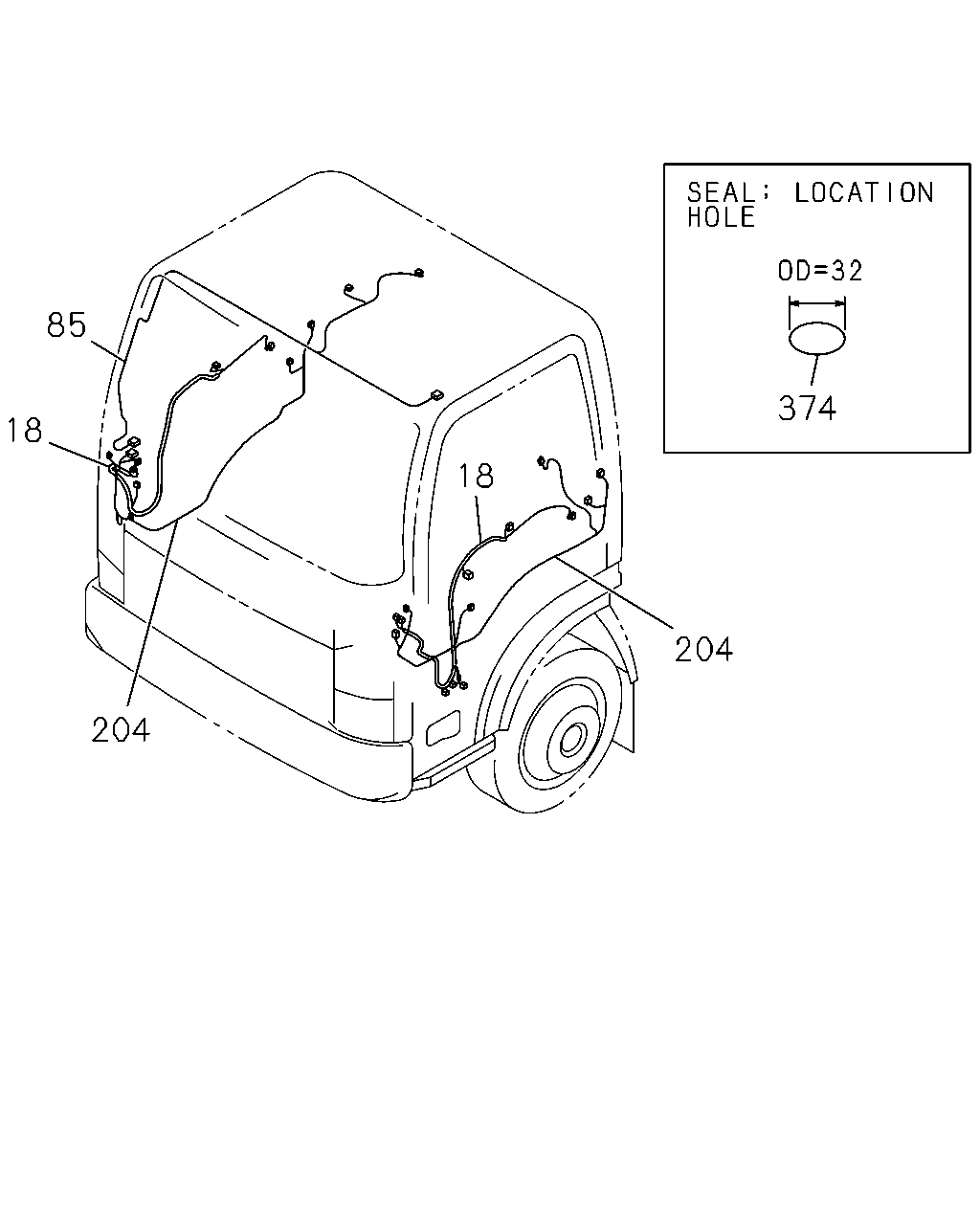

204 18 18 204 85 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87>	8-98077-590-2	01	1	1212-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87>	8-98077-598-3	01	1	1212-
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87>	8-98071-077-2	01	1	1011-
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87>	8-98071-085-3	01	1	1011-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87>	8-98071-078-2	01	1	0910-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87>	8-98071-086-3	01	1	0910-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-076-2	01	1	0910-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-084-3	01	1	0910-
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV>	8-98071-075-2	01	1	0910-
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV>	8-98071-083-2	01	1	0910-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98046-746-5	01	1	0907-0909
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98046-746-5	01	1	0910-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98077-596-3	01	1	0907-0909
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98077-596-3	01	1	0910-
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98046-744-2	01	1	0907-0909
18	02.480 HARNESS; DOOR CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/S IDE RR VIEW,HEATED<7SV>	8-98046-744-2	01	1	0910-
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98046-749-2	01	1	0907-0909
18	02.480 HARNESS; DOOR CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/S IDE RR VIEW,HEATED<7SV>	8-98046-749-2	01	1	0910-
85	06.495 HARNESS; ROOM LAMP FLUORESCENT LAMP<6UC>	8-98049-964-3	01	1	1001-
85	06.495 HARNESS; ROOM LAMP	8-98049-963-2	01	1	0907-0912
85	06.495 HARNESS; ROOM LAMP EXC. FLUORESCENT LAMP<6UC>	8-98049-963-3	01	1	1001-
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98047-156-6	01	1	1311-
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-789-4	01	1	1311-
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98047-157-6	01	1	0907-1310
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98047-157-6	01	1	1311-
204	02.559 HARNESS; CABLE,FLOOR H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER<AK5>	8-98074-592-3	01	1	0907-1211
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98074-592-3	01	1	0907-1211
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. H.S.A SYSTEM<6EP>	8-98074-592-3	01	1	0907-1211
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF)	8-98074-592-3	01	1	1212-
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98075-612-3	01	1	0907-1310
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98075-612-3	01	1	1311-
204	02.559 HARNESS; CABLE,FLOOR H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	0907-1211
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>, H.S.ASYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>	8-98070-807-3	01	1	0907-1211
204	02.559 HARNESS; CABLE,FLOOR REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER<AK5>, H.S.ASYSTEM<6EP>	8-98070-807-3	01	1	0907-1211
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	1212-
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-787-4	01	1	0907-1310
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-787-4	01	1	1311-
374	02.530 PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>,ROOM LAMP W/ALL DOORS SW(SDF),H.S.A SYSTEM<6EP> ,REMOTE CONT DOOR LOCK<6NF> 16.545 OD=32 BLACK	8-98031-126-0	01	1	0907-1310
374	02.530 PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>,ROOM LAMP W/ALL DOORS SW(SDF),H.S.A SYSTEM<6EP> ,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 OD=32 BLACK	8-98031-126-0	01	1	1311-

441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) SUSPENSION - RR UNDER SLUNG<V4U>	8-97308-214-4	01	1	1004-
441	02.480 HARNESS; CABLE,SPEED SENSOR	8-97308-220-4	01	1	0907-0909
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-97308-220-4	01	1	0910-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

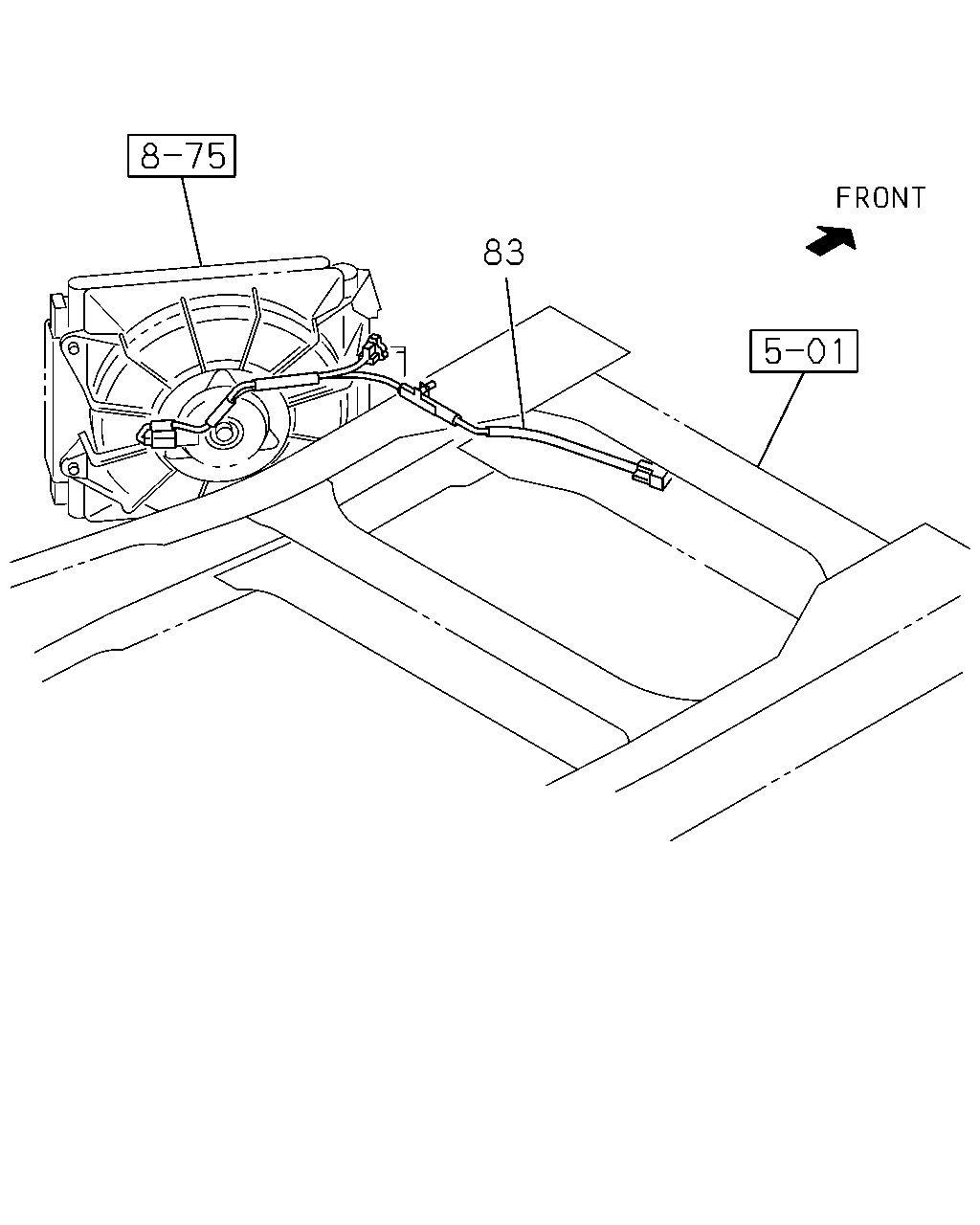

	83	02.480 HARNESS; AIR CONDITIONER AIR CONDITIONER MANUAL CONT(C60)	8-98140-333-2	01	1	0907-0909
	83	02.480 HARNESS; AIR CONDITIONER AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98140-333-2	01	1	0910-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
