◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51250 - NMR85(RHD)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#52605) — 124 parça
çizim 159767
1 4 23 457 382 20 20 420 420 408 5 5
BalonParca AdiParca NoAdetTipApplied Date
1 02.725 LAMP ASM; HEAD 8-98098-479-1 01 1 0907-1208
1 02.725 LAMP ASM; HEAD 8-98225-599-0 01 1 1209-1301
1 02.725 LAMP ASM; HEAD 8-98225-640-0 01 1 1302-1305
1 02.725 LAMP ASM; HEAD 8-98241-325-0 01 1 1306-
1 02.725 LAMP ASM; HEAD 8-98098-480-1 01 1 0907-1208
1 02.725 LAMP ASM; HEAD 8-98225-600-0 01 1 1209-1301
1 02.725 LAMP ASM; HEAD 8-98225-641-0 01 1 1302-1305
1 02.725 LAMP ASM; HEAD 8-98241-326-0 01 1 1306-
4 02.727 HEADLAMP UNIT 8-98051-400-0 01 1 0907-1301
4 02.727 HEADLAMP UNIT 8-98226-182-0 01 1 1302-
4 02.727 HEADLAMP UNIT 8-98051-401-0 01 1 0907-1301
4 02.727 HEADLAMP UNIT 8-98226-183-0 01 1 1302-
5 02.727 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0907-
5 02.727 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0907-
20 02.736 SCREW; HEADLAMP 8-97378-871-0 06 1 0907-
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0907-
382 02.575 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0907-1208
382 02.575 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209-
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0907-
420 02.737 SPRING; BULB,HEADLAMP
(A) 		8-97378-875-0 02 1 0907-1301
420 02.737 SPRING; BULB,HEADLAMP
(B) 		8-98218-601-0 02 1 1302-
457 16.450 GRIP; HEADLAMP 8-98241-354-0 02 1 1306-
çizim 159778
331 431 357 399 355 432 32 49 44 47 36 421 15 448
BalonParca AdiParca NoAdetTipApplied Date
15 08.991 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0907-0909
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 0910-1204
15 08.991 BULB; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 24V 70W 		1-82194-106-0 02 1 1205-
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-094-1 01 1 1205-1301
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-070-1 01 1 1302-
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-095-1 01 1 1205-1301
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-071-1 01 1 1302-
32 02.725 LAMP ASM; FOG 8-97378-908-1 01 1 0907-0909
32 02.725 LAMP ASM; FOG 8-98149-143-0 01 1 0910-0910
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0910-1301
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302-
32 02.725 LAMP ASM; FOG 8-97378-909-1 01 1 0907-0909
32 02.725 LAMP ASM; FOG 8-98149-144-0 01 1 0910-0910
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0910-1301
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302-
36 02.727 CORD; FOG LAMP 1-82118-015-0 01 1 0907-0909
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 0910-1204
36 02.727 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-015-0 01 1 1205-
36 02.727 CORD; FOG LAMP 1-82118-016-0 01 1 0907-0909
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 0910-1204
36 02.727 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-016-0 01 1 1205-
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1204-1204
44 02.737 NUT; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> M6 		8-98217-430-0 02 1 1205-
47 02.737 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1204-1204
47 02.737 WASHER; PL,FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98217-429-0 02 1 1205-
49 02.726 BRACKET; LAMP 8-98051-435-0 01 1 0907-0909
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 0910-1204
49 02.726 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-435-0 01 1 1205-
49 02.726 BRACKET; LAMP 8-98051-436-0 01 1 0907-0909
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 0910-1204
49 02.726 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-436-0 01 1 1205-
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0907-0911
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912-
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0907-0911
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912-
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0907-
357 08.991 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0907-
399 02.596 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0907-
421 02.593 TUBE; BREATHER,FOG LAMP
02.596 		8-97025-128-0 02 1 0907-0909
431 02.727 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0907-
432 02.726 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0907-
448 02.727 CAP ASM; LAMP 8-97378-874-0 02 1 0910-0910
448 02.727 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 0910-1204
448 02.727 CAP ASM; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97378-874-0 02 1 1205-

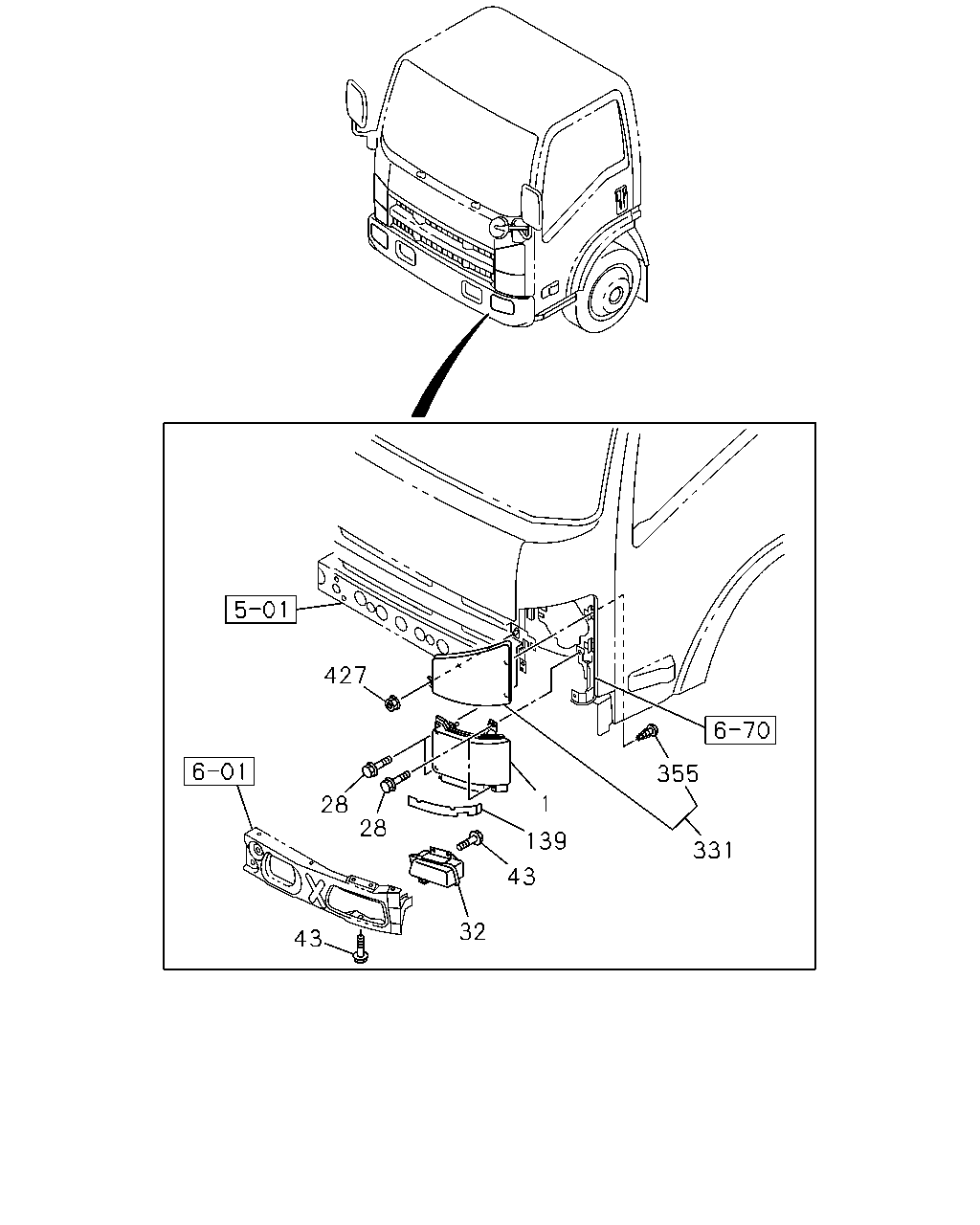

çizim 159782
331 355 1 139 43 32 43 28 28 427
BalonParca AdiParca NoAdetTipApplied Date
1 02.725 LAMP ASM; HEAD 8-98098-479-1 01 1 0907-1208
1 02.725 LAMP ASM; HEAD 8-98225-599-0 01 1 1209-1301
1 02.725 LAMP ASM; HEAD 8-98225-640-0 01 1 1302-1305
1 02.725 LAMP ASM; HEAD 8-98241-325-0 01 1 1306-
1 02.725 LAMP ASM; HEAD 8-98098-480-1 01 1 0907-1208
1 02.725 LAMP ASM; HEAD 8-98225-600-0 01 1 1209-1301
1 02.725 LAMP ASM; HEAD 8-98225-641-0 01 1 1302-1305
1 02.725 LAMP ASM; HEAD 8-98241-326-0 01 1 1306-
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0907-1005
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1006-
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-094-1 01 1 1205-1301
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-070-1 01 1 1302-
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-095-1 01 1 1205-1301
32 02.725 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-071-1 01 1 1302-
32 02.725 LAMP ASM; FOG 8-97378-908-1 01 1 0907-0909
32 02.725 LAMP ASM; FOG 8-98149-143-0 01 1 0910-0910
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0910-1301
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302-
32 02.725 LAMP ASM; FOG 8-97378-909-1 01 1 0907-0909
32 02.725 LAMP ASM; FOG 8-98149-144-0 01 1 0910-0910
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0910-1301
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302-
43 02.736 BOLT; FOG LAMP
01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 0907-0909
43 02.736 BOLT; FOG LAMP
FOG LAMP<T96> 01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 0910-1204
43 02.736 BOLT; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 1205-
139 02.726 COVER; HEADLAMP 8-98034-056-1 02 1 0907-
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0907-0911
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912-
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0907-0911
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912-
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0907-
427 02.587 NUT; TURN SIGNAL LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907-

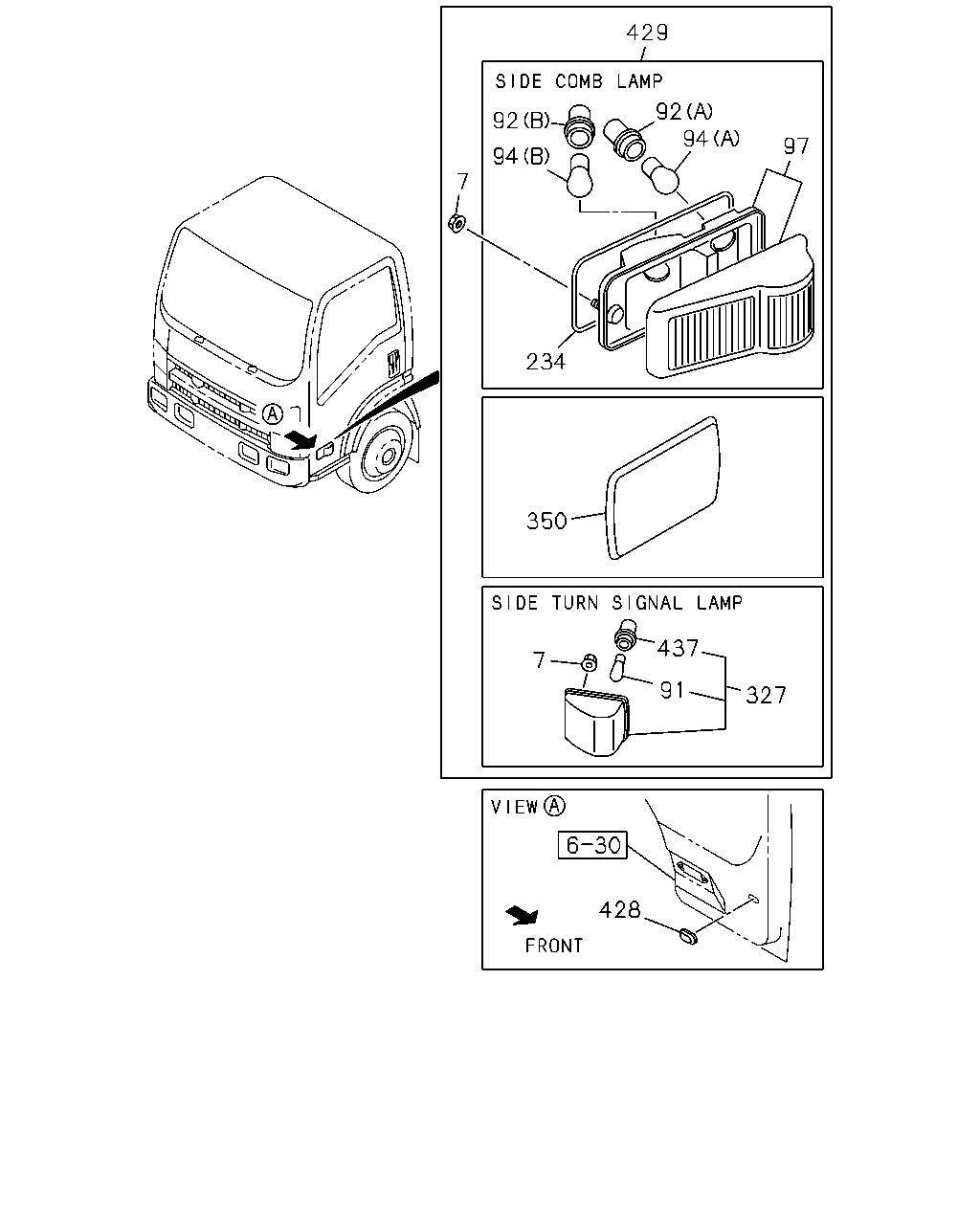

çizim 159788
7 429 92 94 97 234 350 7 437 91 327 428 92 94
BalonParca AdiParca NoAdetTipApplied Date
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907-
91 08.991 BULB; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 24V 21W 		8-98051-495-0 02 1 0910-
92 02.596 SOCKET ASM; SIDE COMB LAMP
02.575 (B) 		8-97172-959-0 02 1 0907-0909
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> 02.575 (B) 		8-97172-959-0 02 1 0910-
92 02.596 SOCKET ASM; SIDE COMB LAMP
(A) 		8-98051-390-0 02 1 0907-0909
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 		8-98051-390-0 02 1 0910-
94 08.991 BULB; SIDE COMB LAMP
(A) 24V 21W 		8-98051-495-0 02 1 0907-0909
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 24V 21W 		8-98051-495-0 02 1 0910-
94 08.991 BULB; SIDE COMB LAMP
(B) 24V 21W 		8-98051-496-0 02 1 0907-0909
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 24V 21W 		8-98051-496-0 02 1 0910-
97 02.895 LAMP UNIT; COMB 8-98051-419-0 01 1 0907-0909
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-419-0 01 1 0910-
97 02.895 LAMP UNIT; COMB 8-98051-420-0 01 1 0907-0909
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-420-0 01 1 0910-
234 02.590 GASKET; SIDE COMB LAMP 8-98051-432-0 02 1 0907-0909
234 02.590 GASKET; SIDE COMB LAMP
CORNERING LAMP<T87> 		8-98051-432-0 02 1 0910-
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-180-4 01 1 0910-
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-181-3 01 1 0910-
350 02.596 COVER; SIDE TURN HOLE
AUSTRALIA EQUIPMENT(B13) 		8-98061-390-0 02 1 0910-1211
350 02.596 COVER; SIDE TURN HOLE
AUSTRALIA EQUIPMENT(B13) EXC. CORNERING LAMP<T87> 		8-98061-390-0 02 1 1212-
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 0907-
429 02.585 LAMP ASM; SIDE COMB 8-98039-776-2 01 1 0907-0909
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-776-2 01 1 0910-
429 02.585 LAMP ASM; SIDE COMB 8-98039-777-2 01 1 0907-0909
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-777-2 01 1 0910-
437 02.596 SOCKET; SIDE,TURN
EXC. CORNERING LAMP<T87> 		8-98051-390-0 02 1 0910-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
